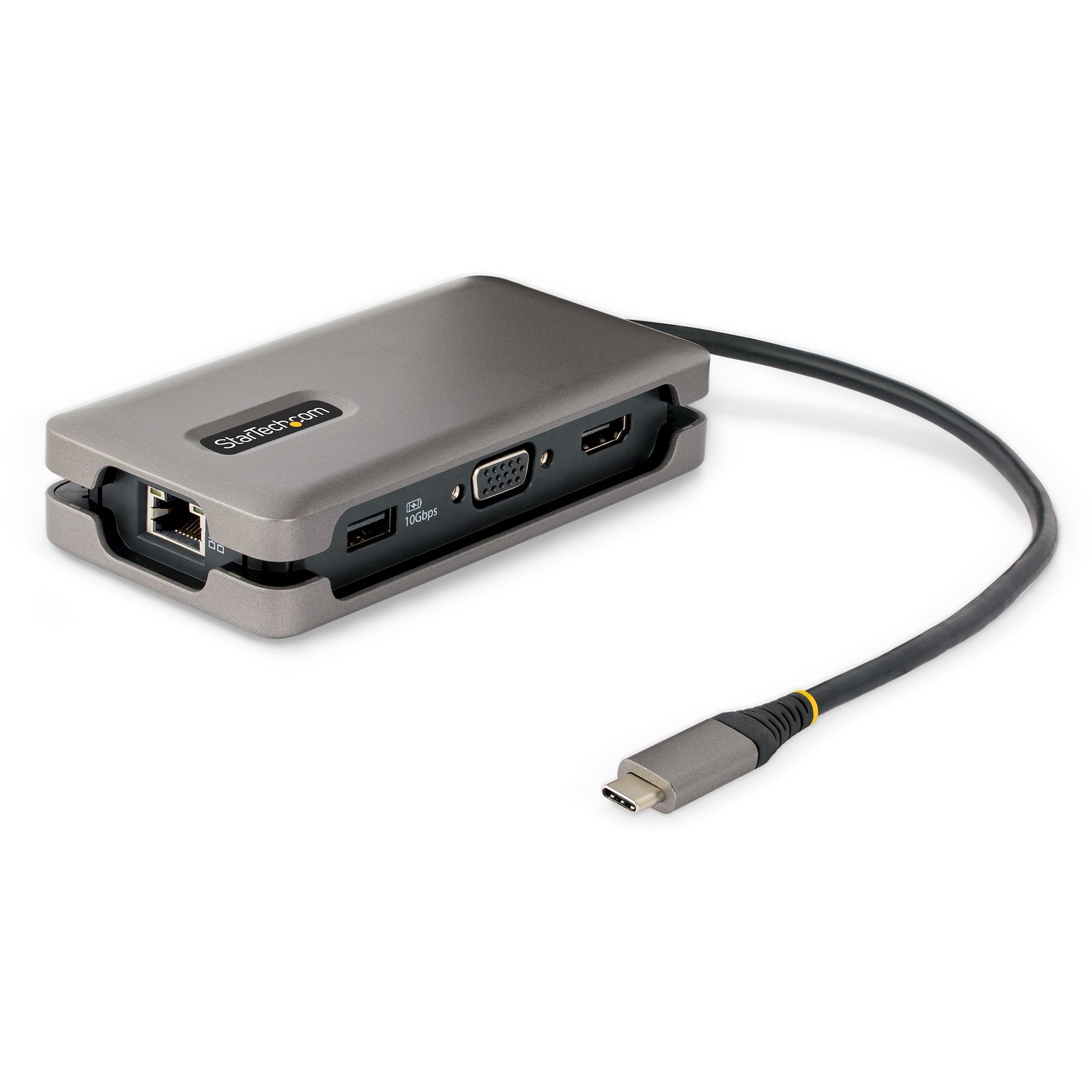

StarTech.com Multiport Adapter HDMI/VGA USB-C Docking Station 100W

One cable, full desk: the StarTech.com Multiport Adapter HDMI/VGA turns your laptop into a workstation with external displays, wired networking, 100W charging over a single USB-C connection.

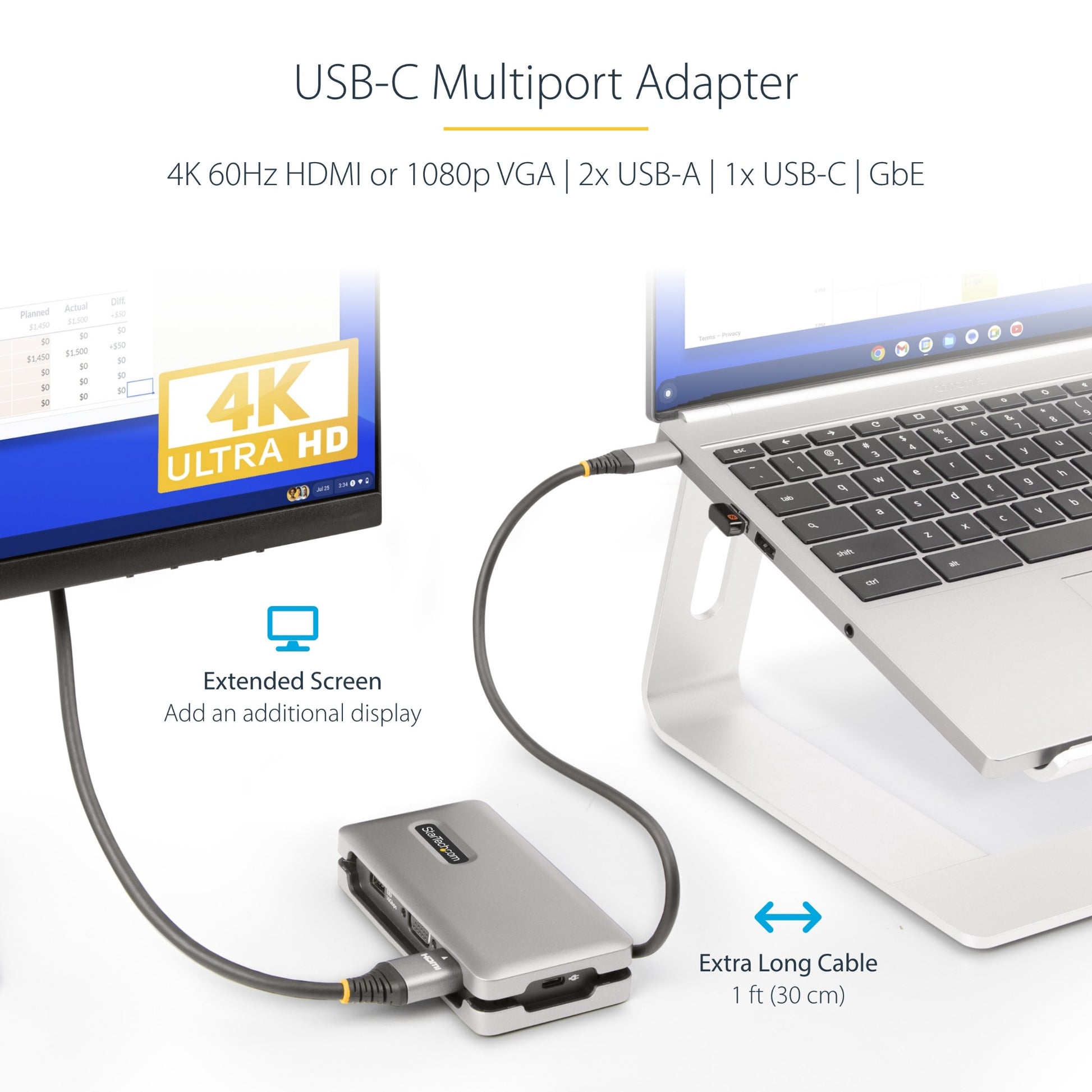

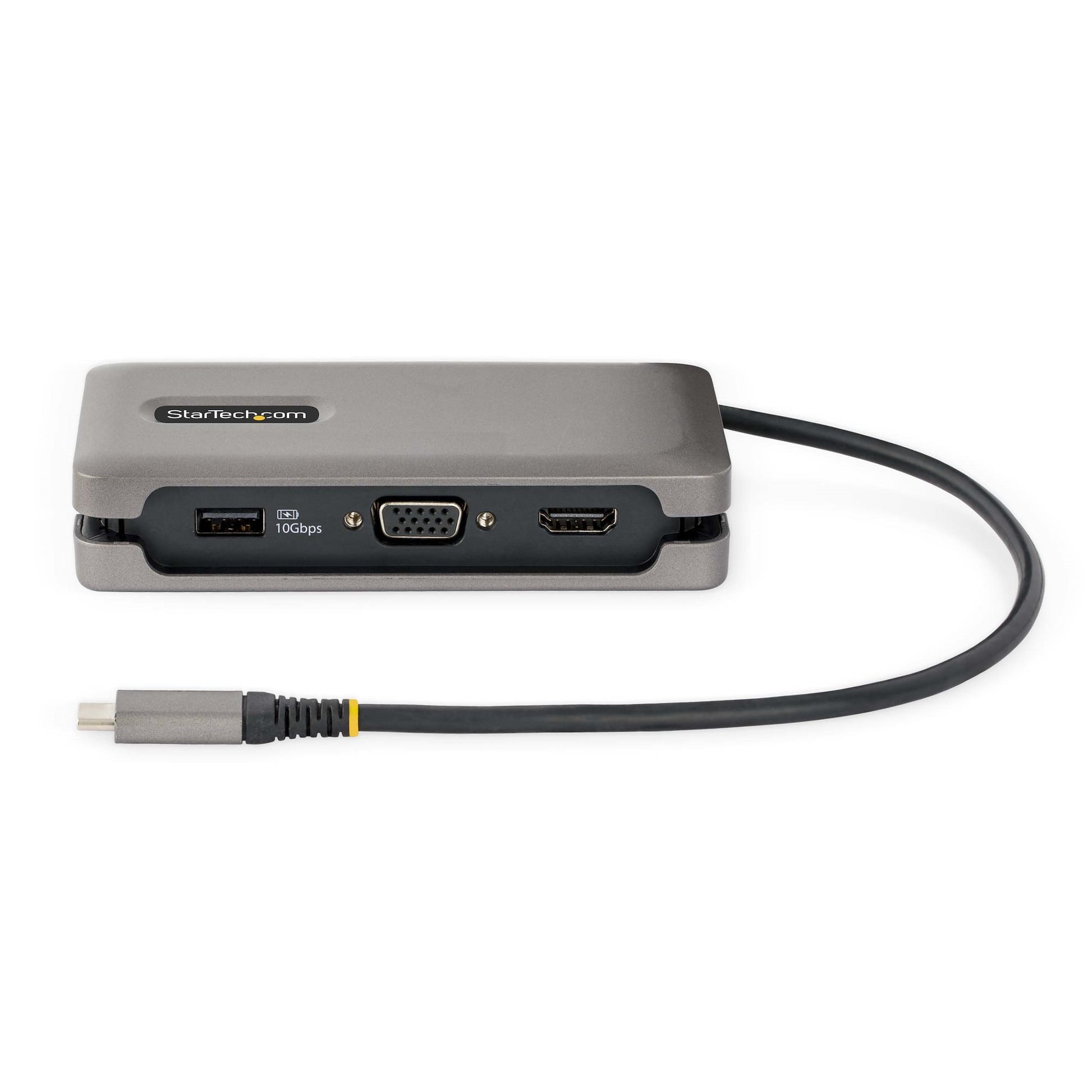

Create a workstation, with a single 4K 60Hz HDMI or 1080p VGA, multiple USB ports, Gigabit Ethernet, and 100W Power Delivery pass-through

Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4™ laptop to enable single-display 4K 60Hz HDMI 2.0b or 1080p 60Hz VGA video output via DP Alt Mode. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.

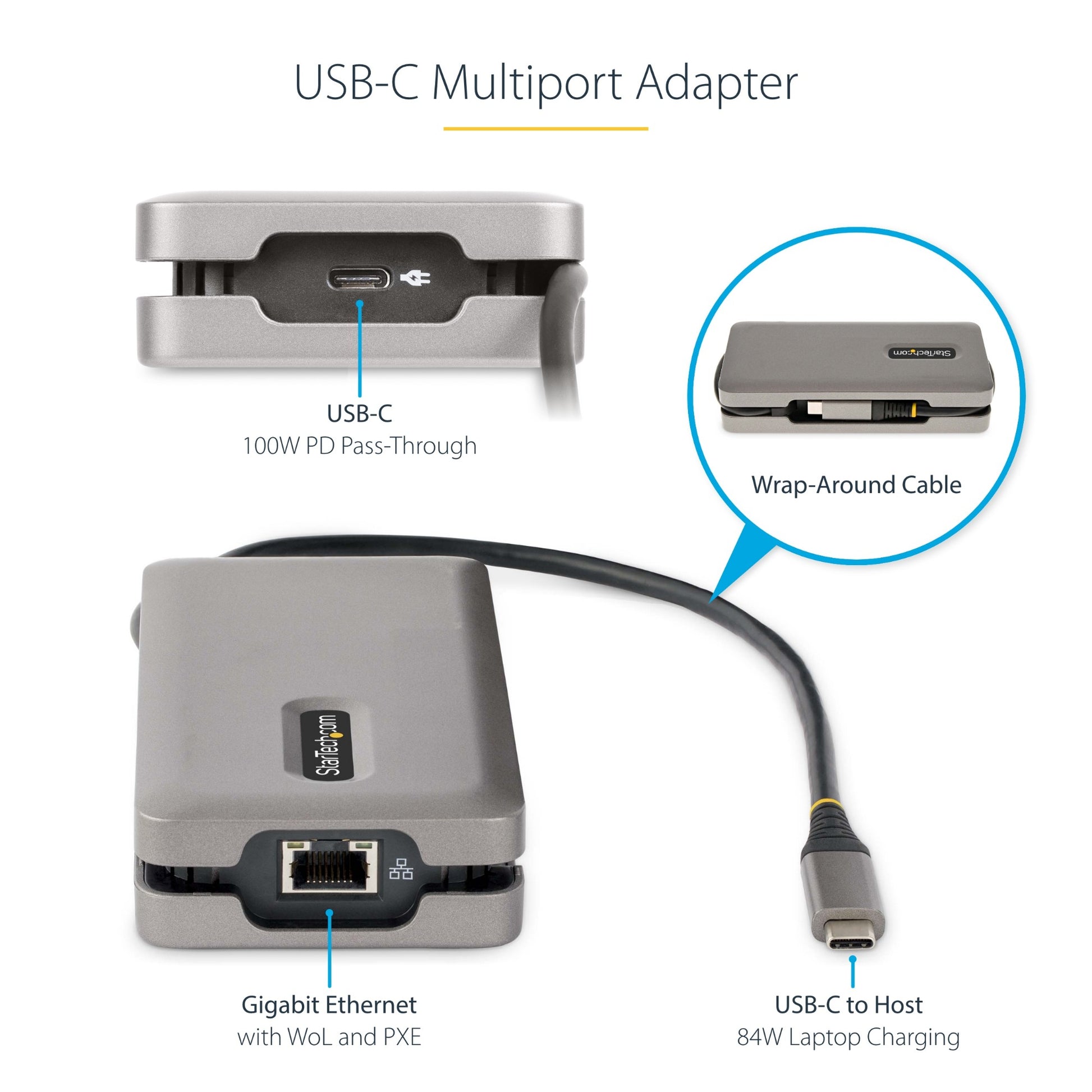

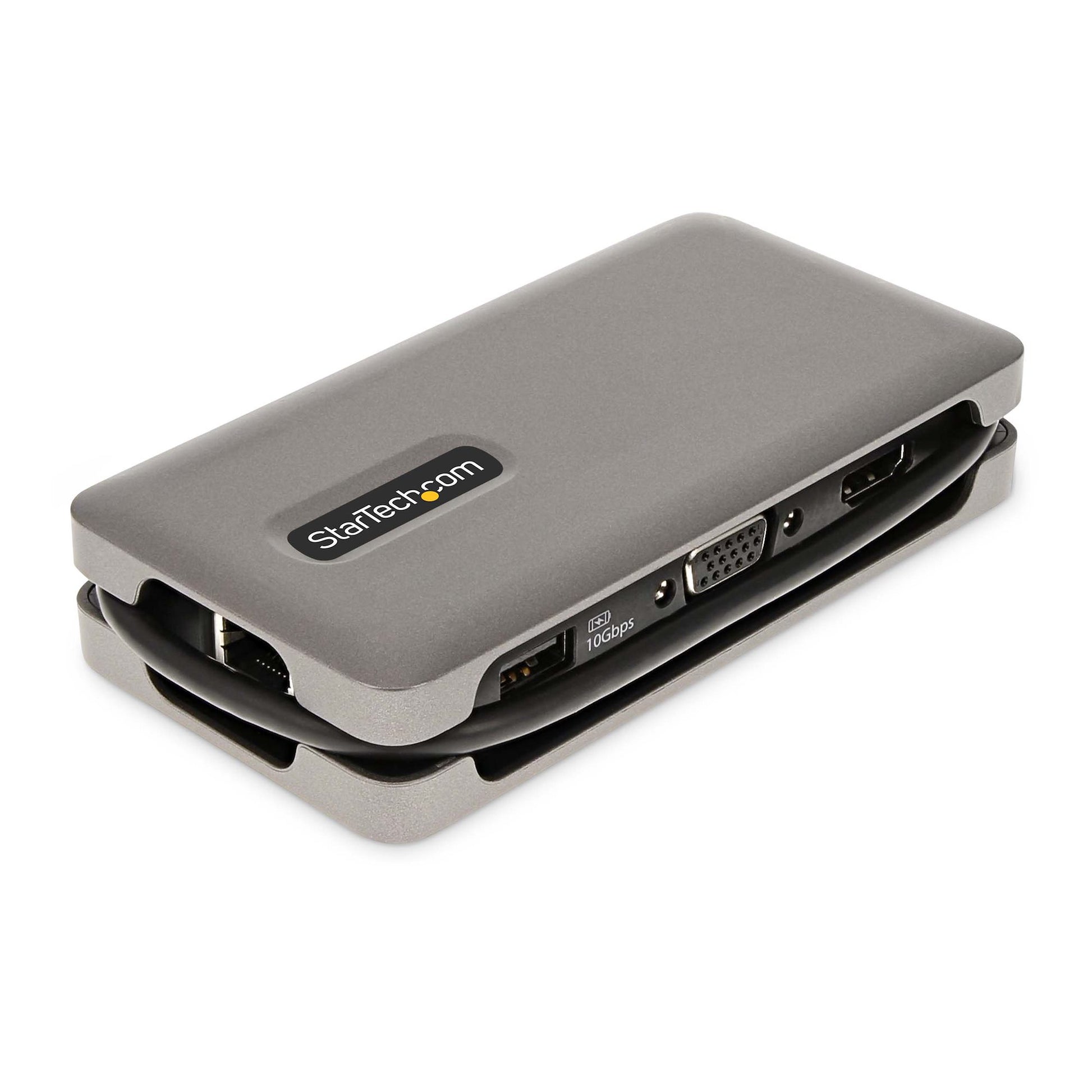

Extra-Long Cable with Built-in Cable Manager

The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.

USB 3.2 Gen 2 Hub

Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports.

Multiple Applications

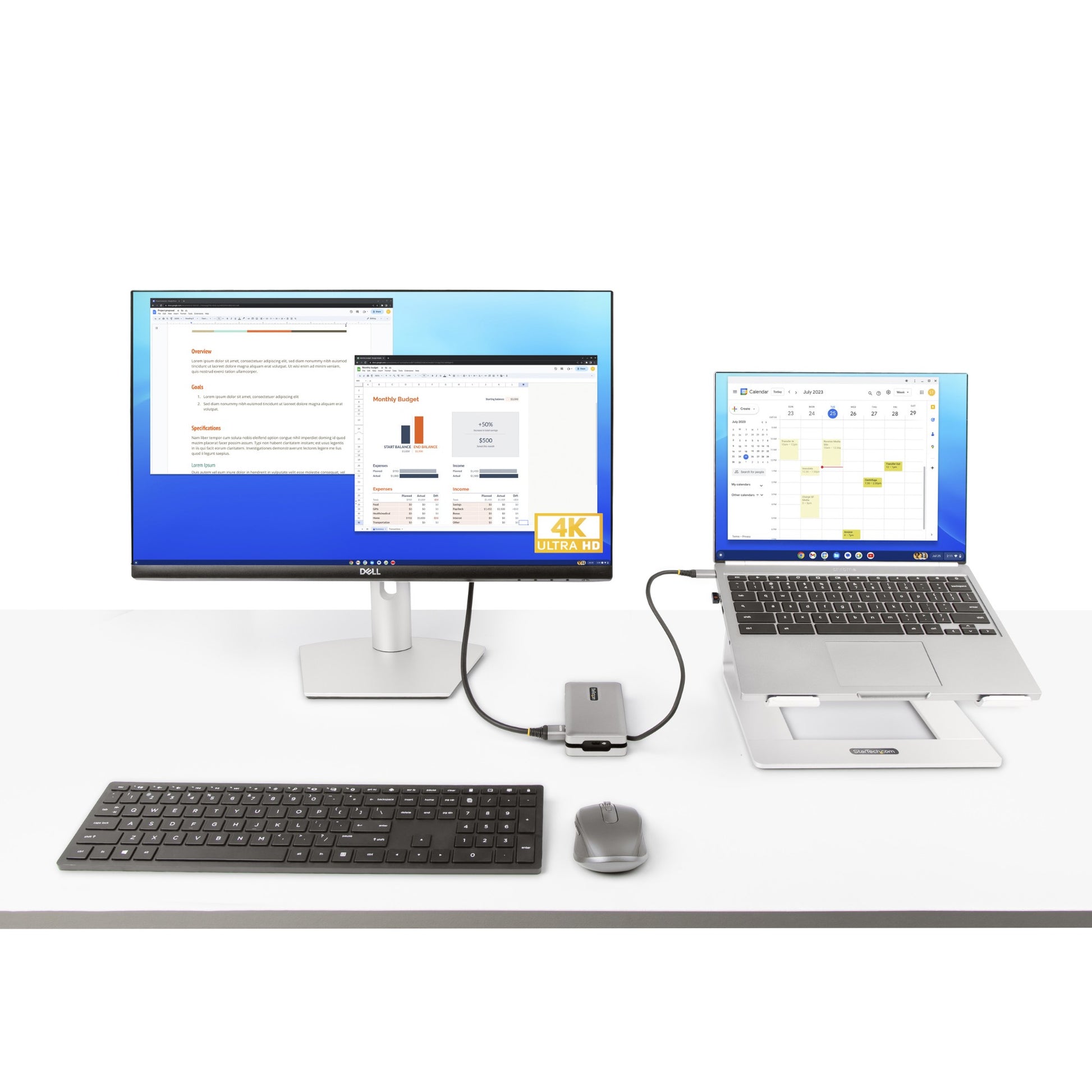

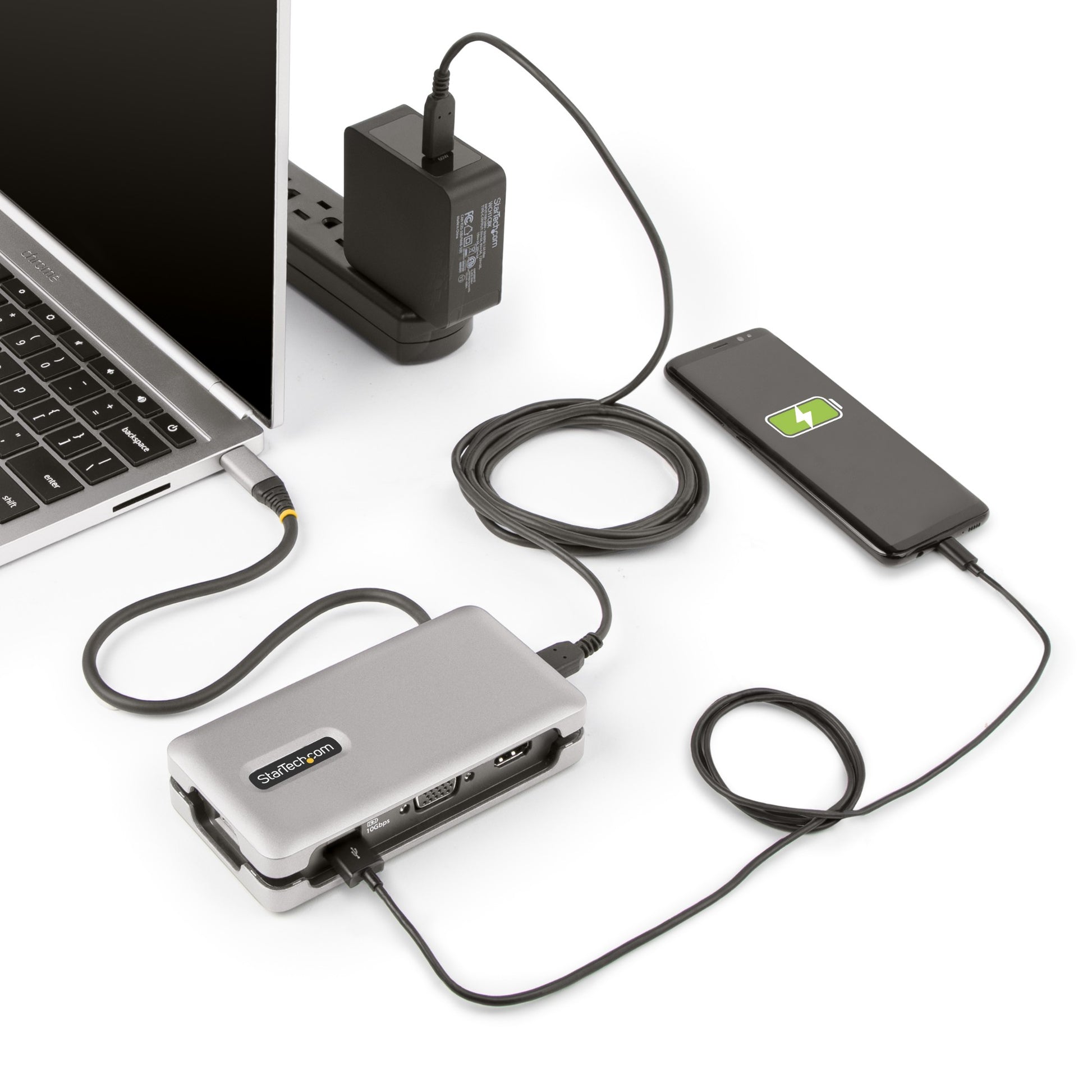

A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

Wired Gigabit Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : Setup and save custom windows layouts.

• MAC Address Pass-Through Utility : Improve network security.

• USB Event Monitoring Utility : Track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enable quick access to wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

This product is backed for 3 years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
Microphone in	No
Headphone outputs	0
DC-in jack	No
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Full duplex	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Maximum analog resolution	1920 x 1200 pixels
Product colour	Grey
Card reader integrated	No
LED indicators	Yes
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Housing material	Plastic
Maximum refresh rate	60 Hz
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Products per master (outer) case	70 pc(s)
Master (outer) case width	473 mm
Master (outer) case length	331 mm
Master (outer) case height	440 mm
Power
Power consumption (typical)	16 W
Wireless charging	No
USB cable length	0.32 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	130 g
Width	64 mm
Depth	124 mm
Height	25 mm
Package weight	154 g
Package width	143 mm
Package depth	173 mm
Package height	33 mm
Packaging content
Quick start guide	Yes
Other features
Chipset	Realtek - RTD2142, Realtek - RTL8153B, VIA - VL822-Q8, VIA - VL103
