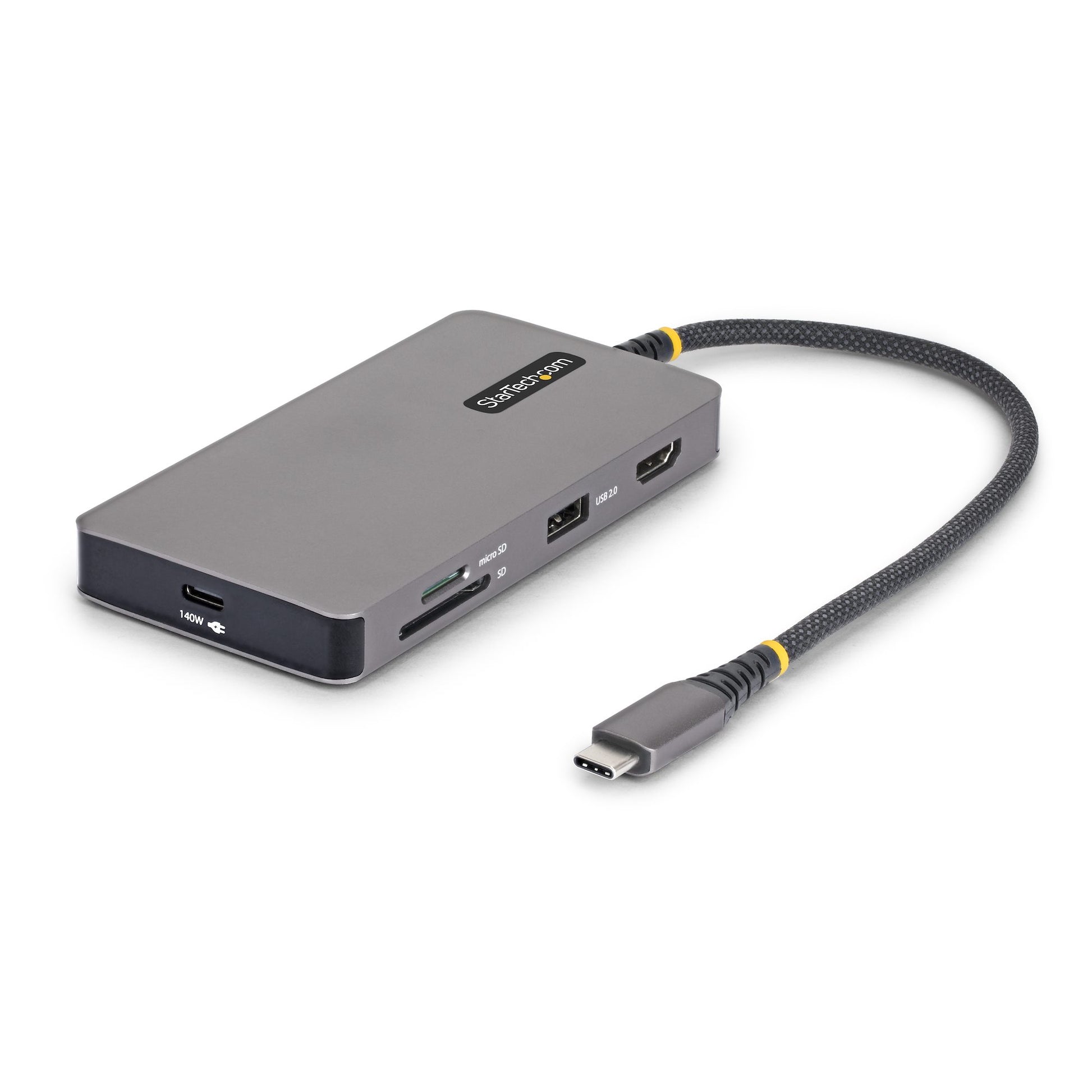

StarTech.com Multiport Adapter 60Hz USB-C Docking Station 140W

One cable, full desk: the StarTech.com Multiport Adapter 60Hz turns your laptop into a workstation with external displays, wired networking, 140W charging over a single USB-C connection.

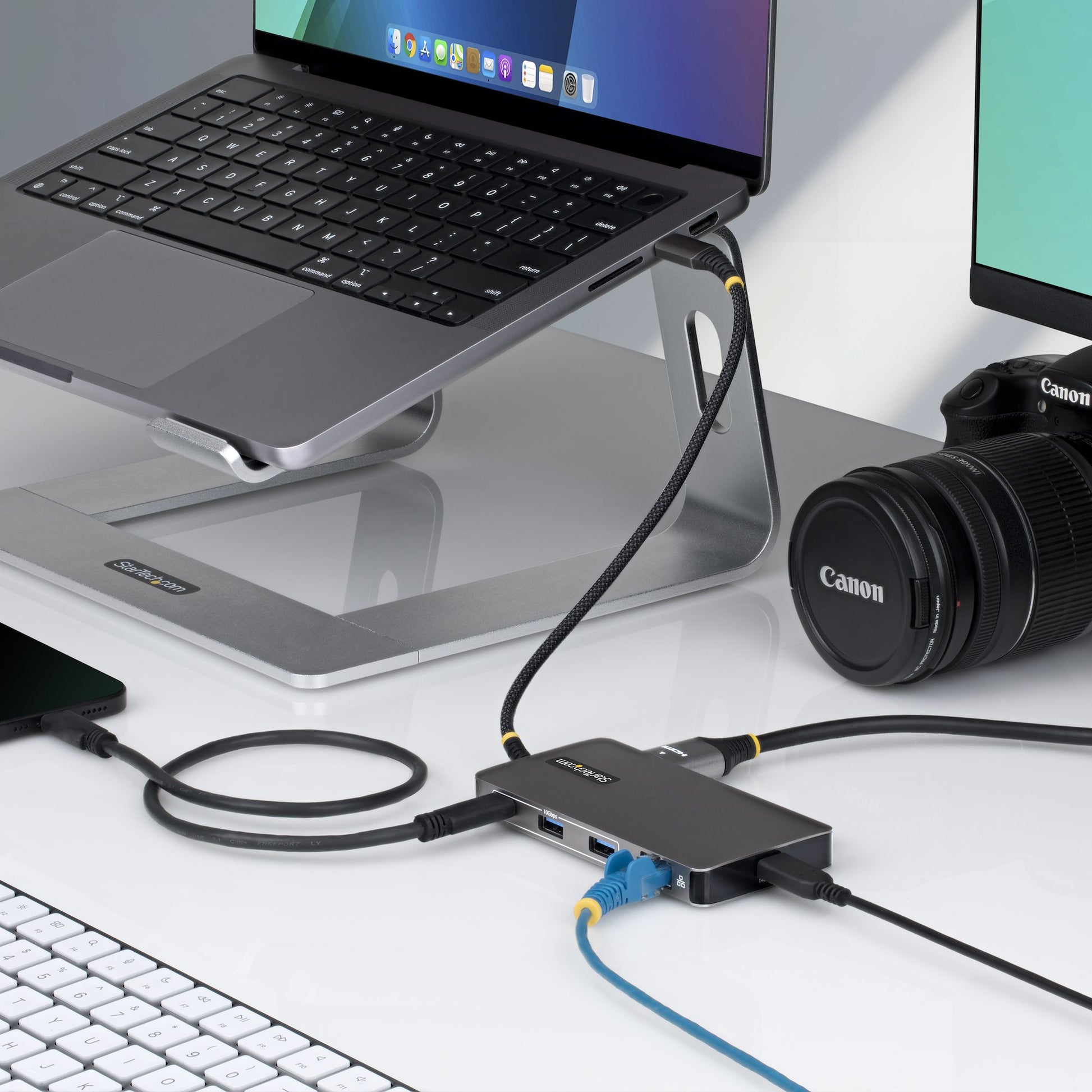

Create a mobile workstation wherever you work

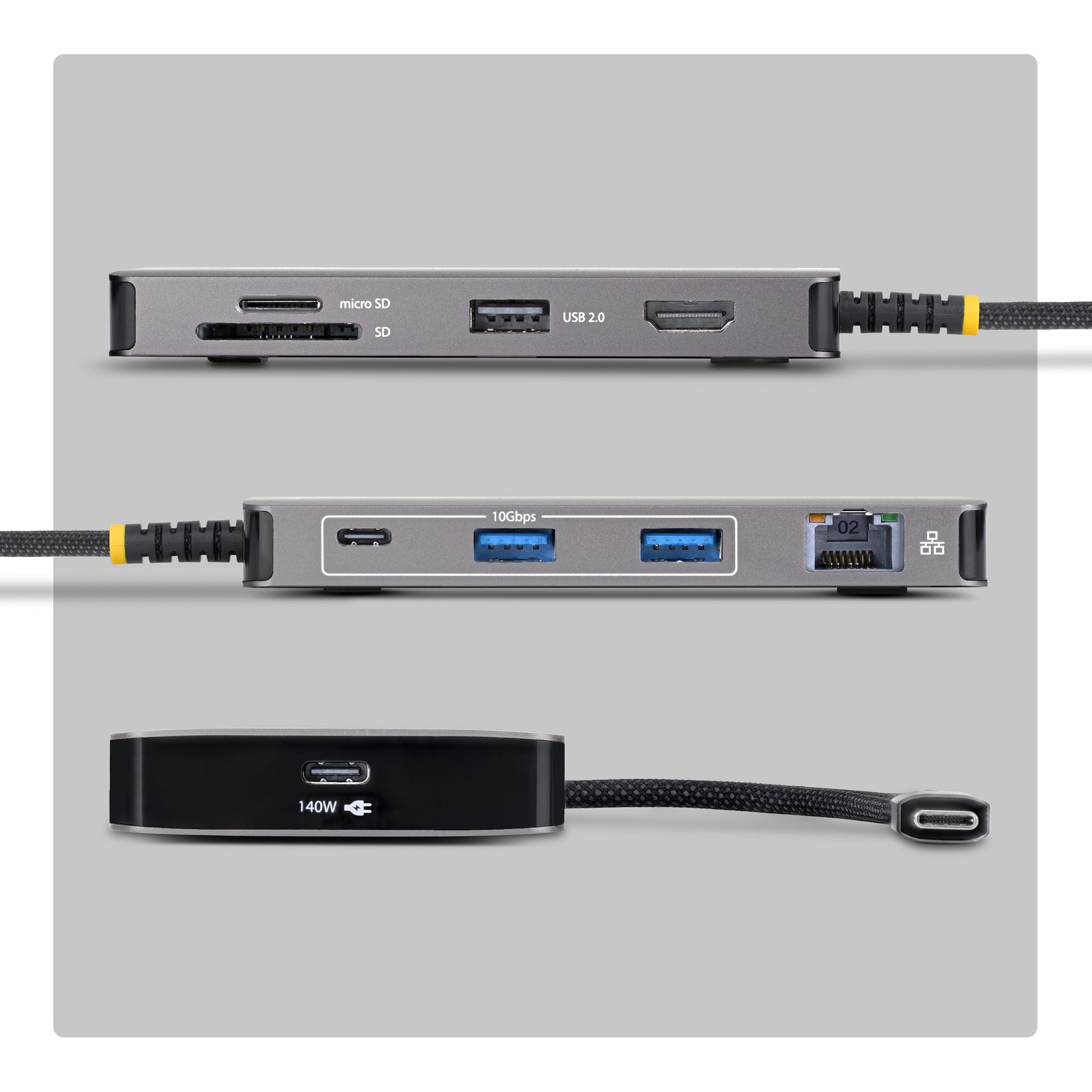

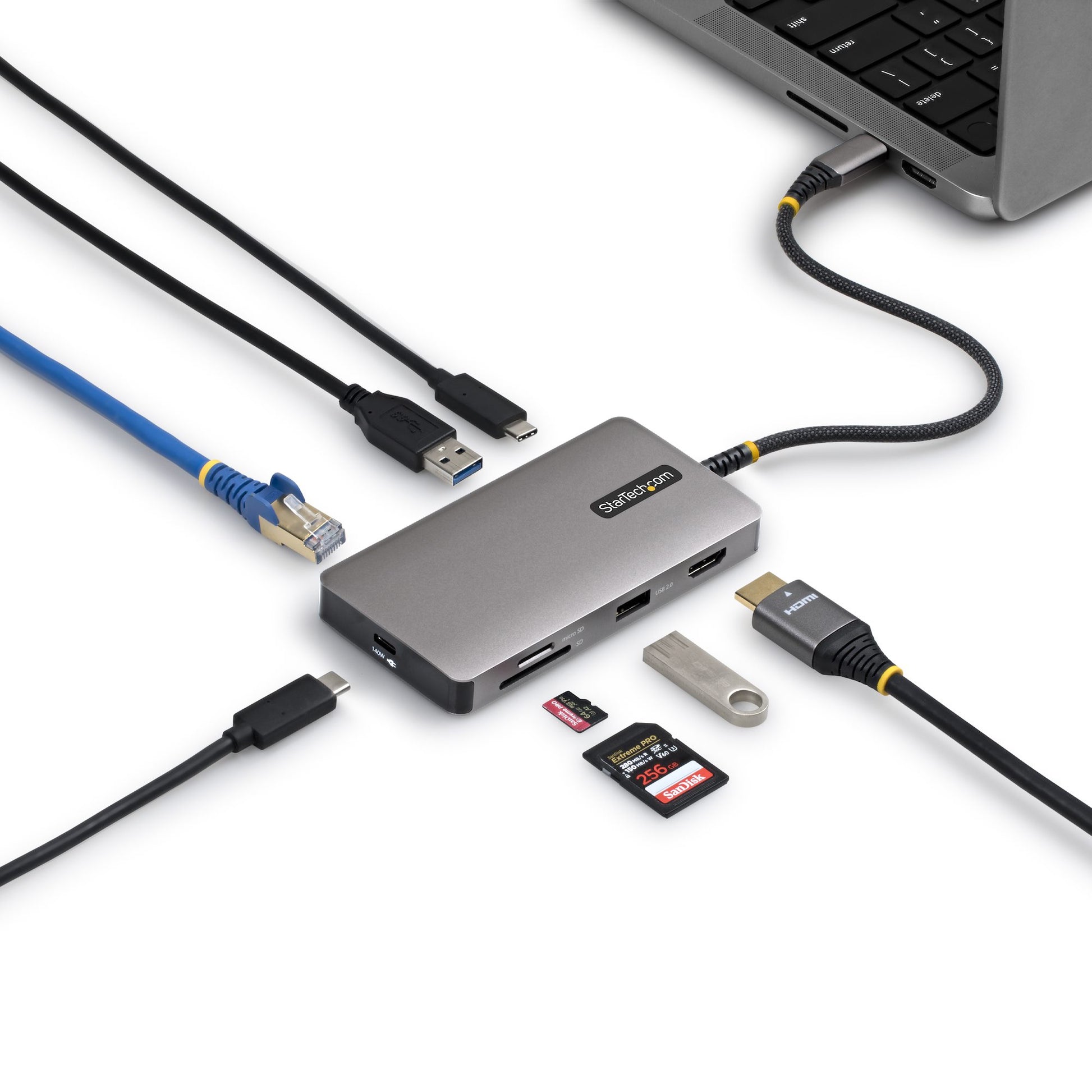

Transform a single USB-C port into a mobile workstation with 4K 60Hz HDMI, 140W USB-C PD passthrough, USB-C and USB-A connectivity, and integrated SD/microSD card readers, with ports on both sides for easier access and a 8-inch (20.3cm) braided tethered cable for flexible, durable use in shared workspaces and travel setups.

Keep High-Performance Systems Powered

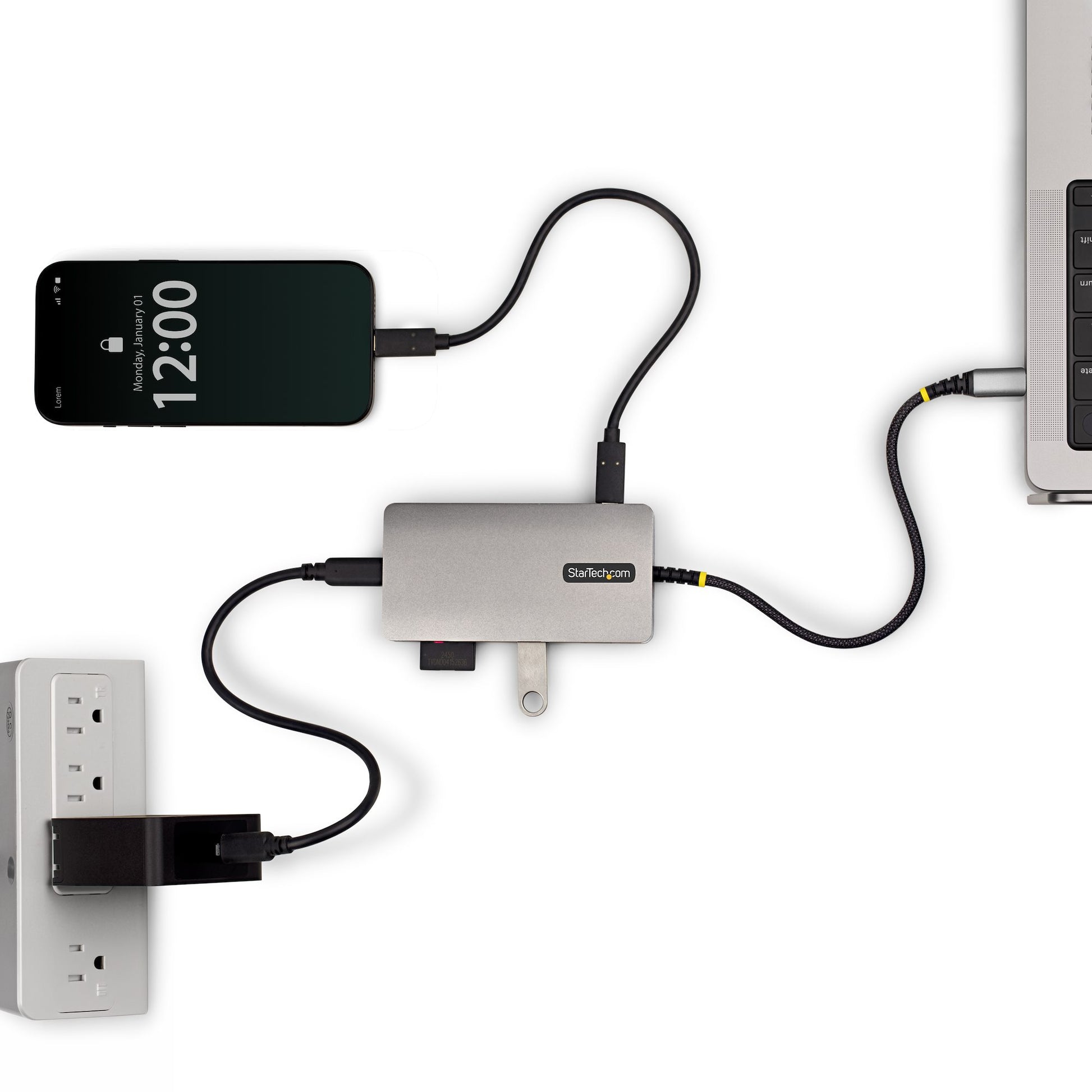

Support demanding workflows with up to 140W USB-C Power Delivery passthrough. Keep AI-ready laptops, mobile workstations, and power-hungry systems running at full capacity while maintaining display and peripheral connectivity through one compact adapter.

Connect More Devices Without Giving Up Ports

Add three USB 10Gbps ports for high-speed storage and accessories, plus a USB 2.0 port for keyboards, mice, or other essential peripherals. Ideal for thin laptops, 2-in-1s, and MacBooks where port availability is limited.

Easy Card Access Anywhere

Integrated SD and microSD 4.0 card readers support simultaneous file transfers to streamline media handling across cameras, mobile devices, and external storage. Eliminate extra adapters and reduce setup time for content creation, field work, and mobile IT environments.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.2
USB Power Delivery up to	140 W
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 Type-C ports quantity	1
Network
Full duplex	Yes
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	100,10,1000 Mbit/s
Performance
UASP support	Yes
Maximum digital resolution	3480 x 2160 pixels
Number of displays supported	1
Product colour	Grey
Card reader integrated	Yes
LED indicators	Network
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium
Mean time between failures (MTBF)	31195 h
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
User guide	Yes
Products per master (outer) case	60 pc(s)
Master (outer) case width	530 mm
Master (outer) case length	330 mm
Master (outer) case height	310 mm
Power
Output voltage	5 V
USB cable length	0.203 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1
Mac operating systems supported	Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe
Linux operating systems supported	Ubuntu 20.04 LTS, Ubuntu 22.04, Ubuntu 22.04 LTS, Ubuntu 24.04 LTS
Mobile operating systems supported	iPadOS, iOS
Operational conditions
Operating temperature (T-T)	0 - 32 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Weight	100 g
Width	59 mm
Depth	115 mm
Height	14 mm
Package weight	187 g
Package width	190 mm
Package depth	110 mm
Package height	19 mm
Other features
Chipset	Parade - PS188, VIA - VL822, Genesys Logic - GL3231S, Realtek - RTL8153E

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
