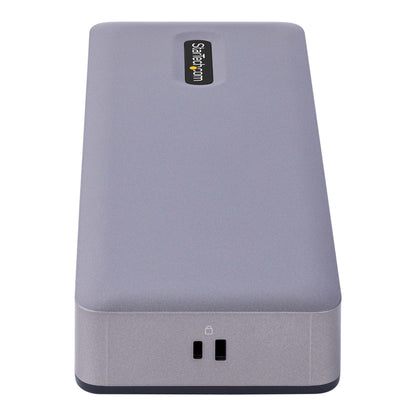

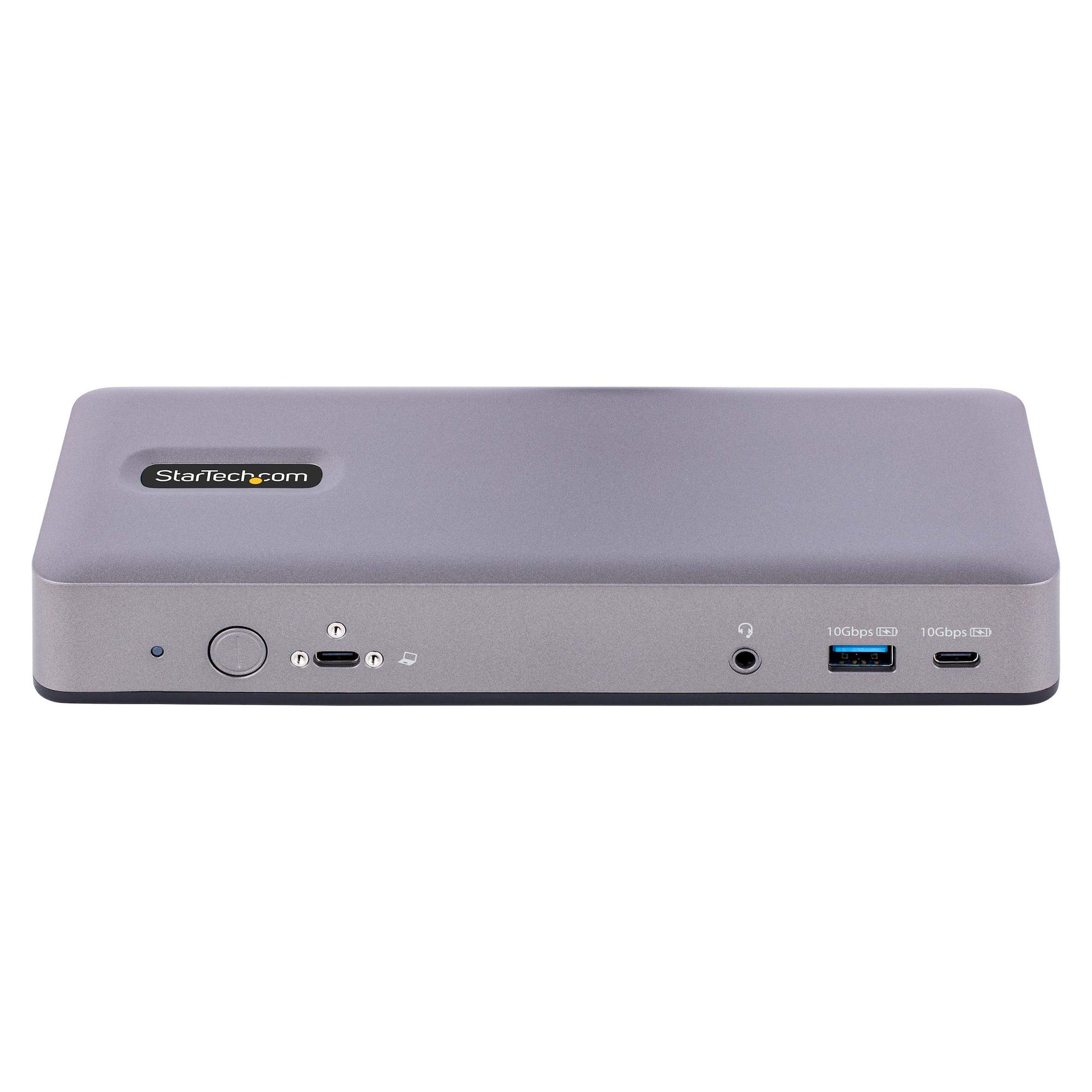

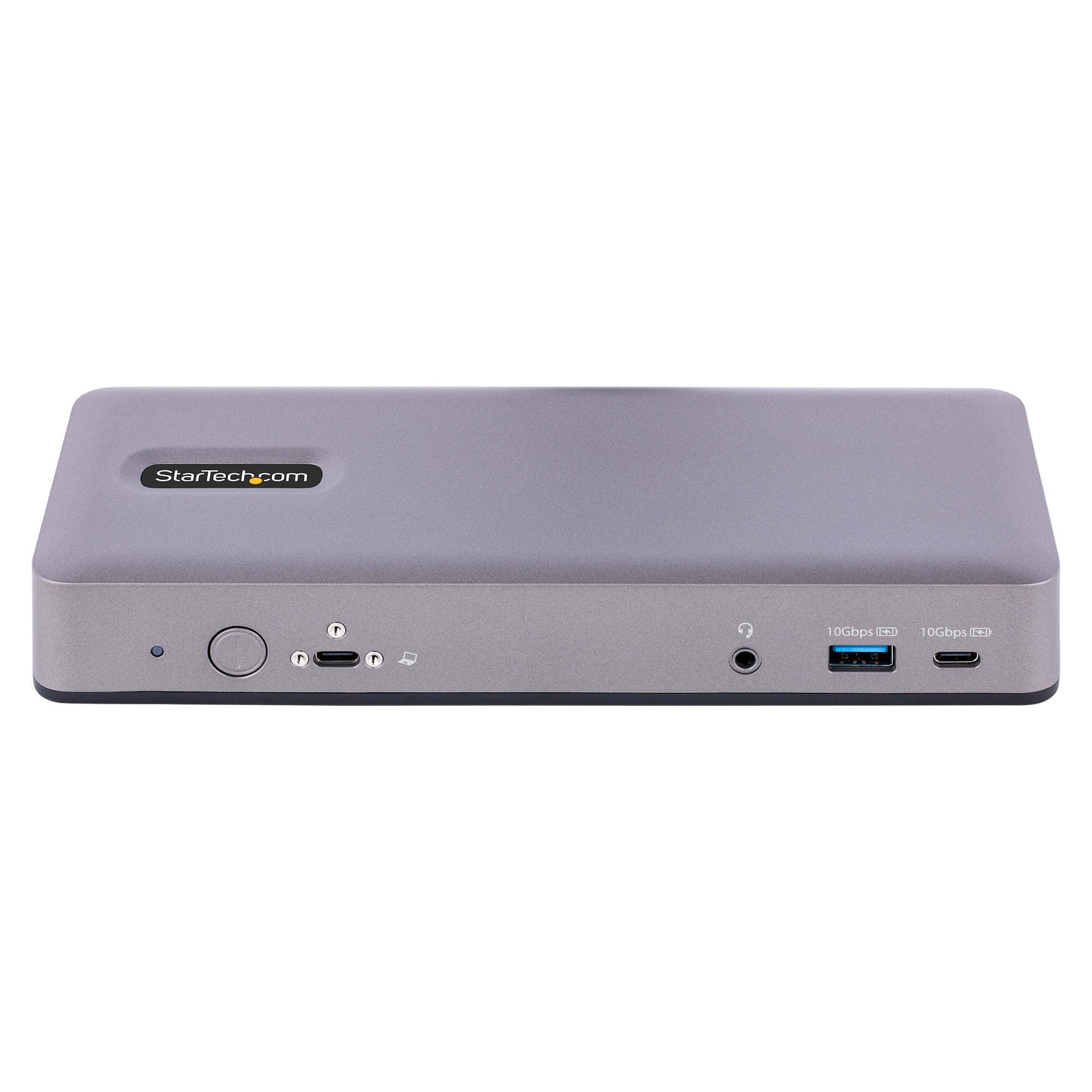

StarTech.com Multi Monitor HDMI/DP/DP USB-C Docking Station 60W

One cable, full desk: the StarTech.com Multi Monitor HDMI/DP/DP turns your laptop into a workstation with external displays, wired networking, 60W charging over a single USB-C connection.

USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE

Connect a USB Type-C/Thunderbolt™ 4 enabled Chromebook and a combination of DisplayPort and HDMI monitors to this USB-C Docking Station. This dock supports Chromebooks and Ultra HD 4K monitors. The 3.3ft (1m) USB-C Screw Lock to USB-C Cable ensures a secure connection to the dock and host device.

Works With Chromebook (WWCB) certified

This USB-C Docking Station is tested and certified to meet Google's compatibility standards. The certification ensures seamless operation with Chromebook devices. This is the ideal dock to deploy in business and education environments. Automatic firmware updates are available through ChromeOS for maximum security, compatibility, and performance.

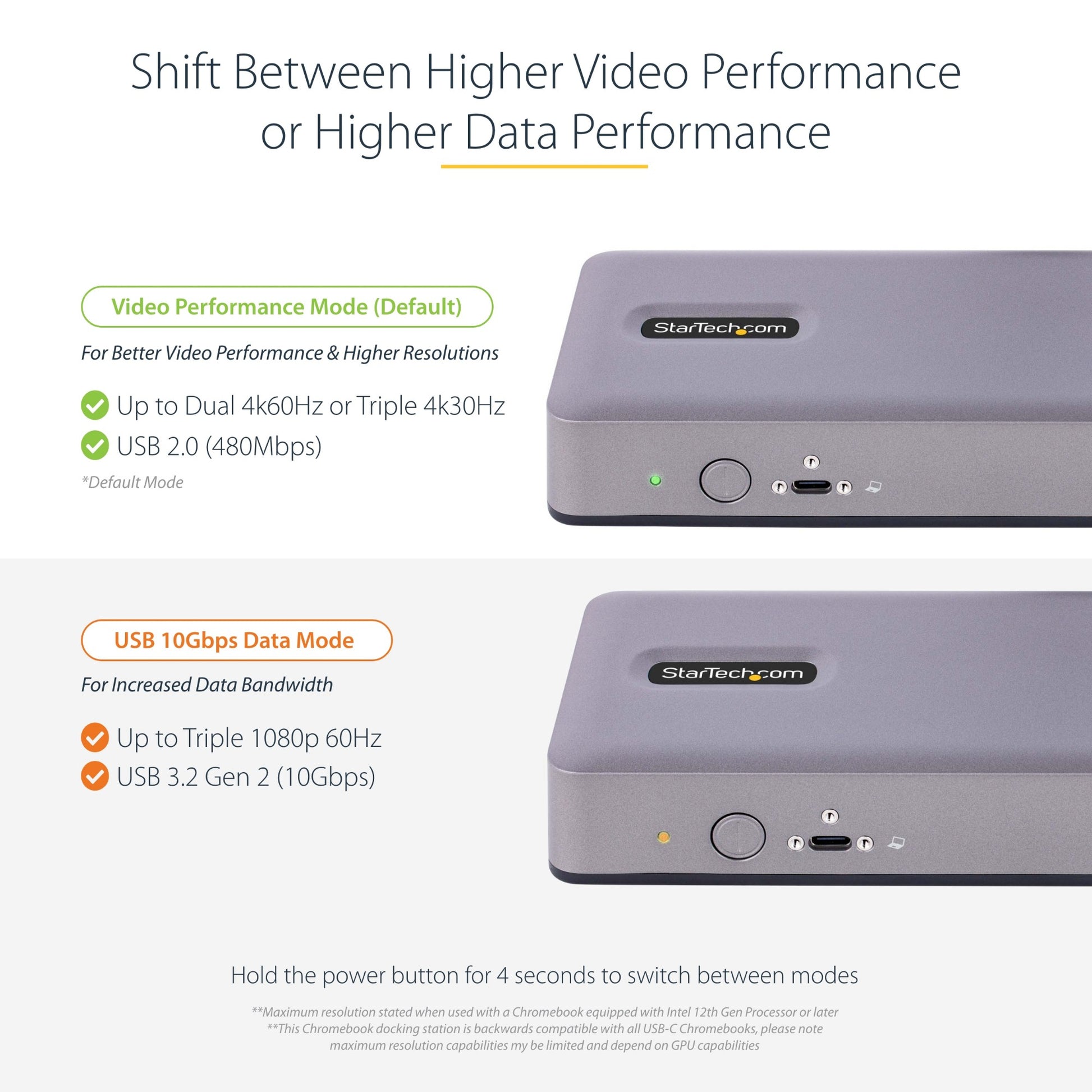

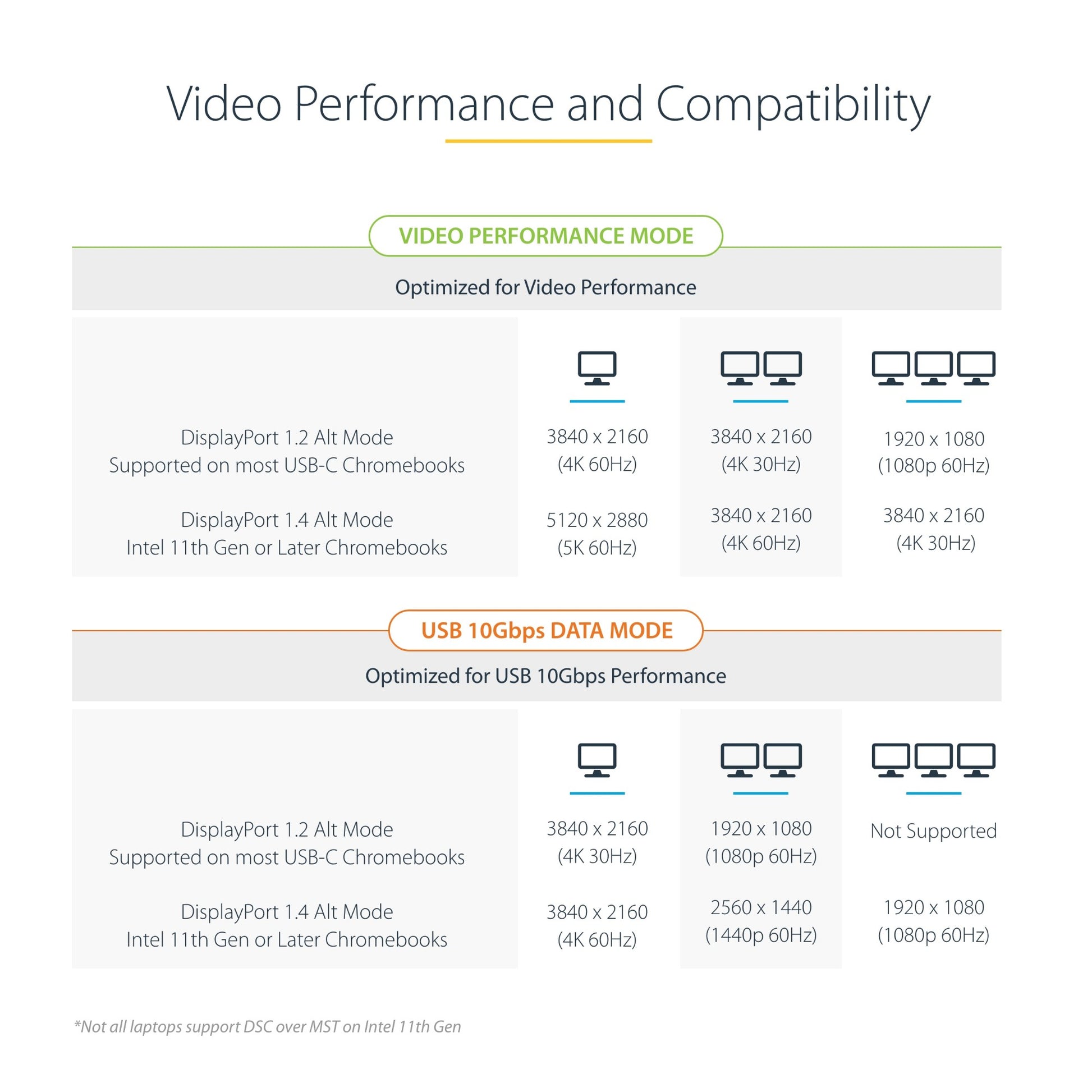

Enhance Productivity with Triple-4K Video

Connect a combination of one USB-C DP Alt Mode, one HDMI, and/or up to two DisplayPort monitors to the Video 1 and Video 2 Ports and connect one HDMI monitor to the Video 3 Port for a triple-monitor setup at 4K 30Hz, and features up to 4K 60Hz. High-resolution video performance is vital for applications involving detailed graphics, enhancing workplace productivity by expanding the display capabilities of Chromebook devices.

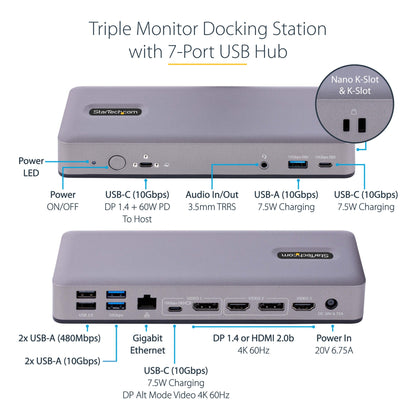

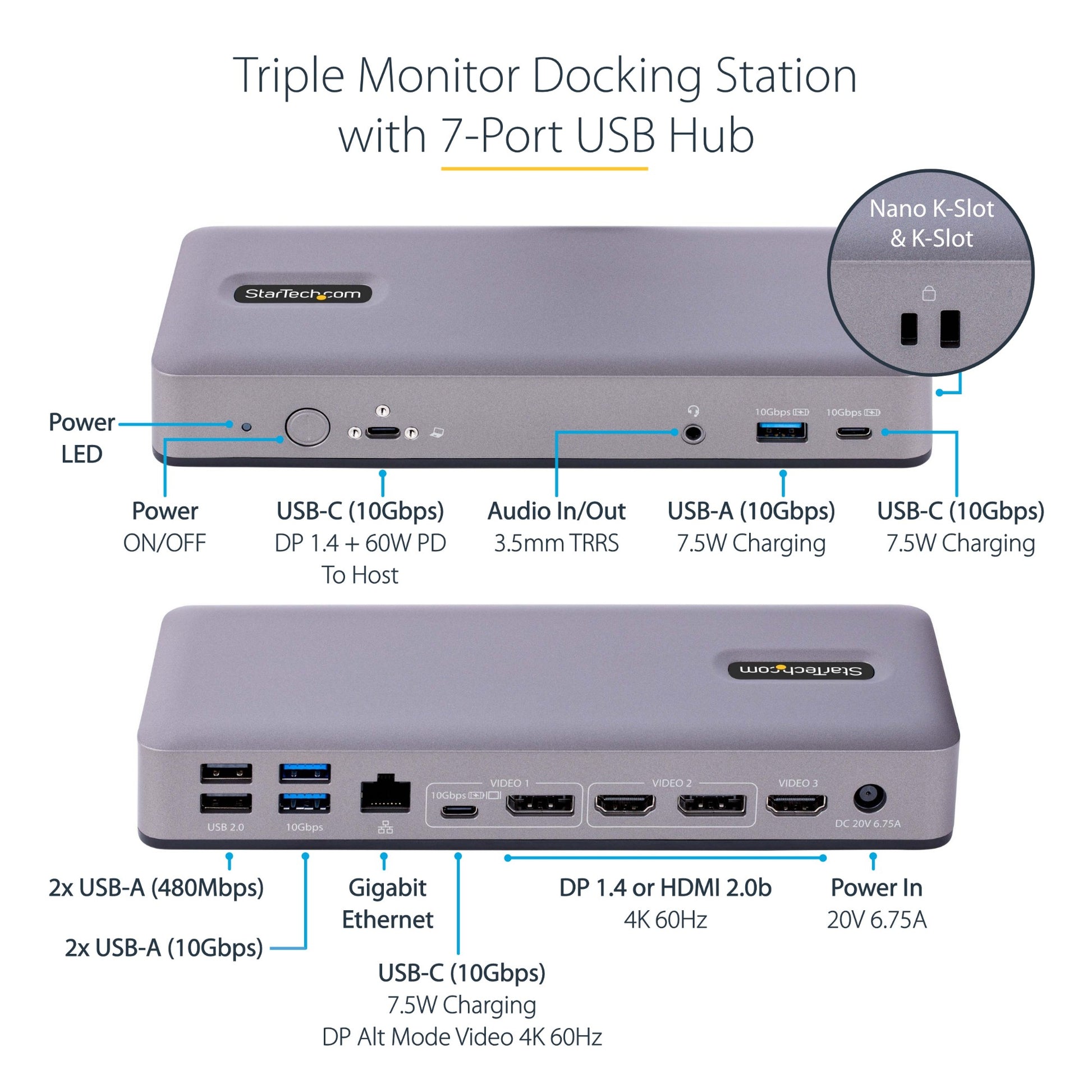

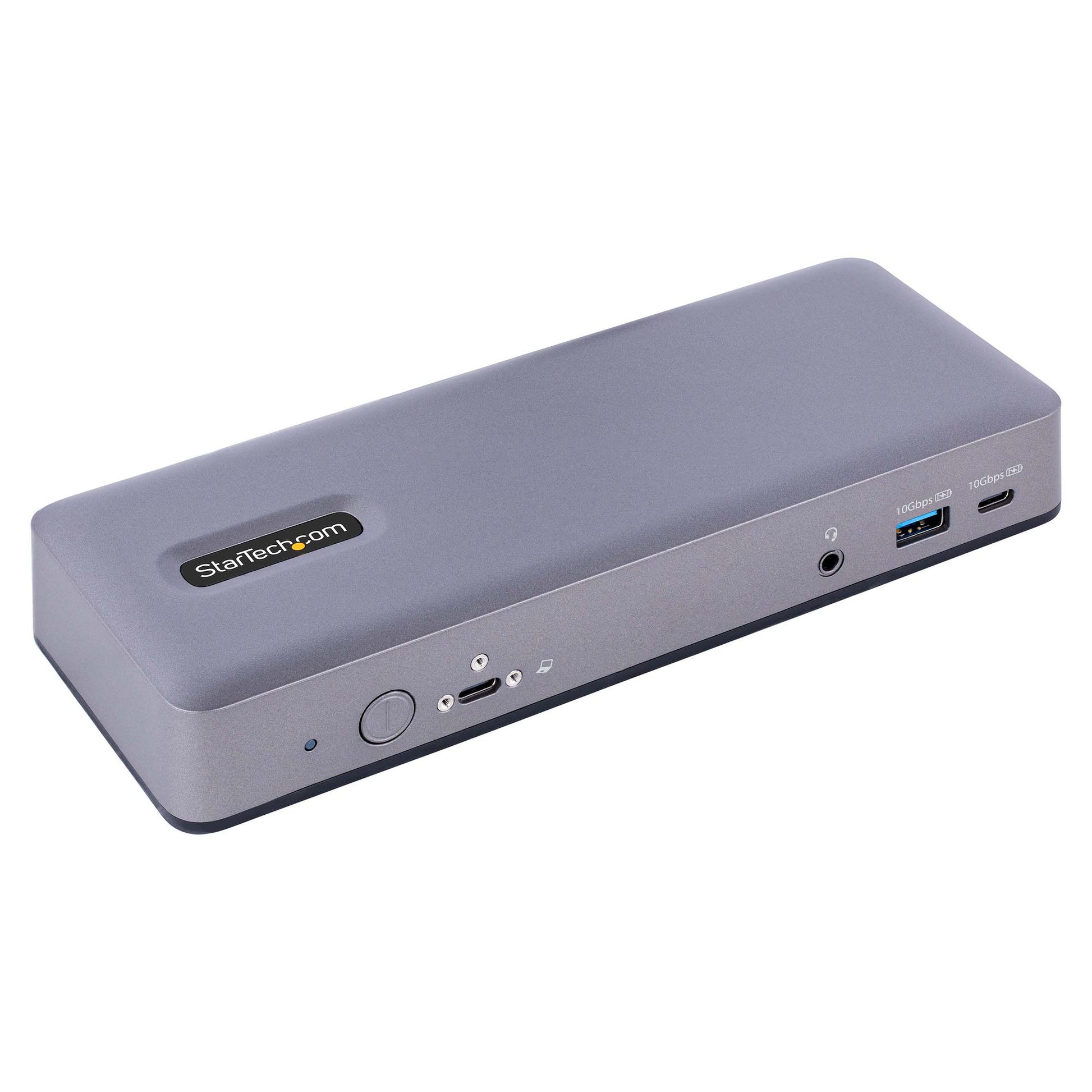

Works With Chromebook Docking Station Features

Connect the docking station to a Chromebook's USB Type-C/Thunderbolt™ 4 port to enable a variety of connectivity options and features.

• 3x USB-A ports with support for USB 10Gbps - one 1.5A charging port
• 2x USB-A ports with support for High-Speed 2.0 (480 Mbps) ports for USB-peripheral devices
• 2x USB-C ports with support for USB 10Gbps and Type-C data and 1.5A charging port, Video 1 Port (DP Alt Mode)
• 1x Gigabit Ethernet port
• 1x 3.5mm Audio Jack 4-pole TRRS for a 3.5mm headset
• 2x Kensington Security Lock Slots

60W USB Power Delivery 3.0

The USB-C Docking Station supports 60W USB Power Delivery, using the universal power adapter.

This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

This product works with devices capable of running the latest version of ChromeOS and has been certified to meet Google's compatibility standards. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook and the Works With Chromebook badge are trademarks of Google LLC. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. Thunderbolt™ is trademark of Intel.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0b
DisplayPorts quantity	2
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	60 W
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	5120 x 2880 pixels
Card reader integrated	No
Cable lock slot	Yes
LED indicators	Network, Power
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
HD type	5K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	310 mm
Master (outer) case length	480 mm
Master (outer) case height	314 mm
Power
Input current	2.37 A
Compatible power plug types	EU, UK
AC input voltage	100 - 240 V
Power consumption (typical)	135 W
Output voltage	20 V
Output current	6.75 A
Wireless charging	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	80 mm
Depth	210 mm
Height	32 mm
Package width	147 mm
Package depth	297 mm
Package height	90 mm

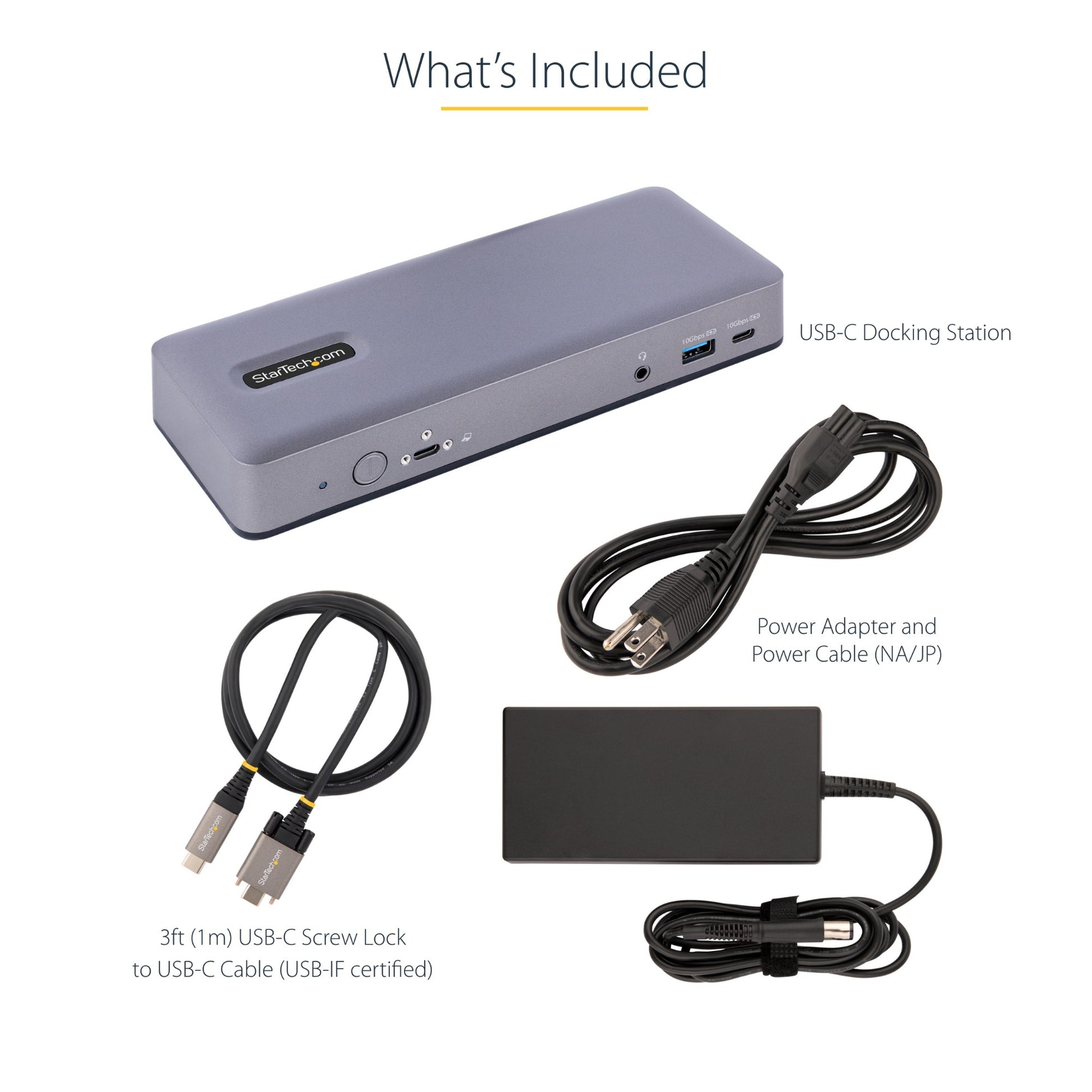

Packaging content
Quick start guide	Yes
Cables included	USB Type-C to USB Type-C
AC adapter included	Yes
Other features
Chipset	Synaptics - VMM5320, Realtek -RTS5420, Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822 Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B

Downloads

• Datasheet (PDF)
