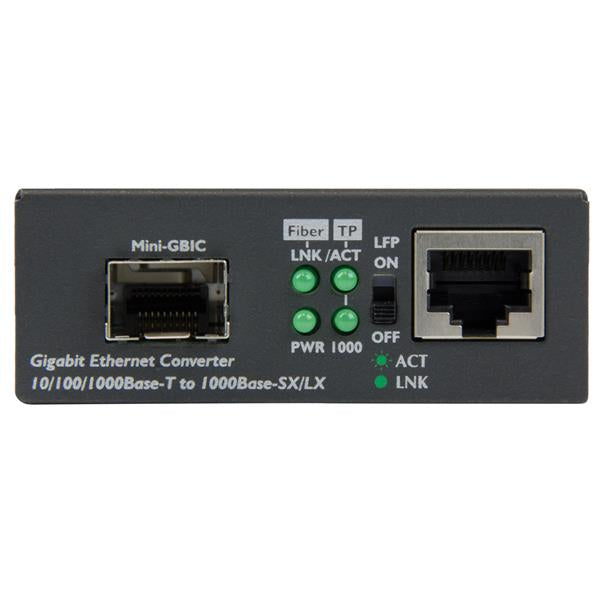

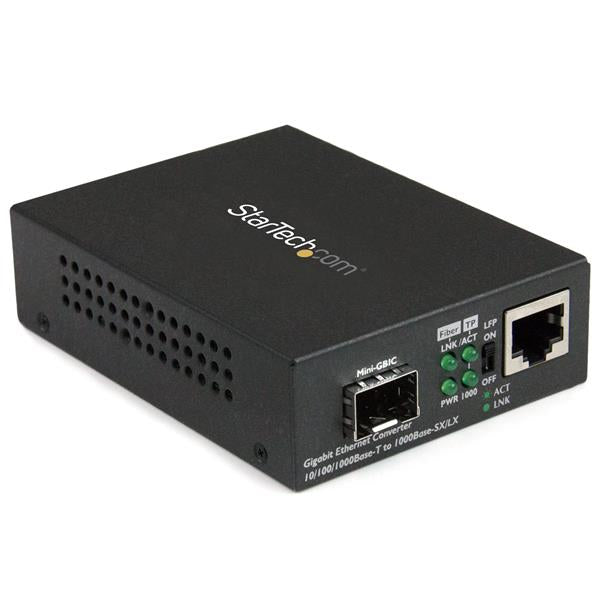

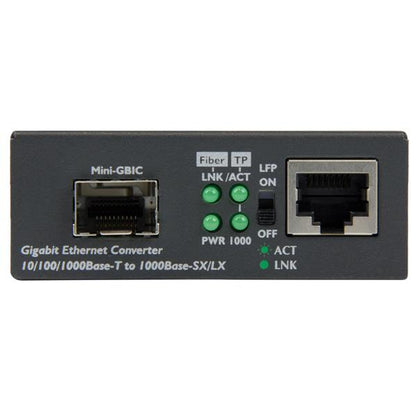

StarTech.com Multi-Mode (MM) / Single Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot - TAA Networking

The StarTech.com Multi-Mode (MM) / Single Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot - TAA is a dependable addition to any modern network installation.

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

Specifications

Network
Jumbo frames support	Yes
Converter input interface	1000Base-T, 100Base-TX, 10Base-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	SFP
Performance
Wavelength-division multiplexing (WDM)	Yes
Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	50000 h
Features
Housing material	Steel
LED indicators	Activity, Link, Power
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1

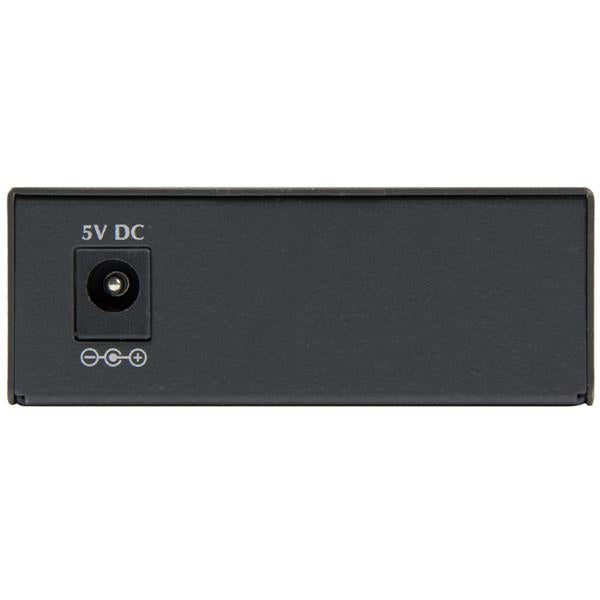

DC-in jack	Yes
Power
Power plug type	Type N
Power over Ethernet (PoE)	No
Input voltage	100 - 240 V
Input current	1 A
Output voltage	5 V
Output current	2 A
Power consumption (typical)	5 W

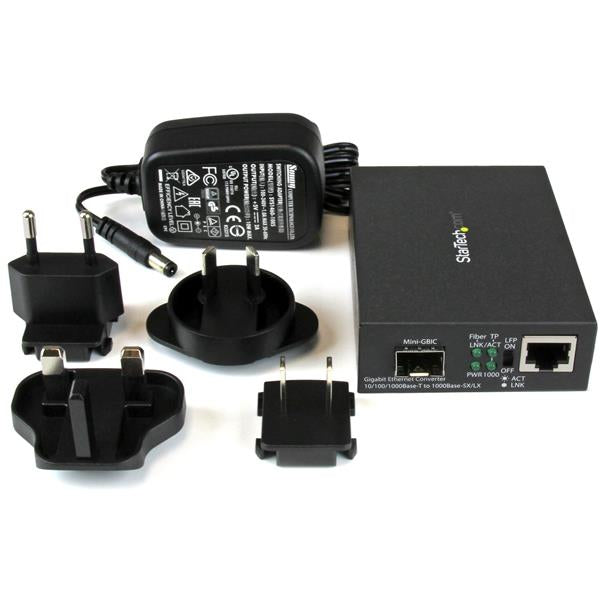

External power adapter	Yes
Weight & dimensions
Width	70 mm
Depth	95 mm
Weight	185 g
Height	26 mm
Package depth	139 mm
Package width	285 mm
Package height	69 mm
Package weight	544 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Manual	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Design
Certification	CE, FCC
Logistics data
Master (outer) case width	590 mm
Master (outer) case length	370 mm
Master (outer) case height	311 mm
Products per master (outer) case	20 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
