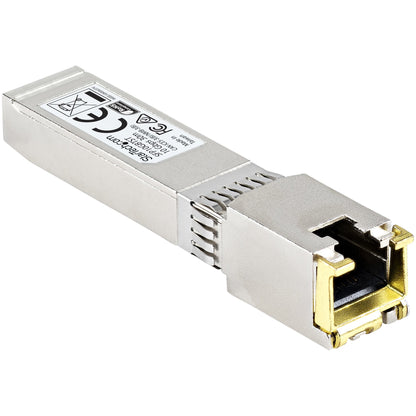

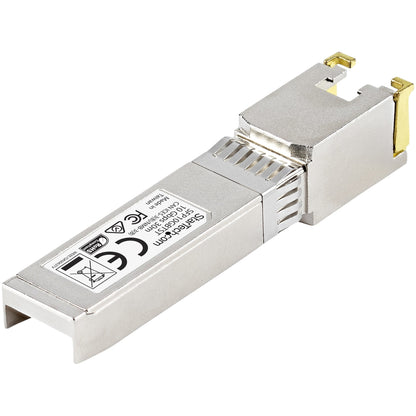

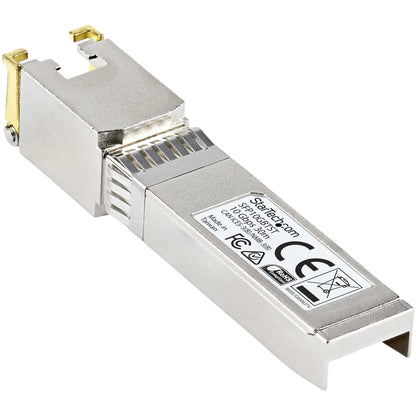

StarTech.com MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m Networking

The StarTech.com MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m is a dependable addition to any modern network installation.

10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

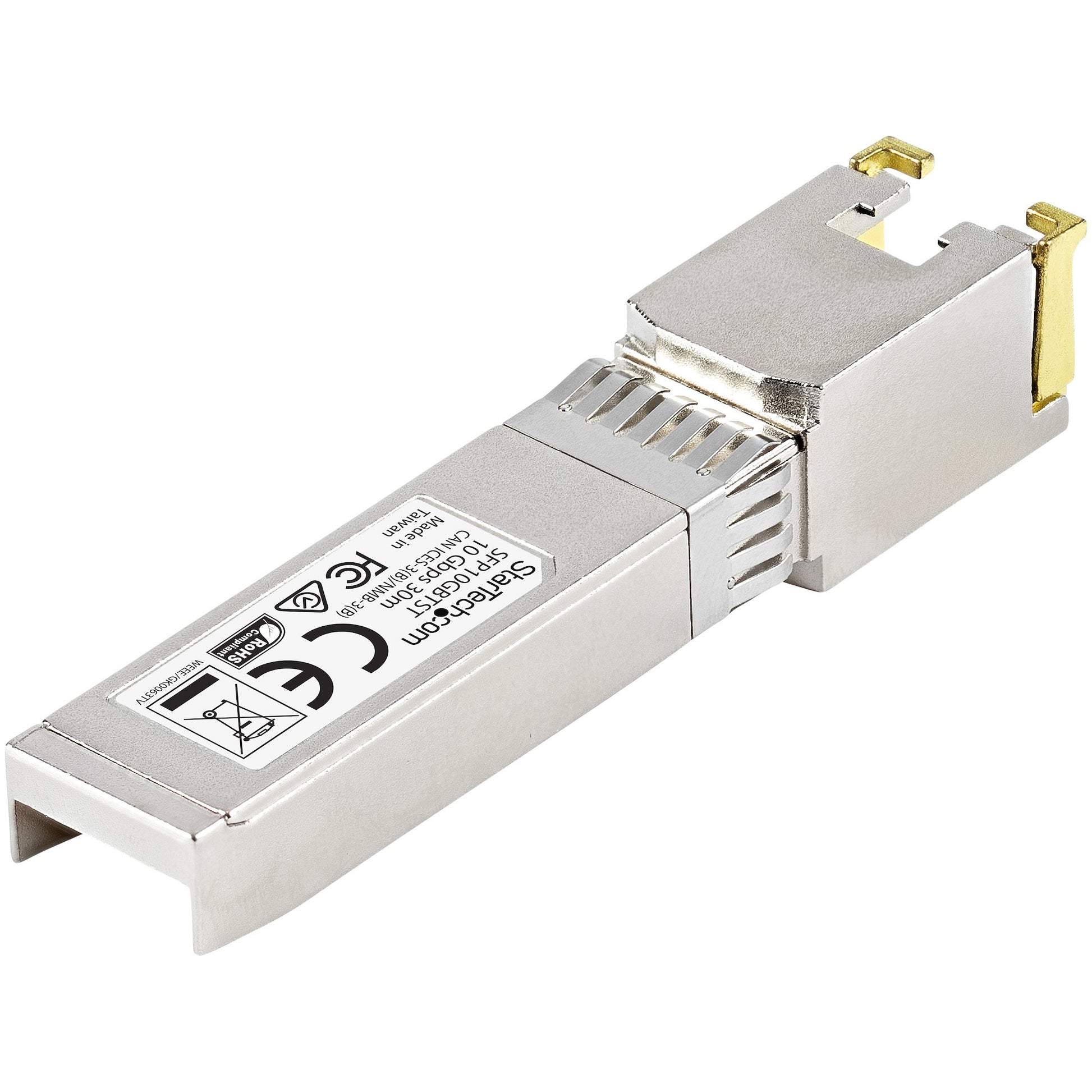

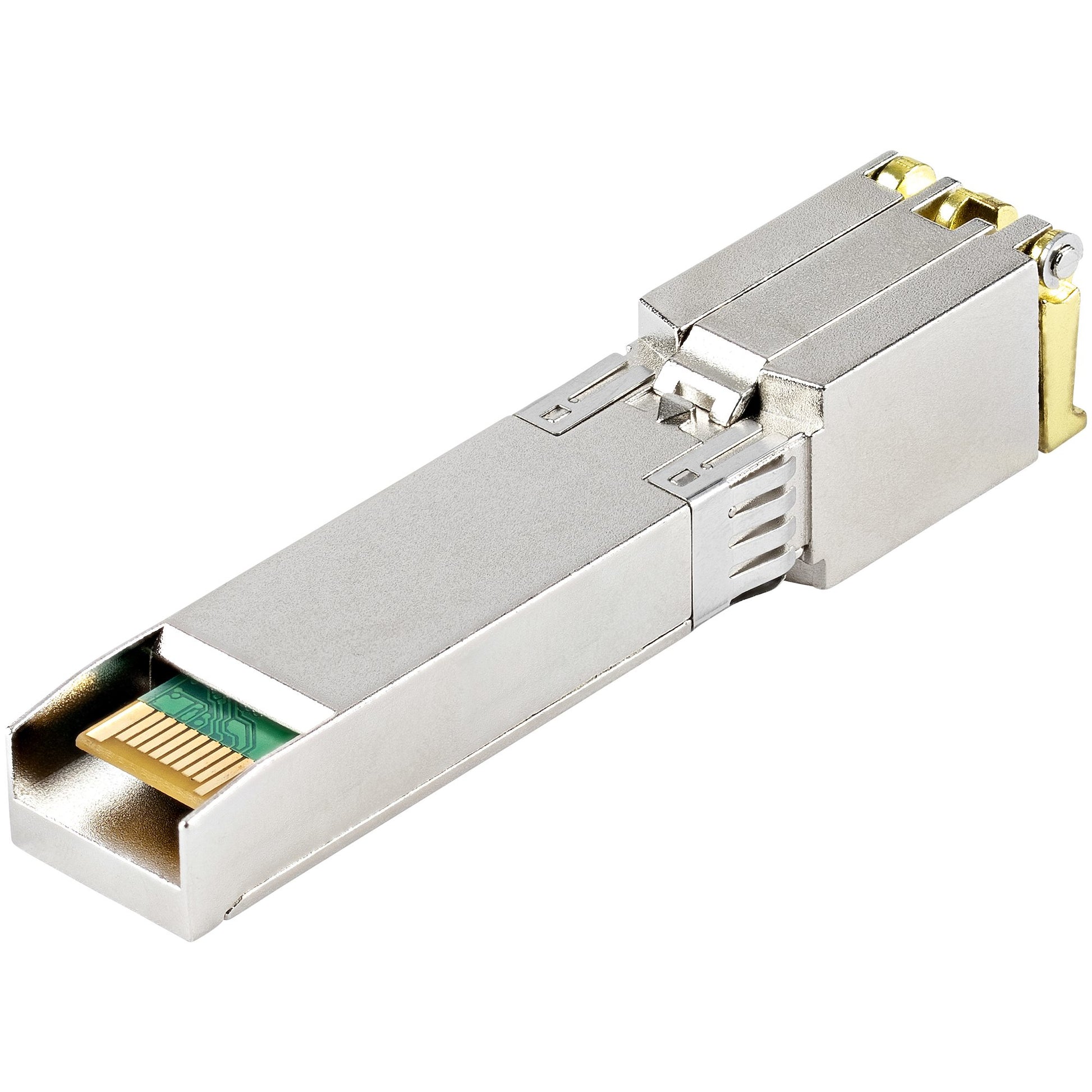

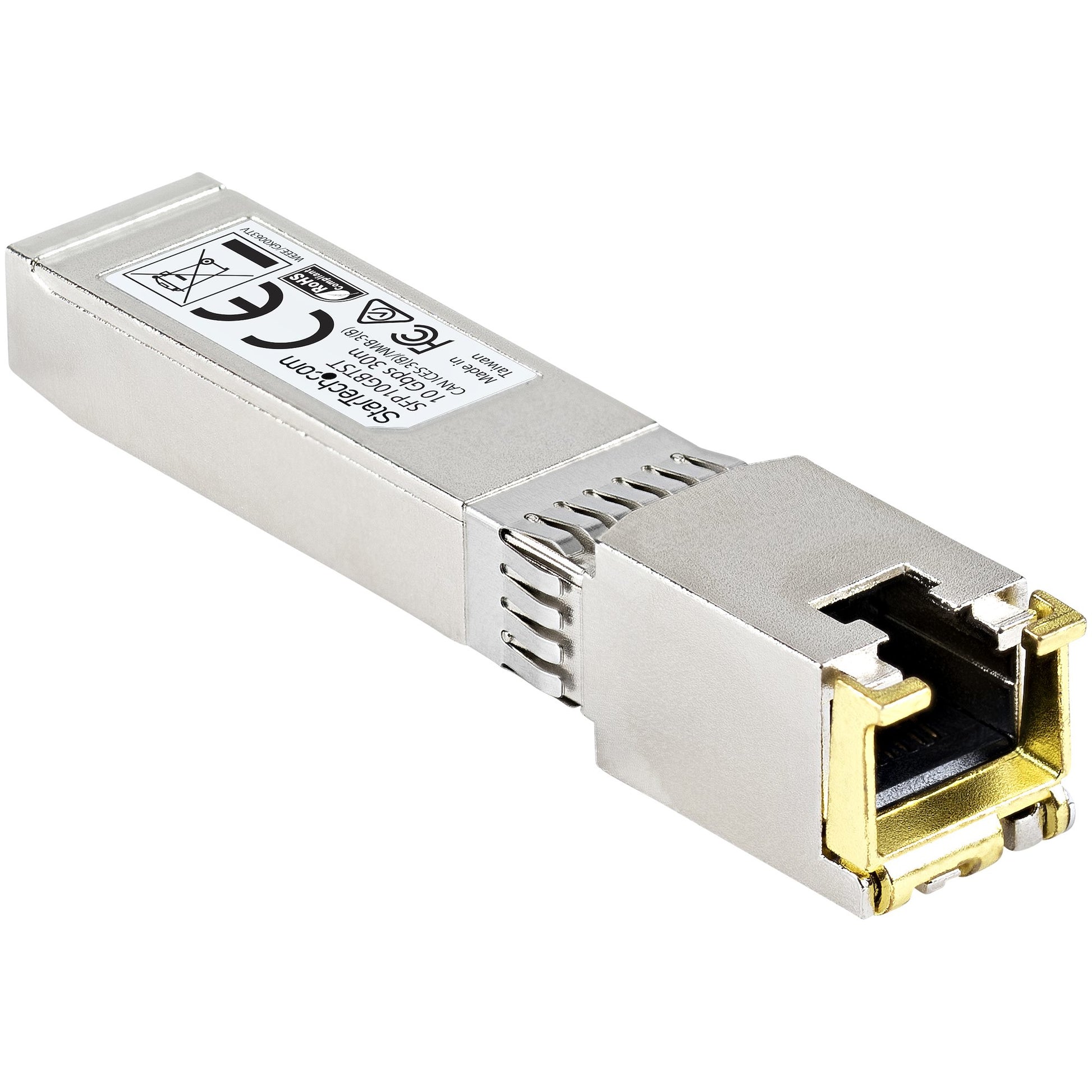

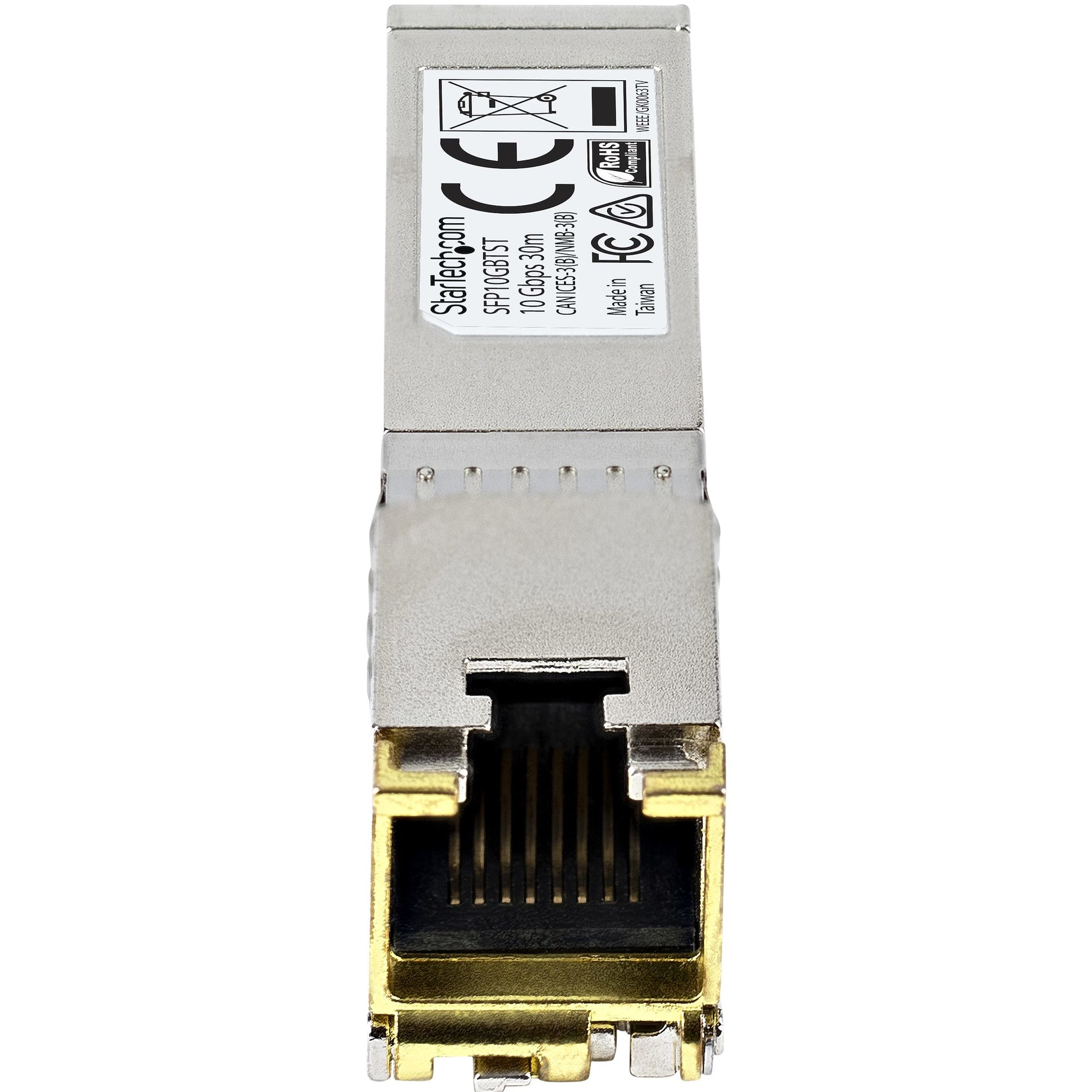

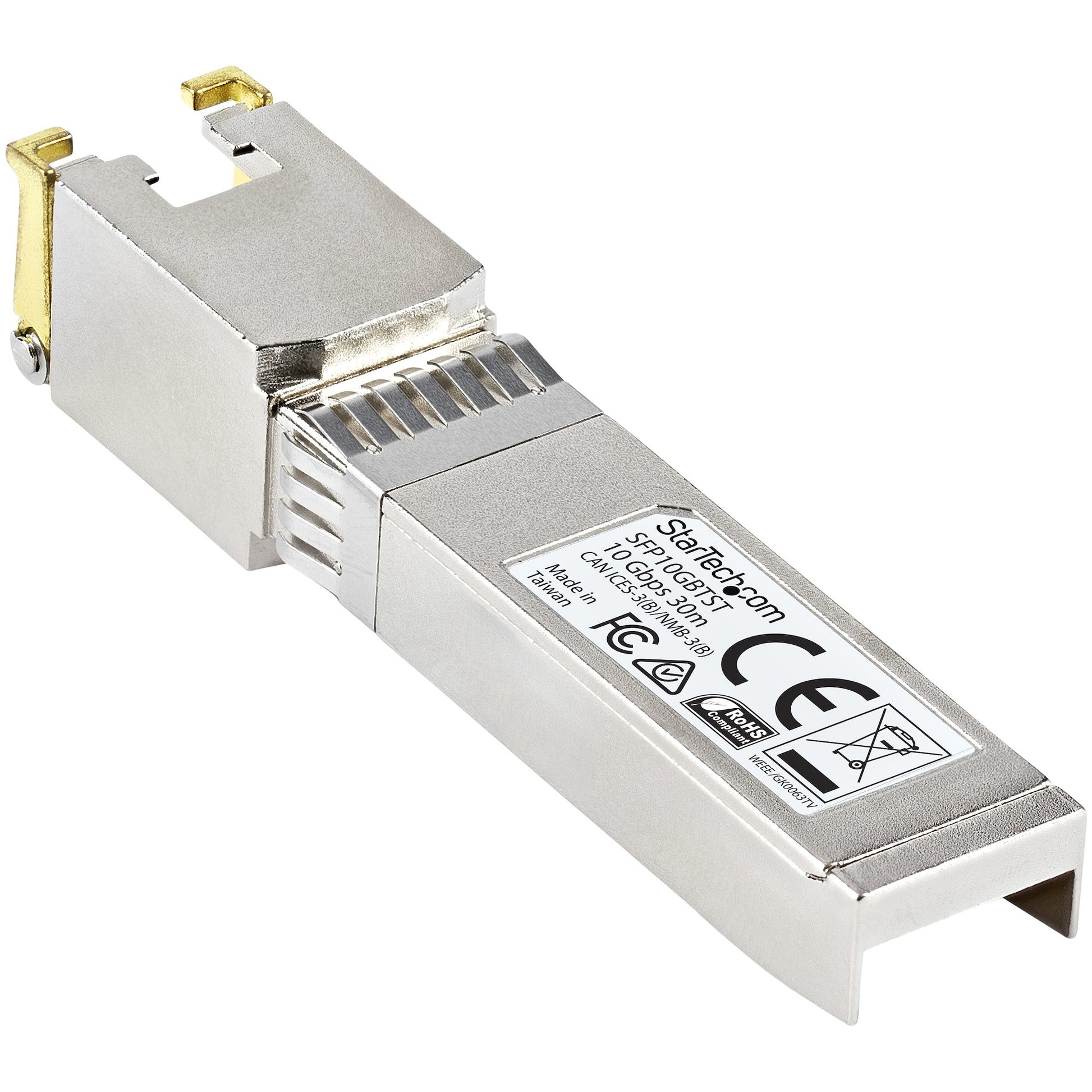

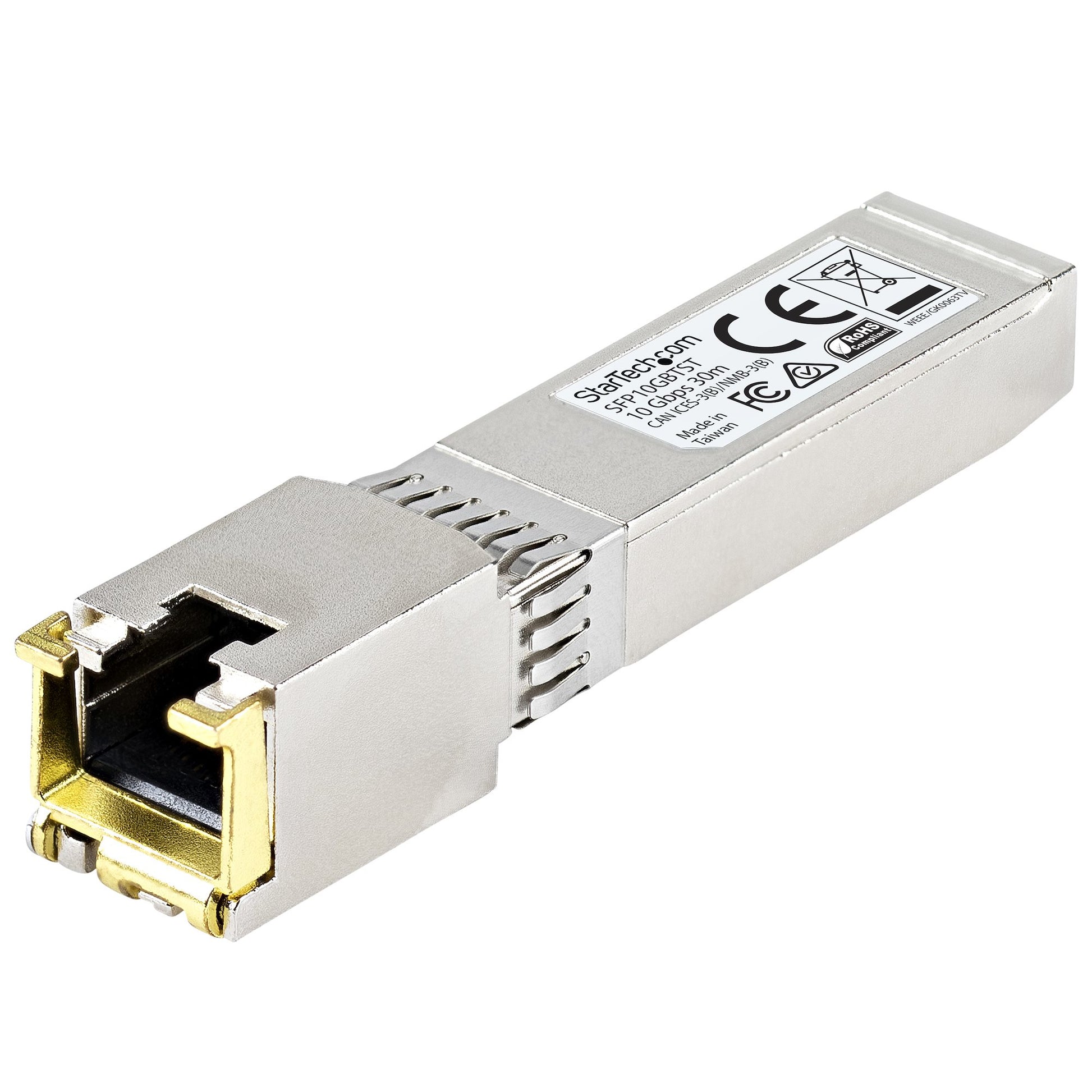

The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.

Technical Specifications:

• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft.)
• MTBF: 4,598,430 hours DDM: No >

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Copper
Digital Diagnostics Monitoring (DDM)	No
Networking standards	IEEE 802.3an
Auto MDI/MDI-X	Yes
Ethernet LAN (RJ-45) ports	1
Maximum transfer distance	30 m
Duplex system	Full
Cabling technology	10GBASE-T
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Country of origin	China
Product colour	Silver
Housing material	Zinc steel
Hot-Plug support	Yes
Brand compatibility	MSA Compliant
Harmonized System (HS) code	85369010
Features
Certification	CE, FCC
Power
Power consumption (typical)	2.3 W
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	13.9 mm
Depth	70 mm
Height	12.6 mm
Weight	28 g
Package depth	76 mm
Package width	119 mm
Package height	34 mm
Package weight	60 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	342 mm
Master (outer) case length	638 mm
Master (outer) case height	290 mm
Products per master (outer) case	150 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
