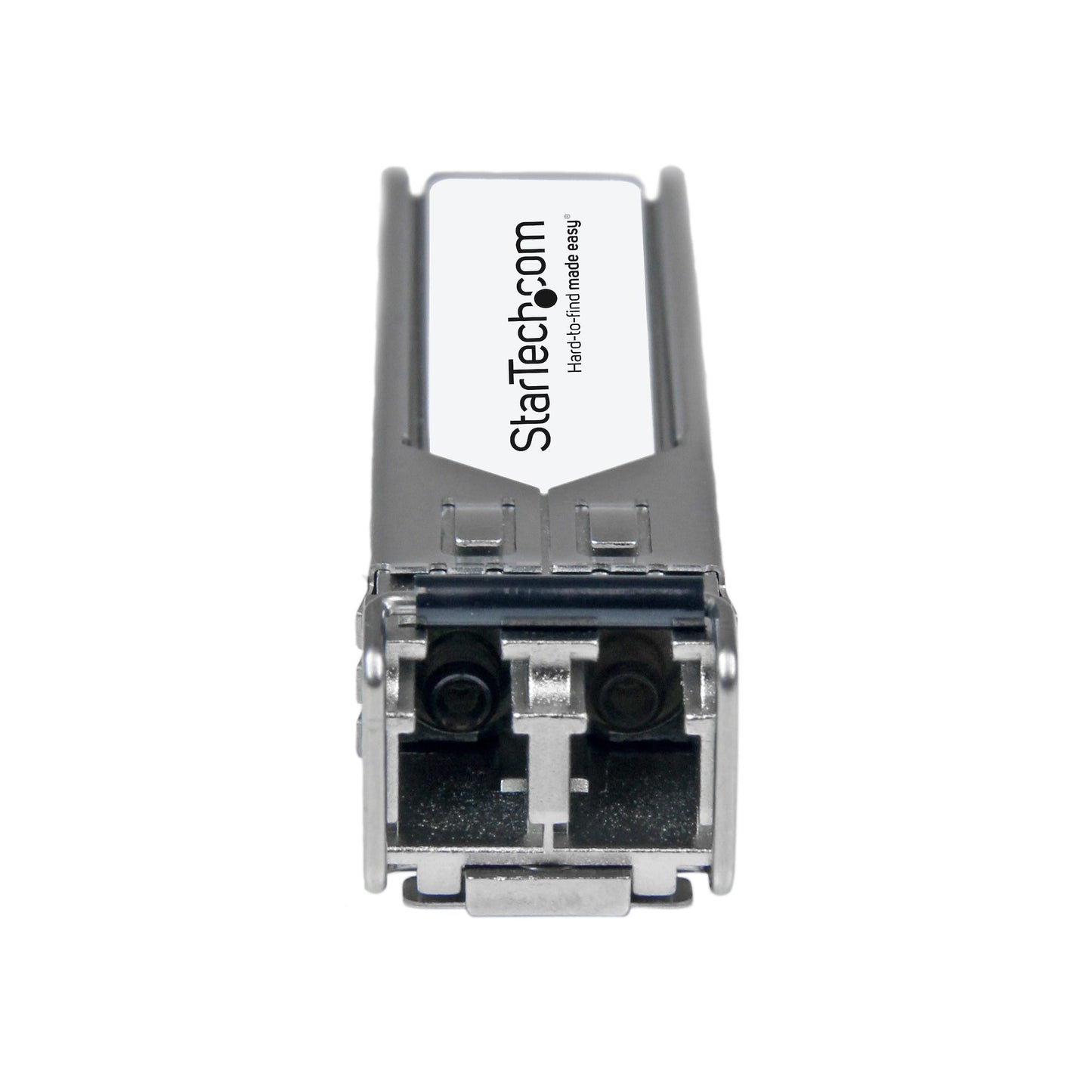

StarTech.com MSA Uncoded SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber (MMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM Networking

The StarTech.com MSA Uncoded SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber (MMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM is a dependable addition to any modern network installation.

10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

The SFP-10GBASE-SR-STS is an 10 GMSA compliant fiber SFP+ transceiver that’s designed, programmed and tested to work with 10GBASE-SR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 300 m (984 ft) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 646,156,559 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Maximum transfer distance	300 m
Wavelength	850 nm
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Fiber ethernet cabling technology	10GBASE
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	646156559 h
Brand compatibility	MSA Compliant
Harmonized System (HS) code	85369010
Features
Certification	CE, FCC, REACH
Power
Power consumption (typical)	1.3 W
Weight & dimensions
Width	58.4 mm
Depth	13.9 mm
Height	13.7 mm
Weight	20 g
Package depth	112 mm
Package width	94 mm
Package height	32 mm
Package weight	50 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	94 mm
Master (outer) case length	115 mm
Master (outer) case height	32 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
