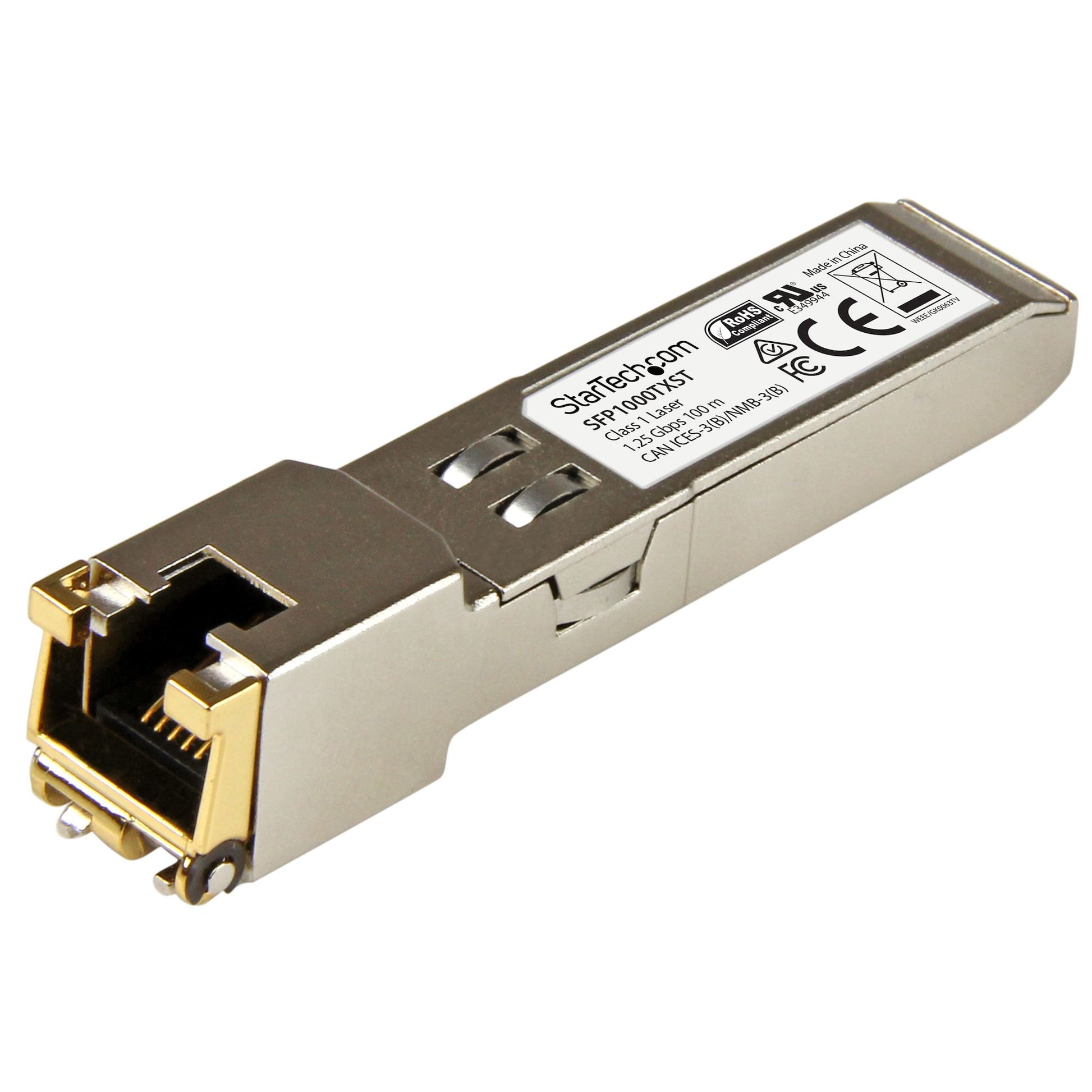

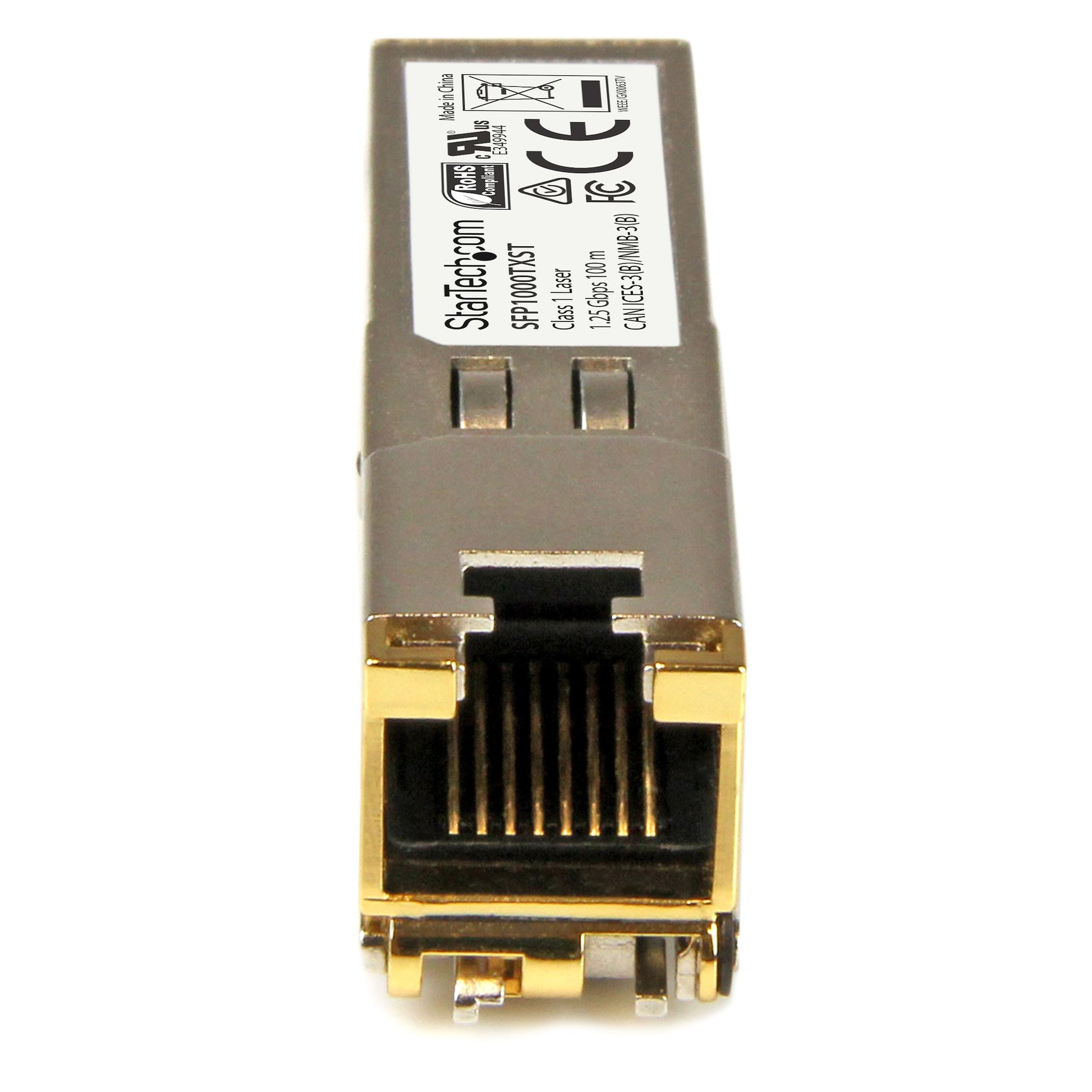

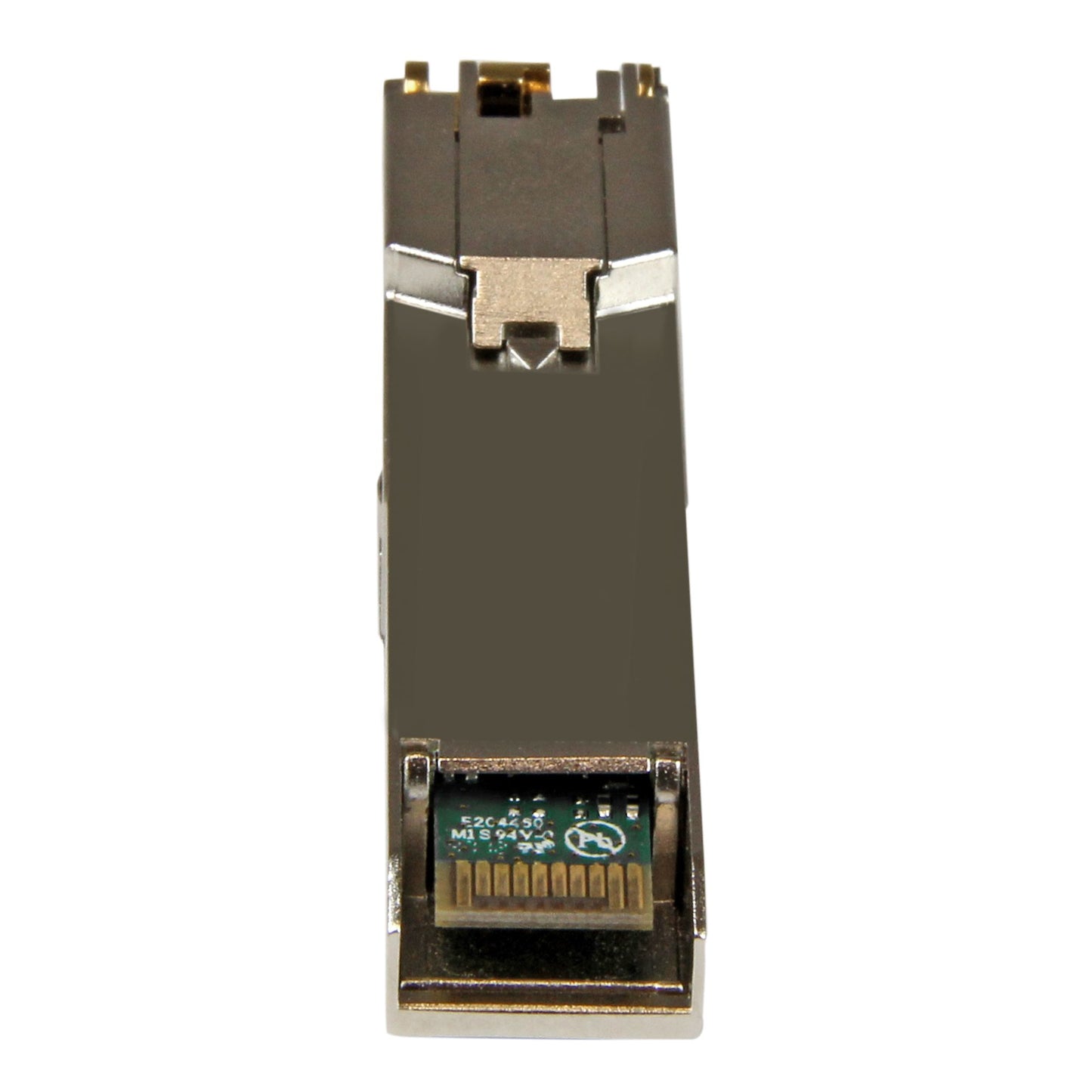

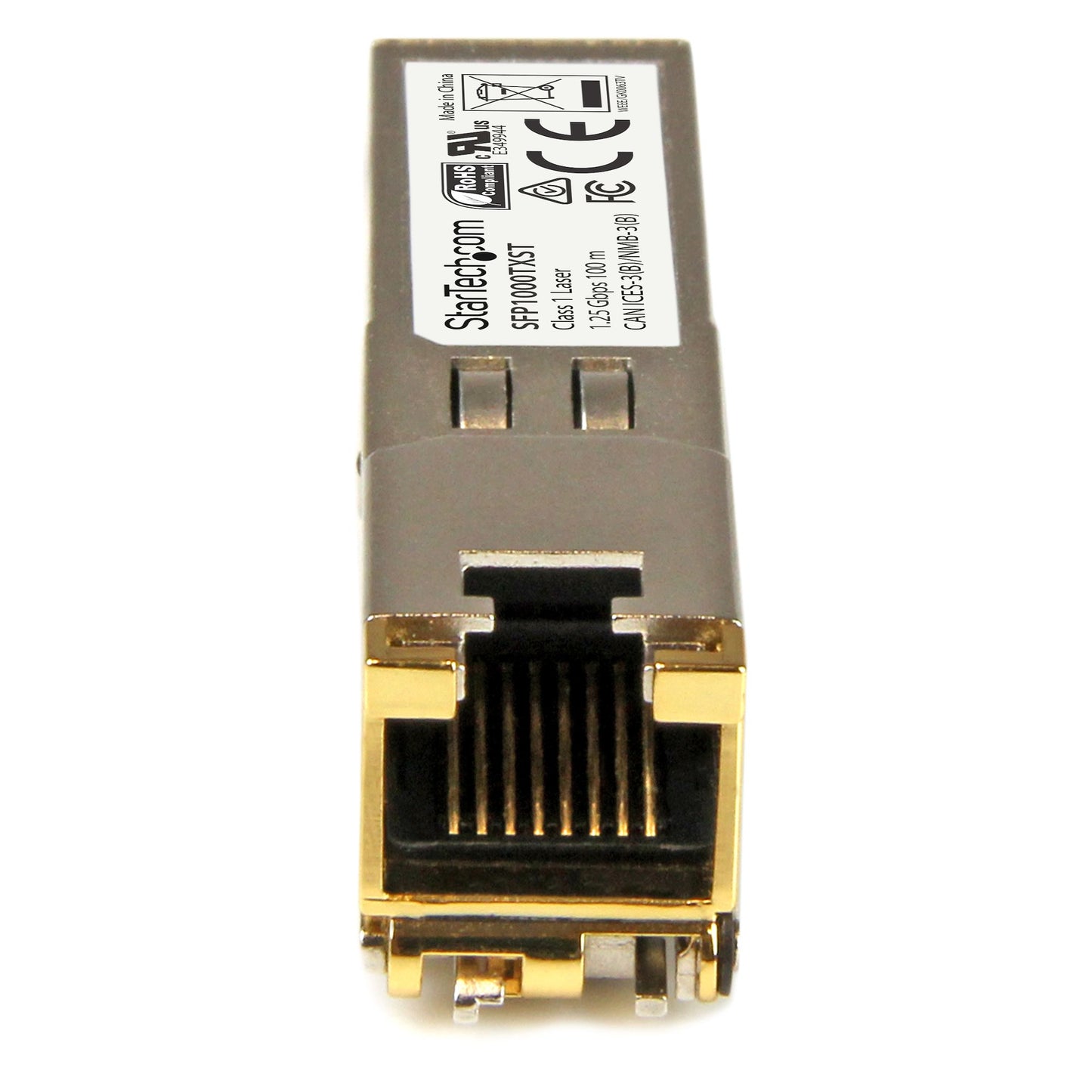

StarTech.com MSA Uncoded SFP Module - 1000BASE-TX - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m Networking

The StarTech.com MSA Uncoded SFP Module - 1000BASE-TX - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m is a dependable addition to any modern network installation.

1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

The SFP1000TXST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 1000BASE-TX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 100 m (328 ft) and delivers dependable 1 GbE connectivity over copper cabling.

Technical Specifications:

• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• Power Consumption: Less than 1.3 Watt
• DDM: No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Copper
Ethernet LAN	Yes
Digital Diagnostics Monitoring (DDM)	No
Networking standards	IEEE 802.3z
Ethernet LAN (RJ-45) ports	1
Maximum transfer distance	100 m
Duplex system	Full
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
SFP transceiver standard	TX
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Certification	CE, FCC, UR
Power
Power consumption (typical)	1.3 W
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	13.9 mm
Depth	58.4 mm
Height	12.6 mm
Weight	25 g
Package depth	113 mm
Package width	91 mm
Package height	33 mm
Package weight	52 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	310 mm
Master (outer) case length	400 mm
Master (outer) case height	320 mm
Products per master (outer) case	70 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
