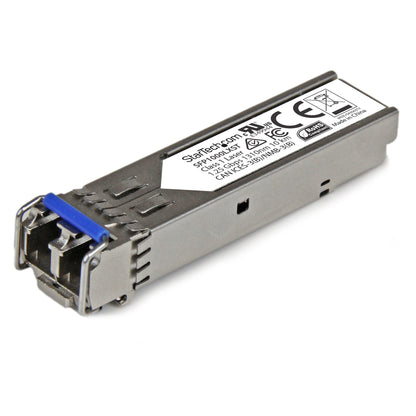

StarTech.com MSA Uncoded SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber (SMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Networking

The StarTech.com MSA Uncoded SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber (SMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM is a dependable addition to any modern network installation.

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Fiber optic
Wavelength-division multiplexing (WDM)	No
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LX
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Certification	CE, FCC, UR
Power
Power consumption (typical)	1 W
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	15 mm
Depth	59 mm
Height	12 mm
Weight	18 g
Package depth	113 mm
Package width	92 mm
Package height	33 mm
Package weight	47 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	200 mm
Master (outer) case length	302 mm
Master (outer) case height	256 mm
Products per master (outer) case	35 pc(s)
