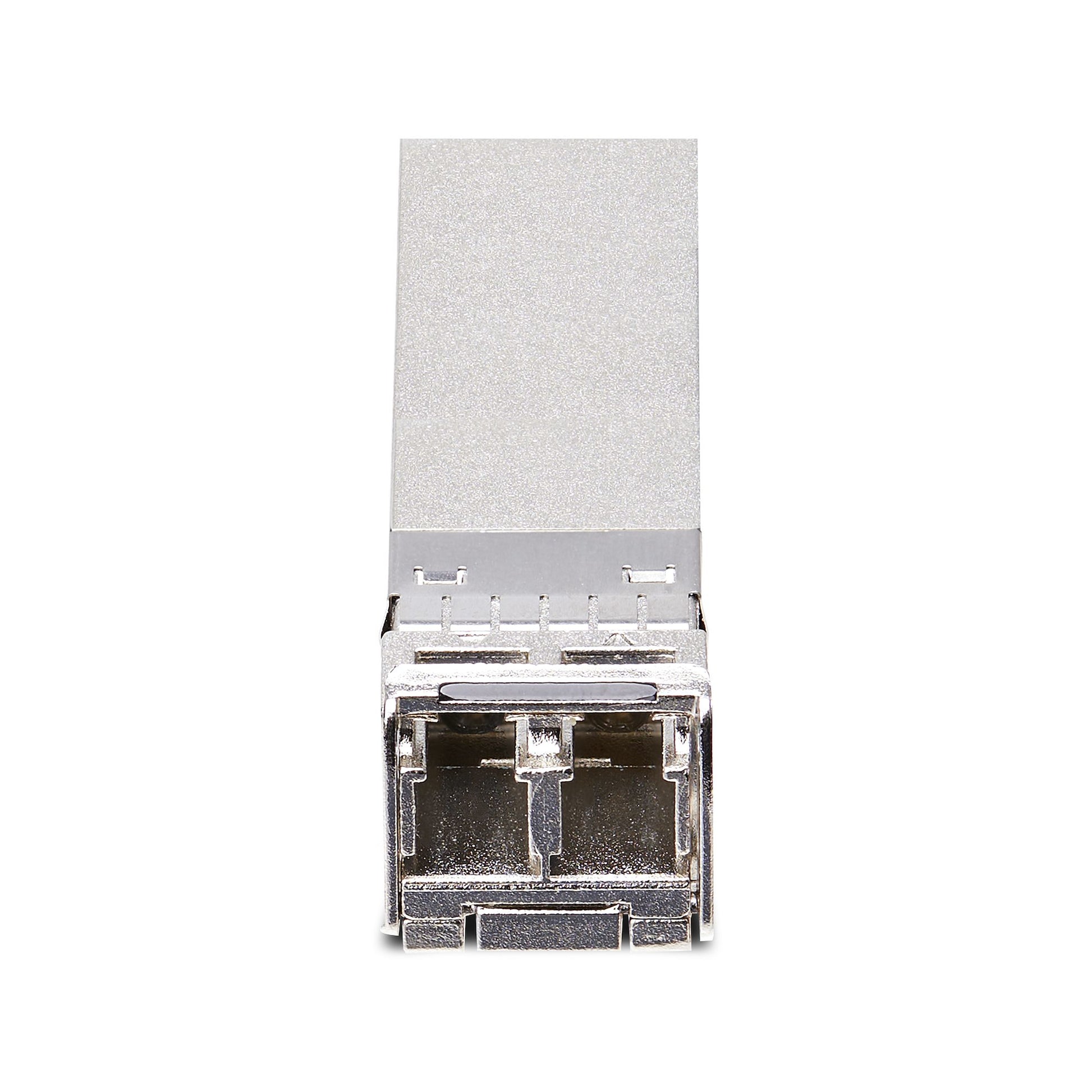

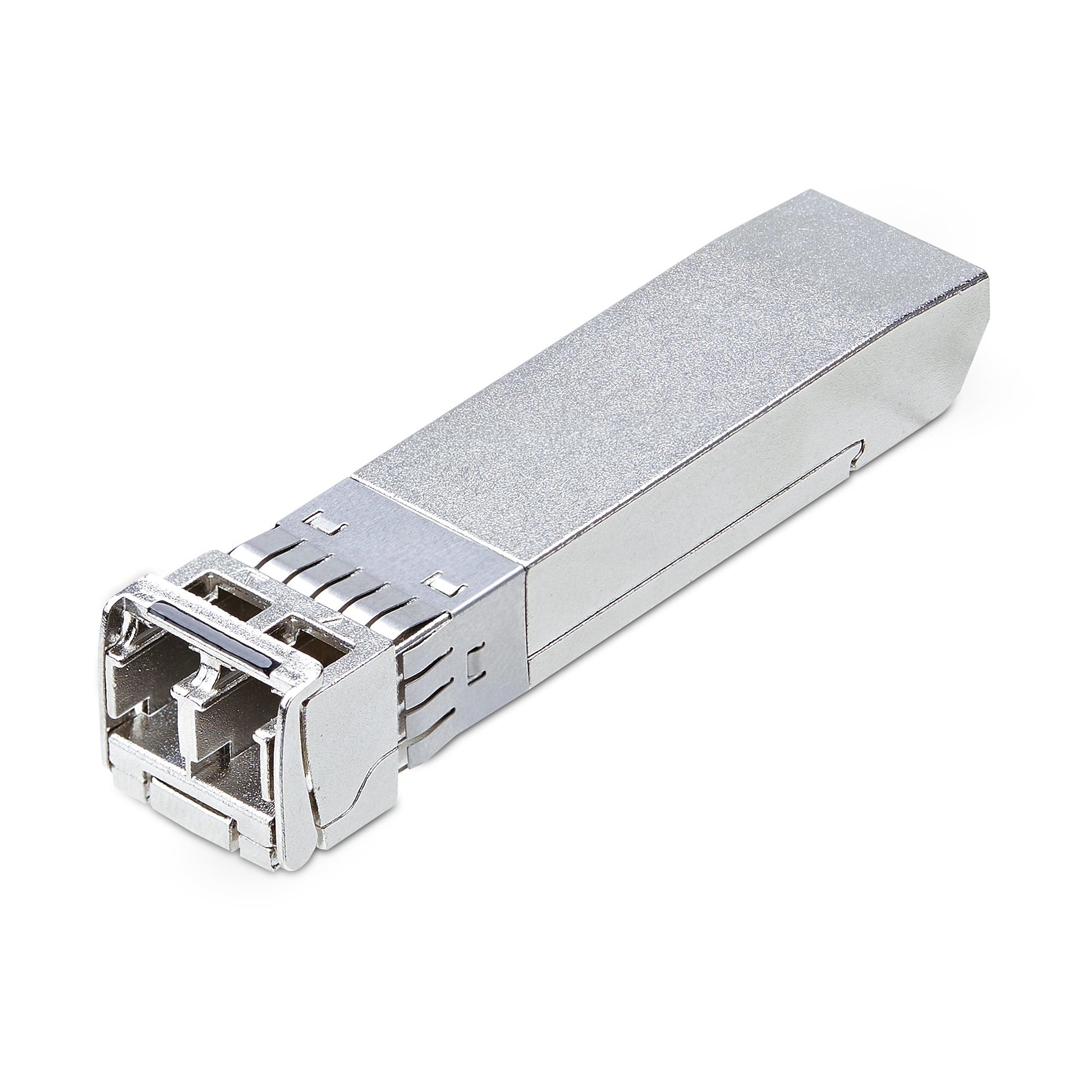

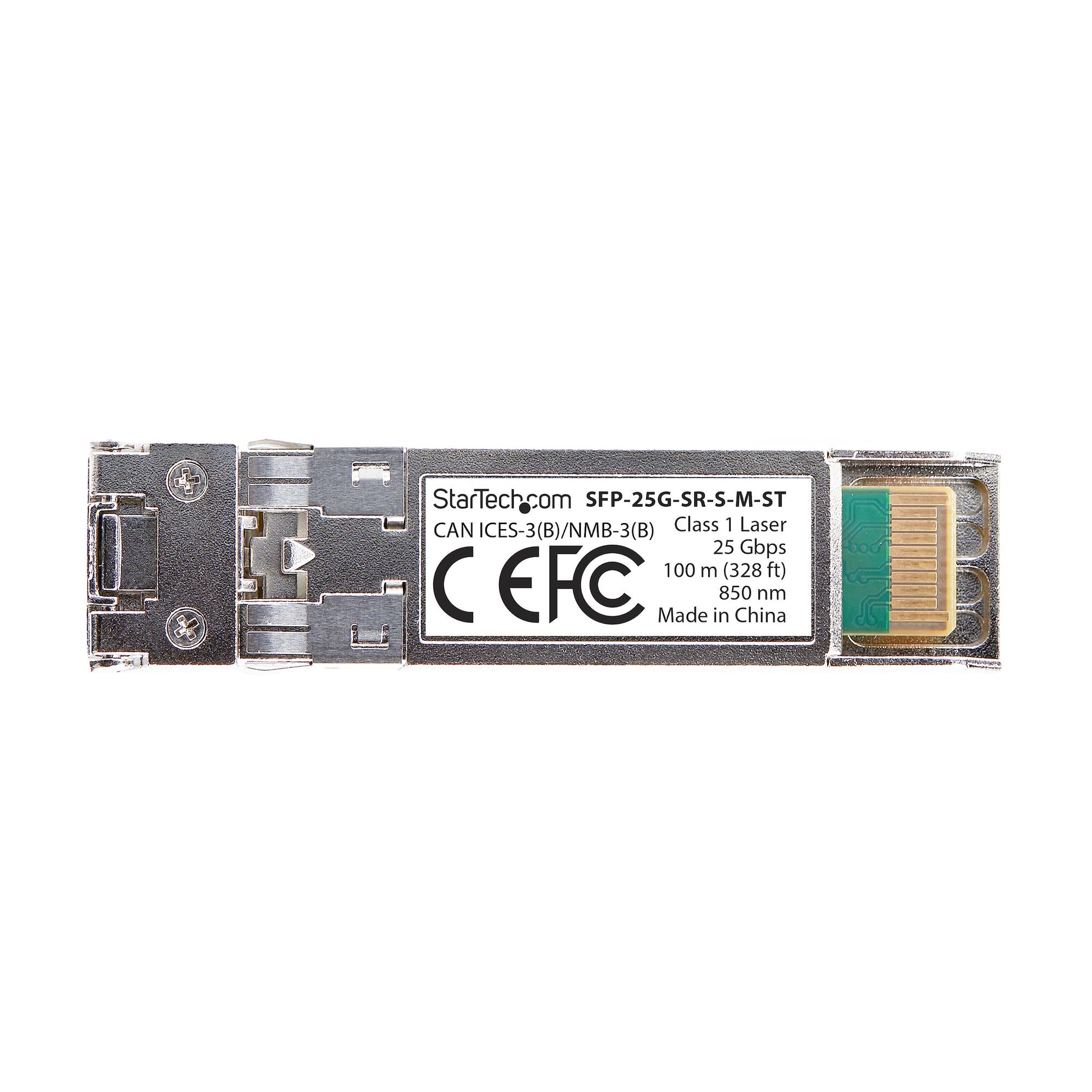

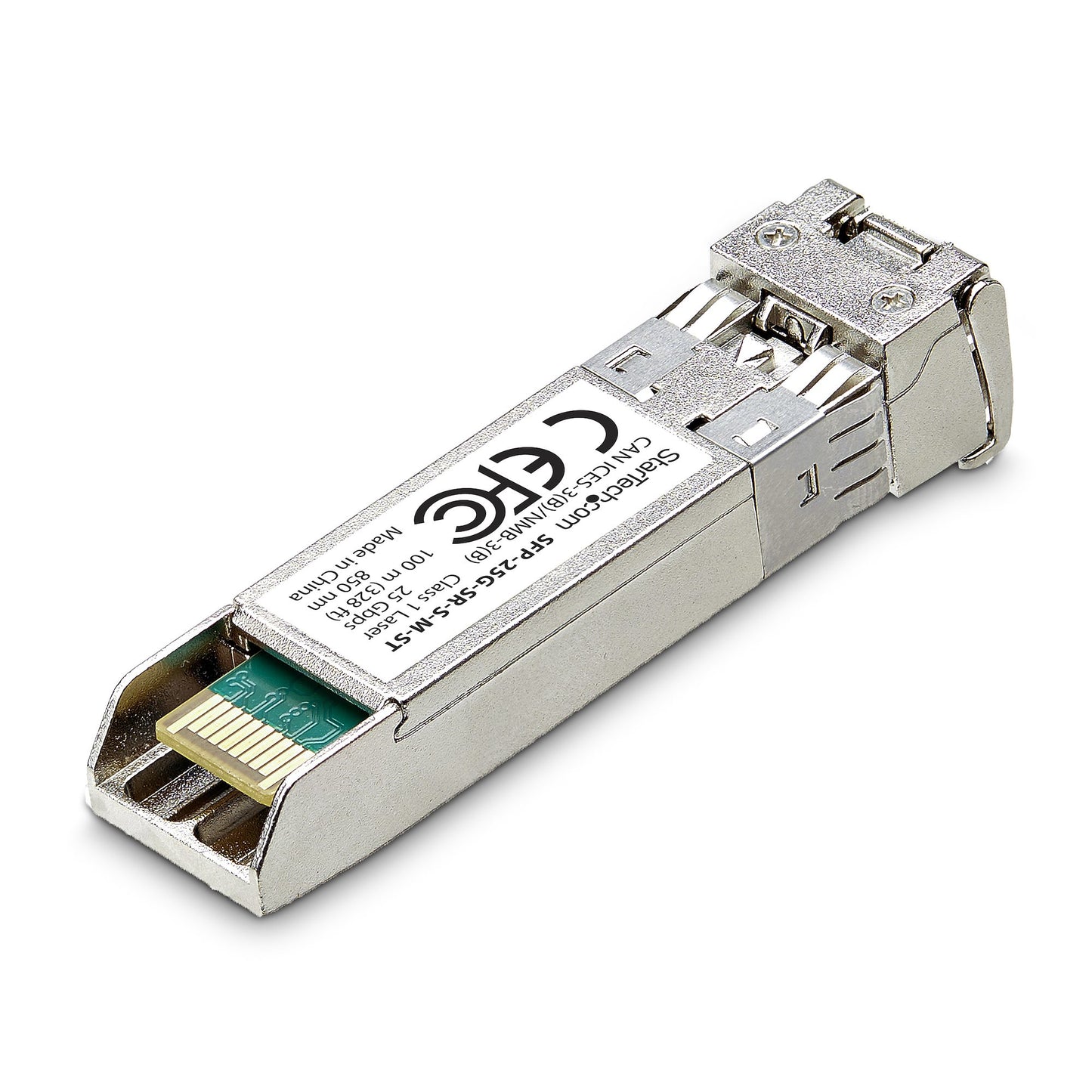

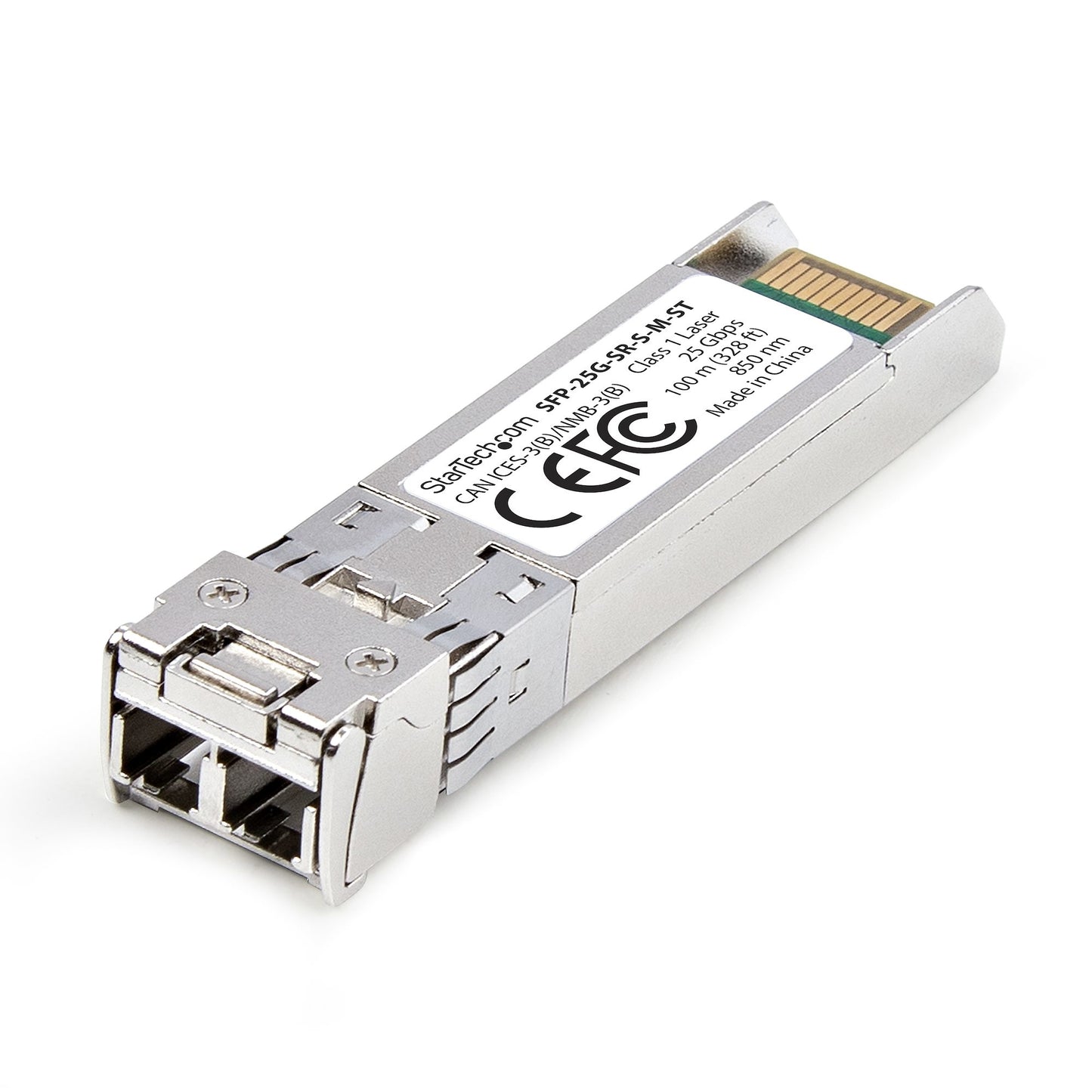

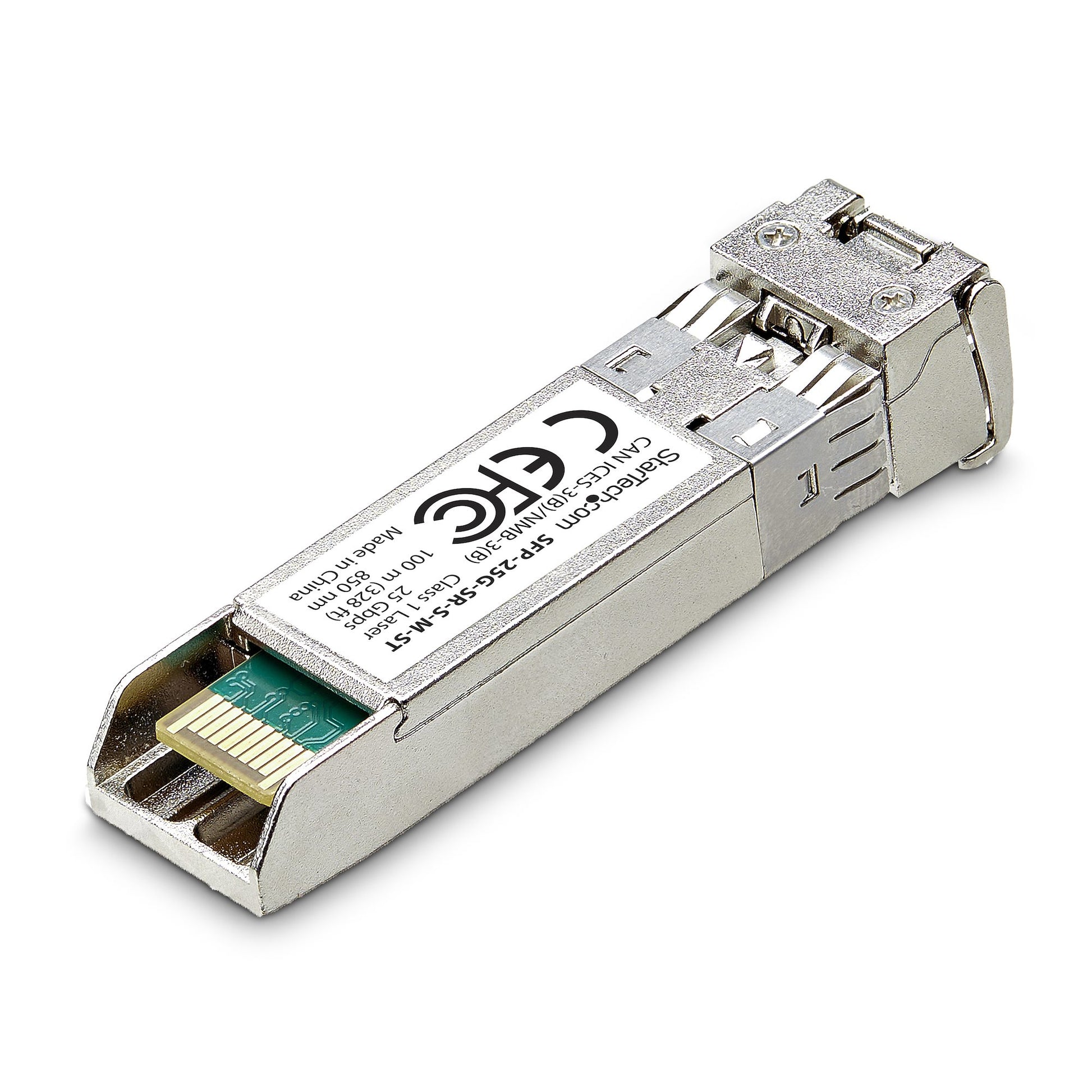

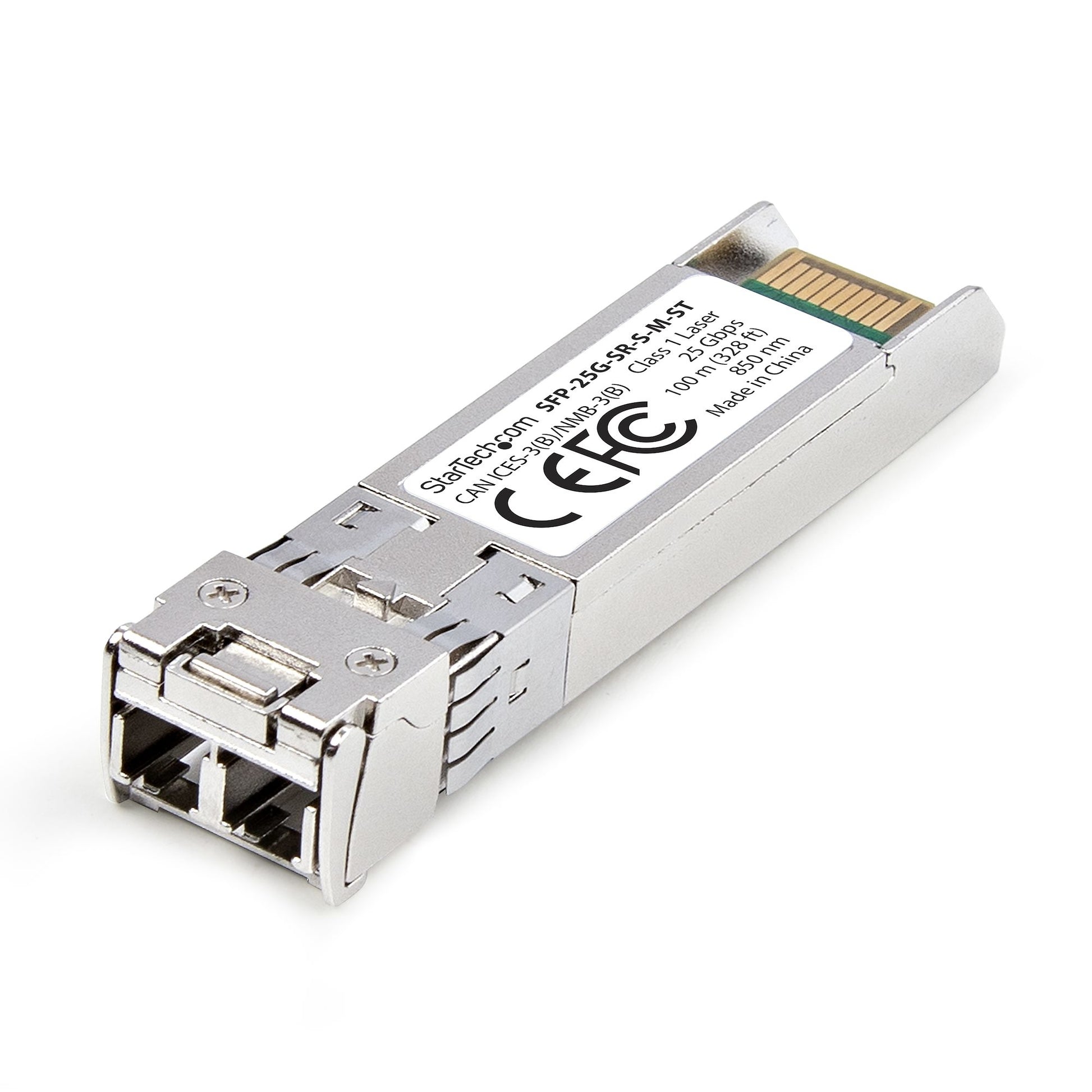

StarTech.com MSA-Compliant SFP-25G-SR-S SFP28 Module, 25Gbps Multimode Fiber (MMF), 100m (328ft), LC Connector, 850nm Networking

The StarTech.com MSA-Compliant SFP-25G-SR-S SFP28 Module, 25Gbps Multimode Fiber (MMF), 100m (328ft), LC Connector, 850nm is a dependable addition to any modern network installation.

Enhance the networking infrastructure with this MSA-compatible 25GBASE-SR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 100m

MSA-compliant fiber optic transceiver with 25Gbps connectivity and up to 100m (328ft) over LC-terminated Multimode Fiber (MMF) cable. The optical module has been programmed and tested for seamless integration with MSA-compatible switches and routers to ensure compatibility and reliability.

Maximize Bandwidth

The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.

Technical Specifications

• 25GBASE-SR SFP28
• Data Rate: 25Gbps
• Fiber Type: Multimode Fiber (MMF)
• Connector: LC
• Wavelength: 850nm Tx/Rx
• Distances: Up to 100m (328ft)
• Supports Digital Diagnostics Monitoring (DDM/DOM)

Compatibility

This MSA-compliant SFP works with network equipment from manufacturers that accept uncoded optical modules.

Optimized Network

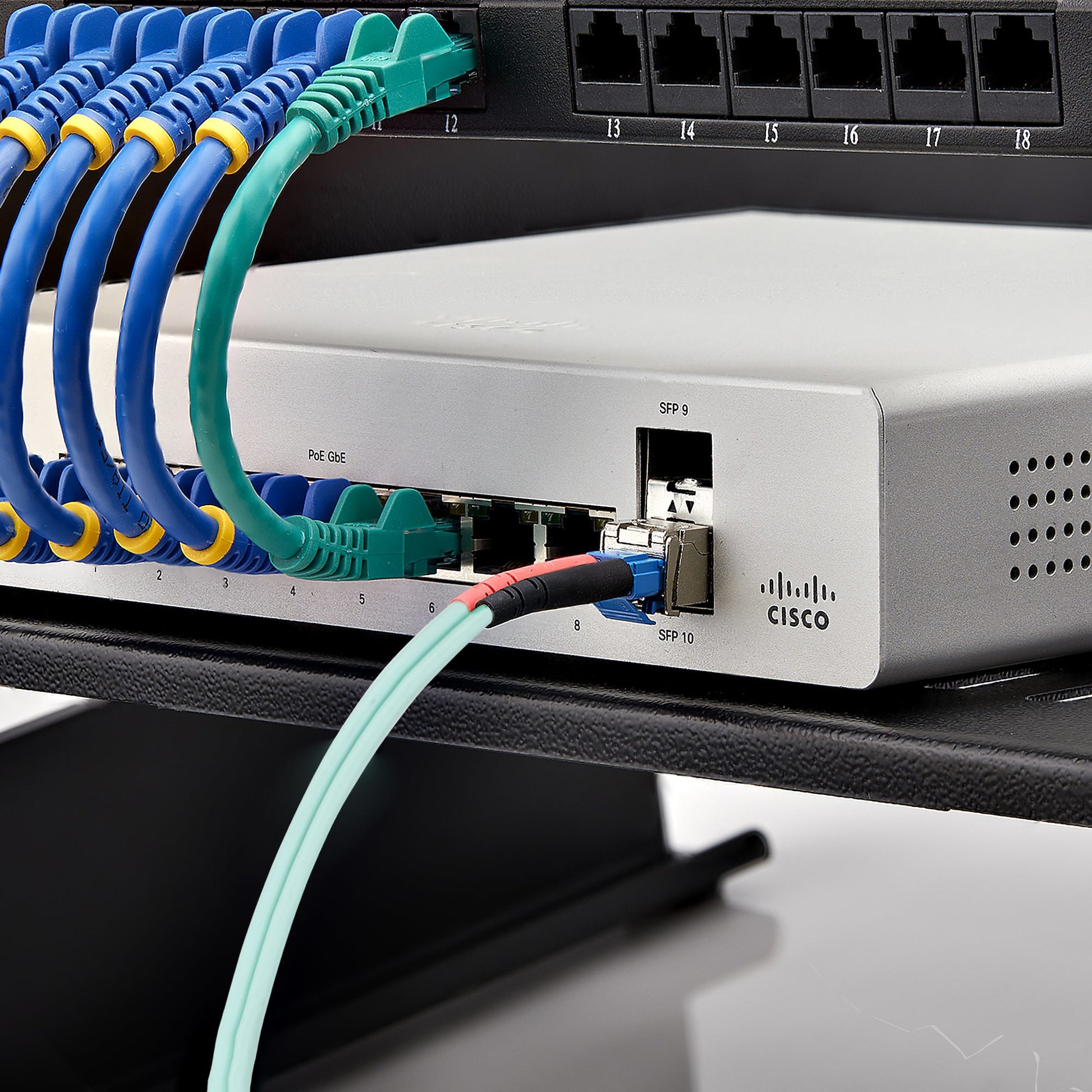

The Short Range (SR) capability facilitates low-latency and scalable onsite connections within a data center or subnetworks within a building.

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3by
Maximum transfer distance	100 m
Wavelength	850 nm
Duplex system	Full
Maximum data transfer rate	25780 Mbit/s
Interface type	SFP28
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Fiber ethernet cabling technology	25GBASE
Product colour	Silver
Mean time between failures (MTBF)	4020594 h
Brand compatibility	MSA Compliant
Power
Power consumption (typical)	1.2 W
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	90 mm
Depth	115 mm
Height	31 mm
Package depth	114 mm
Package width	91 mm
Package height	33 mm
Package weight	200 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	340 mm
Master (outer) case length	420 mm
Master (outer) case height	350 mm
Products per master (outer) case	100 pc(s)
