StarTech.com Monitor HDMI/DVI/VGA USB Docking Station
StarTech.com Monitor HDMI/DVI/VGA USB Docking Station
Regular price
£64.23 GBP
Regular price
Sale price
£64.23 GBP
Taxes included.
Quantity
Couldn't load pickup availability
One cable, full desk: the StarTech.com Monitor HDMI/DVI/VGA turns your laptop into a workstation with dual displays, wired networking over a single USB connection.
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and AudioThis USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

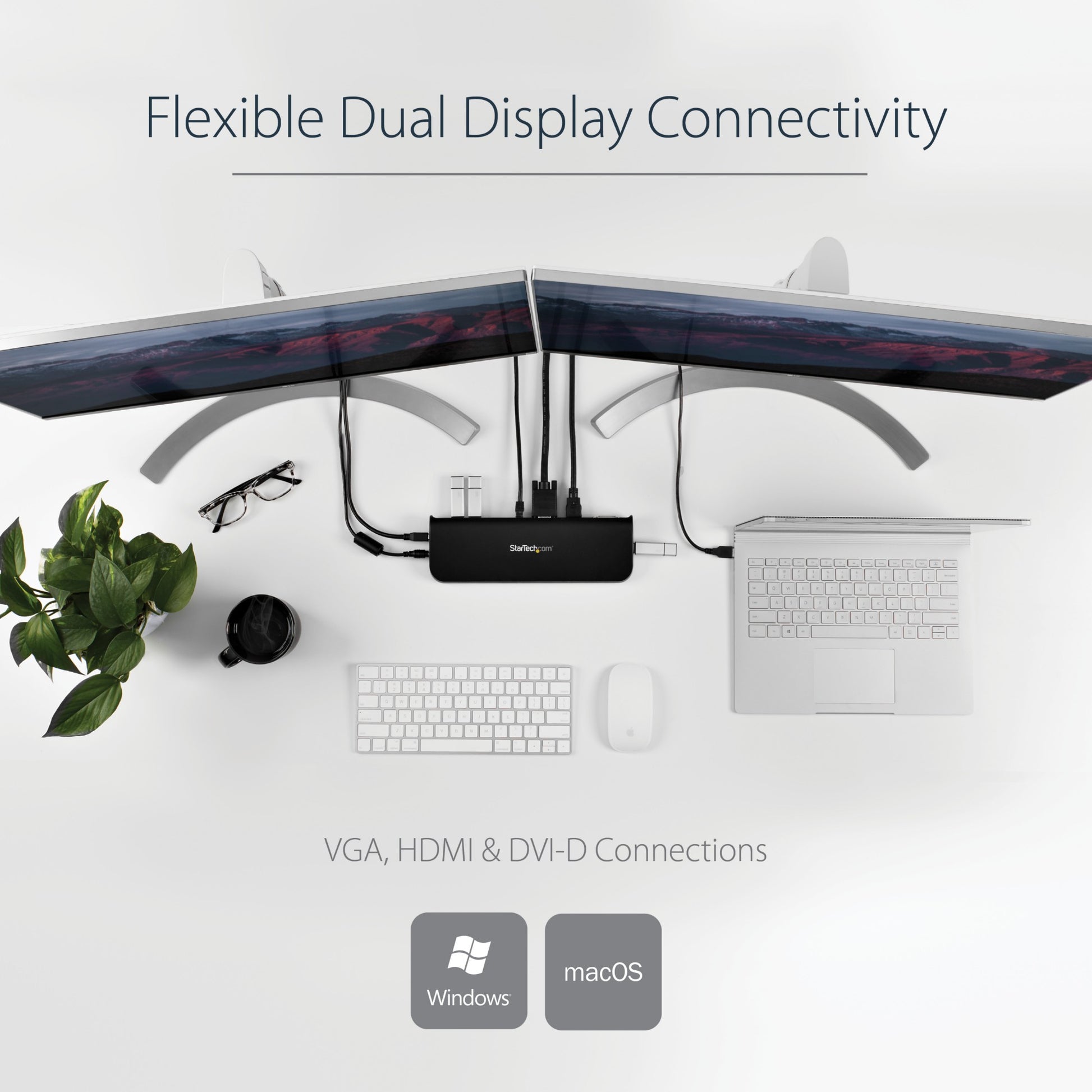

Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

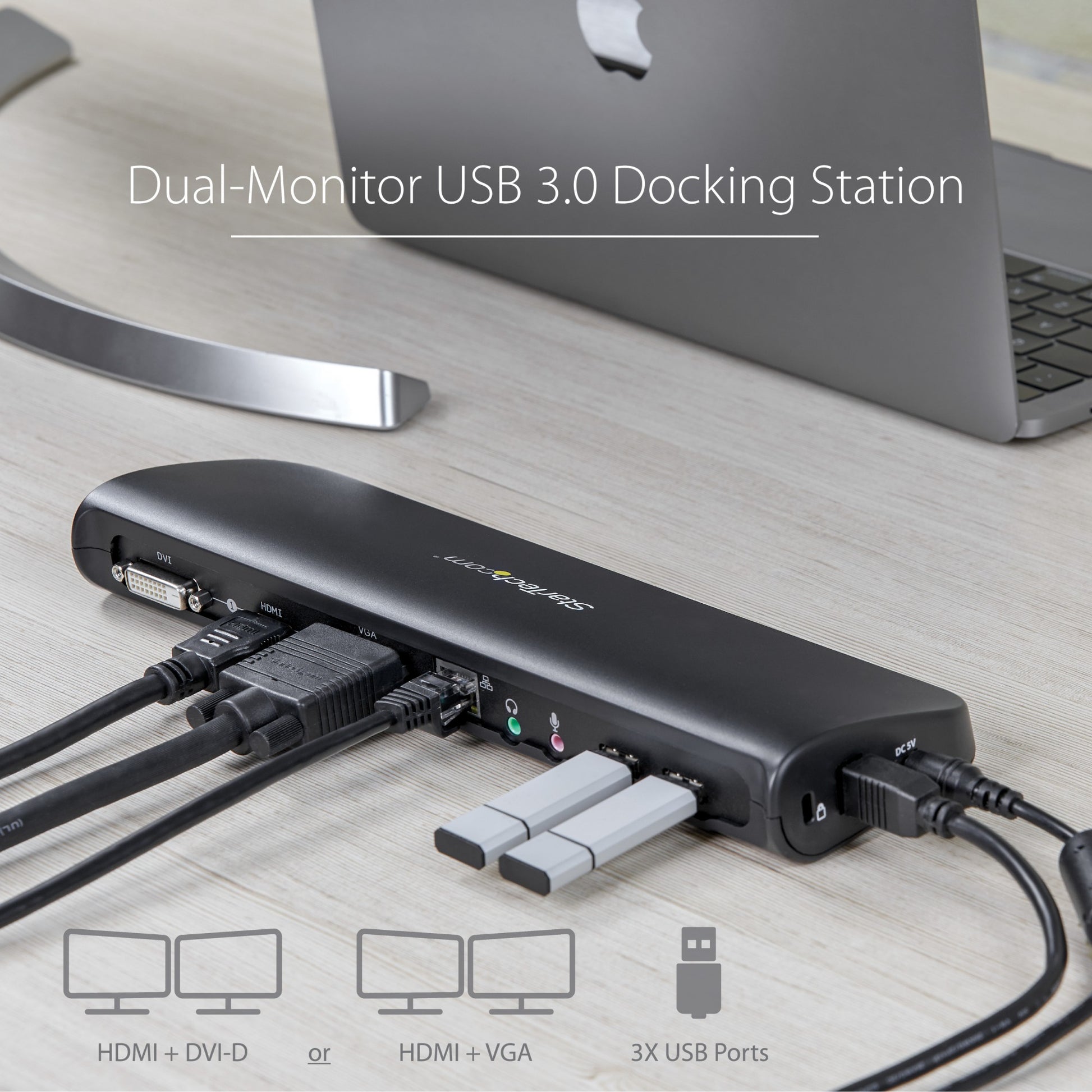

Available display combinations:
• HDMI + VGA
• HDMI + DVI
Integrated USB Hub
The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
Specifications

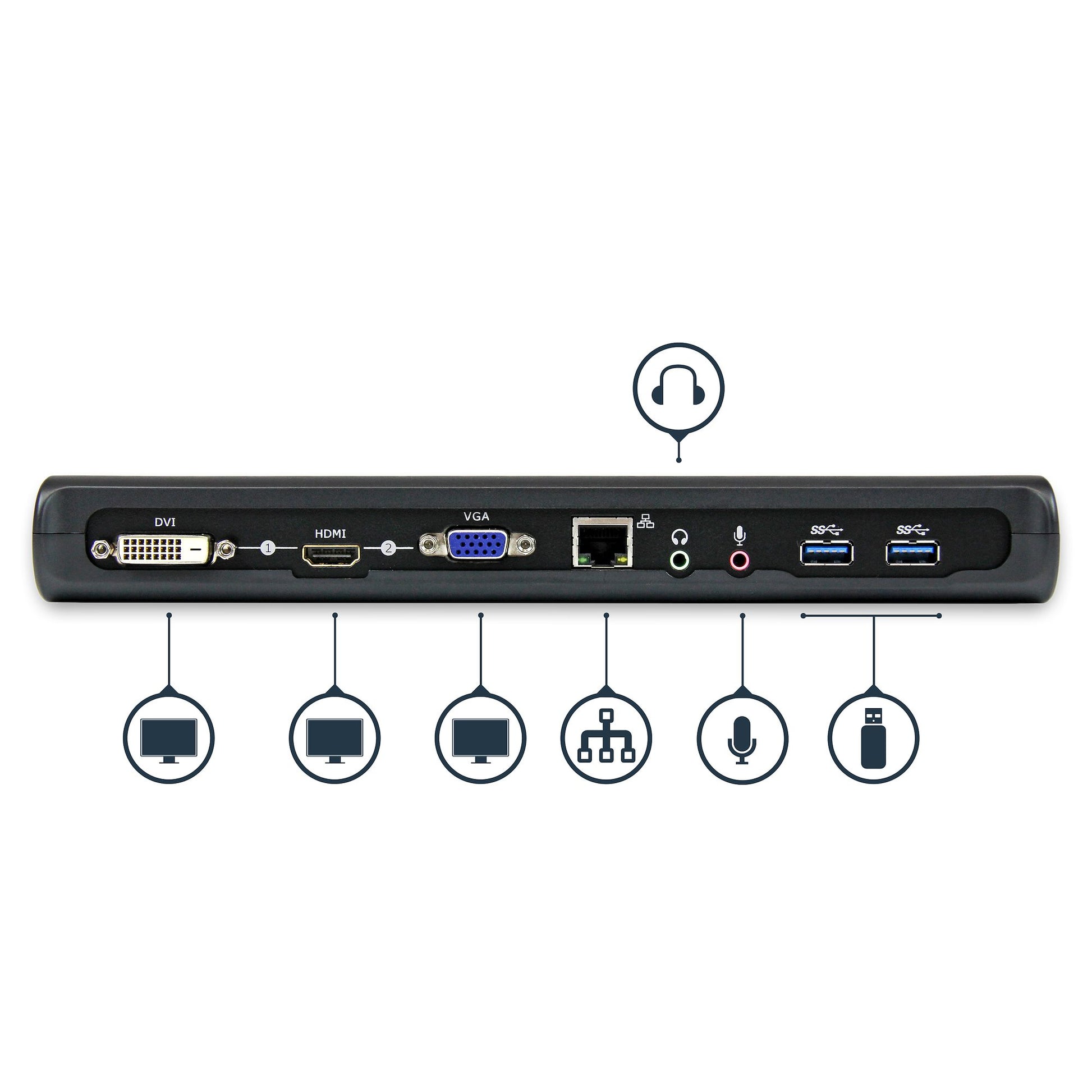

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Performance | |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 2048 x 1152 pixels |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Data transfer rate | 5 Gbit/s |
| Certification | FCC, CE, TAA, REACH |
| Cable lock slot type | Kensington |
| Housing material | Plastic |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 445 mm |
| Master (outer) case length | 228 mm |
| Master (outer) case height | 355 mm |
| Power | |
| Input current | 0.9 A |
| Power plug type | Type B |
| Compatible power plug types | AU, EU, UK, US |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 20 W |
| Output voltage | 5 V |
| Output current | 4 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |

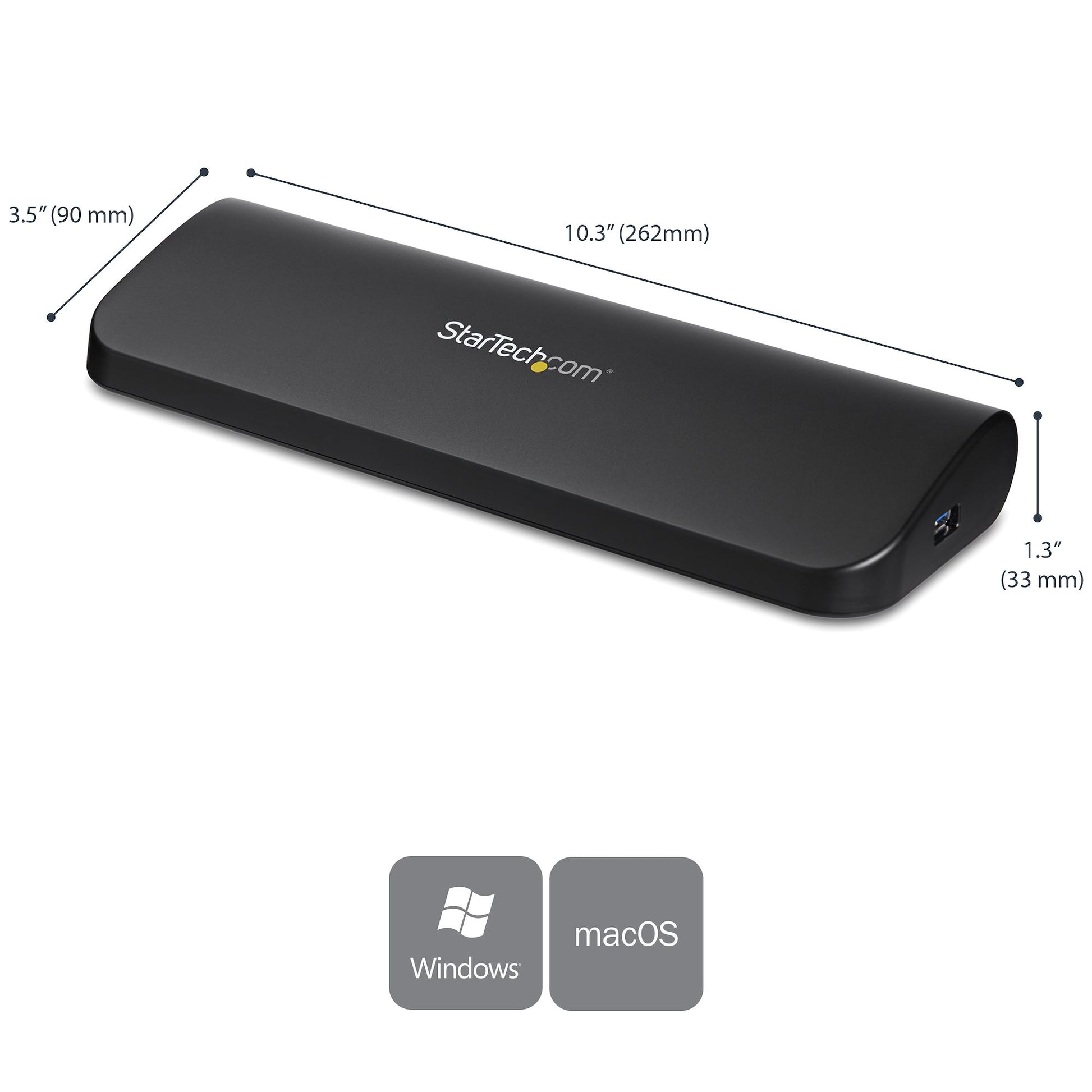

| Weight & dimensions | |
| Weight | 295 g |
| Width | 178 mm |
| Depth | 304 mm |
| Height | 44 mm |
| Package weight | 878 g |
| Package width | 299 mm |
| Package depth | 195 mm |
| Package height | 69 mm |

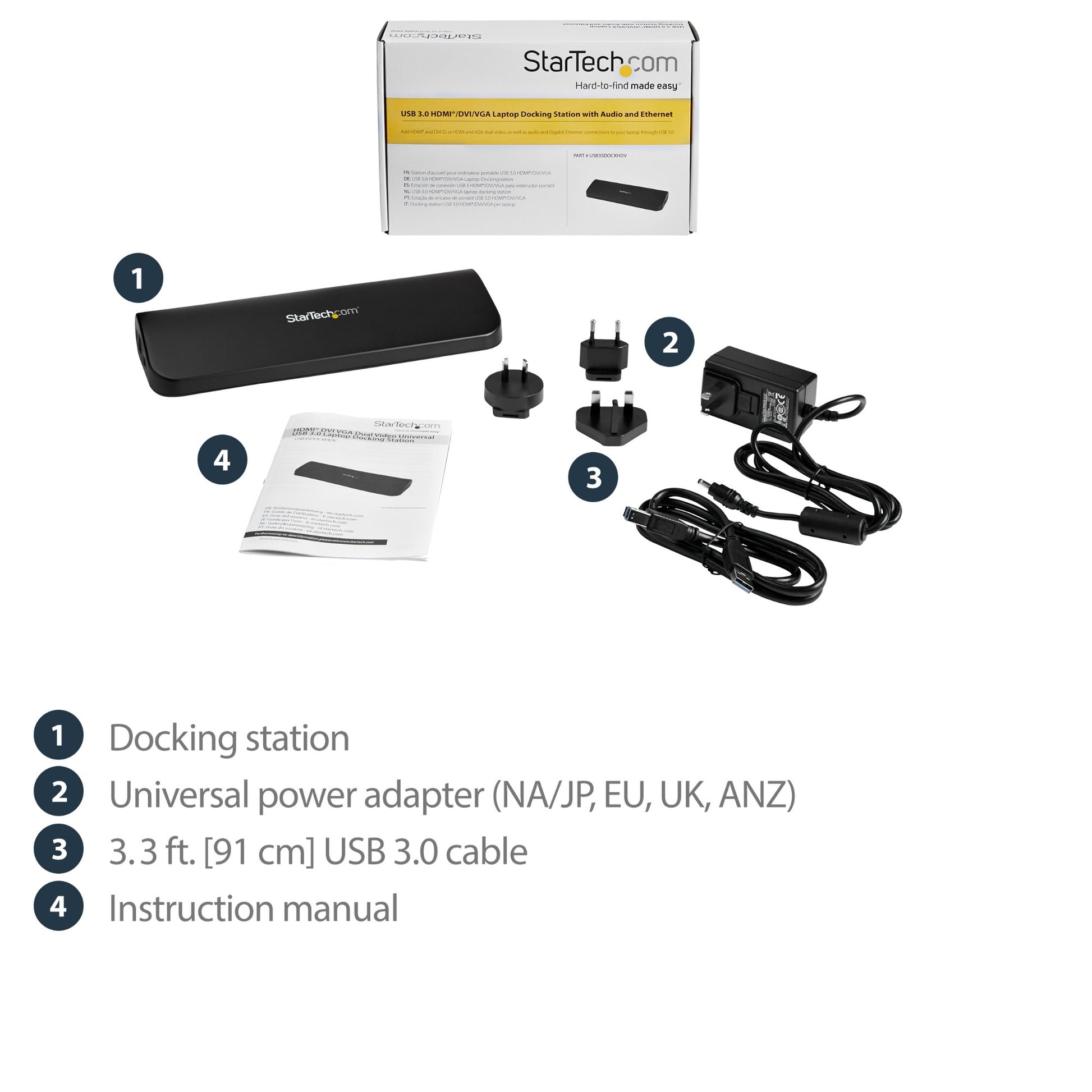

| Packaging content | |
| Drivers included | Yes |
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Other features | |
| Chipset | DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E |
