StarTech.com
StarTech.com Monitor DVI Ports~Dual USB Docking Station
StarTech.com Monitor DVI Ports~Dual USB Docking Station
Regular price
£76.28 GBP
Regular price
Sale price
£76.28 GBP
Taxes included.
Quantity
Couldn't load pickup availability
One cable, full desk: the StarTech.com Monitor DVI Ports~Dual turns your laptop into a workstation with dual displays, wired networking over a single USB connection.

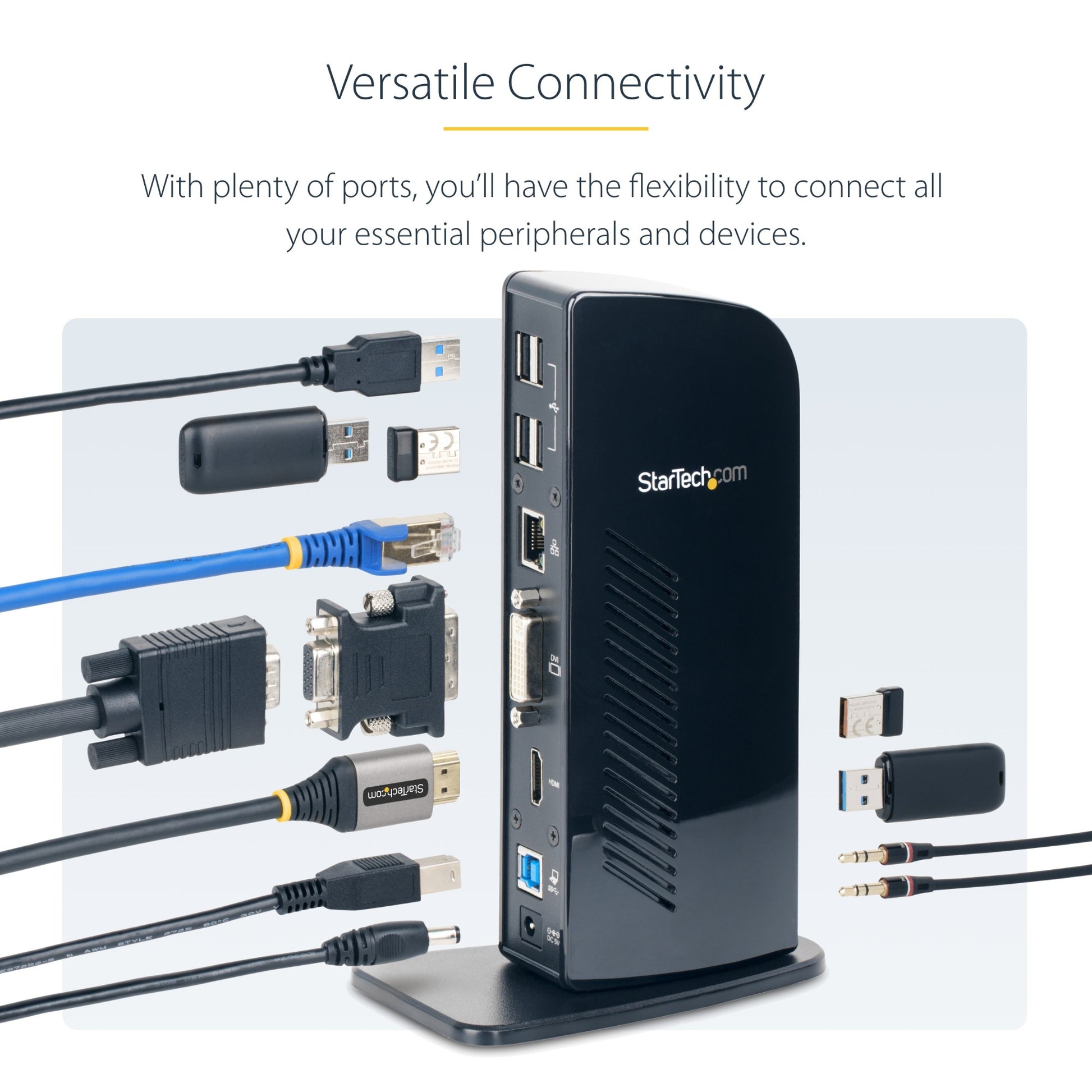

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and AudioThis USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.

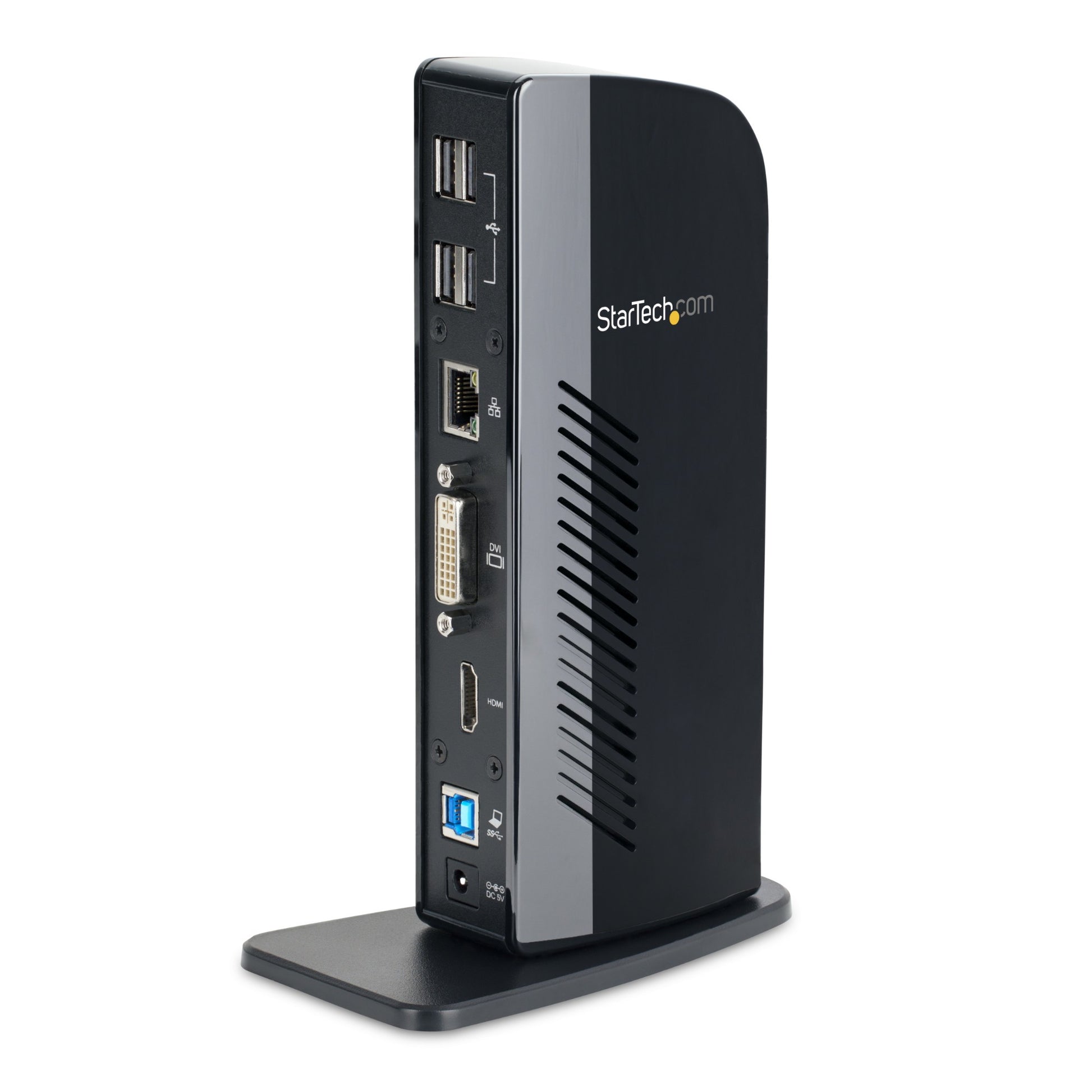

Display Adaptability

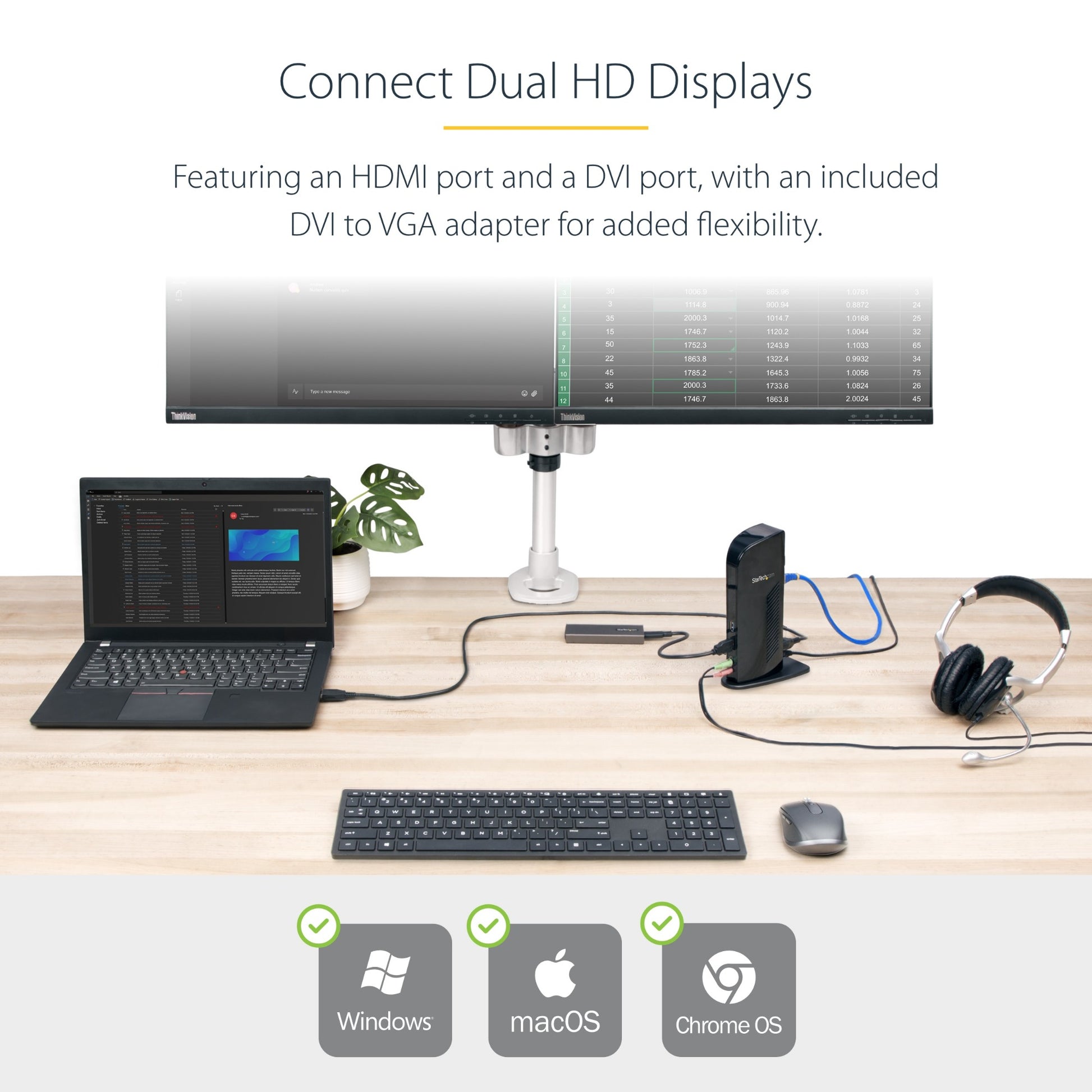

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of microphone inputs | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Any brand |
| LED indicators | Power, USB |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC |
| Housing material | Plastic |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 360 mm |
| Power | |
| Input current | 0.8 A |
| Power plug type | Type C |
| Compatible power plug types | AU, EU, JP, UK, US |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 20 W |
| Output voltage | 5 V |
| Output current | 4 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |

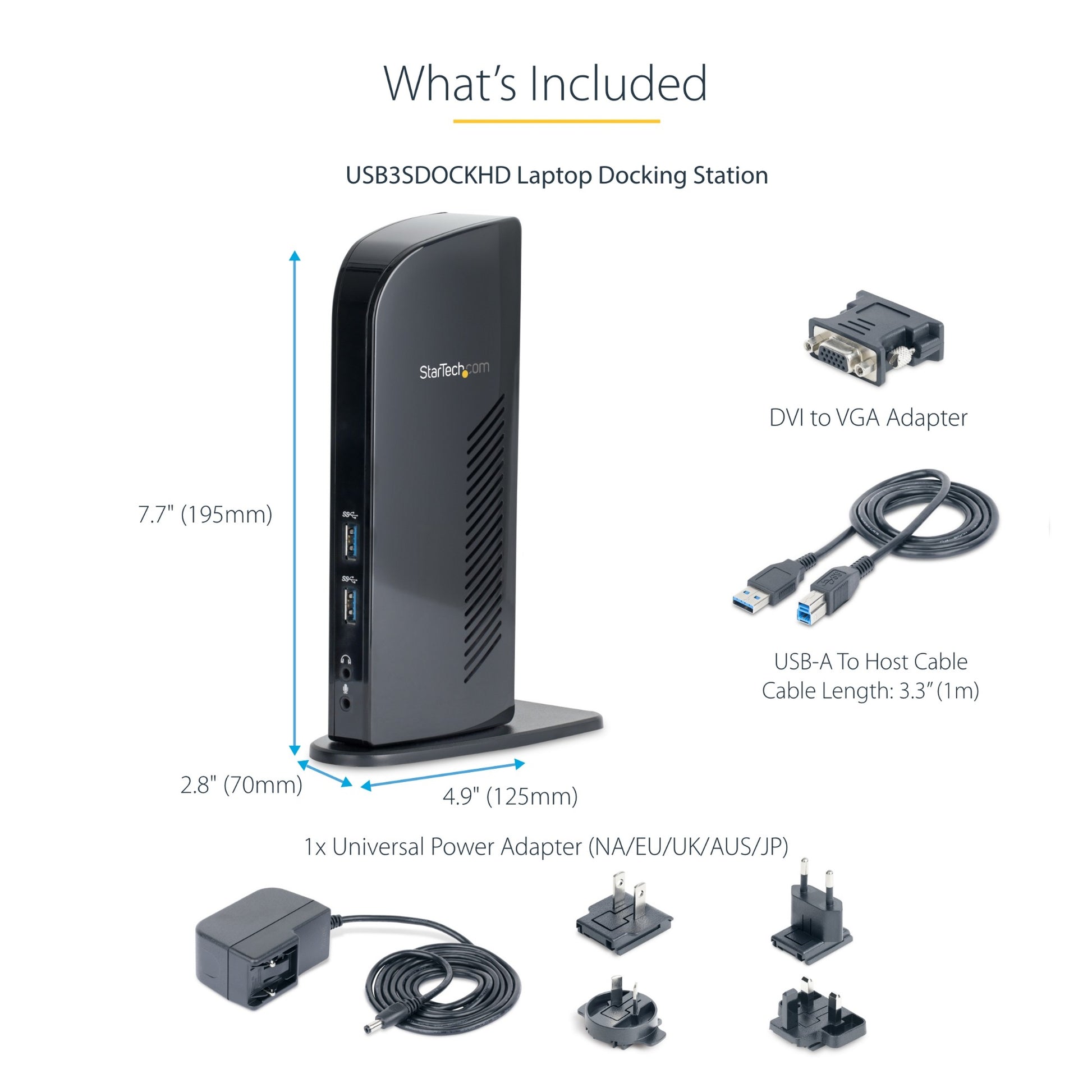

| Weight & dimensions | |
| Weight | 370 g |
| Width | 70 mm |
| Depth | 125 mm |
| Height | 195 mm |
| Package weight | 900 g |
| Package width | 190 mm |
| Package depth | 273 mm |
| Package height | 109 mm |

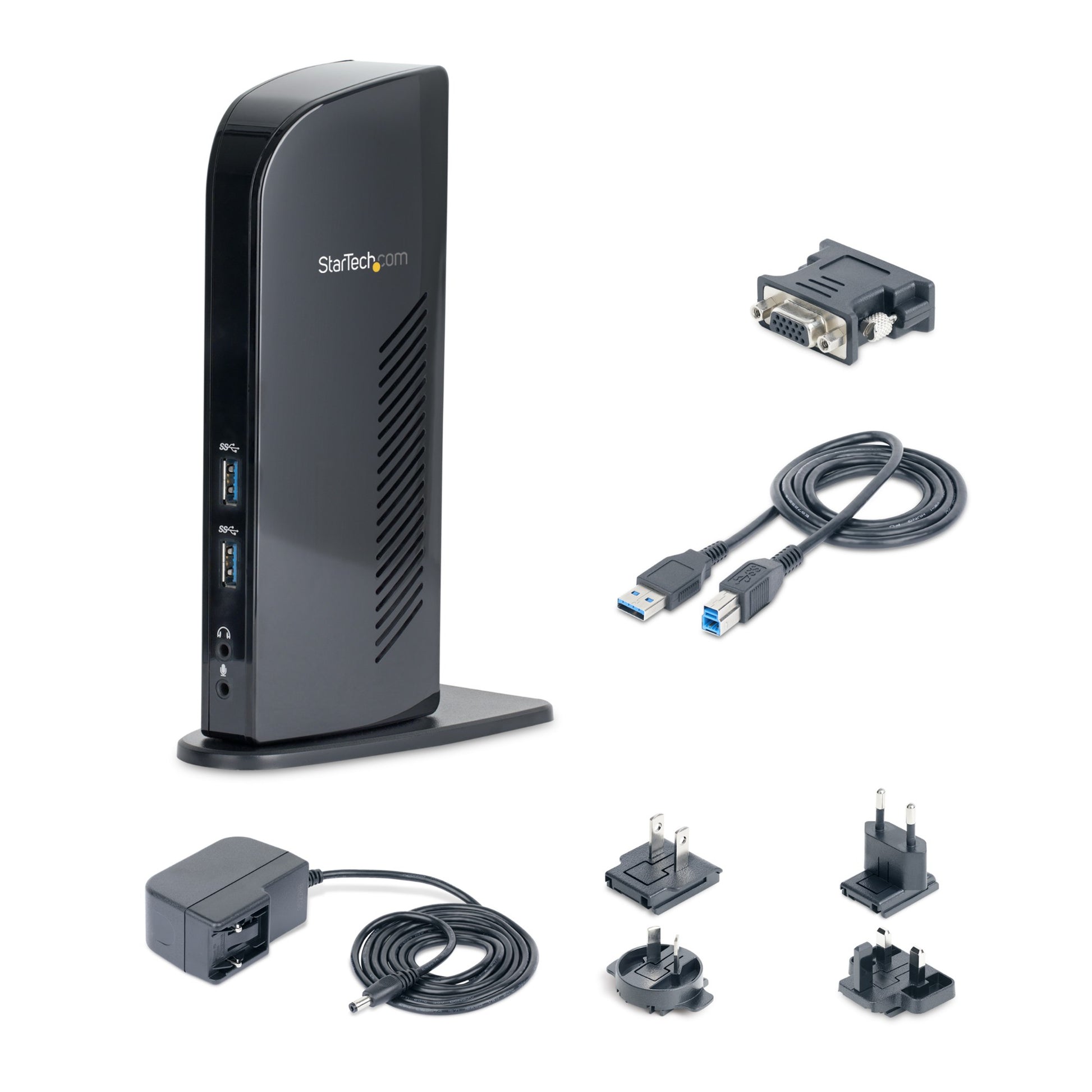

| Packaging content | |
| Drivers included | Yes |
| Interface adapters included | DVI-I male - VGA female |
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Other features | |
| Minimum system requirements | CPU: i3 Dual core 2.8GHz + RAM: 2GB + |
| Chipset | DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E |
