StarTech.com Monitor Arm with VESA Laptop Tray, For a Laptop (4.5kg/9.9lb) and a Mount

Position your screen exactly where you need it with the StarTech.com Monitor Arm — VESA fit and load ratings are below.

VESA Mount 75x75/100x100 | Laptop up to 9.4" to 16.5" Wide | Heigh Adjustment

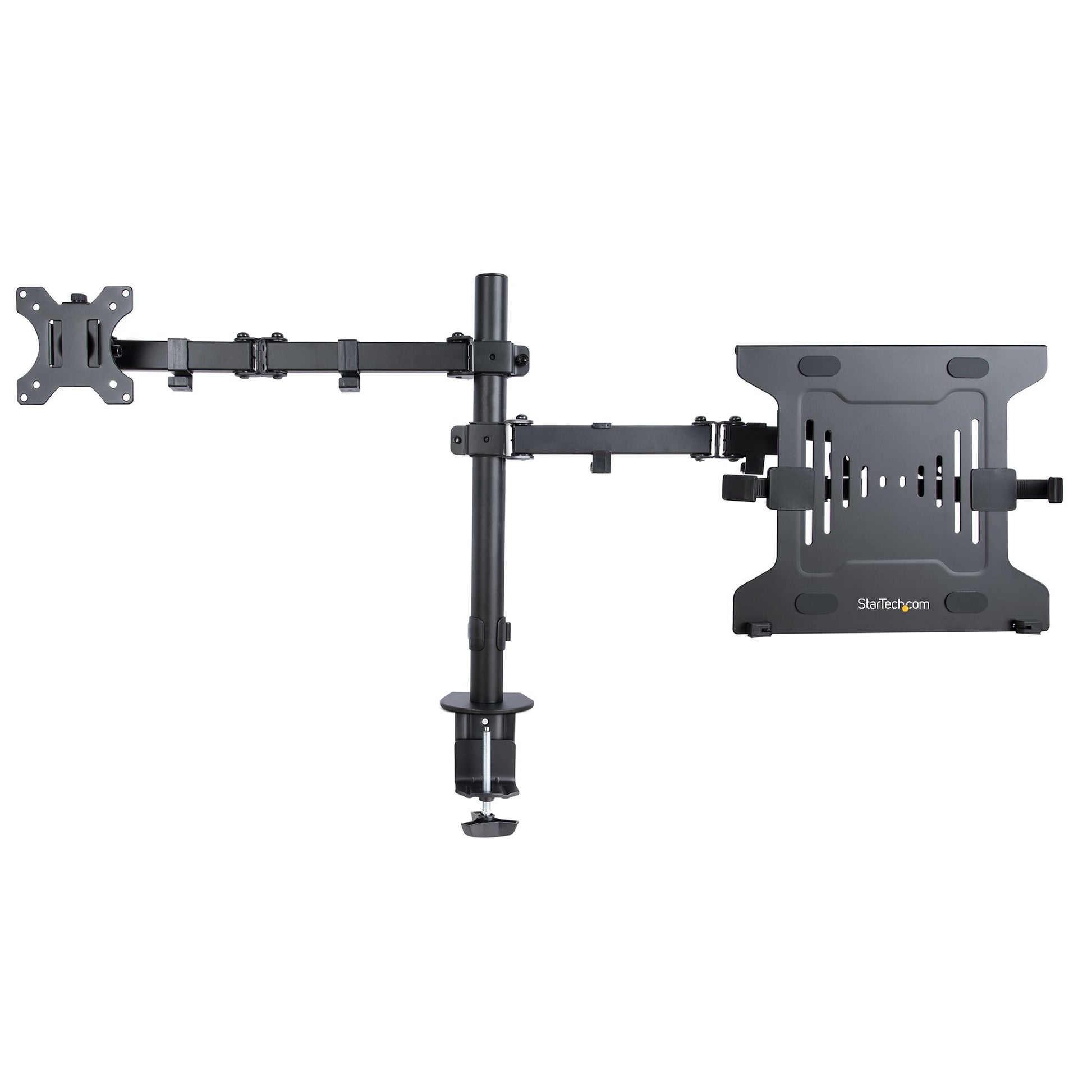

Increase your desk space and add versatility and ergonomics to your work/home setup with this VESA-compatible laptop and monitor desk mount. The laptop tray (11.8x11in / 300x280mm) is large enough to hold a laptop between 9.4-16.5in (240-420mm) wide, 1in (25.4mm) thick, and up to 10lbs (4.5kg). The monitor arm allows you to mount a VESA compatible (75x75mm or 100x100mm) display up to 32in with a maximum weight of 17.6lbs (8kg).

Versatile compatibility and solid construction

This well-ventilated laptop tray includes rubber pads to prevent scuffs and scratches. In addition, the tray features two independent adjustable padded arms that serve as a cradle to secure the laptop and can be independently positioned and secured along the sides of the tray to prevent blocking any port configuration on a laptop. The tray and monitor mount are both solid steel.

Wide range of motion

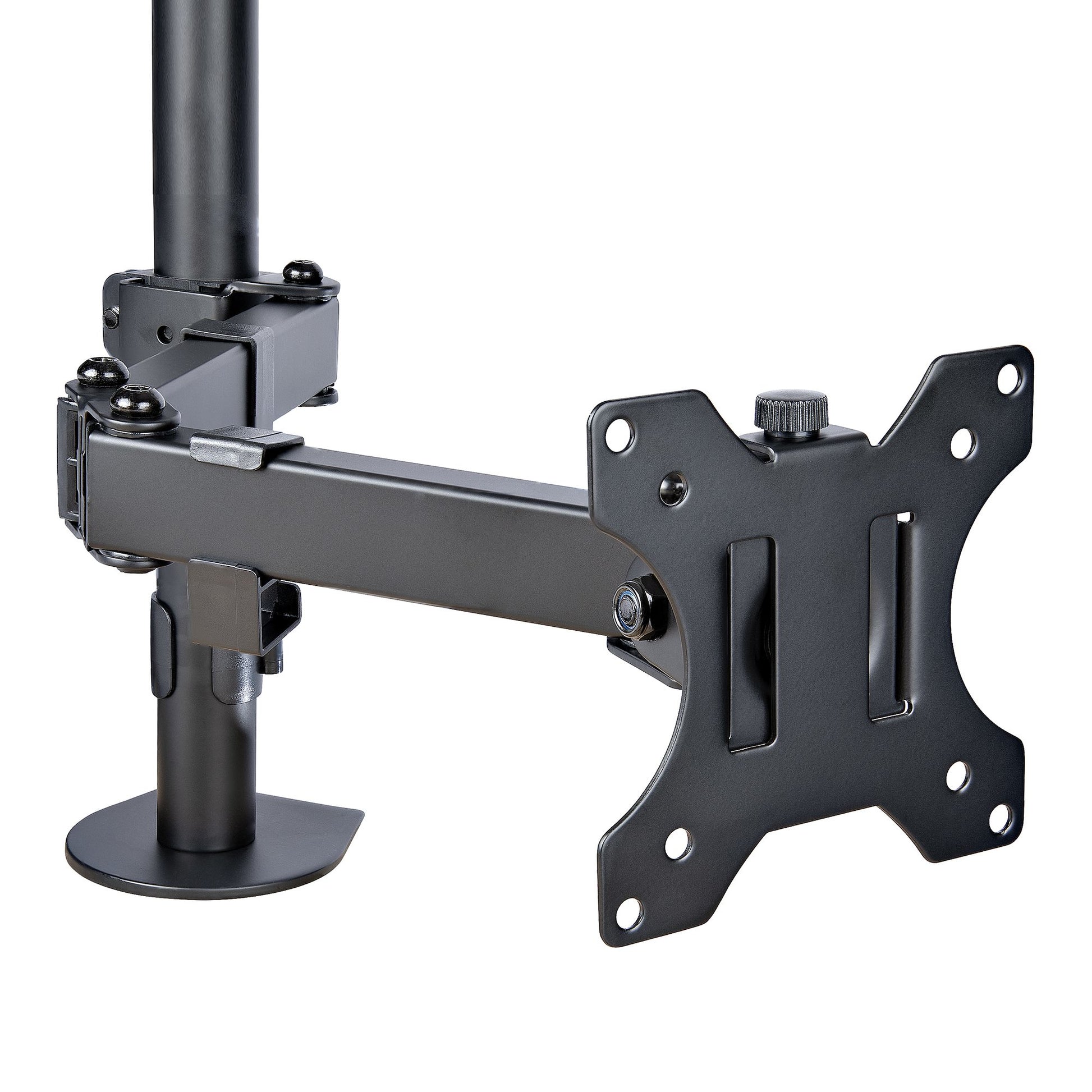

The VESA mounts offer wide adjustability options such as tilt +/-45° swivel +/-90°; and rotation 360°. The height can be adjusted along the 17.4in / 443mm pole and the arms can also extend out a maximum of 15.7in / 399mm out. Two joints (at the pole and middle of the arms) allow them to swivel +/-180°.

Ergonomic design

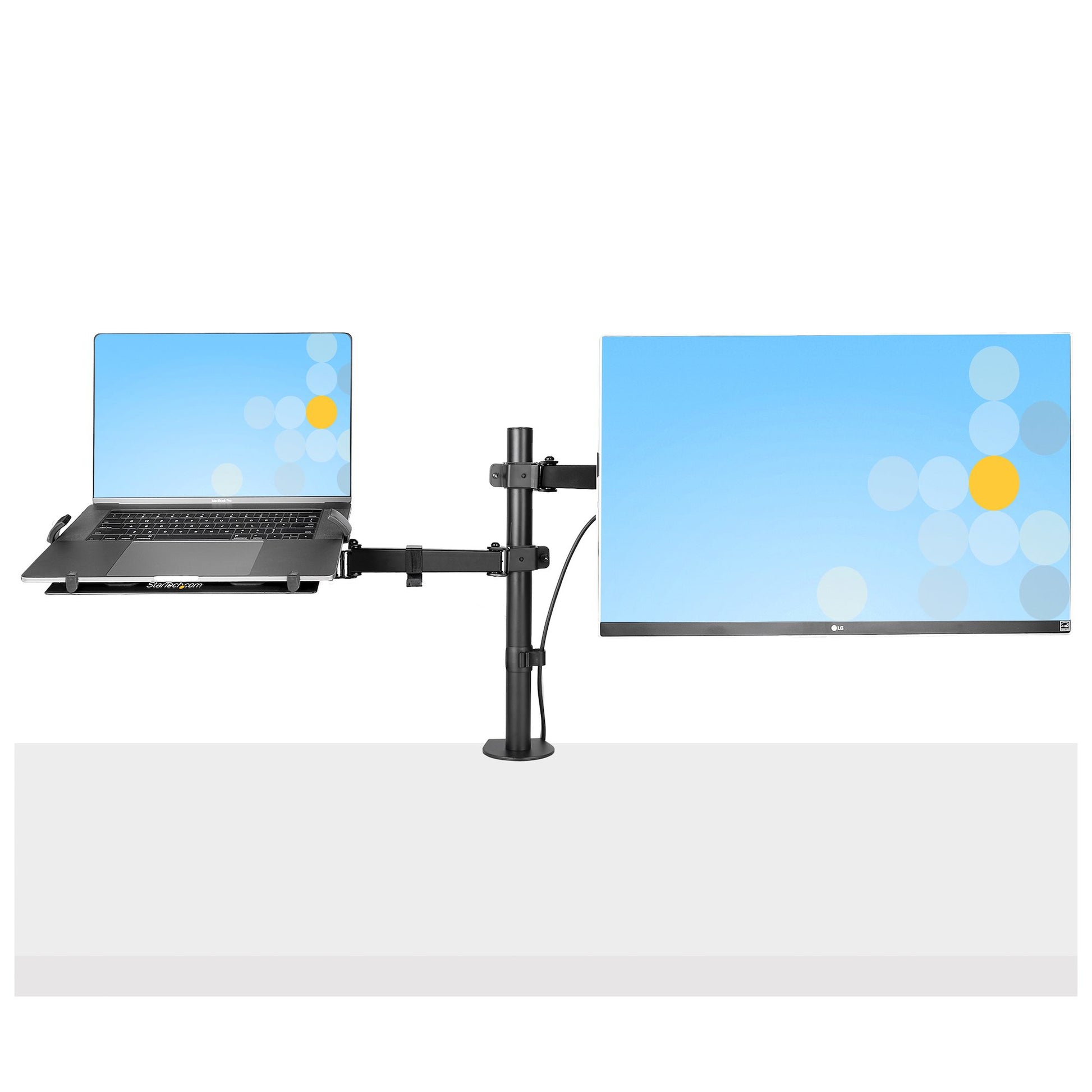

The multiple adjustment options allow the laptop to be positioned at eye level improving your posture and comfort, and when positioning the monitor mount beside it, enhances your screen real estate and productivity.

Mounting options

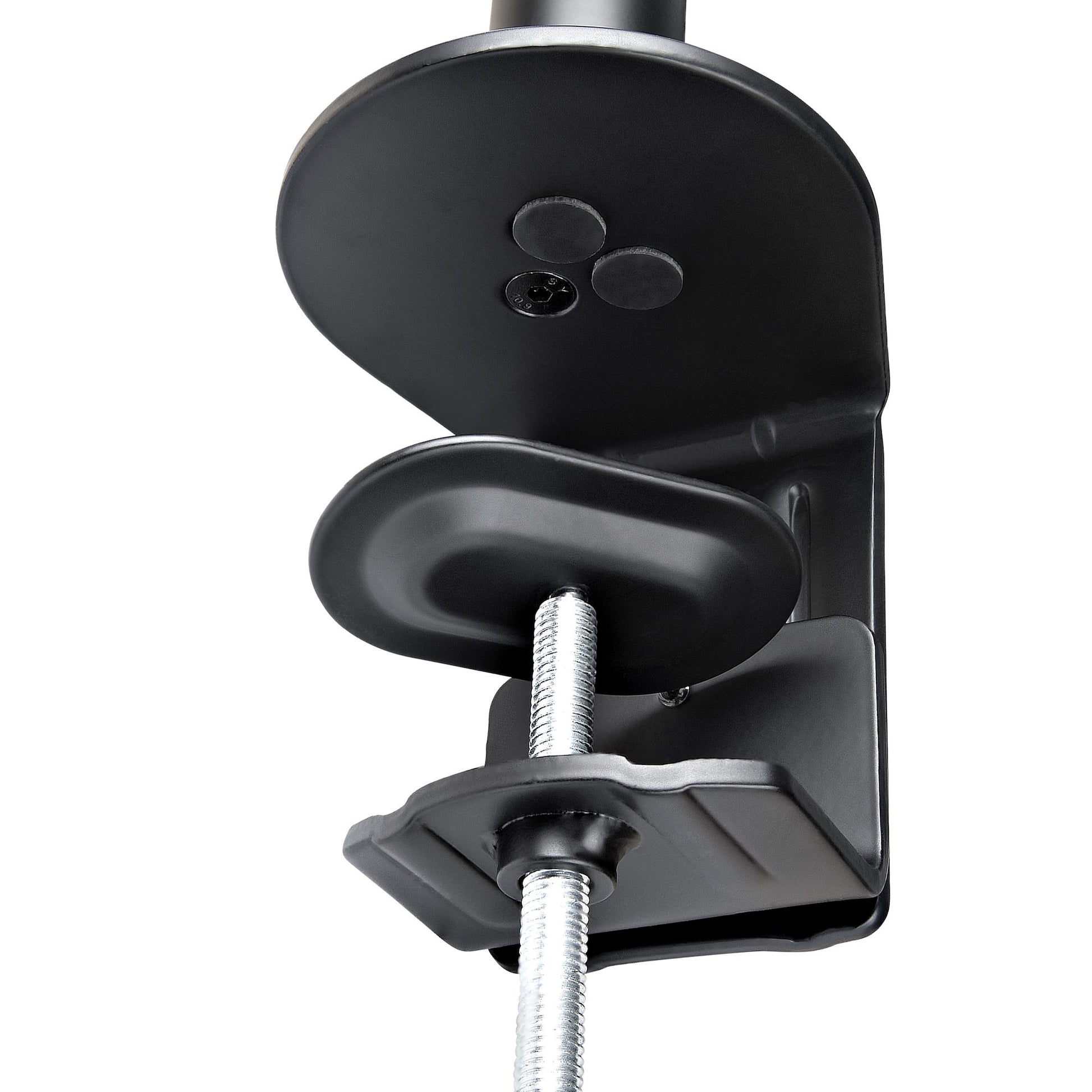

Using the interchangeable desk clamp (C-clamp) you can easily attach and secure the mount to a desk or grommet hole by hand (grommet hole 0.39-2.36in / 10-60mm and desks 0.39-3.46in / 10-88mm thick). You can remove the laptop tray or monitor with no tools for hassle-free changes in your setup. To keep everything neatly arranged, cable management clips around the support arms keep the cables organized and out of the way.

A2-LAPTOP-DESK-MOUNT is backed for 5-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Mounting
Maximum weight capacity (per display)	8 kg
Desk thickness (min)	1 cm
Desk thickness (max)	8.8 cm
Minimum screen size	33 cm (13")
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Distance to the wall (max)	39.9 cm
Maximum weight capacity	16 kg
Maximum screen size	86.4 cm (34")
Mounting hole range	10 - 60 mm
Ergonomics
Cable management	Yes
Height adjustment	Yes
Pivot angle	-90 - 90°
Swivel angle range	-90 - 90°
Swivel angle	180°
Tilt angle range	-45 - 45°
Angle of rotation	360°
Number of arms	2
Rotating	Yes
Tilt adjustment	Yes
Design
Product colour	Black
Housing material	Plastic, Steel
Weight & dimensions
Weight	6.1 kg
Package width	460 mm
Package depth	327 mm
Package height	130 mm
Package weight	6.3 kg
Packaging data
Wrench type	Hexagonal wrench
Screws included	Yes
Clamp included	Yes
Wrench included	Yes
Packaging content
Number of screws	39
Number of washers included	8
Number of spacers included	8
Grommet base plate included	Yes
Grommet plate included	Yes
VESA mount included	Yes
Number of cable clips	1
Number of rubber pads included	5 pc(s)
Logistics data
Master (outer) case width	455 mm
Master (outer) case length	330 mm
Master (outer) case height	130 mm
Products per master (outer) case	1 pc(s)
