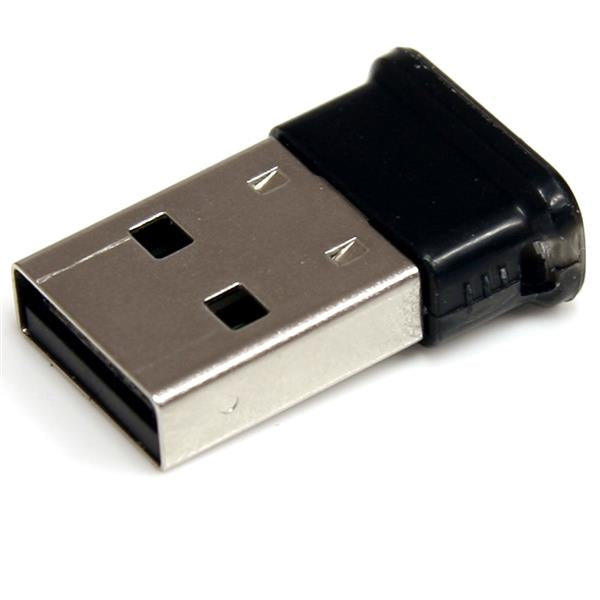

StarTech.com Mini USB Bluetooth 2.1 Adapter - Class 1 EDR Wireless Network Adapter

Upgrade your connectivity with the StarTech.com Mini — ports, speeds and interface details are in the spec table.

Add Bluetooth 2.0 with EDR capabilities to a computer, through USB

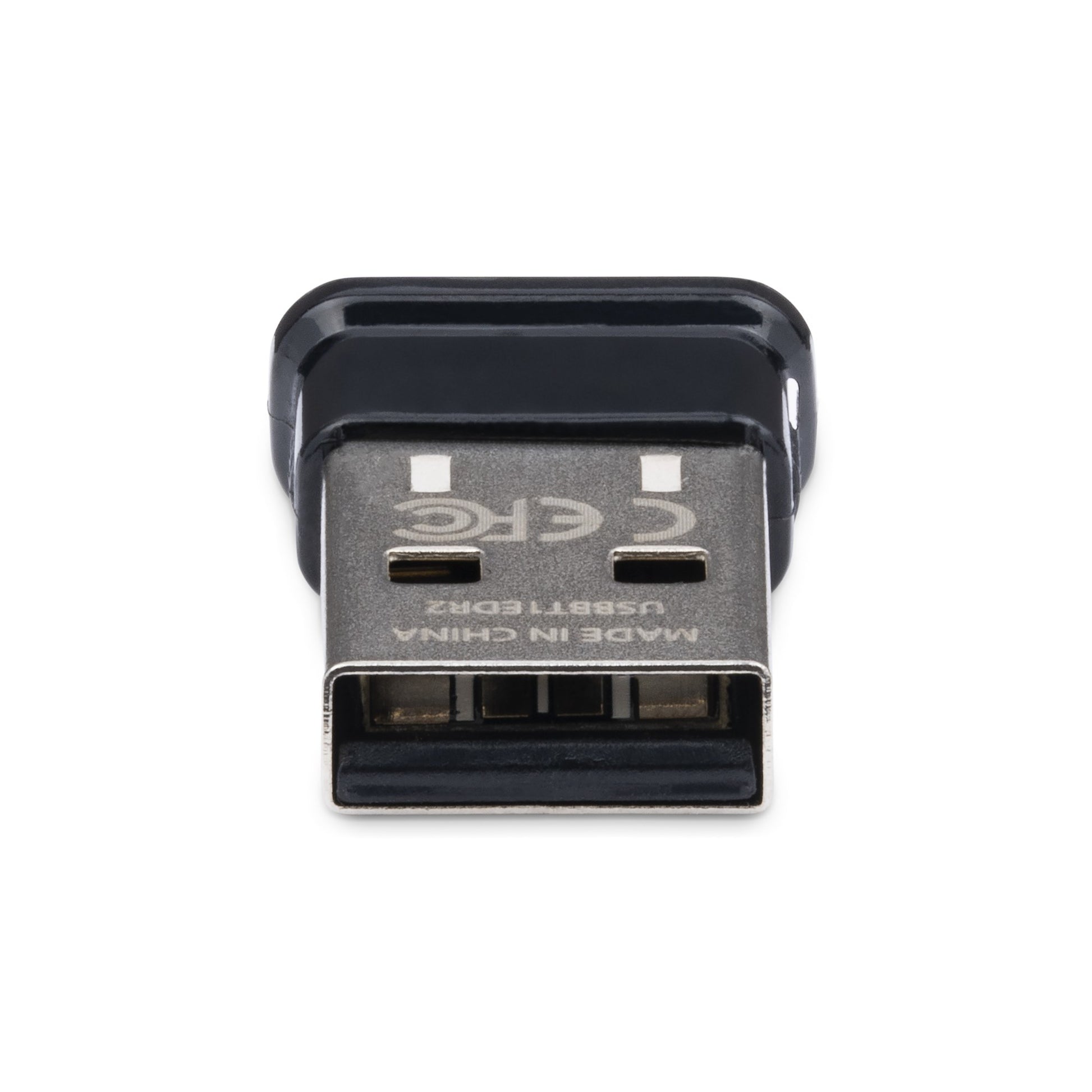

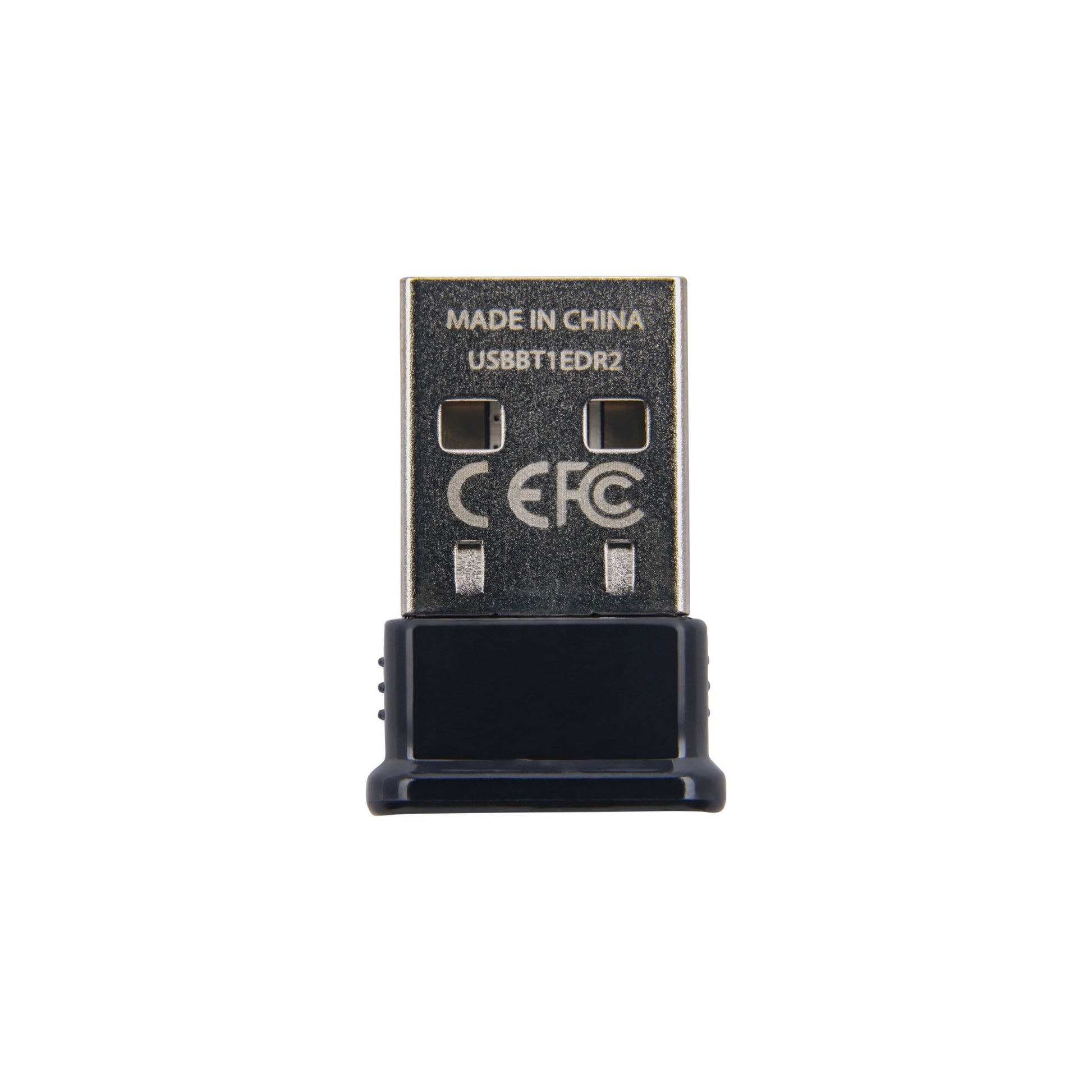

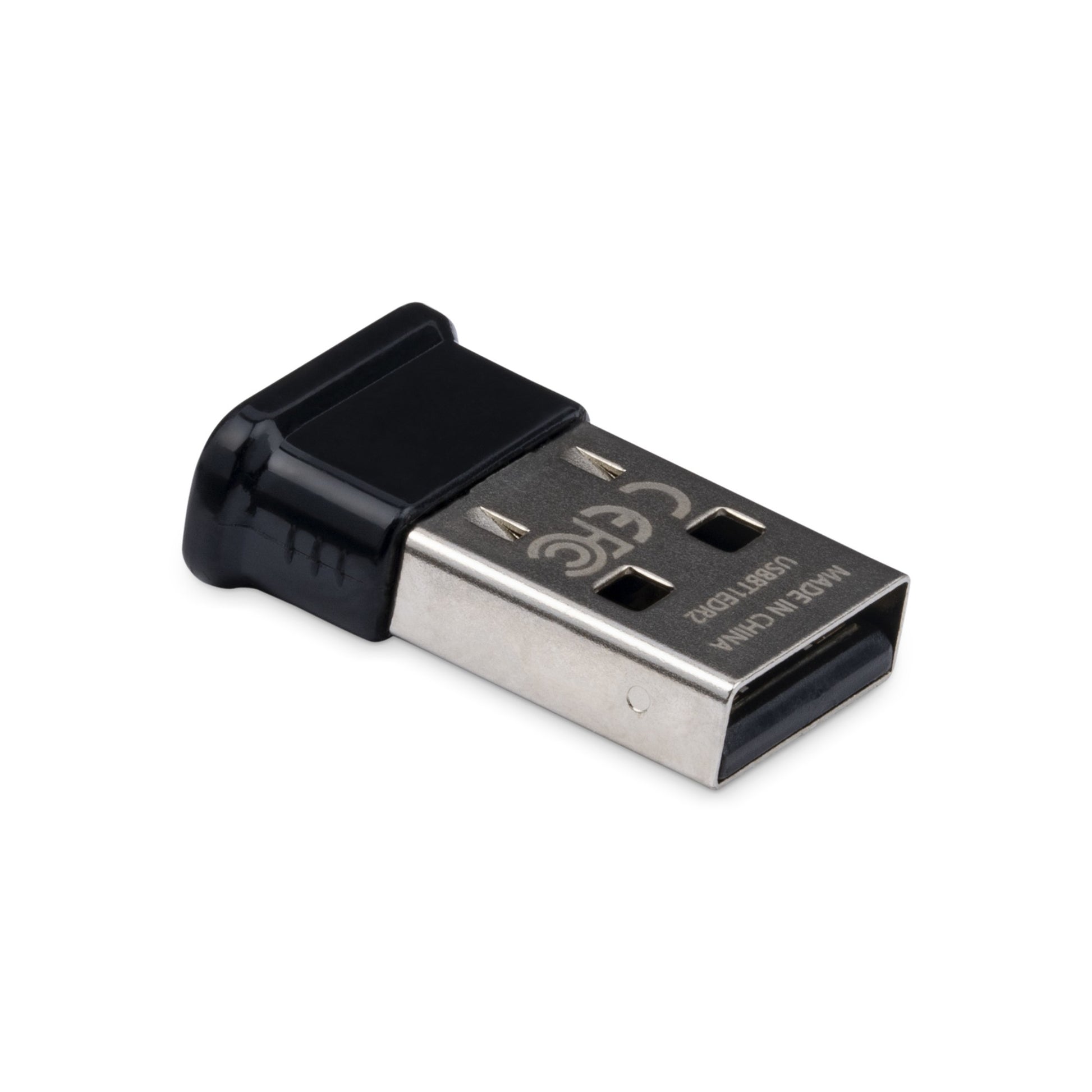

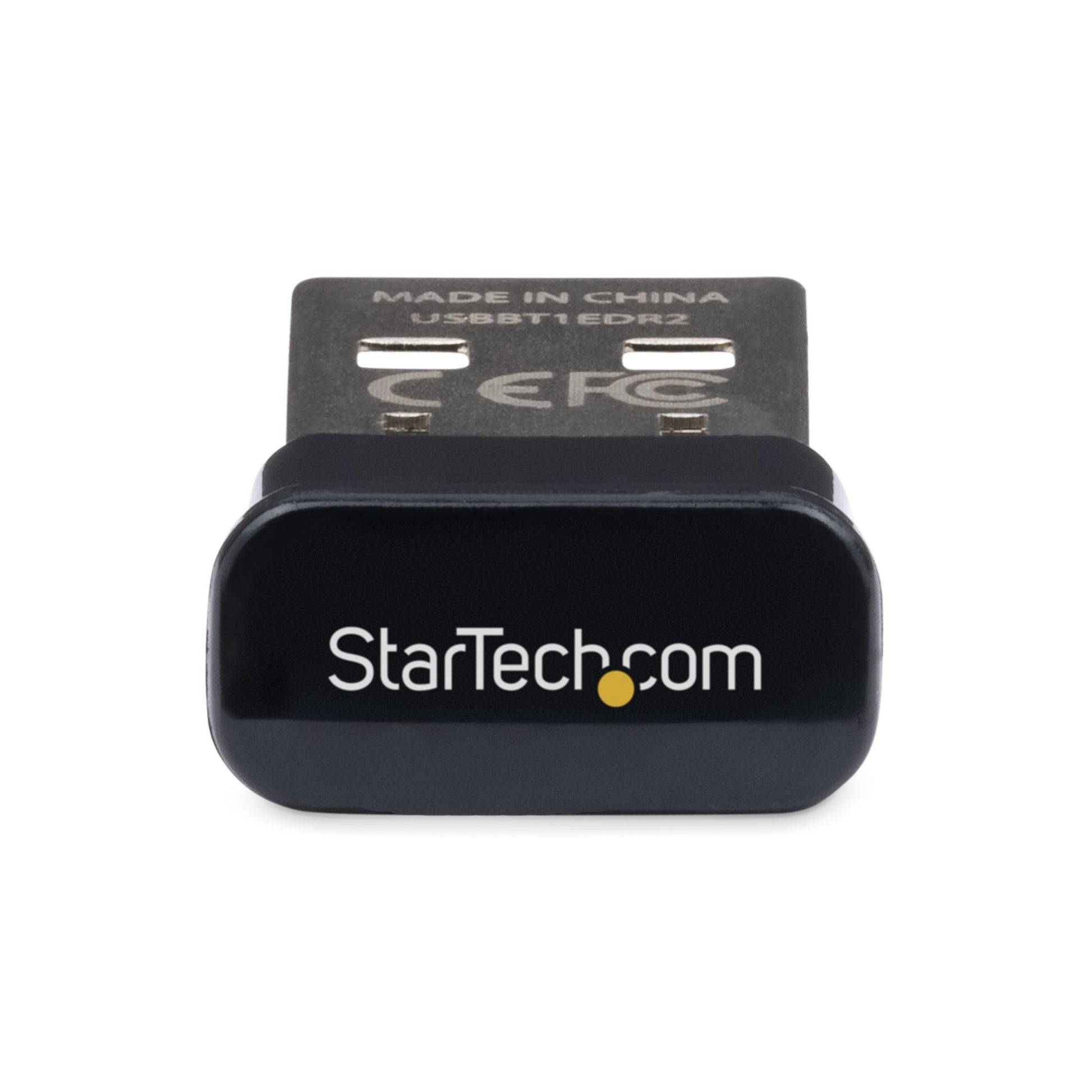

The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.

The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	No
Interface	Bluetooth
Host interface	USB
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	3 Mbit/s
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Network
Chipset	CSR BC0401PC08
Bluetooth version	2.1+EDR
Modulation	DQPSK
Maximum operating distance	100 m
Technical details
Product colour	Black
Harmonized System (HS) code	85176990
Design

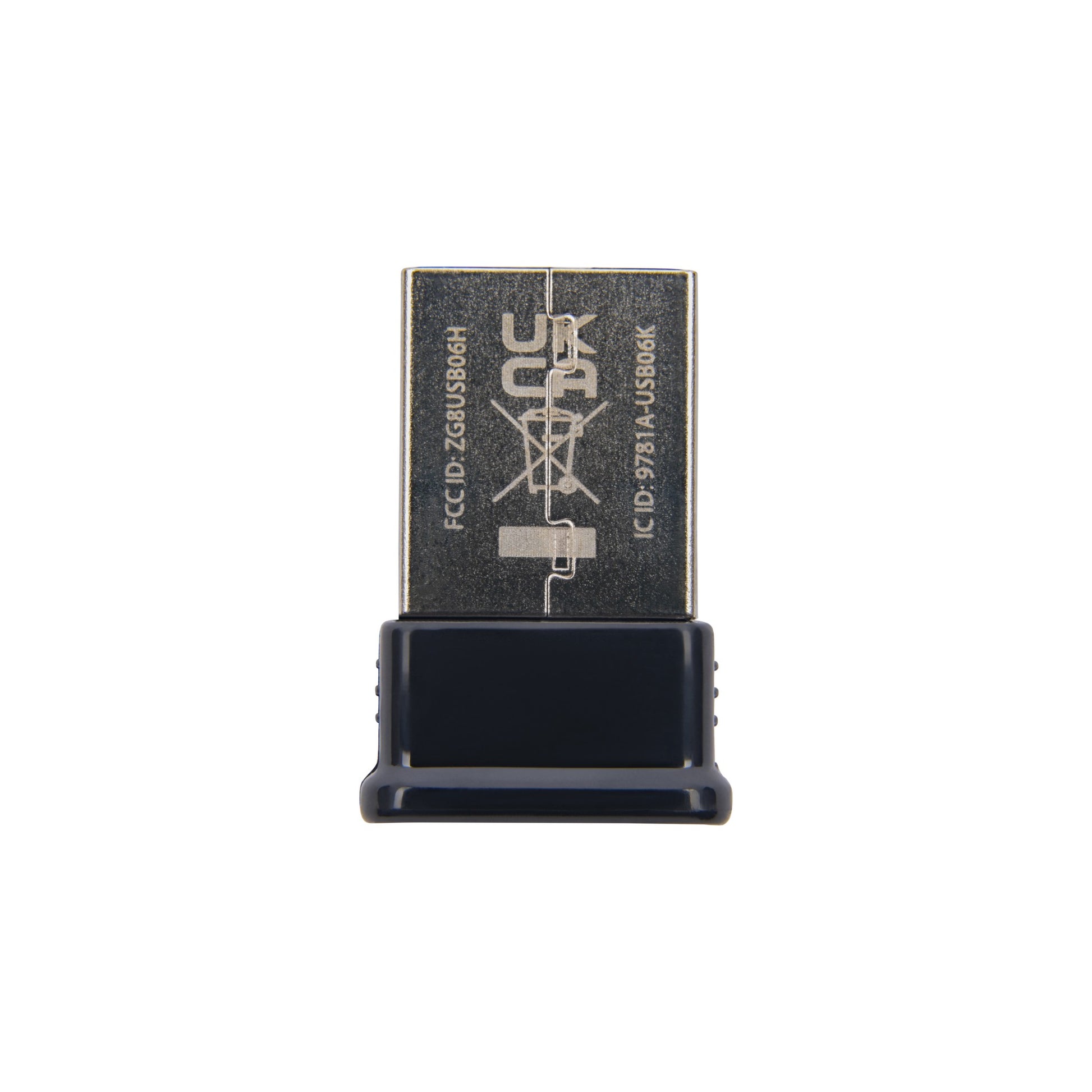

Certification	RoHS, CE, FCC
LED indicators	Power
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Power
Power consumption (typical)	1 W
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016
Operational conditions
Operating temperature (T-T)	10 - 50 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	0 - 75%
Weight & dimensions
Width	9.7 mm
Depth	20 mm
Height	6 mm
Weight	2 g
Package width	144 mm
Package depth	168 mm
Package height	32 mm
Package weight	75 g
Logistics data
Master (outer) case width	308 mm
Master (outer) case length	492 mm
Master (outer) case height	378 mm
Products per master (outer) case	60 pc(s)

Downloads

• Datasheet (PDF)
