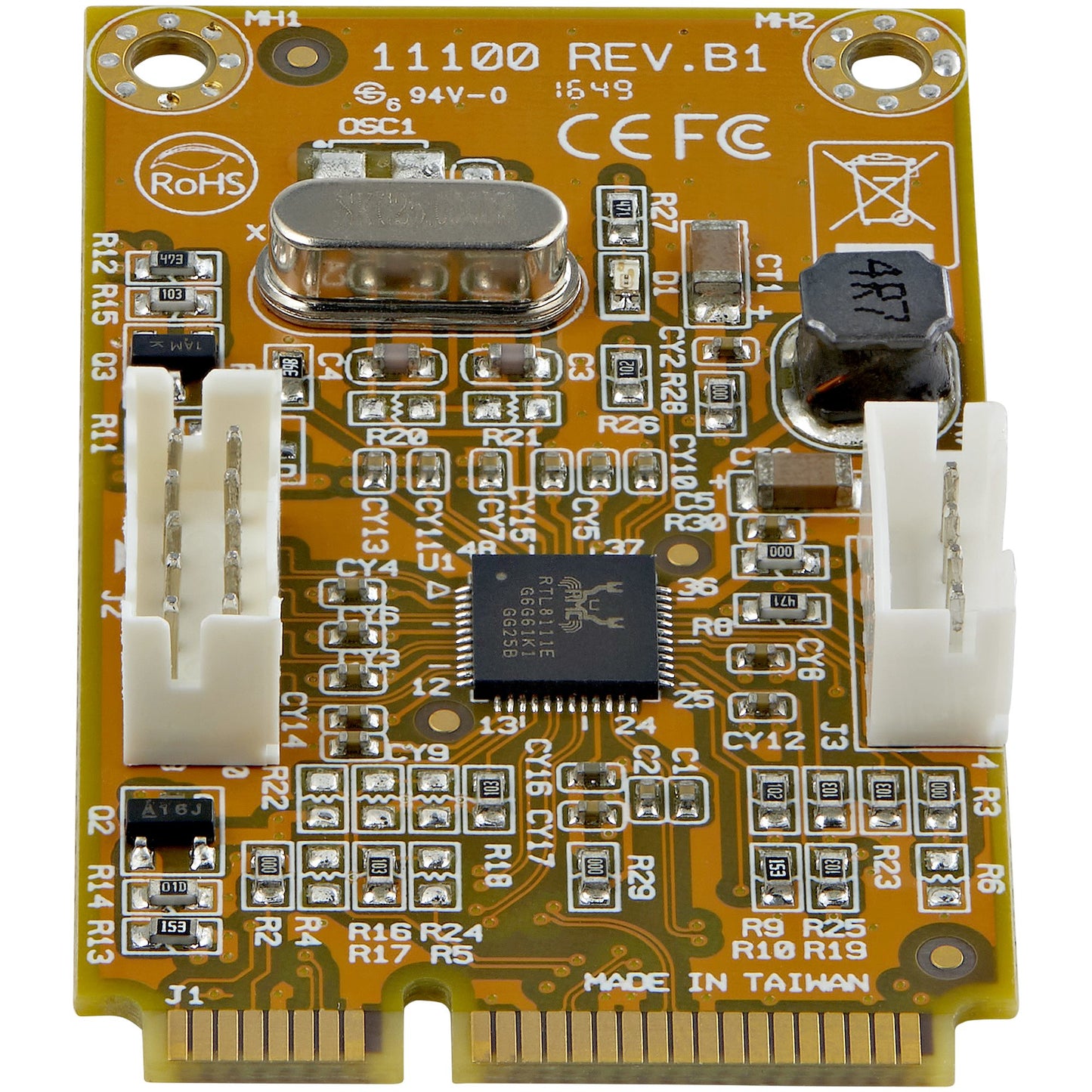

StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card - TAA

Upgrade your connectivity with the StarTech.com Mini PCI Express Gigabit — ports, speeds and interface details are in the spec table.

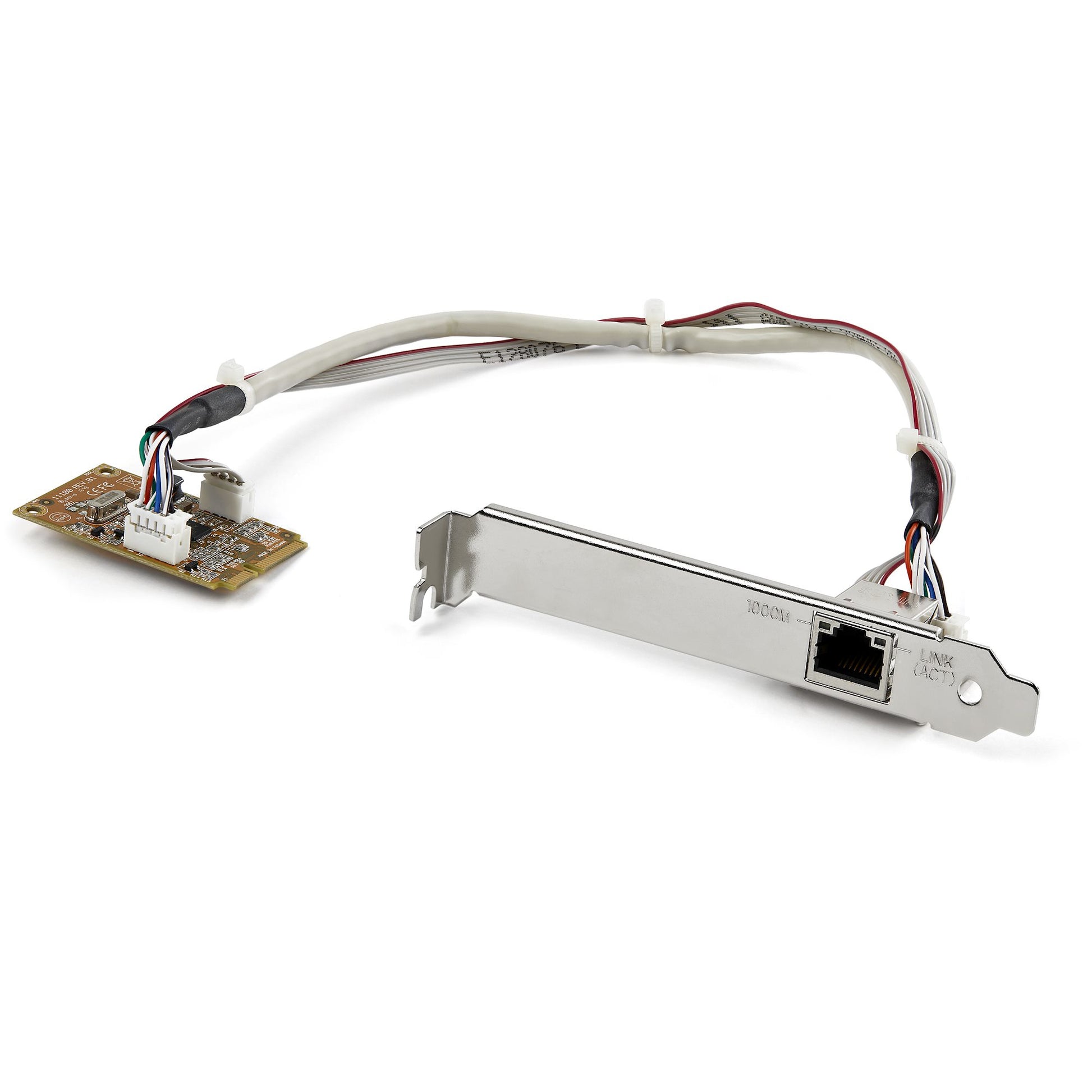

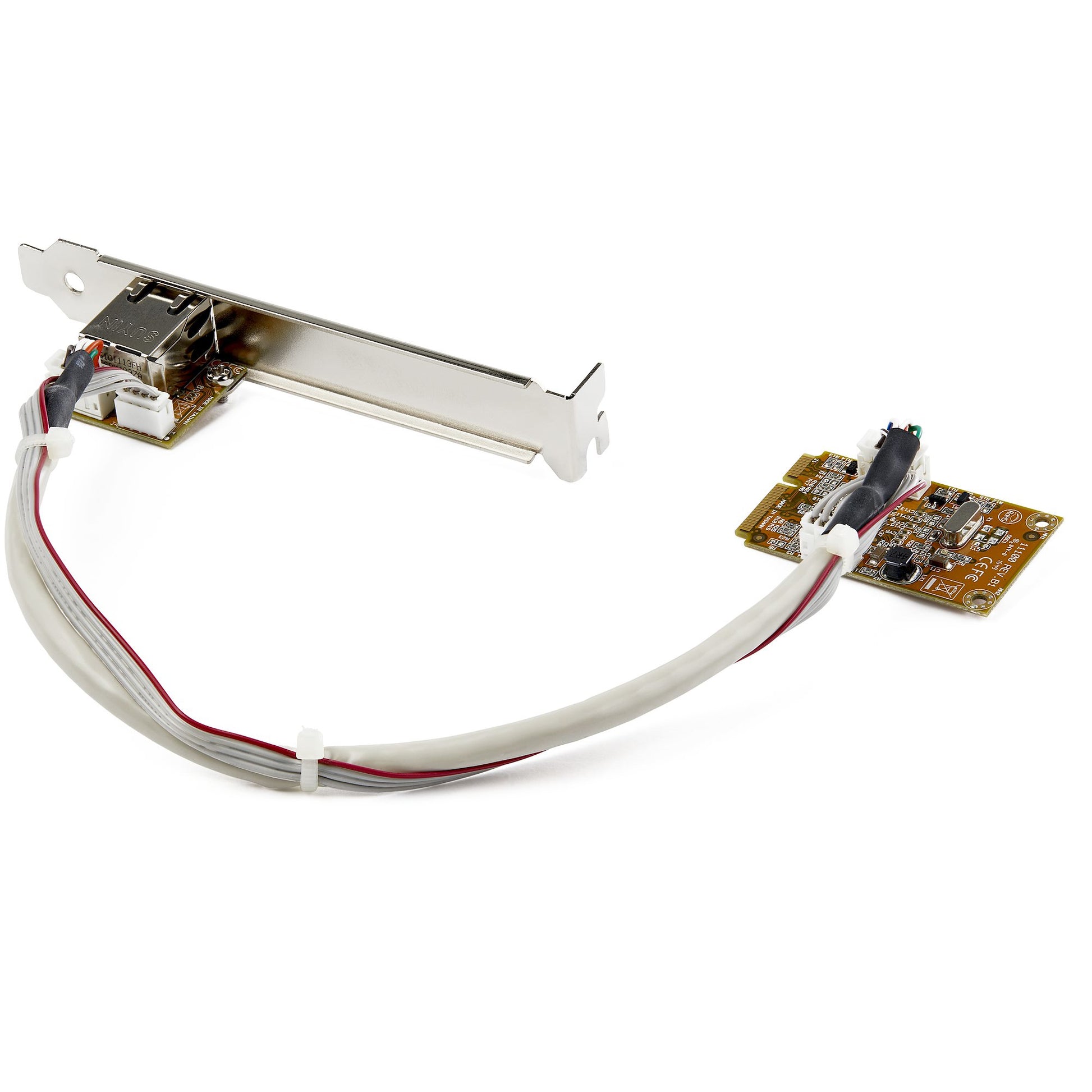

Add a Gigabit RJ45 port through a Mini PCI Express slot

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

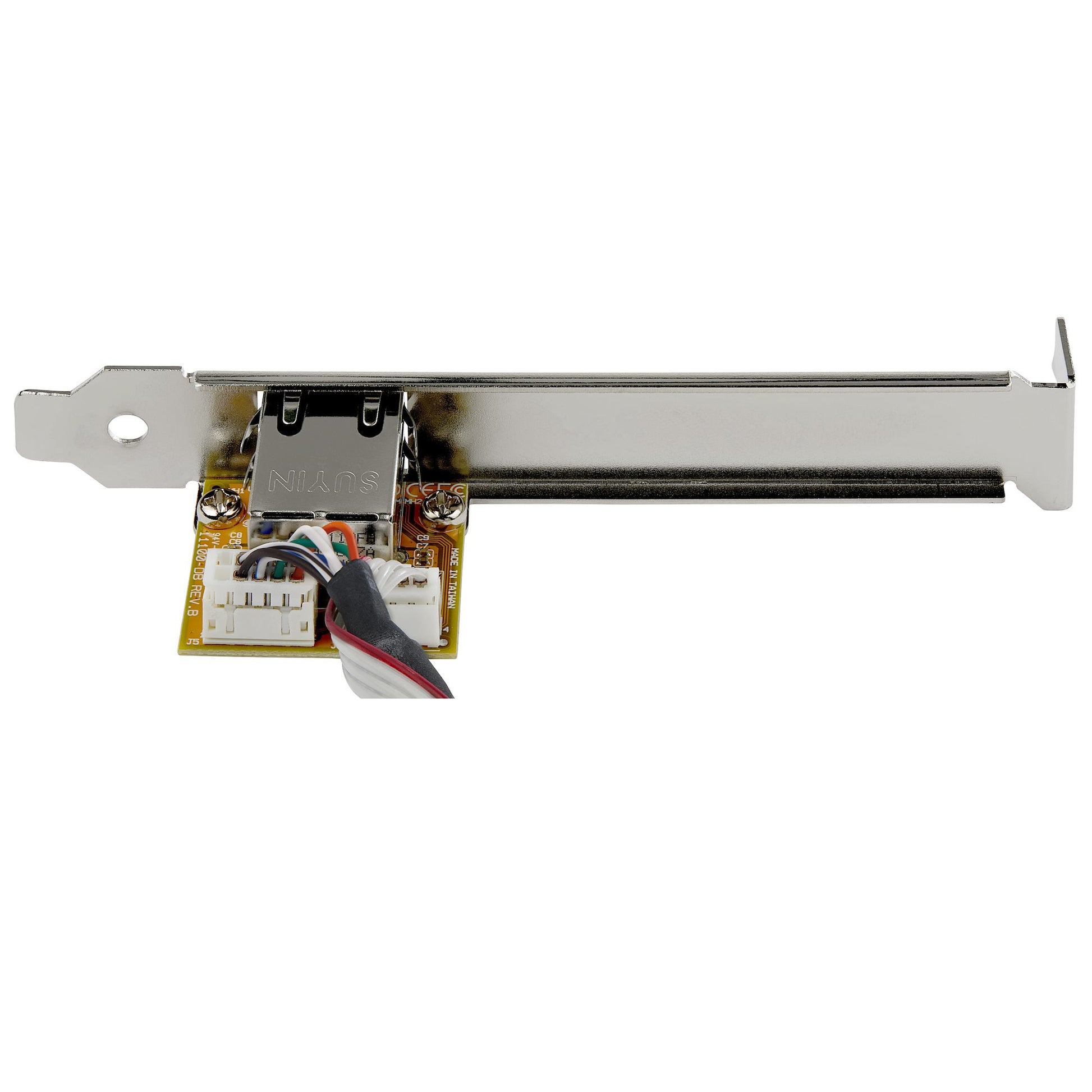

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	Mini PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	1000 Mbit/s
Network

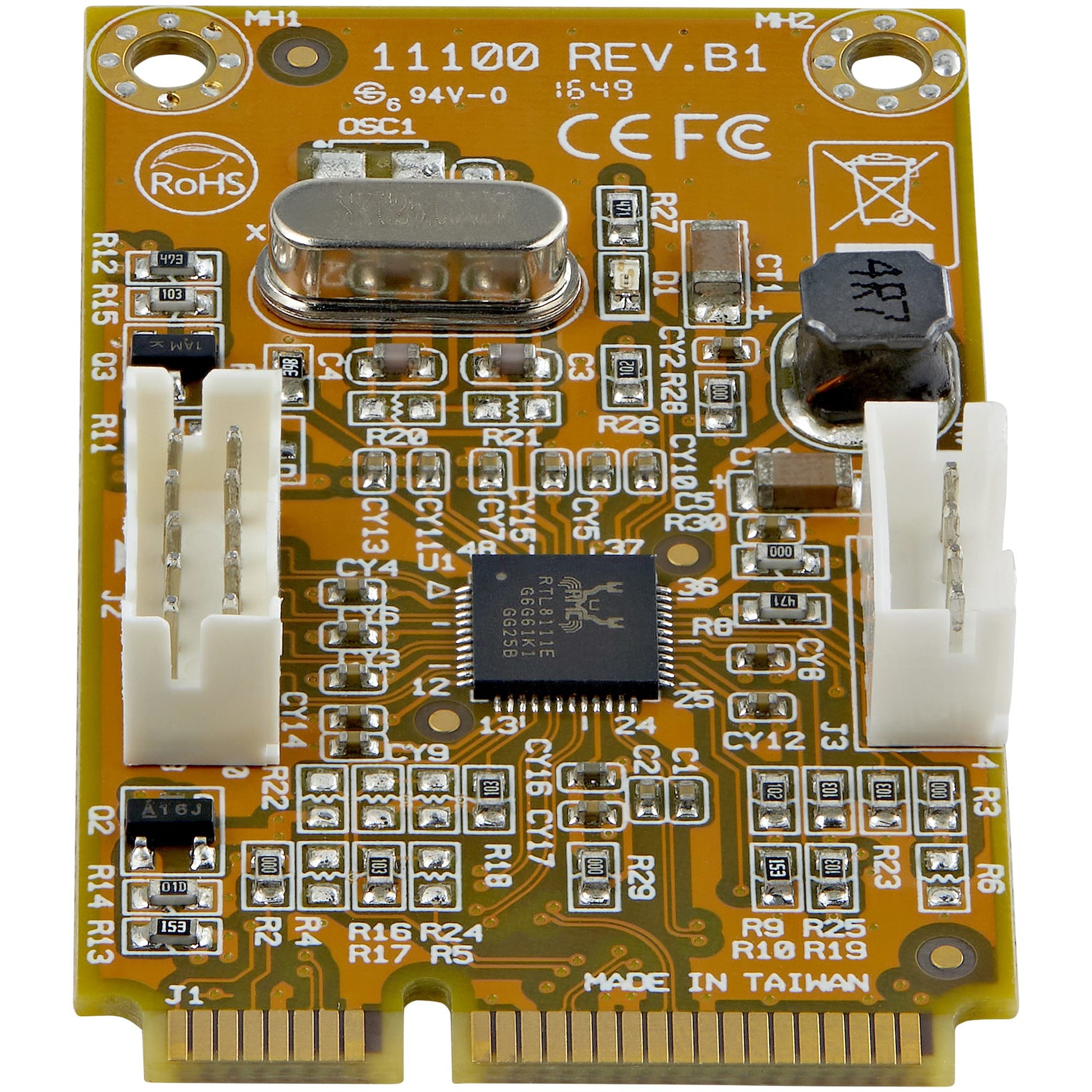

Chipset	Realtek - RTL8111E
VLAN tagging	Yes
Jumbo frames	9000
Ethernet LAN	Yes
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Technical details
Mean time between failures (MTBF)	482765 h
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Compliance certificates	RoHS
Design
Certification	CE, FCC
LED indicators	Activity, Link
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported	Yes
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	30 mm
Depth	51 mm
Height	8 mm
Weight	6 g
Package width	144 mm
Package depth	174 mm
Package height	33 mm
Package weight	150 g

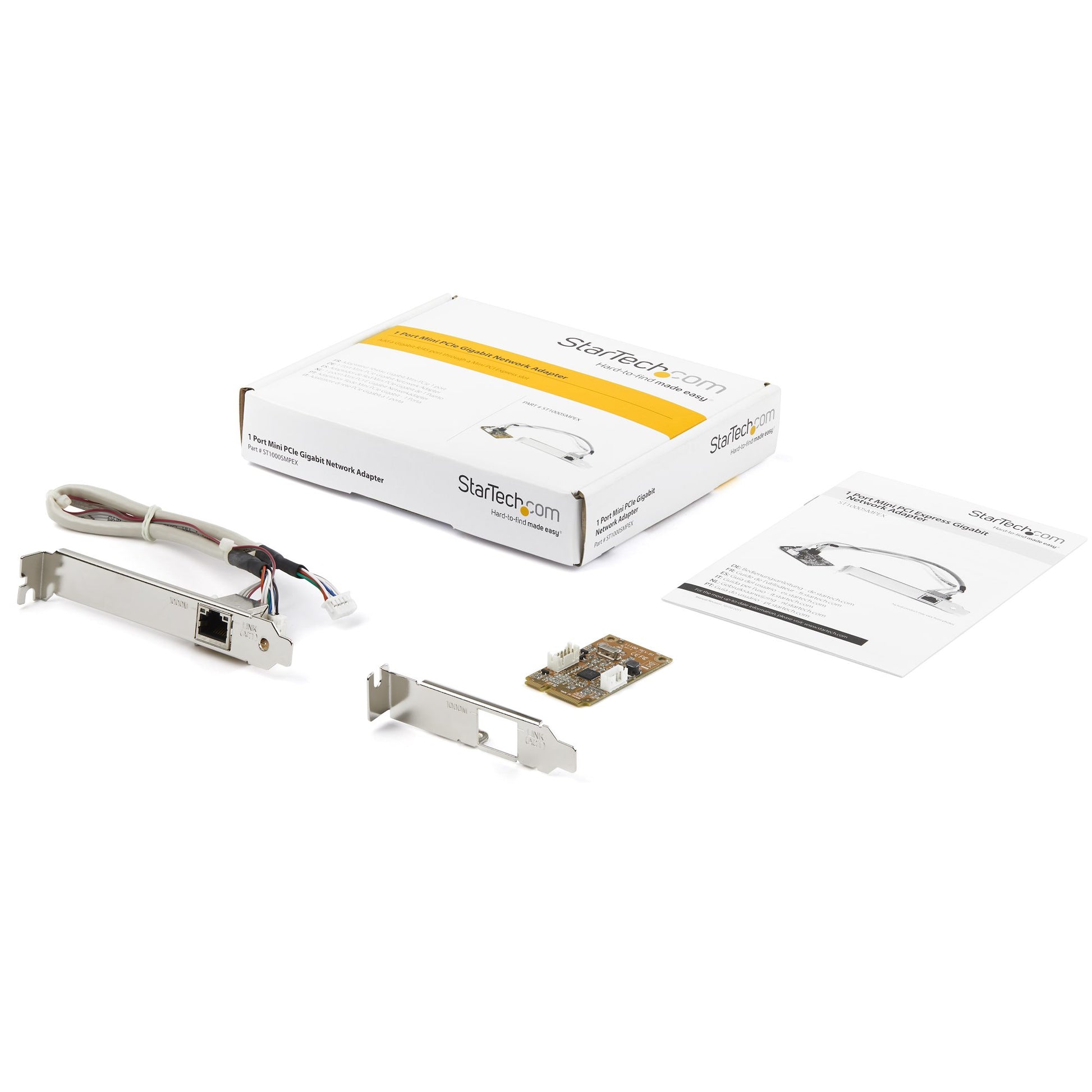

Packaging data
Drivers included	Yes
Low-profile bracket	Yes
Manual	Yes
Logistics data
Master (outer) case width	446 mm
Master (outer) case length	524 mm
Master (outer) case height	346 mm
Products per master (outer) case	80 pc(s)

Downloads

• Datasheet (PDF)
