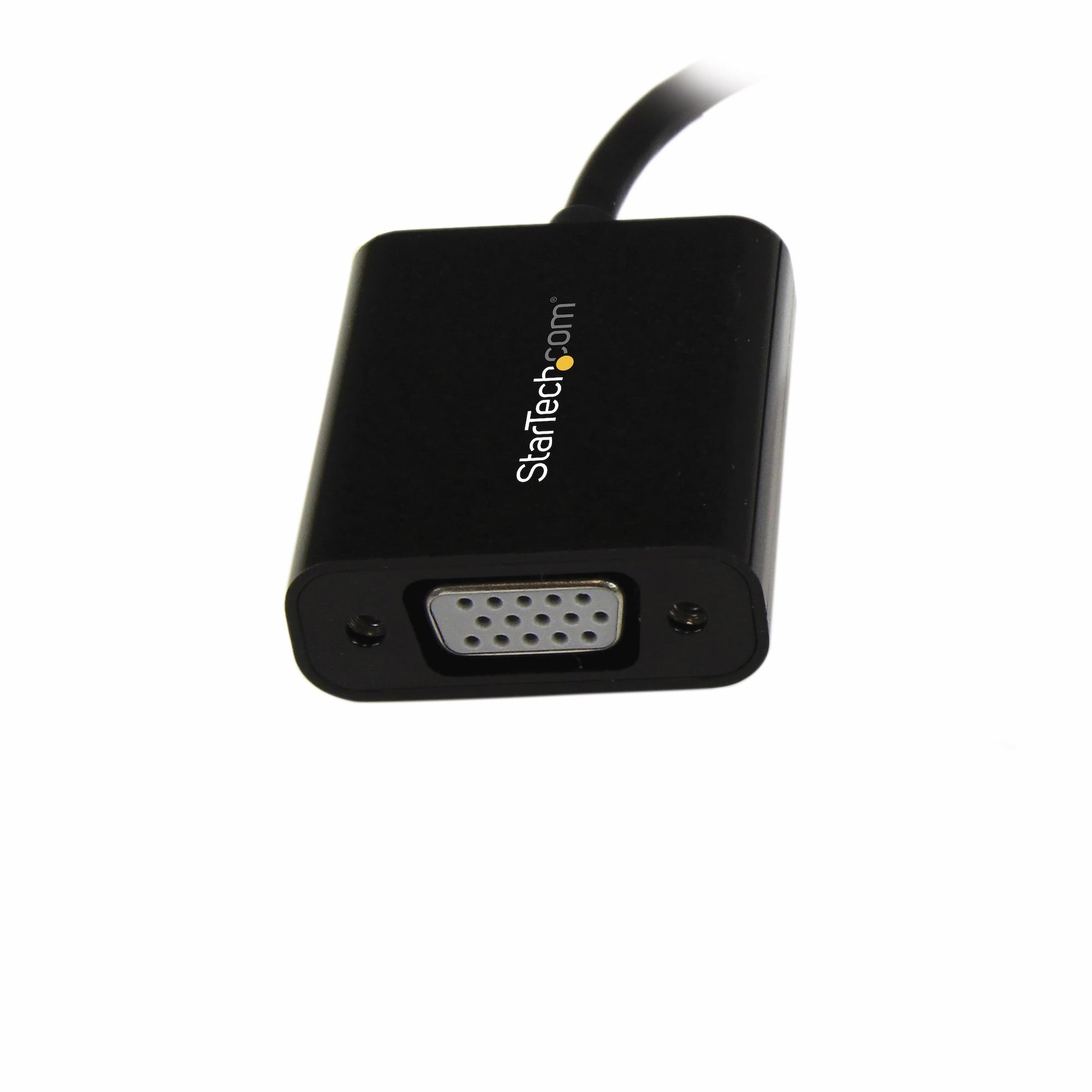

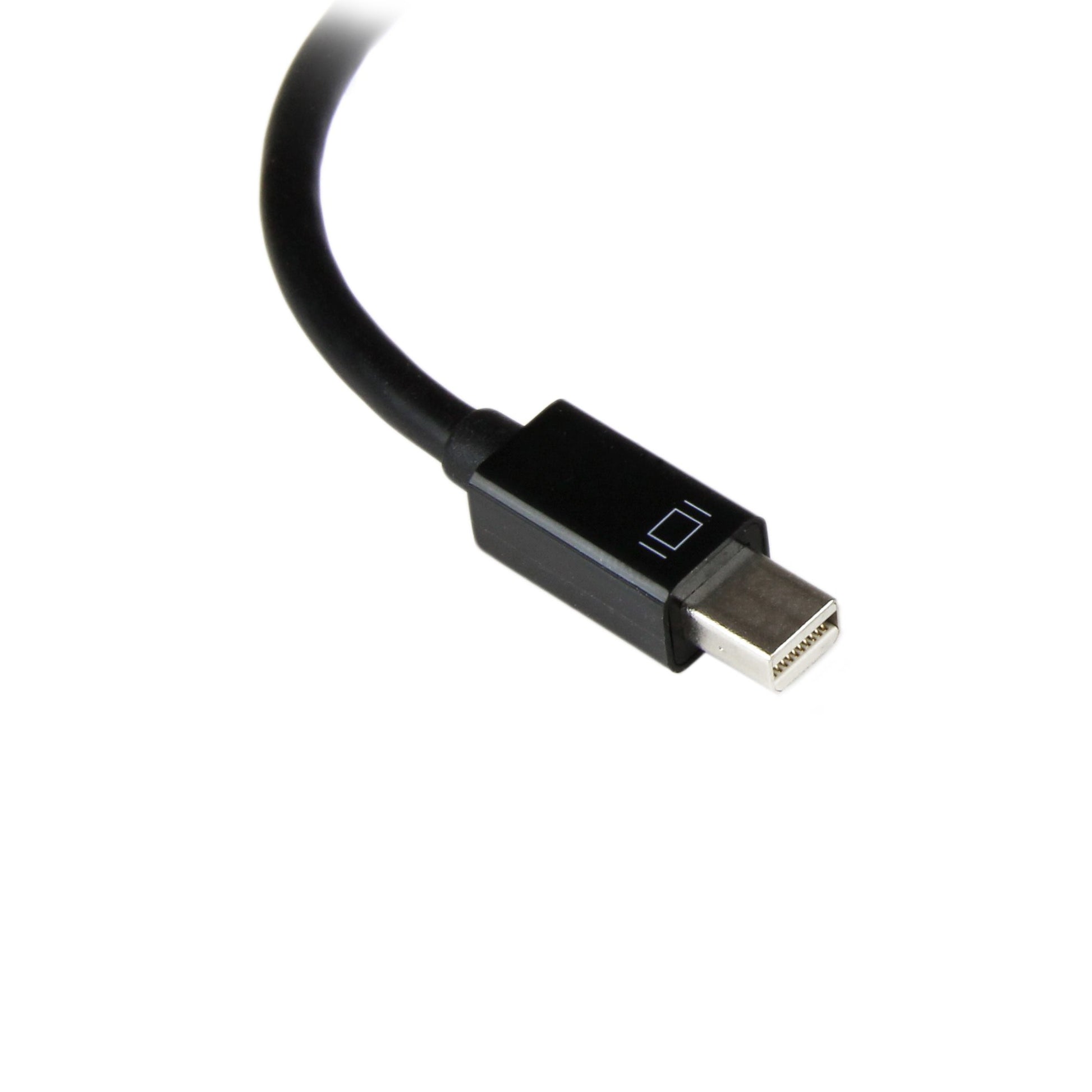

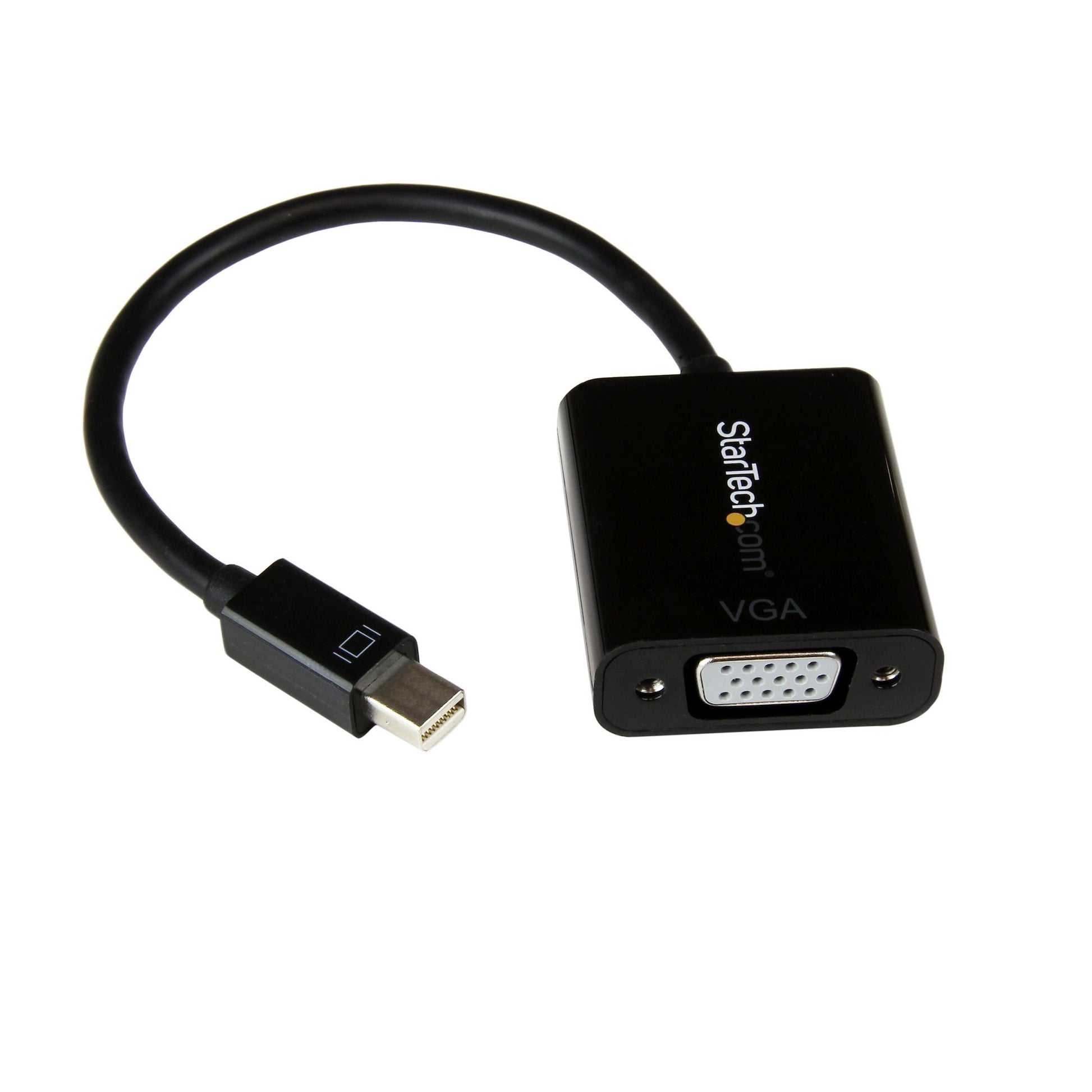

StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter Cable

Make the connection with the StarTech.com Mini DisplayPort to VGA — length and connector details are in the spec table.

Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.

With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Converter type	Active video converter
Chipset	Analogix - ANX9833
DisplayPort version	1.2
Product colour	Black
Cable length	0.18 m
Connector 1	Mini DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	1920 x 1200 pixels
Supported video modes	720p, 1080p
Plug and Play	Yes
Certification	RoHS, CE, FCC
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	CE, RoHS
Other features
Width	35 mm
Height	8 mm
Depth	220 mm
Weight & dimensions
Weight	27 g
Package width	200 mm
Package depth	220 mm
Package height	18 mm
Package weight	36 g
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	328 mm
Master (outer) case length	508 mm
Master (outer) case height	214 mm
Products per master (outer) case	150 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
