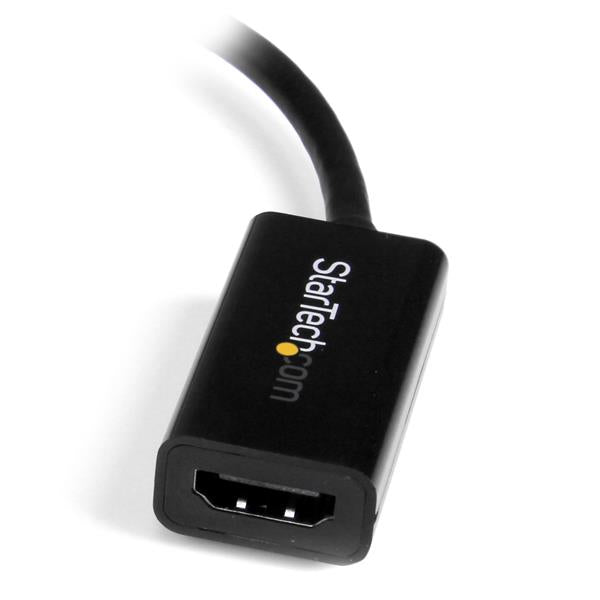

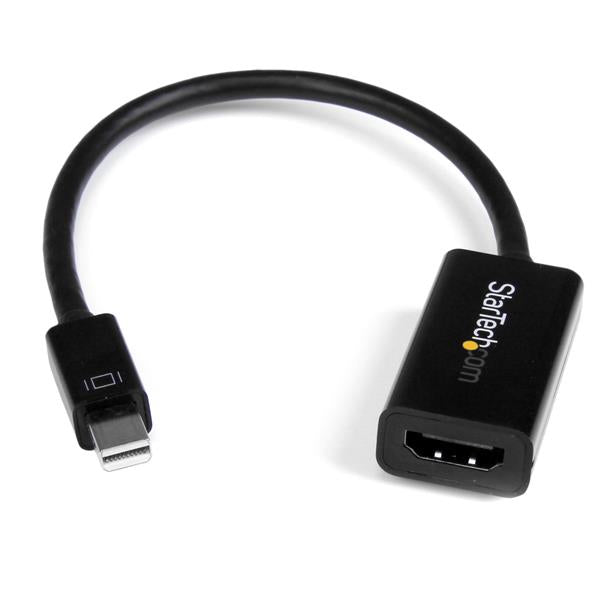

StarTech.com Mini DisplayPort to HDMI Adapter - Active mDP to HDMI Video Converter Cable

Make the connection with the StarTech.com Mini DisplayPort to HDMI — length and connector details are in the spec table.

Connect an HDMI® Display to a Mini DisplayPort® video source

The MDP2HD4KS Mini DisplayPort to HDMI adapter enables you to connect a mDP-equipped Ultrabook™, tablet or laptop computer, such as the ThinkPadT440 series, to an HDMI display. This adapter is compatible with Mini DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound. The Mini DisplayPort adapter is the perfect accessory for any of your Microsoft® Surface™ Pro devices with mDP.

With support for Ultra HD (4K) the mDP to HDMI adapter ensures you can convert Mini DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.

For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.

To ensure compatibility with any Mini DisplayPort output the mDP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

The Mini DisplayPort to HDMI converter is compatible with Intel® Thunderbolt™ devices that output a DisplayPort video signal.

The MDP2HD4KS is backed by a 3-year StarTech.com warranty, and lifetime technical support.

Specifications

Features
Converter type	Active video converter
Product colour	Black
Cable length	0.15 m
Maximum resolution	3840 x 2160 pixels
Supported video modes	720p, 1080p, 2160p
HDCP	Yes
Plug and Play	Yes
Certification	FCC, CE
Maximum refresh rate	30 Hz
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	RoHS
Other features
Height	15 mm
Supported resolutions	- 1920x1200 - 1920x1080 - 1280x720
Weight & dimensions
Weight	16 g
Package width	123 mm
Package depth	127 mm
Package height	16 mm
Package weight	22 g
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	332 mm
Master (outer) case length	502 mm
Master (outer) case height	216 mm
Products per master (outer) case	320 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
