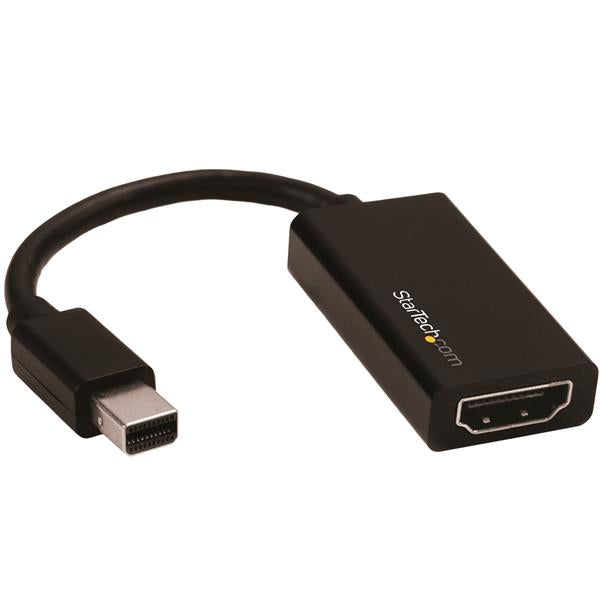

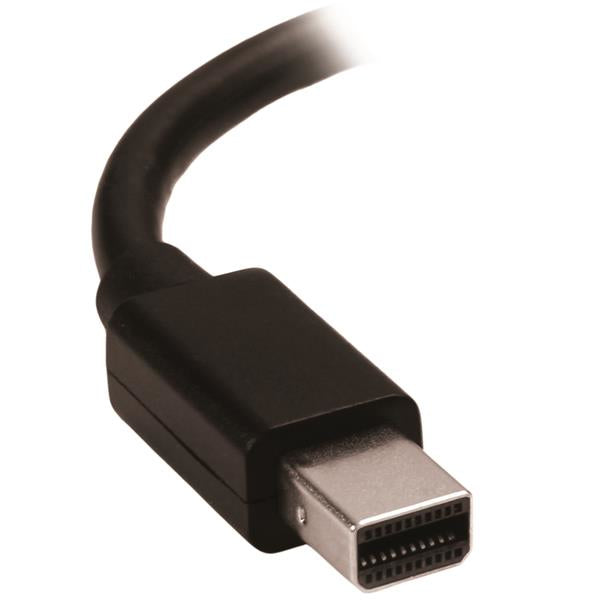

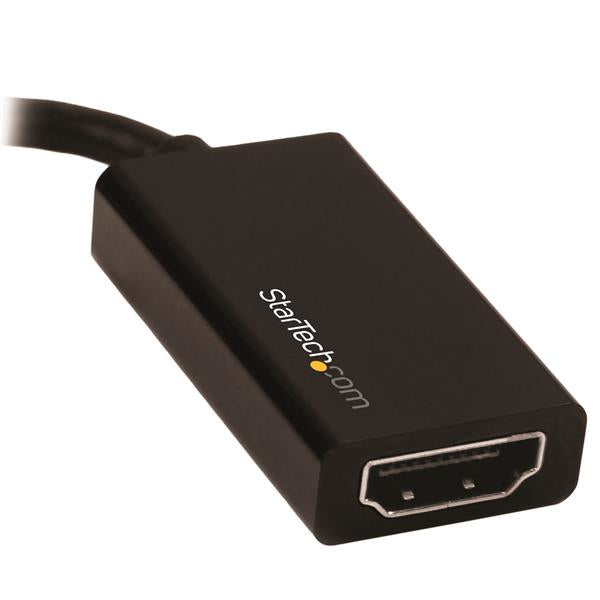

StarTech.com Mini DisplayPort to HDMI Adapter - Active mDP 1.4 to HDMI 2.0 Video Cable
StarTech.com Mini DisplayPort to HDMI Adapter - Active mDP 1.4 to HDMI 2.0 Video Cable
Regular price
£25.27 GBP
Regular price
Sale price
£25.27 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Make the connection with the StarTech.com Mini DisplayPort to HDMI — length and connector details are in the spec table.
Connect your mDP computer to an HDMI display using this converter, which supports UHD resolutions up to 4K at 60HzThis Mini DisplayPort to HDMI® adapter lets you output HDMI video and audio from an mDP device, with support for Ultra HD 4K at 60Hz. The Mini DisplayPort adapter is the perfect accessory for any of your Microsoft® Surface™ Pro devices with mDP.
Astonishing picture quality with support for Ultra HD 4K at 60 Hz
The adapter lets you harness the video capabilities that are built into your Mini DisplayPort connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while using multiple monitors to work on resource-demanding applications.
Unlike many 4K Mini DisplayPort to HDMI adapters that only support a 30Hz refresh rate, this adapter works with HDMI 2.0 displays that can deliver output resolutions of up to 3840 x 2160p at 60Hz. Support for HDMI 2.0 means this adapter can support bandwidth up to 18Gbps, making it an ideal solution for performing high-resolution tasks such as editing 4K video.
The adapter is backward compatible with 1080p displays, which ensures compatibility with lower resolution displays such as TVs or projectors around your home or office.
Ultimate portability with a compact, lightweight design
The compact video adapter is highly portable and lightweight. It’s the perfect accessory for your portable mDP devices, fitting easily into your laptop bag or carrying case.
The portable adapter is the perfect accessory for deployment with company computers, enabling your employees to interface with BYOD (Bring Your Own Device) HDMI applications around the office, such as working at a hot-desk with an HDMI display or sharing your laptop’s screen on a boardroom projector.
Hassle-free setup with an active adapter that features plug-and-play installation
To ensure compatibility with any Mini DisplayPort output, the mDP adapter offers active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals, such as ATI Eyefinity™ cards.
For a hassle-free setup, the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers.
Note: To achieve 4K resolution at 60 Hz a DisplayPort 1.2 output and an HDMI 2.0 display are required.
The MDP2HD4K60S is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Converter type | Active |
| Chipset | Parade - PS176 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 0.148 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080p, 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Width | 22 mm |
| Height | 10 mm |
| Depth | 152 mm |
| Weight & dimensions | |
| Weight | 11 g |
| Package width | 126 mm |
| Package depth | 198 mm |
| Package height | 14 mm |
| Package weight | 20 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Master (outer) case width | 508 mm |
| Master (outer) case length | 333 mm |
| Master (outer) case height | 223 mm |
| Products per master (outer) case | 250 pc(s) |
