StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Hub

£36.64 GBP

Sale Sold out

Taxes included.

Condition New

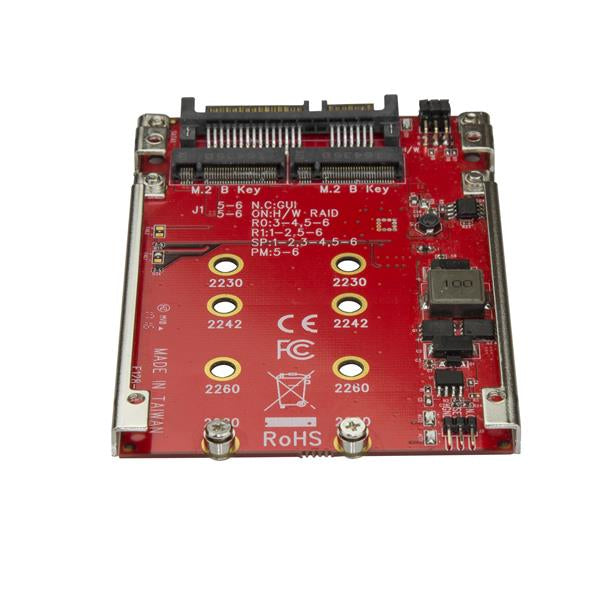

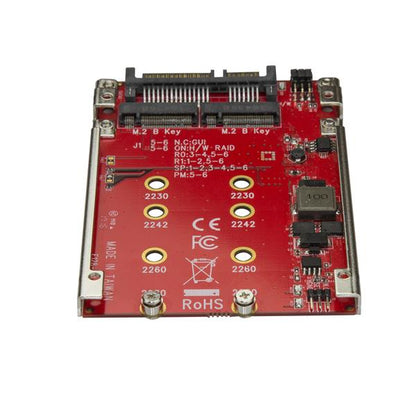

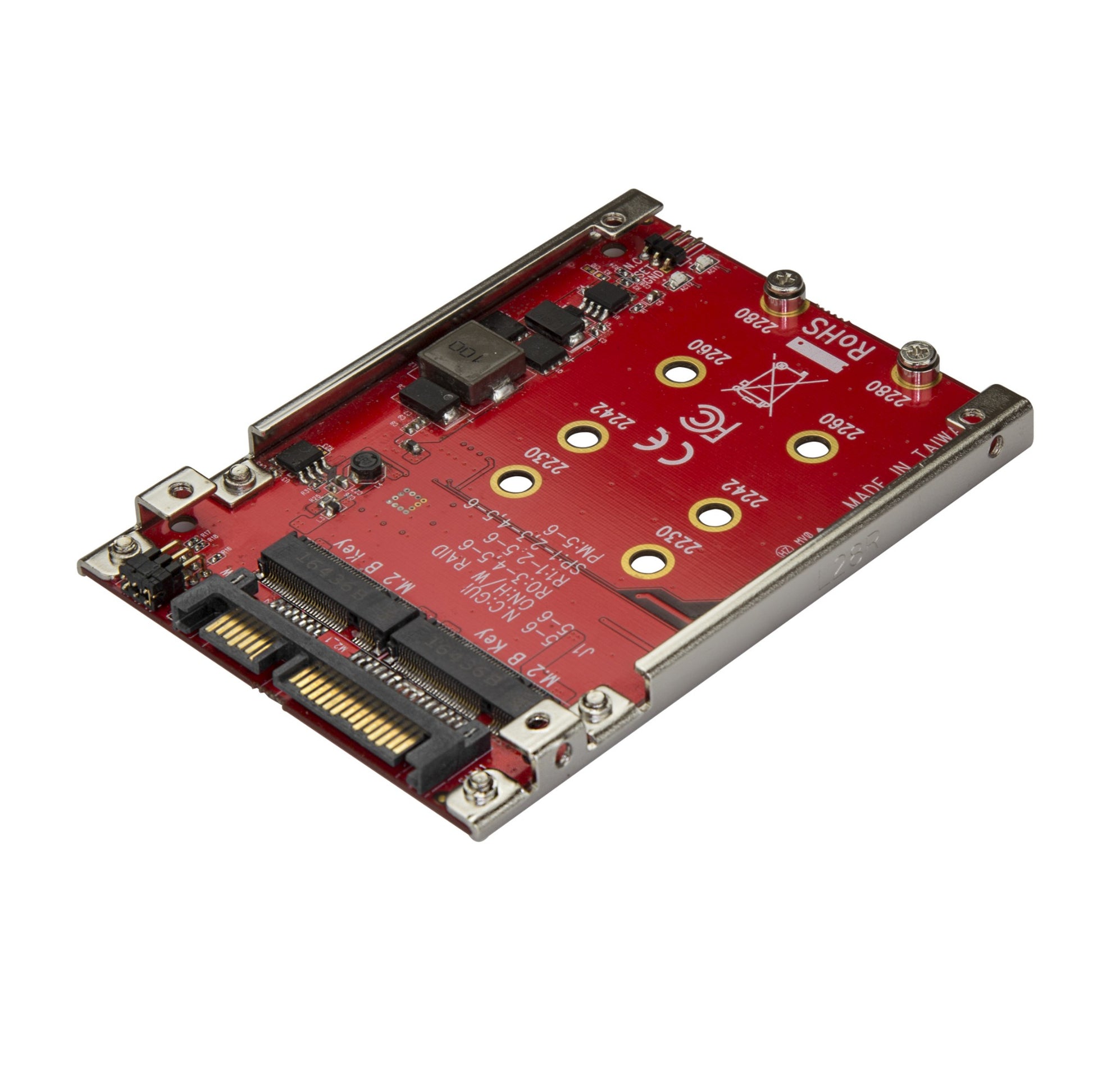

The StarTech.com M.2 to SATA Adapter expands your ports in seconds — plug in and go.

Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

Maximize file transfer speeds

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Easy installation

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.

The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Port multiplier	Yes
Output interface	M.2
SATA revision	3.0
Host interface	SATA

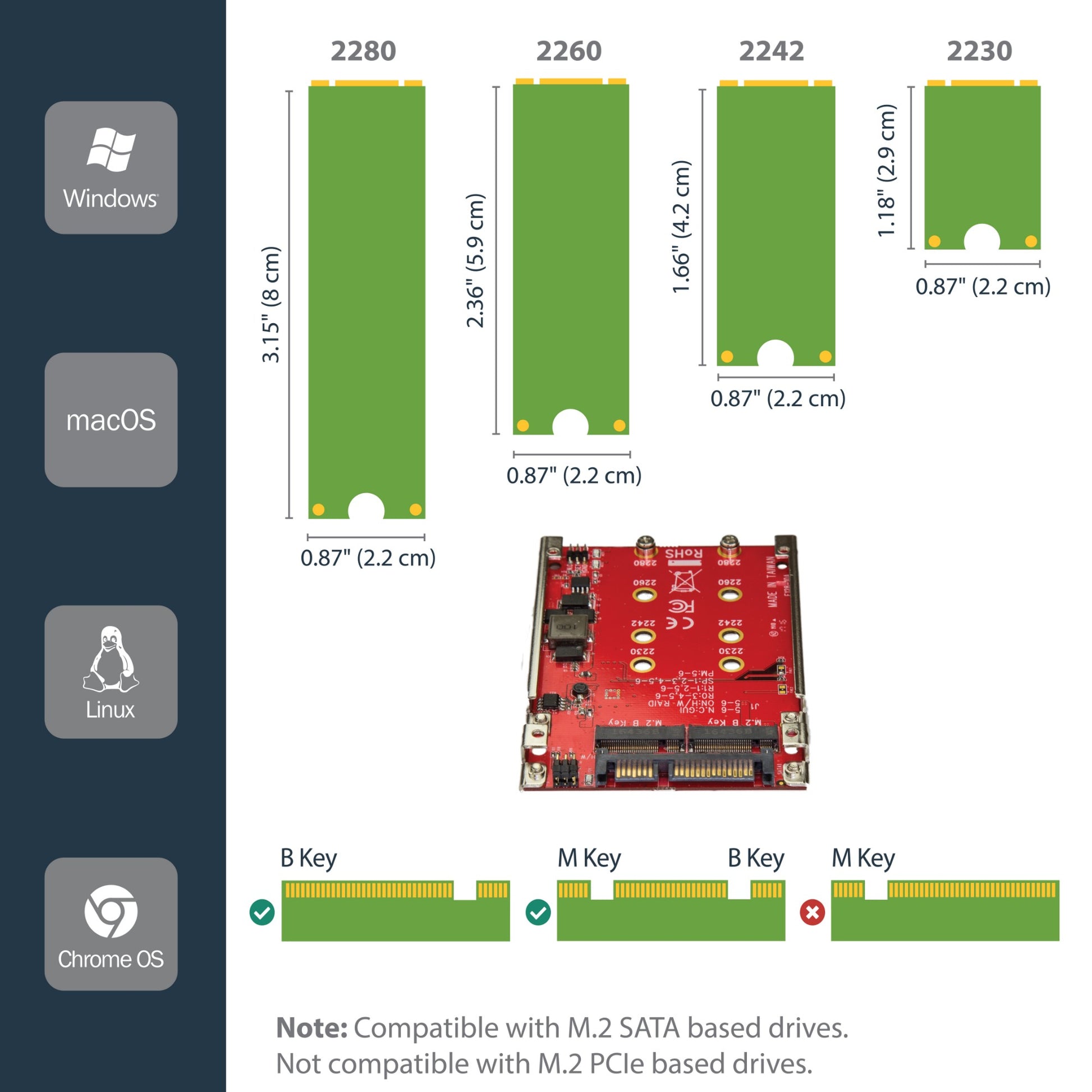

Number of M.2 (B) slots	2
Number of SSDs supported	2
Technical details
Plug and Play	Yes
Chipset	ASMedia - ASM1092R
RAID levels	0, 1, BIG, JBOD
Data transfer rate (max)	6 Gbit/s
Compliance certificates	RoHS
Performance
Hot-swap	No
Product colour	Red
TRIM support	Yes
S.M.A.R.T. support	Yes
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC, REACH, TAA
Design
Easy to install	Yes
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	15 - 90%

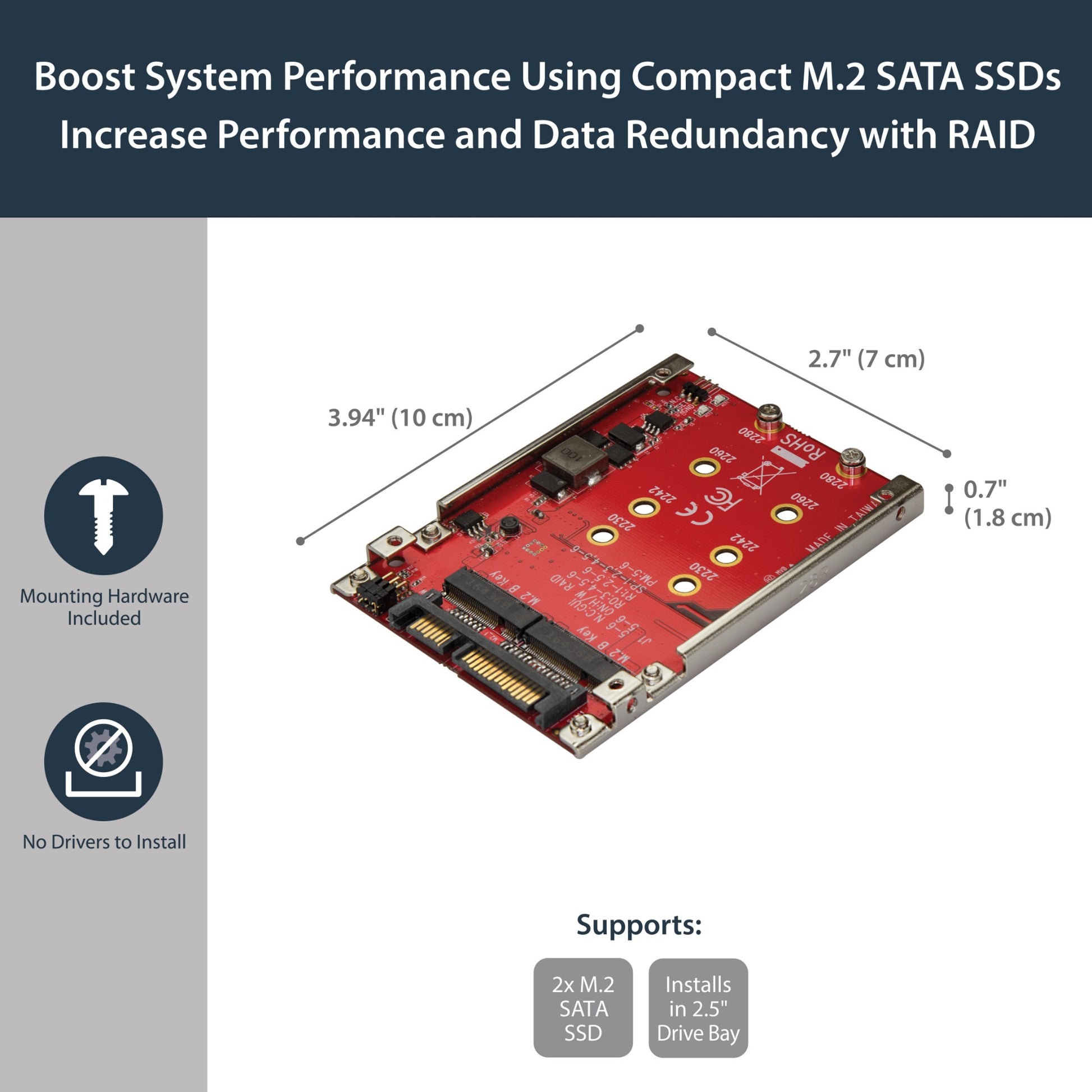

Weight & dimensions
Width	70 mm
Depth	100 mm
Height	7 mm
Weight	41 g
Package width	172 mm
Package depth	142 mm
Package height	30 mm
Package weight	110 g
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
Screws included	Yes
