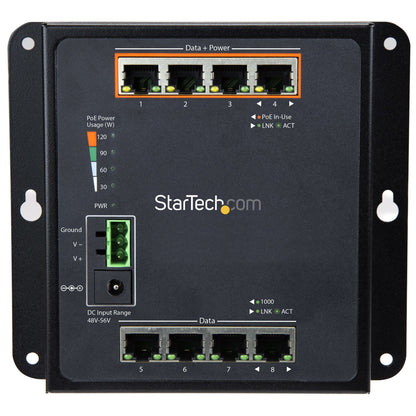

StarTech.com Industrial Switch PoE (81GPOEW)

The StarTech.com Industrial keeps your wired network organised with PoE power for APs and cameras.

Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management

Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.

Expand your network

This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.

Supports PoE+ for flexible use

The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).

Wall-mountable with front access

With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.

Efficient Layer 2 management

The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.

Rugged industrial design

This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.

Reliable connection for seamless network performance

With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.

To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.

The IES81GPOEW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Management features
Switch type	Managed
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Terminal block port	Yes
Network
Networking standards	IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
Full duplex	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features	Tagged VLAN
Data transmission
Jumbo frames	9000
Store-and-forward	Yes
Jumbo frames support	Yes
Security
Access Control List (ACL)	Yes
Design
Wall mountable	Yes
International Protection (IP) code	IP30
Product colour	Black
LED indicators	Activity, Link, Power
Housing material	Steel
Rack mounting	No
Certification	CE, FCC, RoHS
Performance
Maximum data transfer rate	2000 Mbit/s
Buffer size	512 KB
Mean time between failures (MTBF)	100000 h
Harmonized System (HS) code	85176990
Power
Power plug type	Type M
Input voltage	12 - 48 V
Input current	1 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 90 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	148 mm
Depth	134 mm
Height	25 mm
Weight	650 g
Packaging content
Quick start guide	Yes
Terminal block included	Yes
Packaging data
Package width	308 mm
Package depth	176 mm
Package height	92 mm
Package weight	930 g
Logistics data
Master (outer) case width	335 mm
Master (outer) case length	363 mm
Master (outer) case height	475 mm
Products per master (outer) case	10 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
