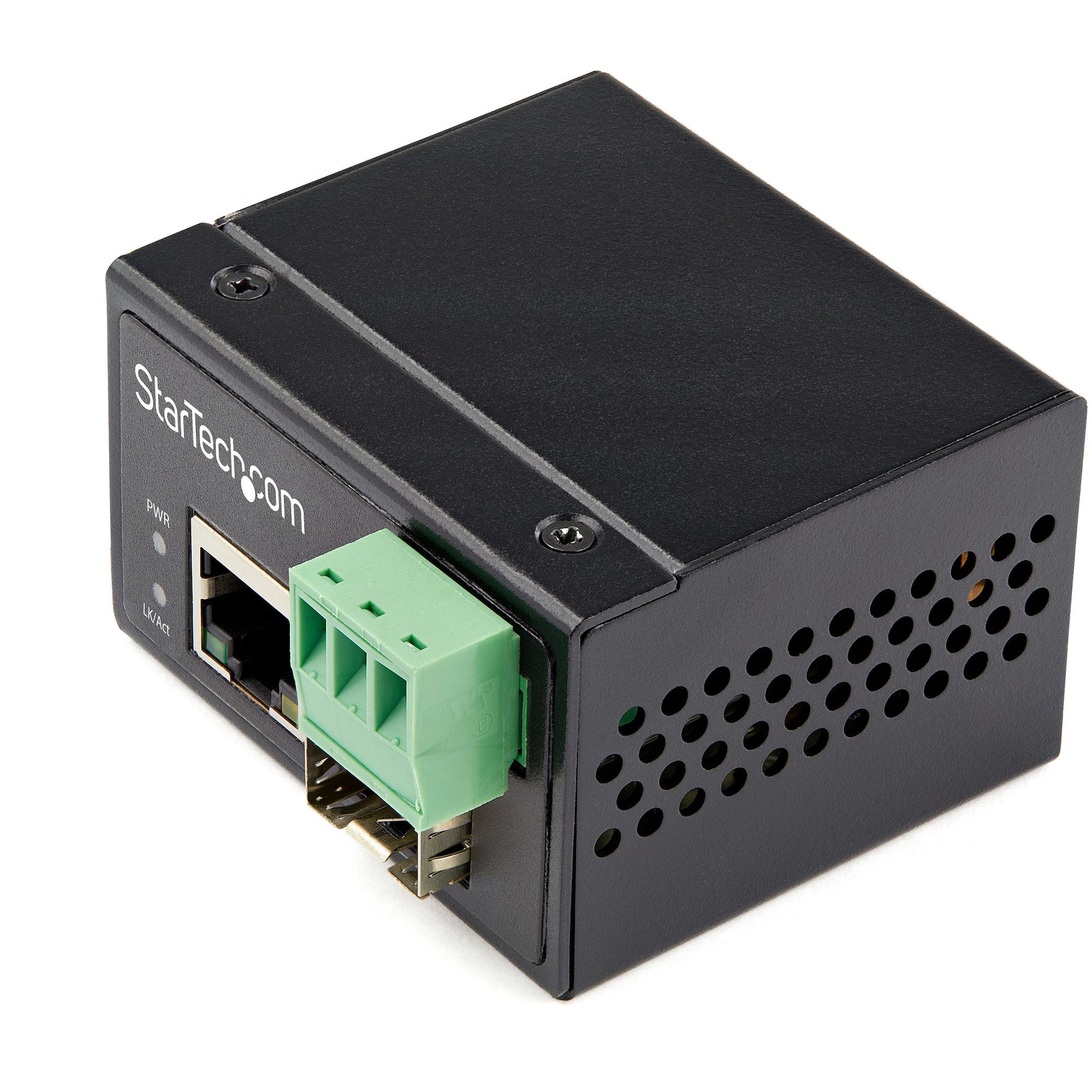

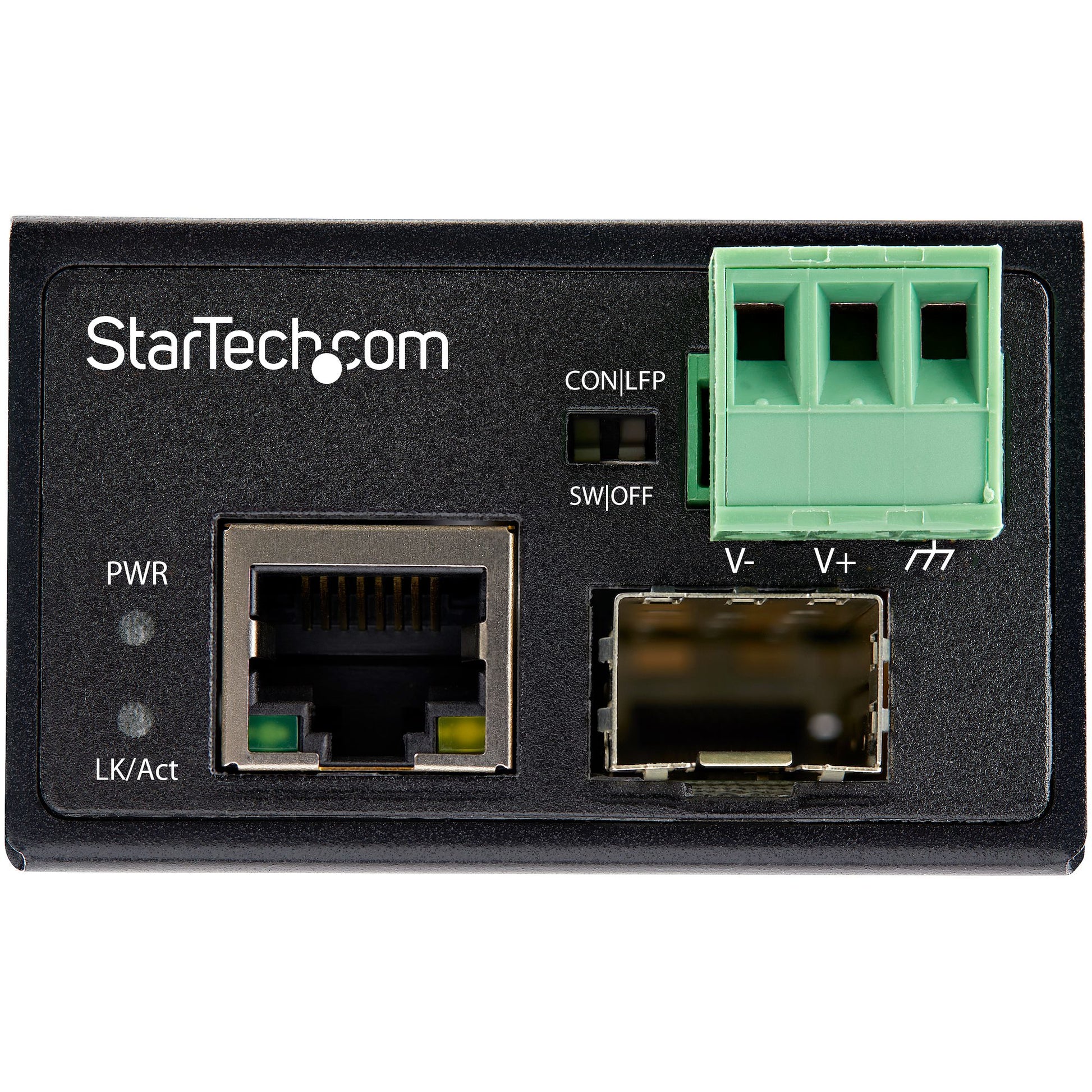

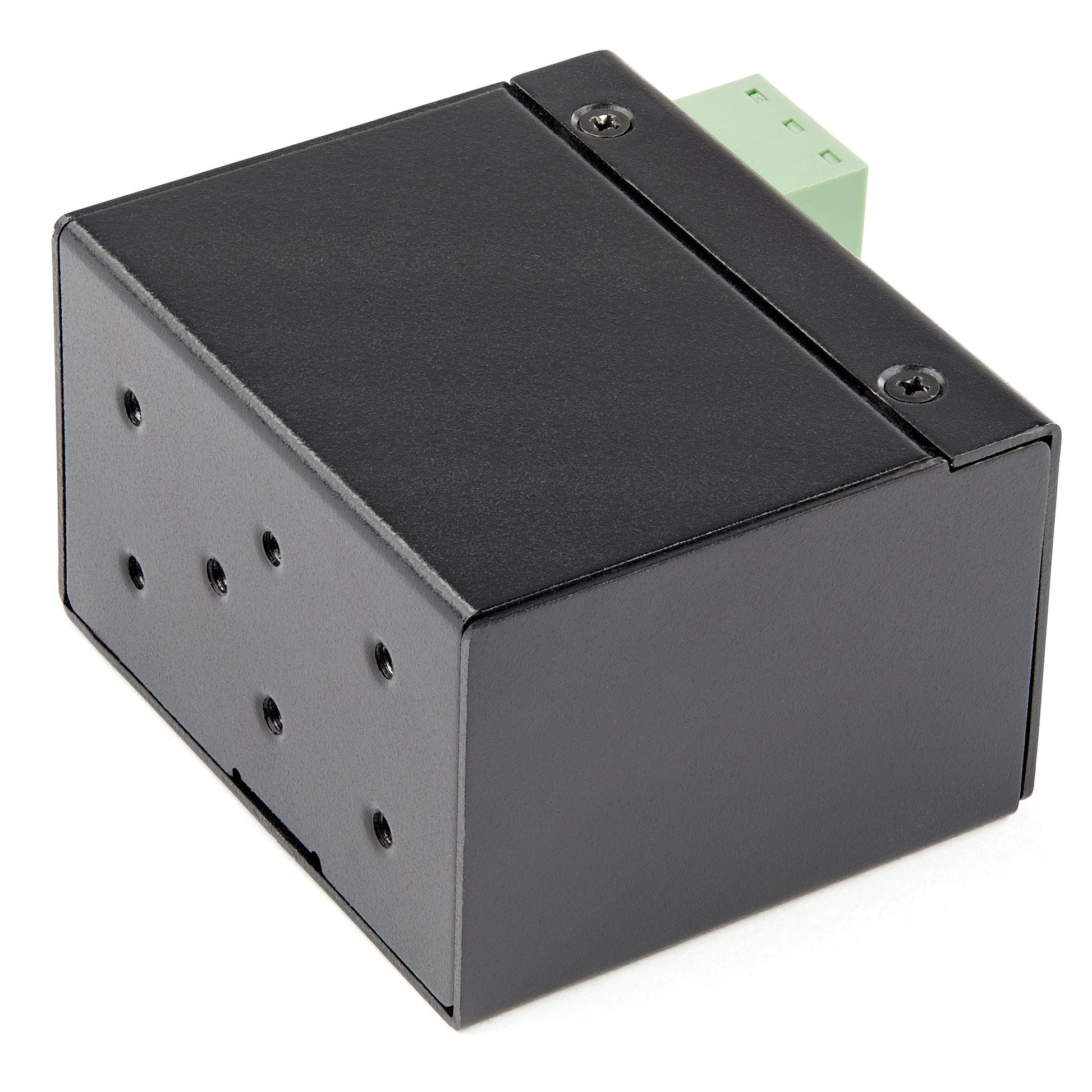

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C - TAA Networking
StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C - TAA Networking
Regular price
£93.57 GBP
Regular price
Sale price
£93.57 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C - TAA is a dependable addition to any modern network installation.
10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 HousingAn industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
Dual Power Inputs
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Converter input interface | 10Base-T, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Duplex system | Full |
| Converter output interface | 100Base-FX |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Fiber mode structure | Multi-mode, Single-mode |
| Mean time between failures (MTBF) | 500000 h |
| Features | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) | No |
| Input voltage | 12 - 56 V |
| Power consumption (typical) | 1.92 W |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 59 mm |
| Weight | 81.4 g |
| Height | 50 mm |
| Package depth | 161 mm |
| Package width | 106 mm |
| Package height | 68 mm |
| Package weight | 242.4 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| User guide | Yes |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Design | |
| Certification | CE, FCC |
| Logistics data | |
| Master (outer) case width | 366 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 252 mm |
| Products per master (outer) case | 20 pc(s) |
