StarTech.com HPE J9151E Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2930F, 8325, 3810M Networking

The StarTech.com HPE J9151E Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2930F, 8325, 3810M is a dependable addition to any modern network installation.

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

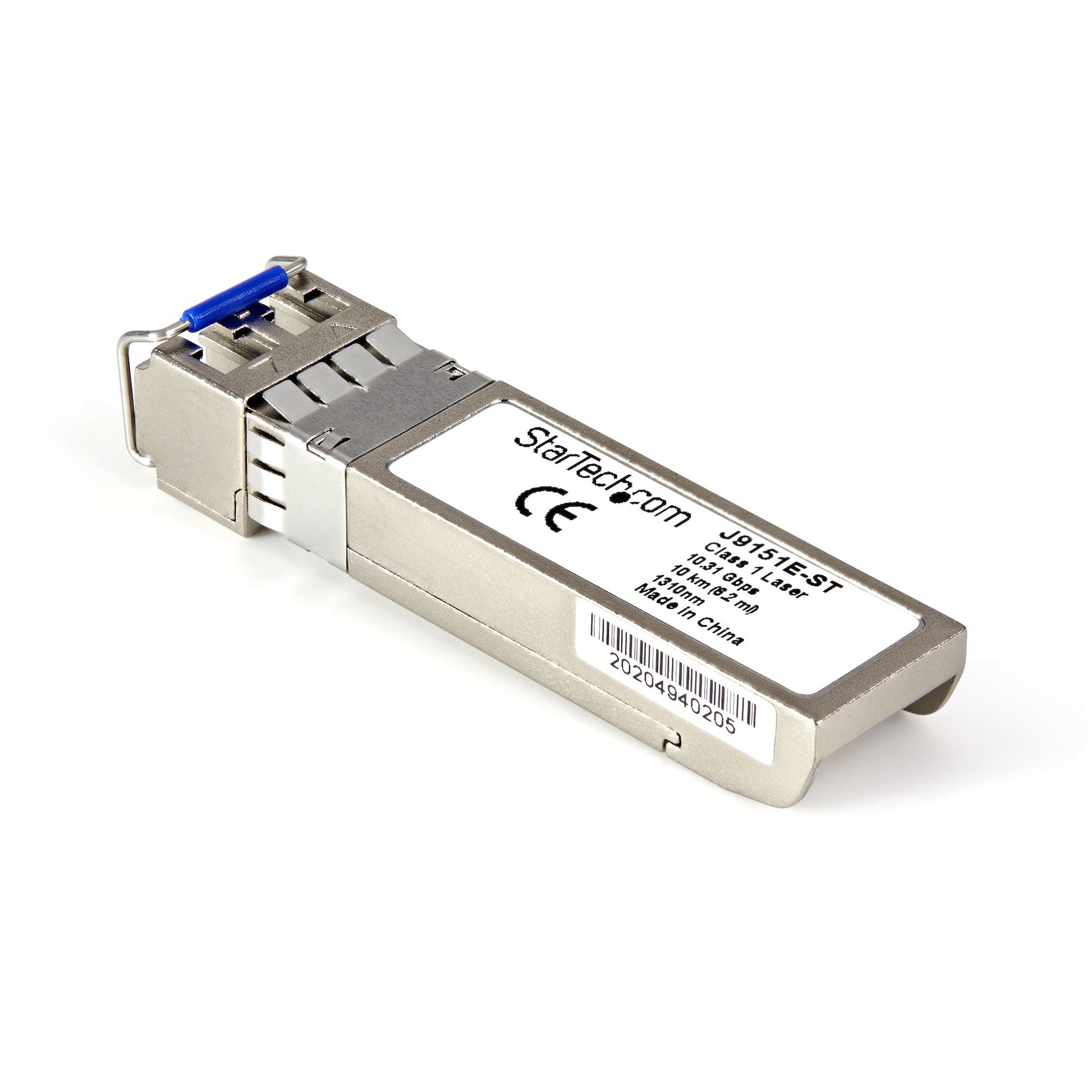

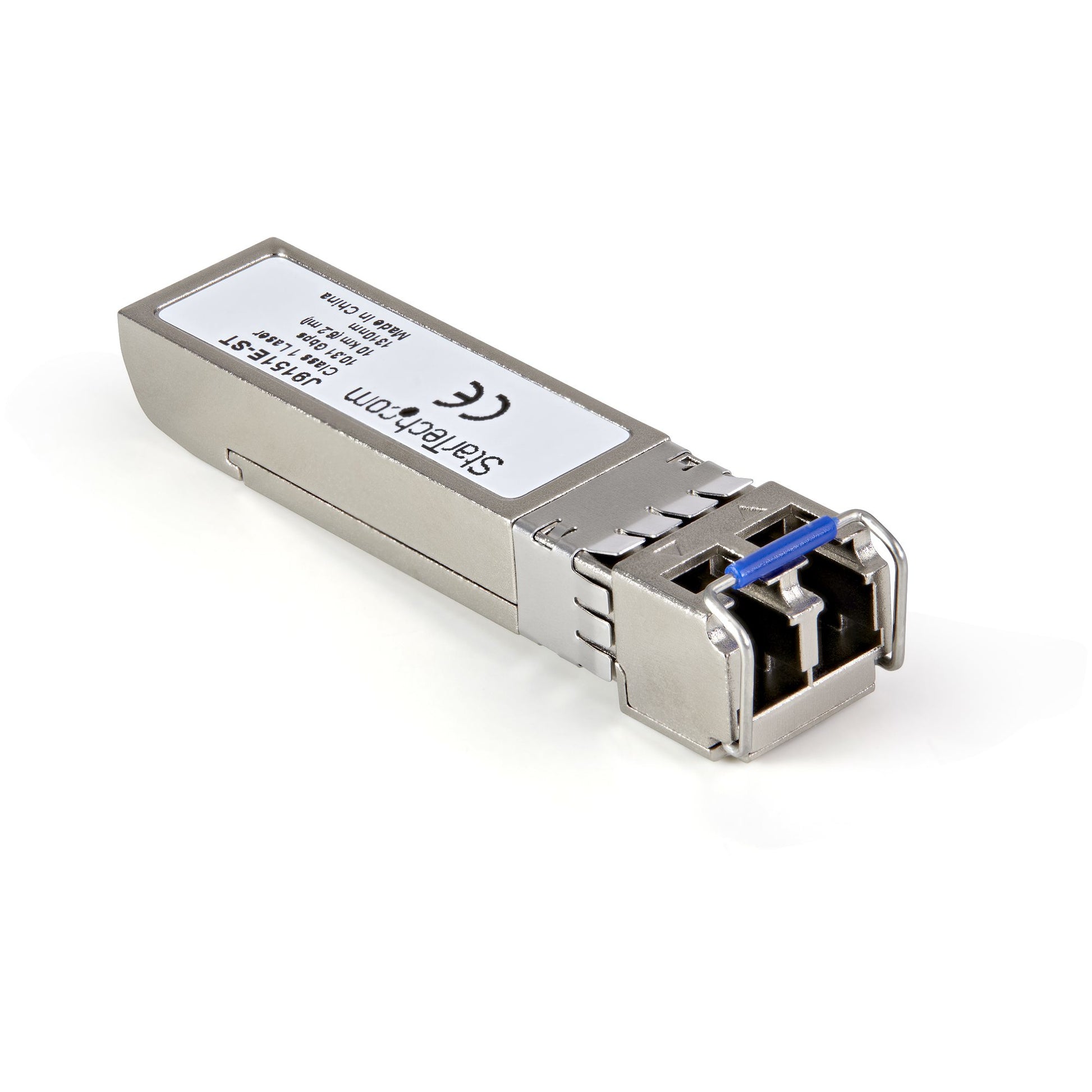

The J9151E-ST is a HPE J9151E compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Maximum transfer distance	10000 m
Wavelength	1310 nm
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
SFP transceiver standard	LR
Fiber ethernet cabling technology	10GBASE
Country of origin	China
Product colour	Silver
Hot-swap	Yes
Compatible products	J9151E
Mean time between failures (MTBF)	1386624697 h
Brand compatibility	HP
Harmonized System (HS) code	85369010
Power
Power consumption (typical)	1.3 W
Weight & dimensions
Width	58.4 mm
Depth	13.9 mm
Height	13.7 mm
Weight	21 g
Package depth	114 mm
Package width	93 mm
Package height	34 mm
Package weight	50 g

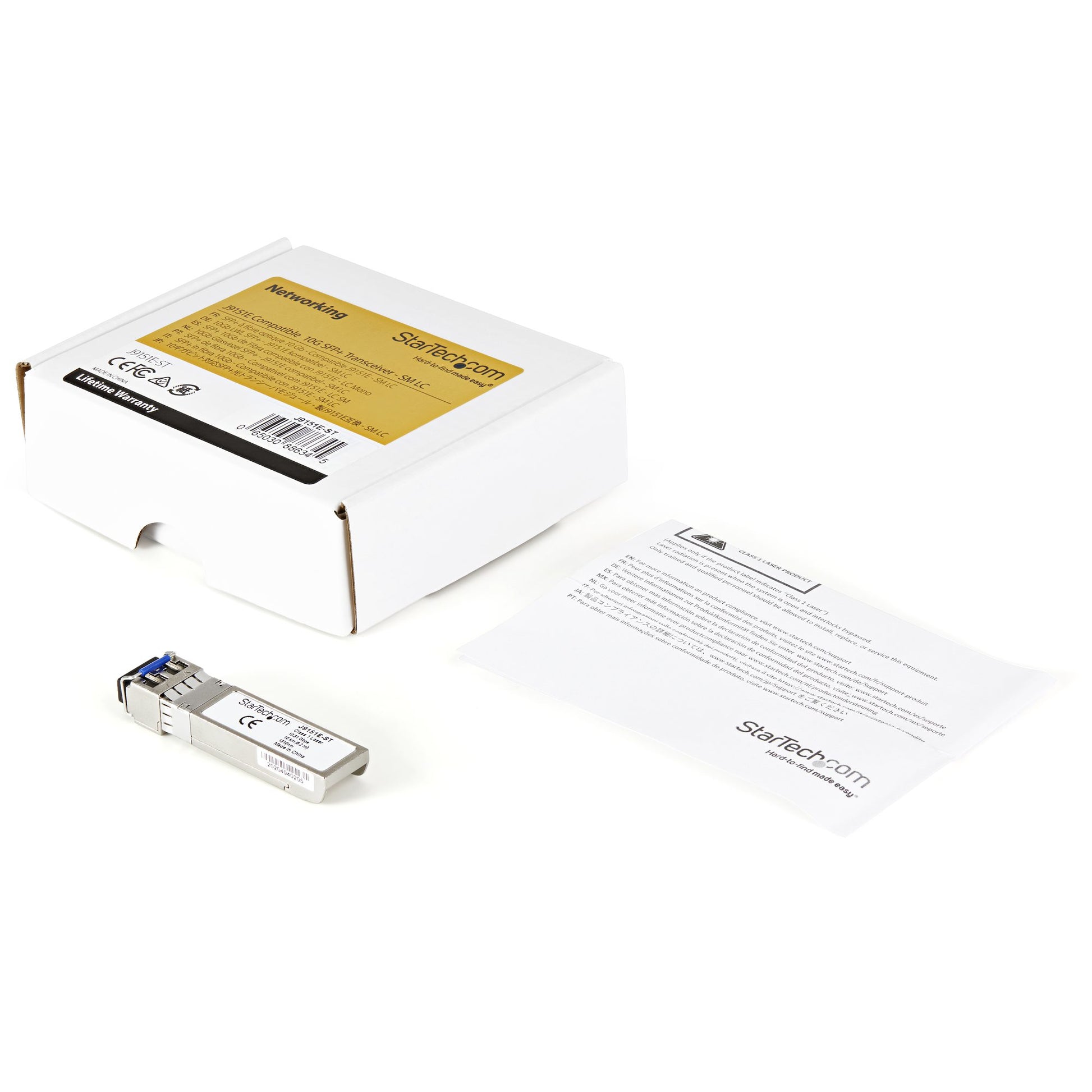

Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Products per master (outer) case	1 pc(s)
