StarTech.com Heavy-Duty Articulating TV Wall Mount for up to 100-inch and

Position your screen exactly where you need it with the StarTech.com Heavy-Duty Articulating TV Wall — VESA fit and load ratings are below.

Mount a TV to a wall using this space-saving, low-profile mount with premium finish

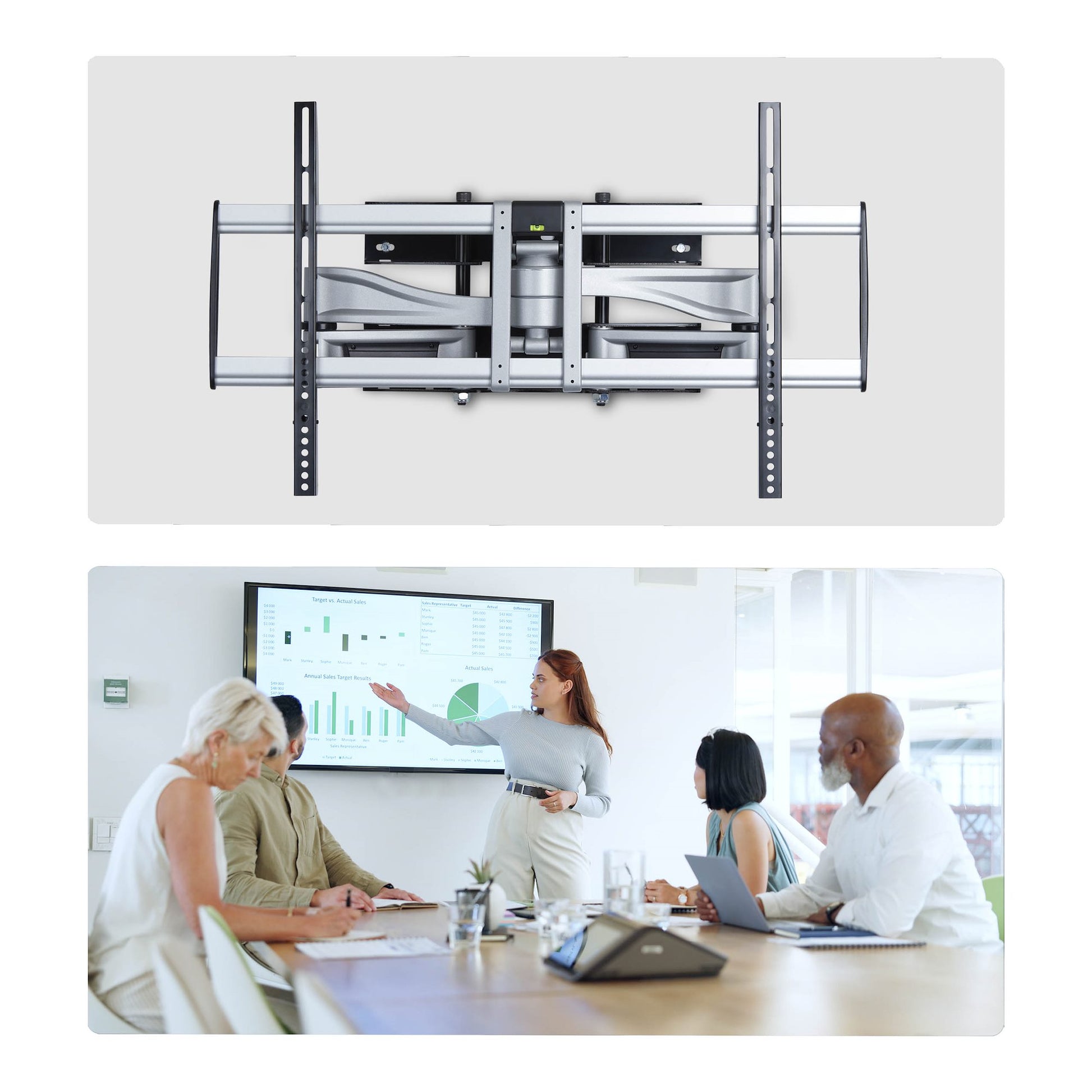

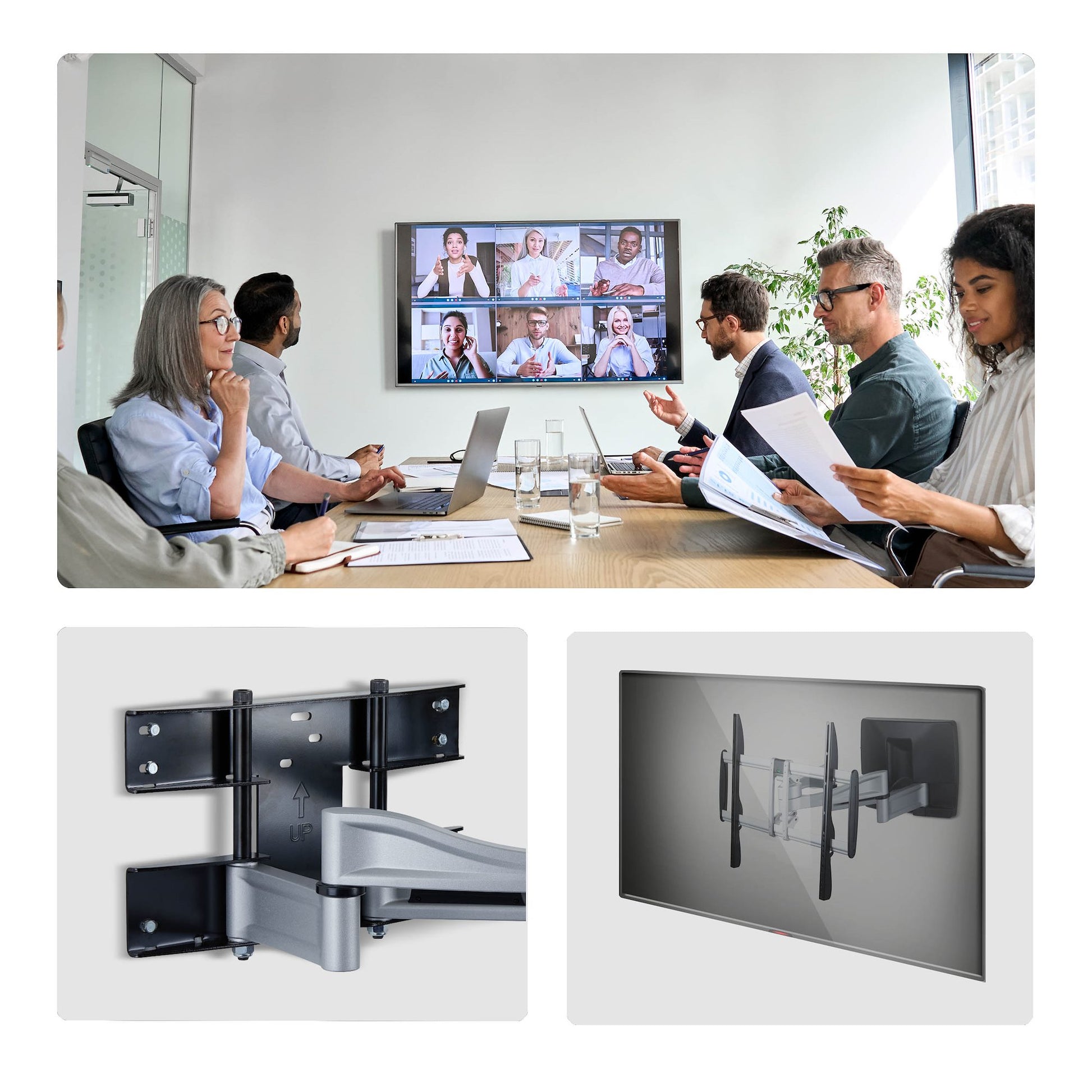

Create a TV mounting solution with this articulating wall mount that supports up to 100-inch and 187.4lb (85kg) televisions. Use in conference rooms, customer-facing applications, and collaborative spaces where durability, precision, and presentation matter.

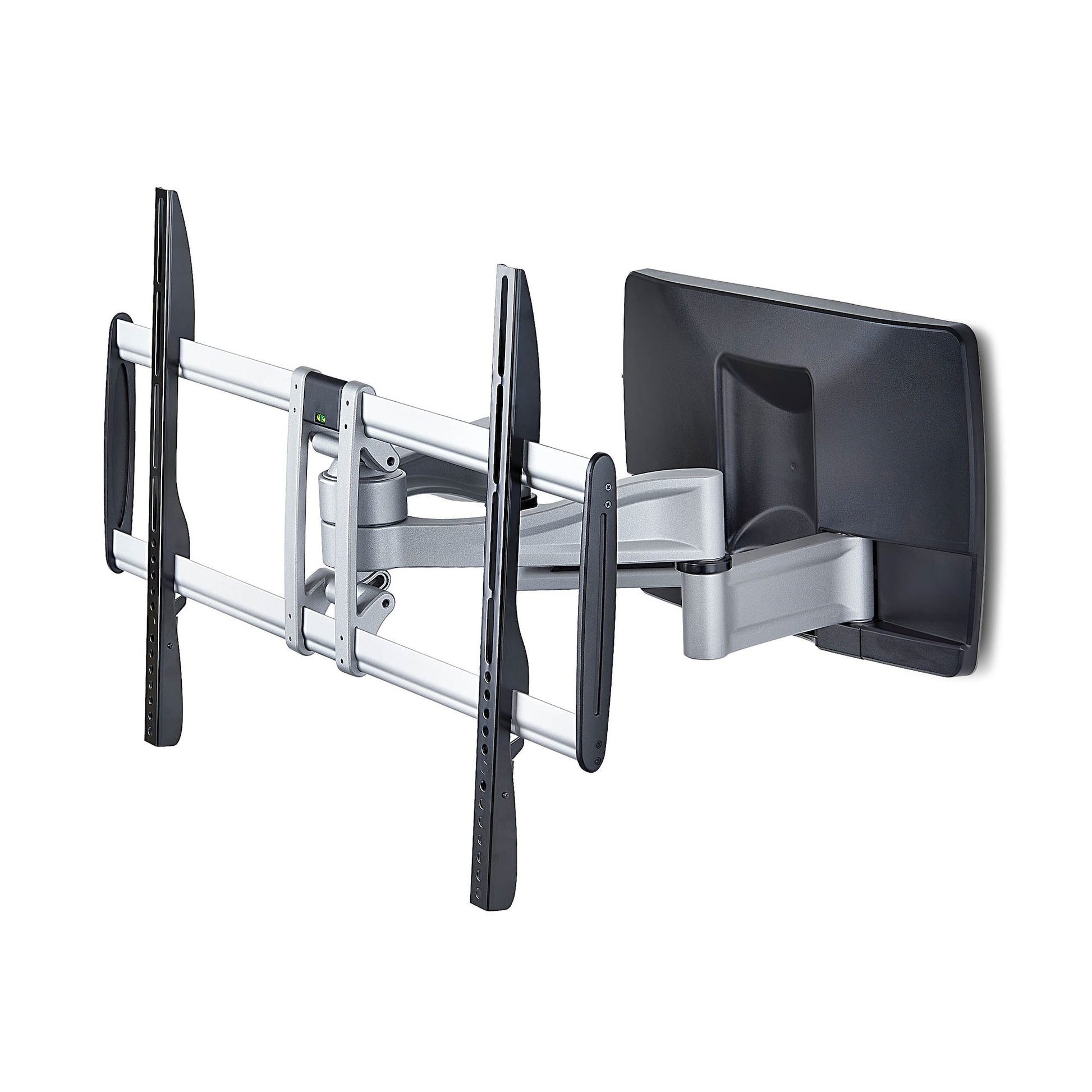

Heavy-Duty Articulating Television Mount

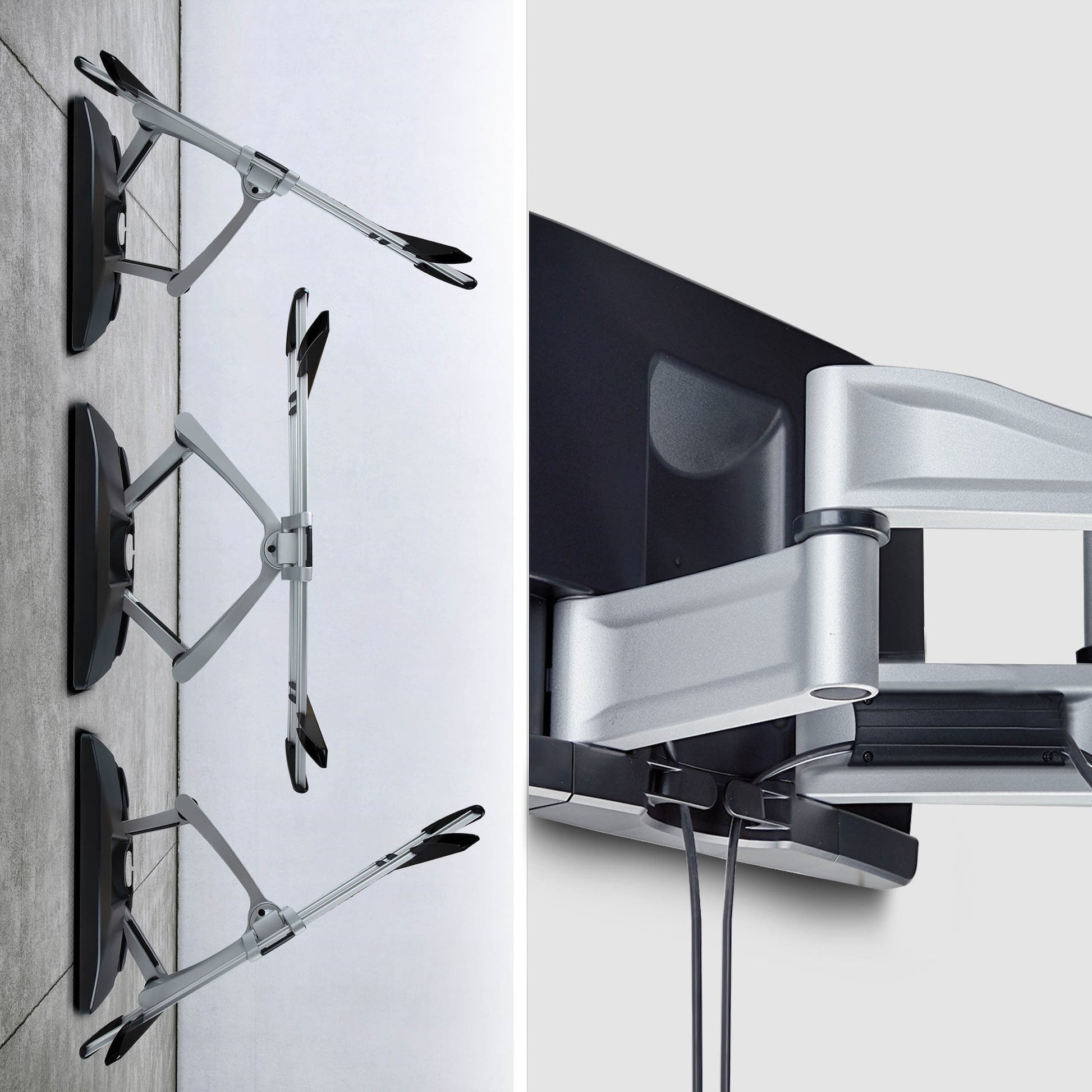

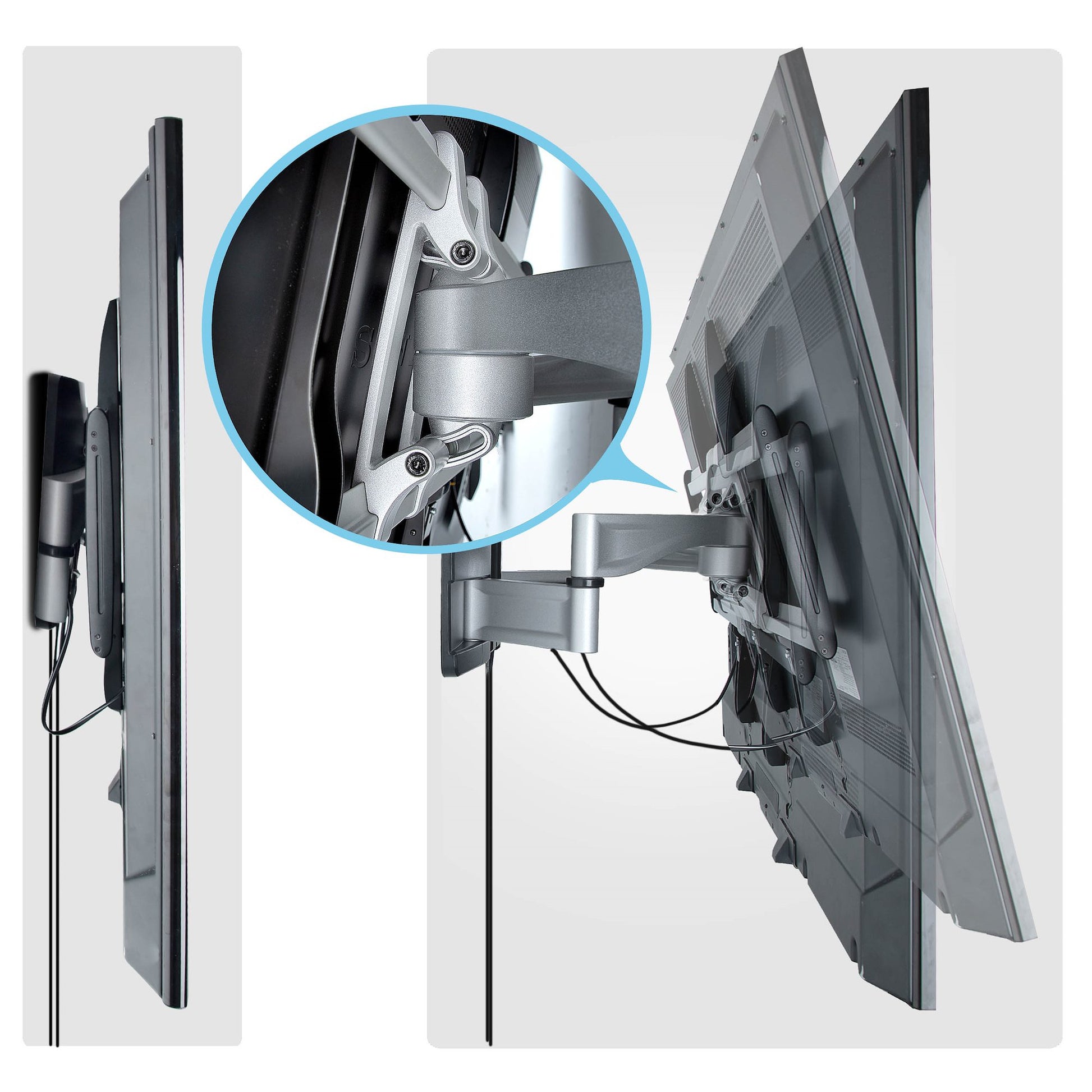

The mount collapses to just 4.1in (10.5cm) from the wall and extends to 21.6 in (55 cm) for easy access behind the TV. Dual-stud mounting (16in spacing) and dual-arm design ensure safe mounting and smooth motion when positioning your display. For perfect screen positioning, you can tilt (+2°/-12°) and swivel (+/-60°) for post-install adjustments to achieve the best viewing angle. The flat screen bracket is TAA-compliant to meet procurement requirements.

Versatile Mounting with a Premium Finish

This VESA-compatible wall mount supports patterns up to 800x500mm and includes hardware, spacers, and a wall template for clean installation. It secures to wood studs, brick, or concrete surfaces, offering flexibility across environments. Integrated cable channels keep wires organized, while the silver steel and aluminum frame with decorative covers creates a refined, professional look from any angle.

Specifications

Mounting
Maximum weight capacity (per display)	85 kg
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,500 x 300,600 x 300,600 x 400,800 x 400,800 x 500
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 500 mm
Maximum screen size	2.54 m (100")
Maximum weight capacity	85 kg
Ergonomics
Height adjustment	No
Cable management	Yes
Tilt angle range	-12 - 2°
Swivel angle range	-60 - 60°
Distance to the wall (min)	10.5 cm
Distance to the wall (max)	55 cm
Tilt adjustment	Yes
Swivelling	Yes
Technical details
Product colour	Black
Compliance certificates	Trade Agreements Act (TAA)
Design
Anti-theft function	No
Housing material	Aluminium, Steel

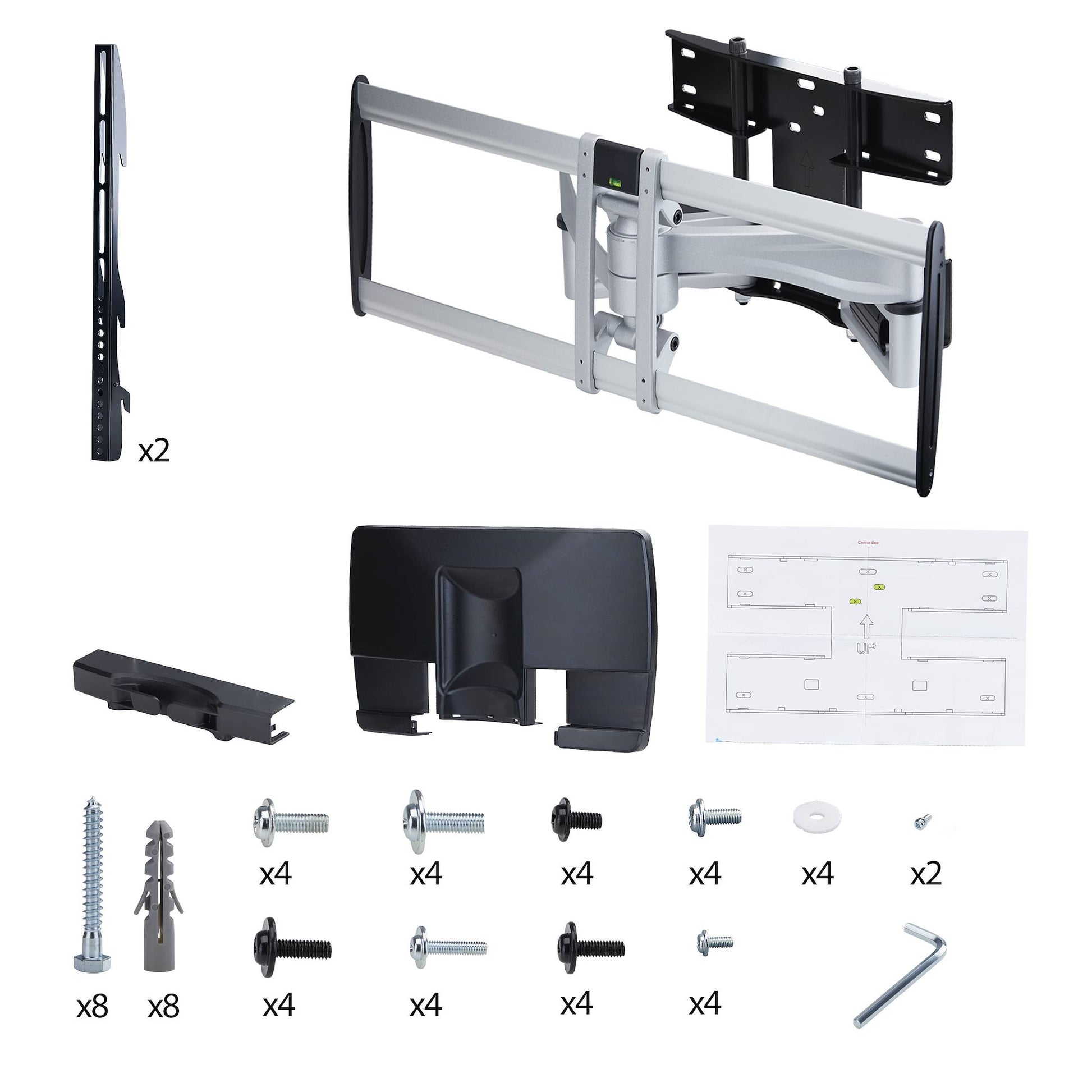

Packaging content
Screws included	Yes
Number of washers included	4
Number of screws	42
Wrench included	Yes
Wrench type	Hexagonal wrench
User guide	Yes
Mounting brackets included	Yes
Weight & dimensions
Width	525 mm
Depth	870 mm
Height	550 mm
Weight	14.2 kg
Packaging data
Package width	945 mm
Package depth	386 mm
Package height	180 mm
Package weight	16.5 kg
Logistics data
Master (outer) case width	945 mm
Master (outer) case length	386 mm
Master (outer) case height	180 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
