StarTech.com HDMI KVM Receiver Over IP Network for the IH2006 Product Series, 4K KVM Switch

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com HDMI.

Use this receiver unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

The AVoIP KVM Receiver enables remote computer access over an existing TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.

Professional-Grade Design

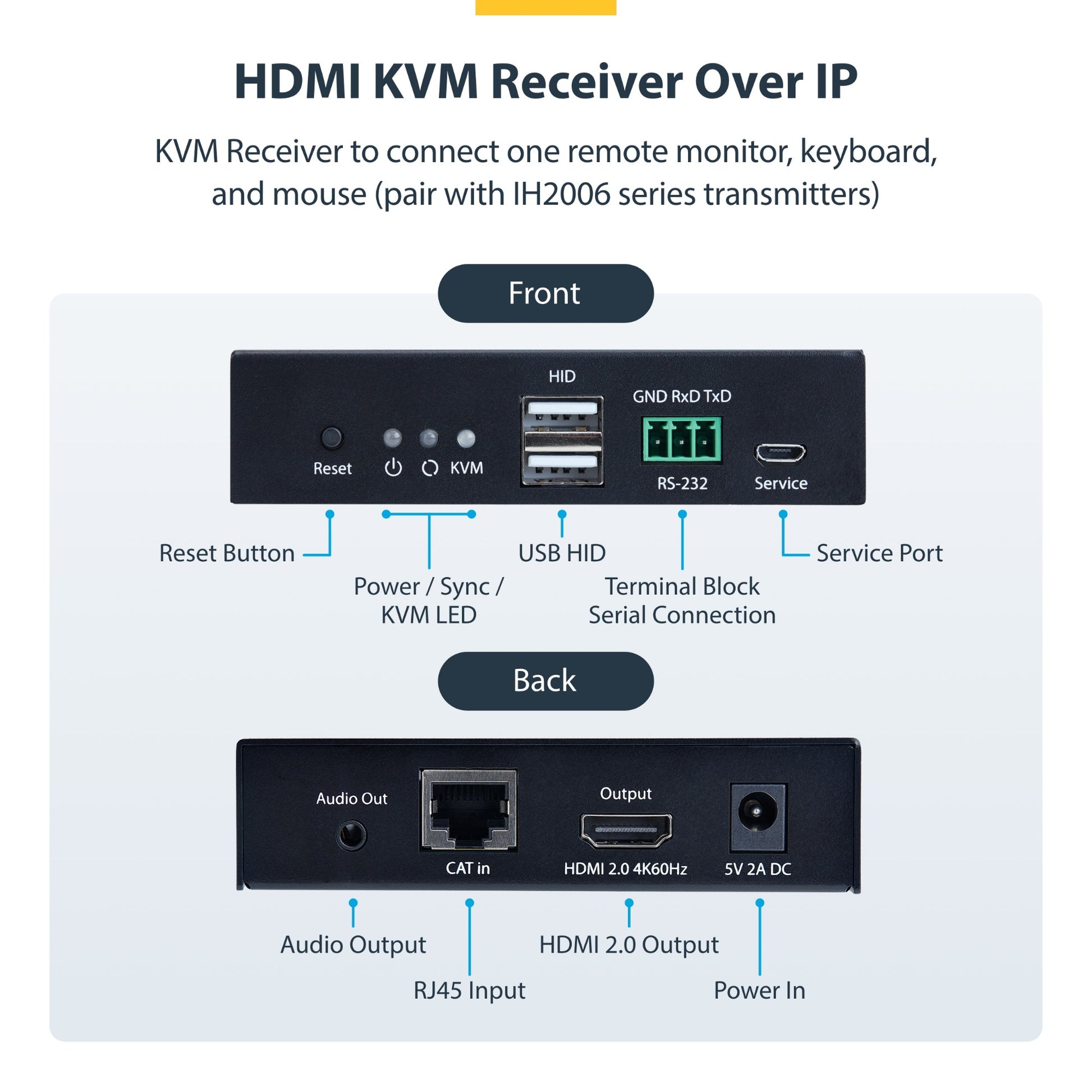

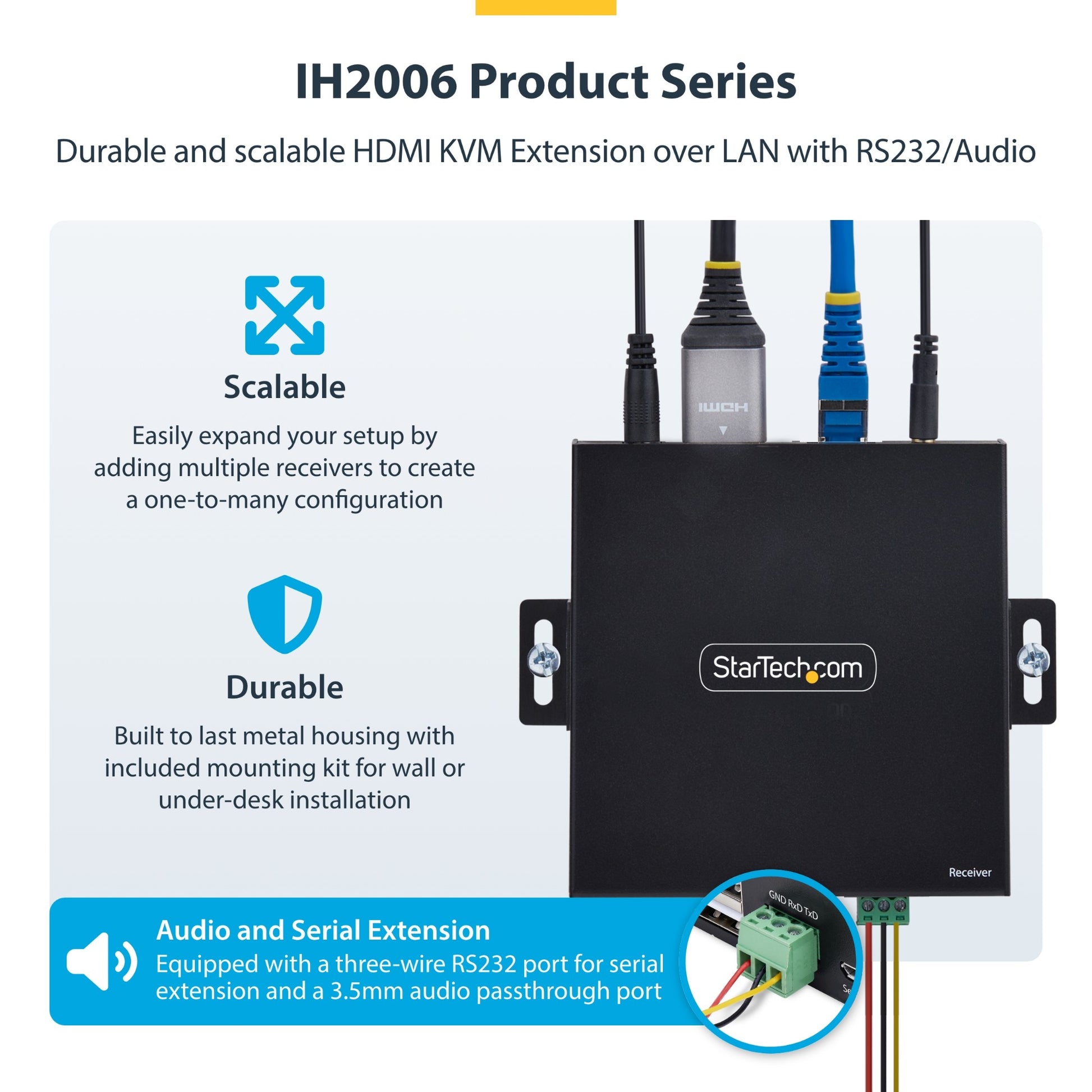

Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

Specifications

Features
Type	Receiver
Connectivity technology	Wired
Rack mounting	No
Maximum digital resolution	3840 x 2160 pixels
On Screen Display (OSD)	No
Product colour	Black
Material	Metal
LED indicators	Yes
Maximum refresh rate	60 Hz
Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Receiver USB Type-A ports quantity	2
Receiver Micro-USB ports quantity	1
Ports & interfaces
RS-232 ports	1
PC Audio out	Yes
HDMI version	2.0
Power
AC input voltage	100 - 240 V
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (receiver) (max)	10 W
Power plug type	Type M
Input current	0.3 A
DC-in jack	Yes
Weight & dimensions
Package width	199 mm
Package depth	149 mm
Package height	80 mm
Package weight	500 g
Packaging data
AC adapter included	Yes
Cables included	No

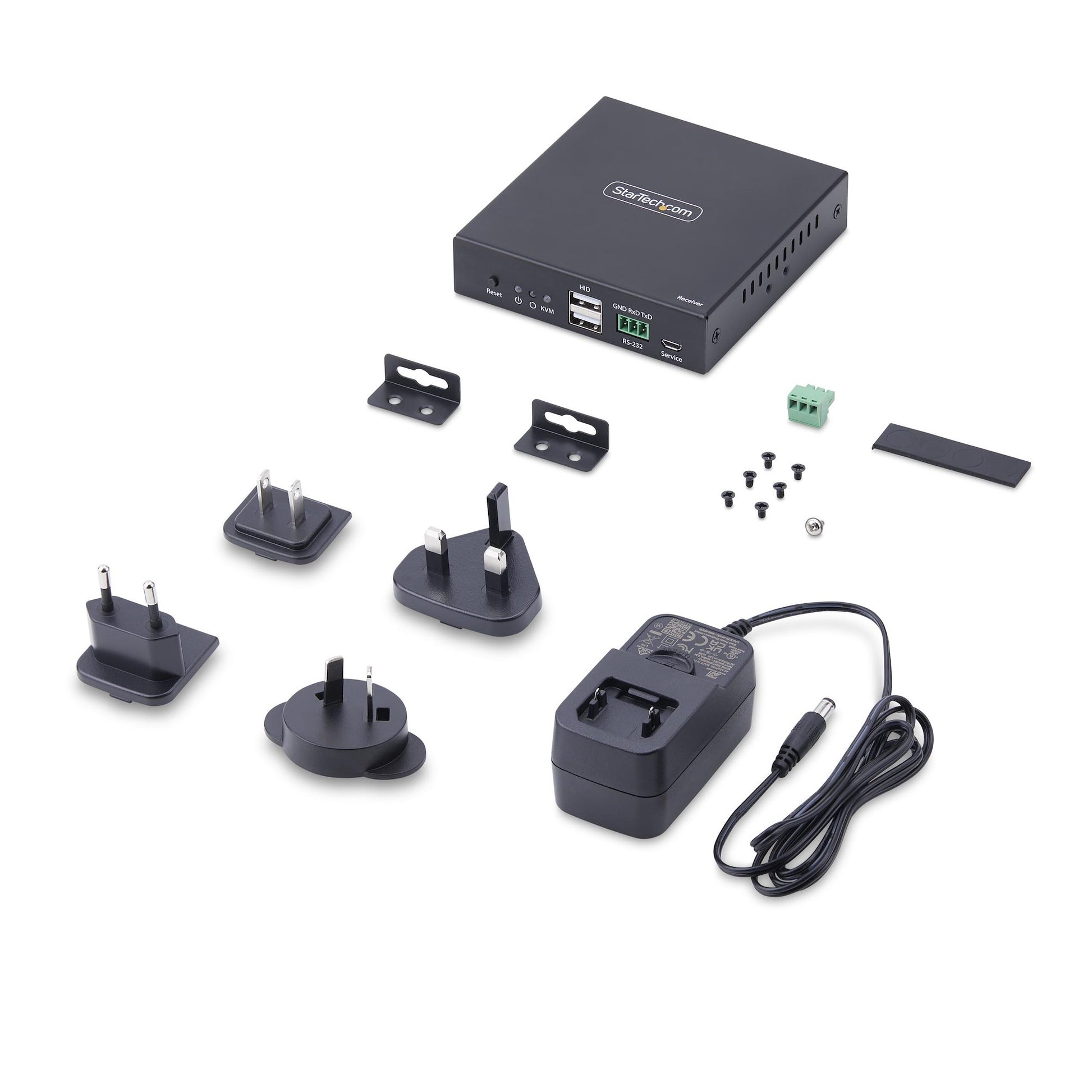

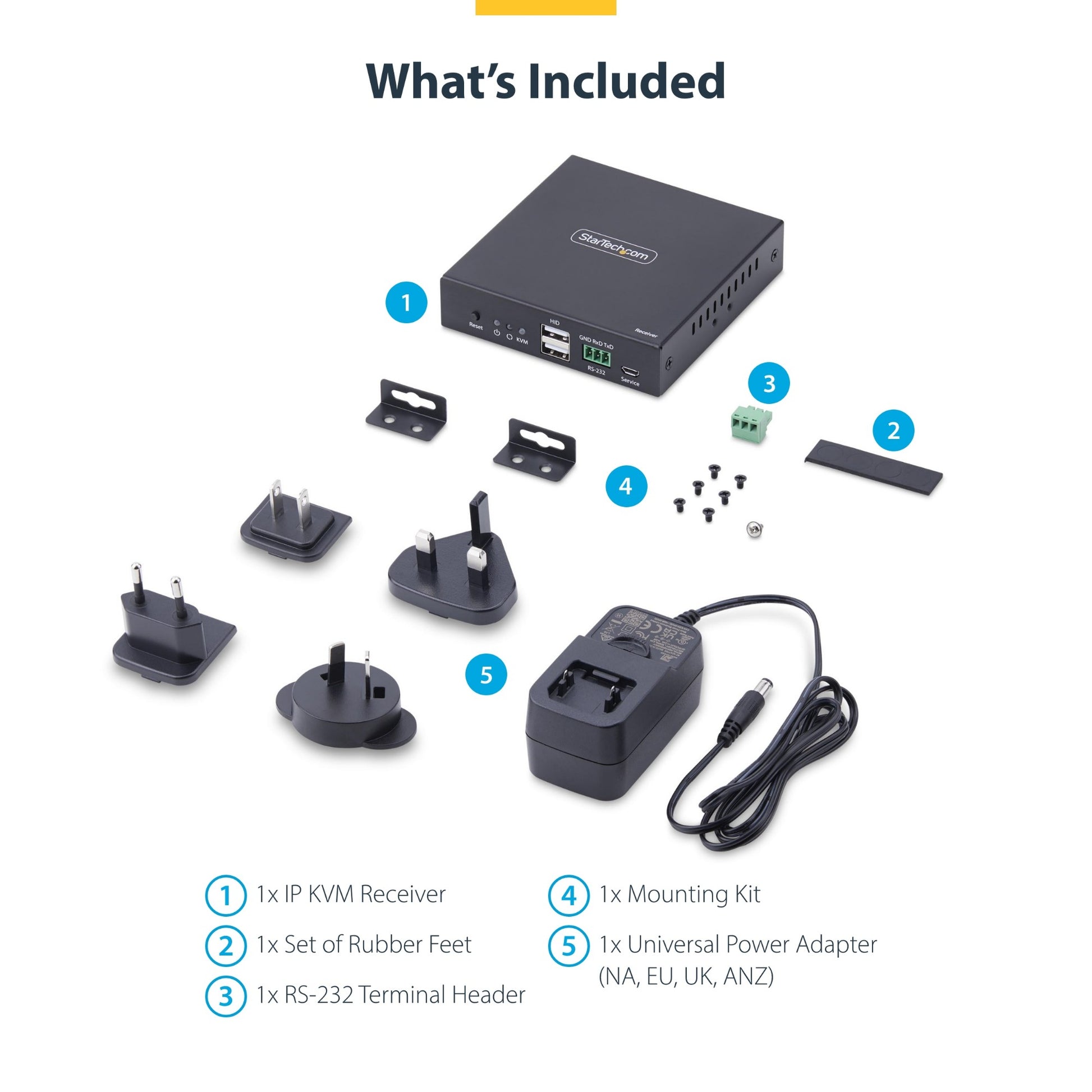

Packaging content
Mounting bracket(s) included	Yes
Included power plug types	ANZ, EU, NA, UK
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Logistics data
Master (outer) case width	425 mm
Master (outer) case length	315 mm
Master (outer) case height	420 mm
Products per master (outer) case	20 pc(s)

Downloads

• Datasheet (PDF)
