StarTech.com HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB KVM Switch

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com HDMI.

Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.

Professional-Grade Design

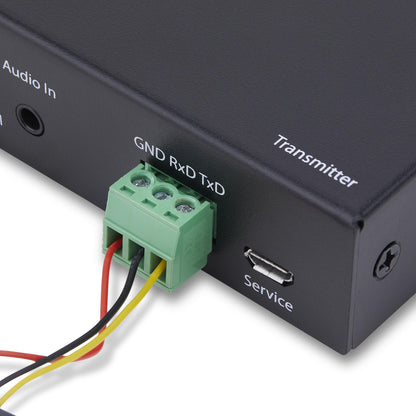

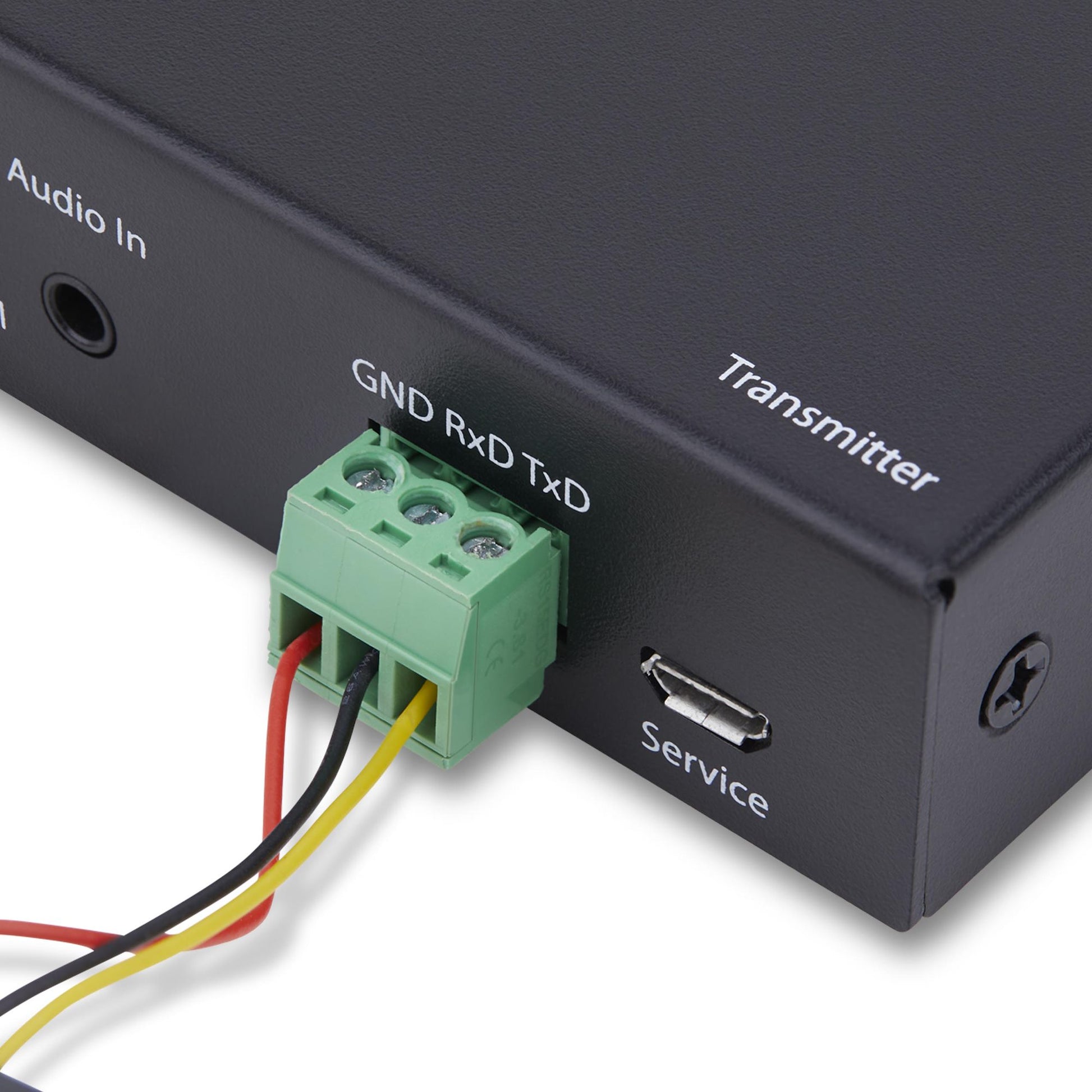

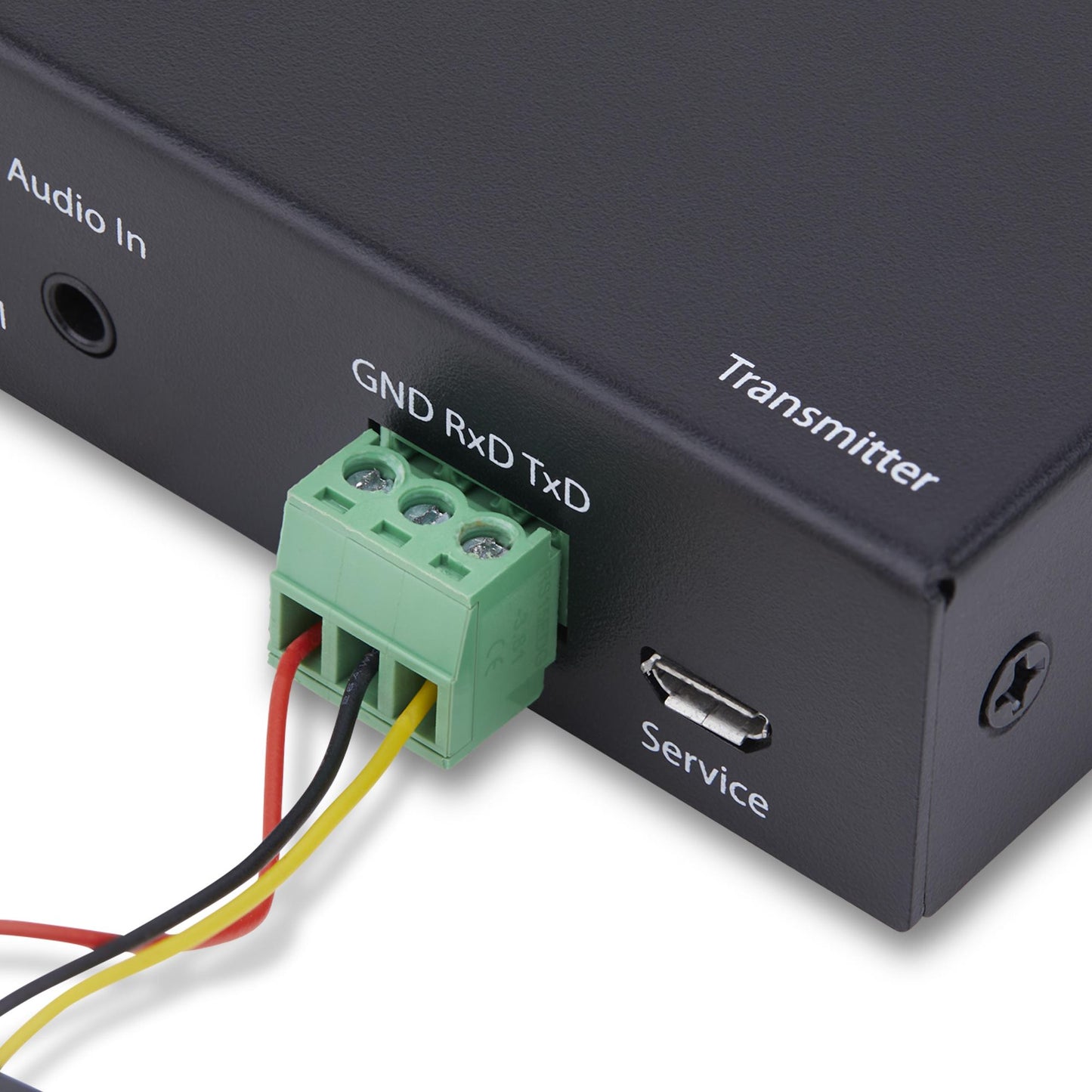

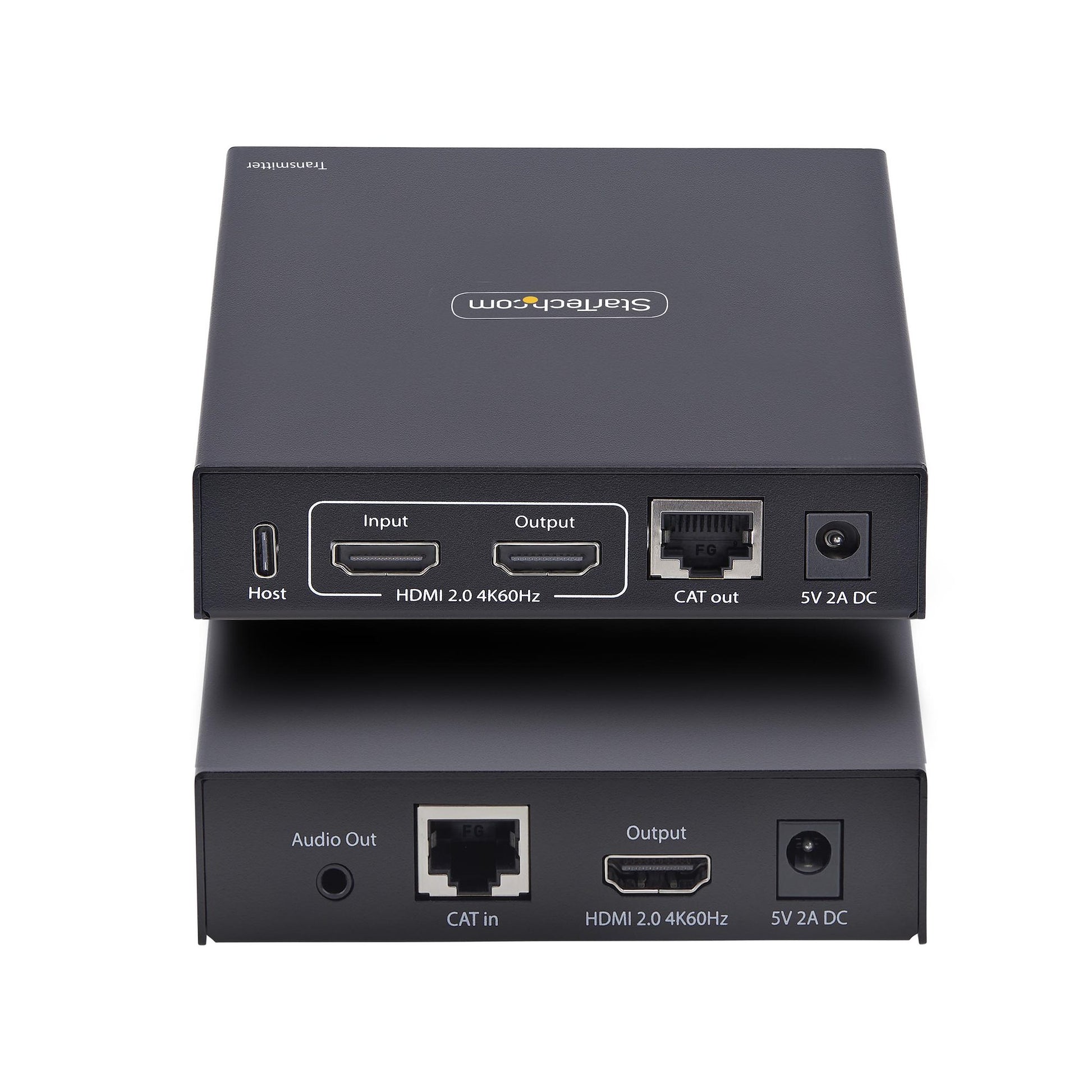

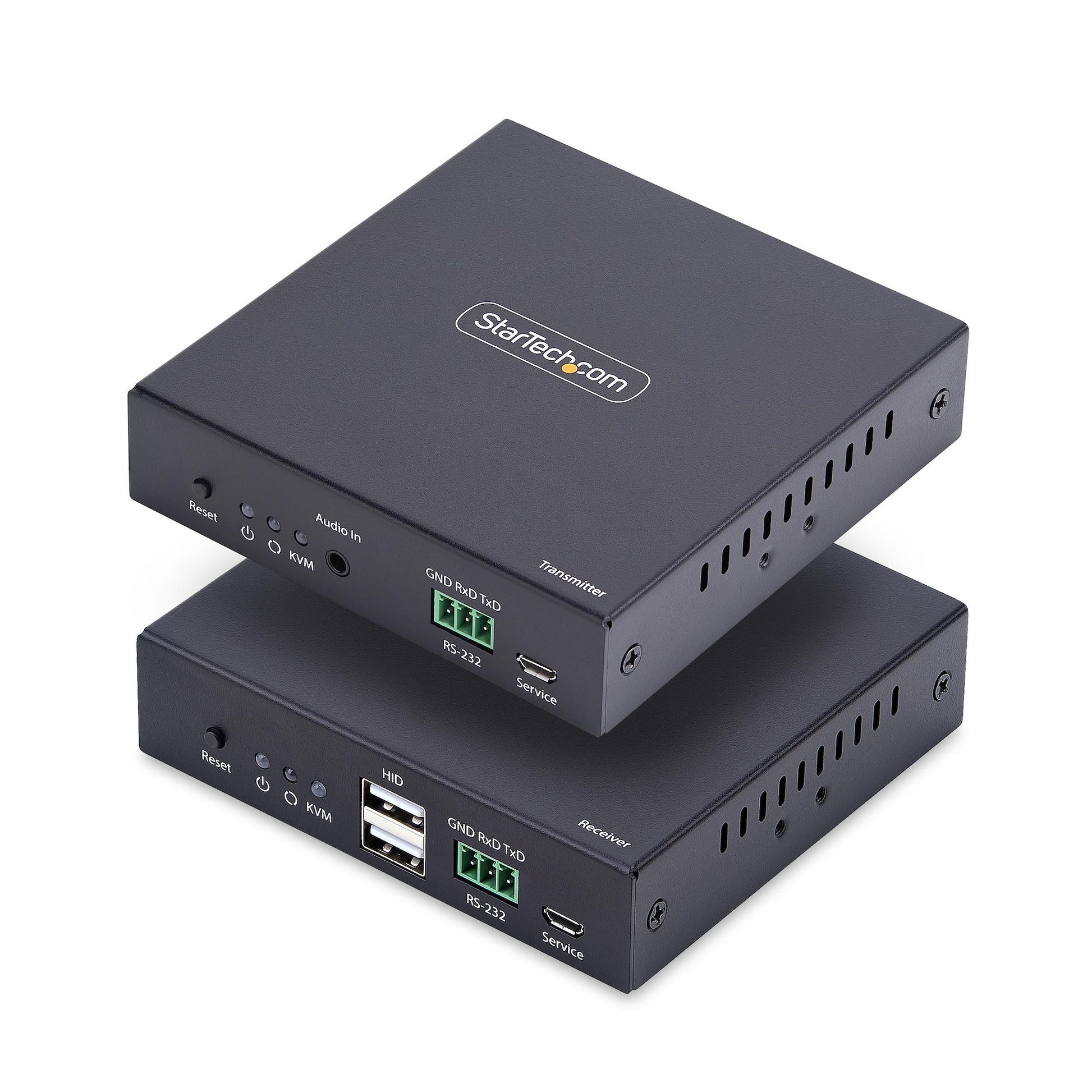

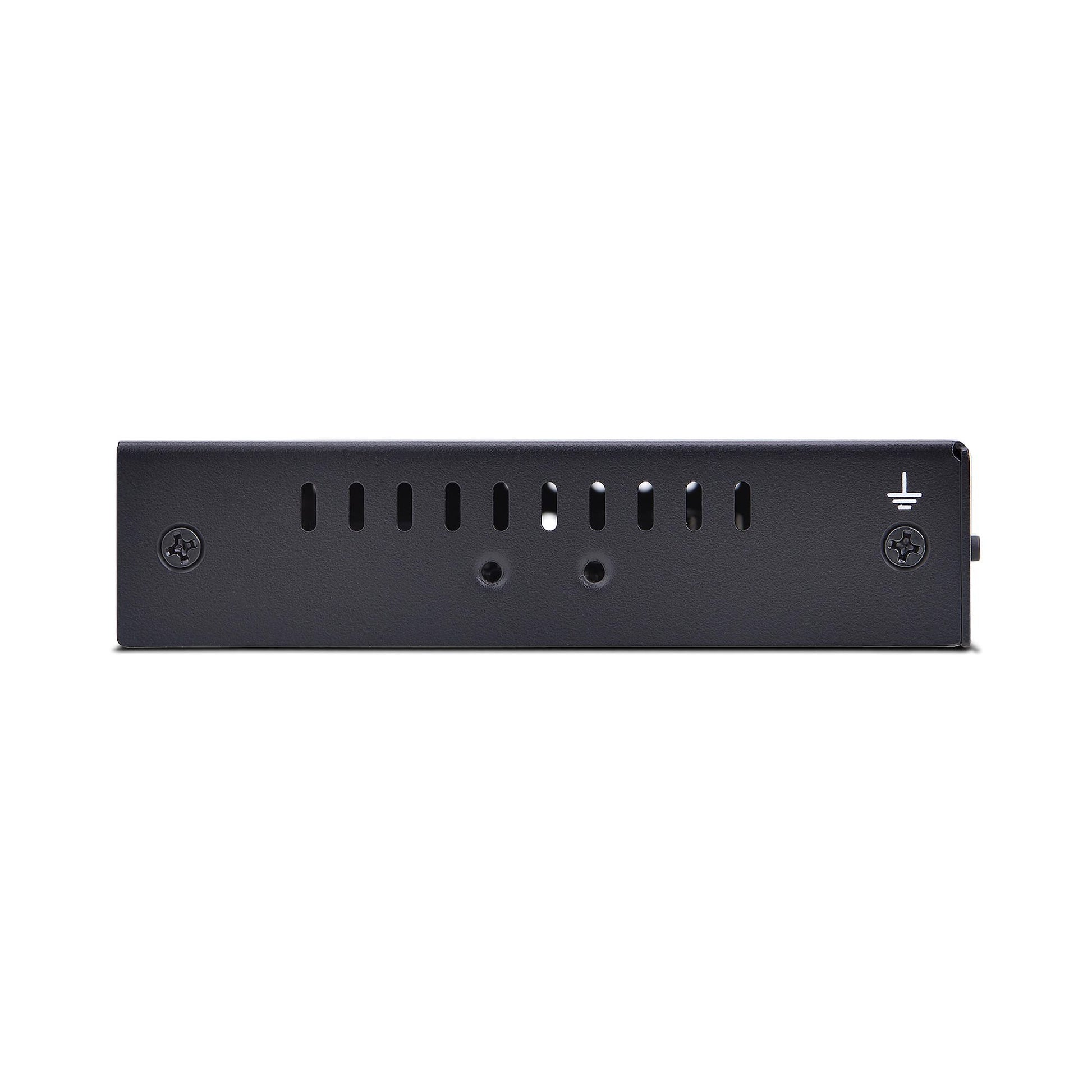

Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Cable types supported	Cat6
Rack mounting	No
Maximum digital resolution	3840 x 2160 pixels
On Screen Display (OSD)	No
Product colour	Black
USB 2.0 ports quantity	1
LED indicators	Yes
Maximum refresh rate	60 Hz
Mean time between failures (MTBF)	10000 h

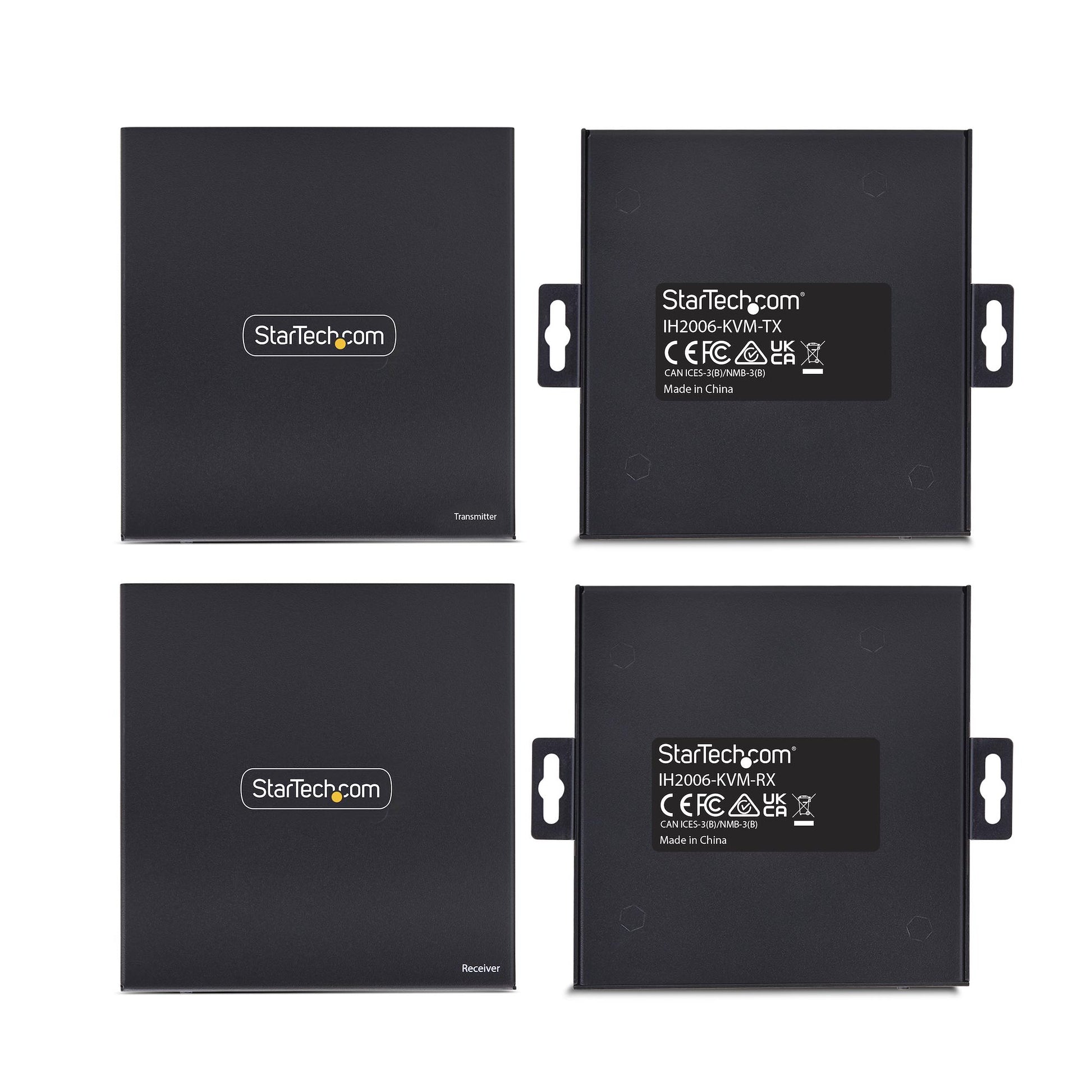

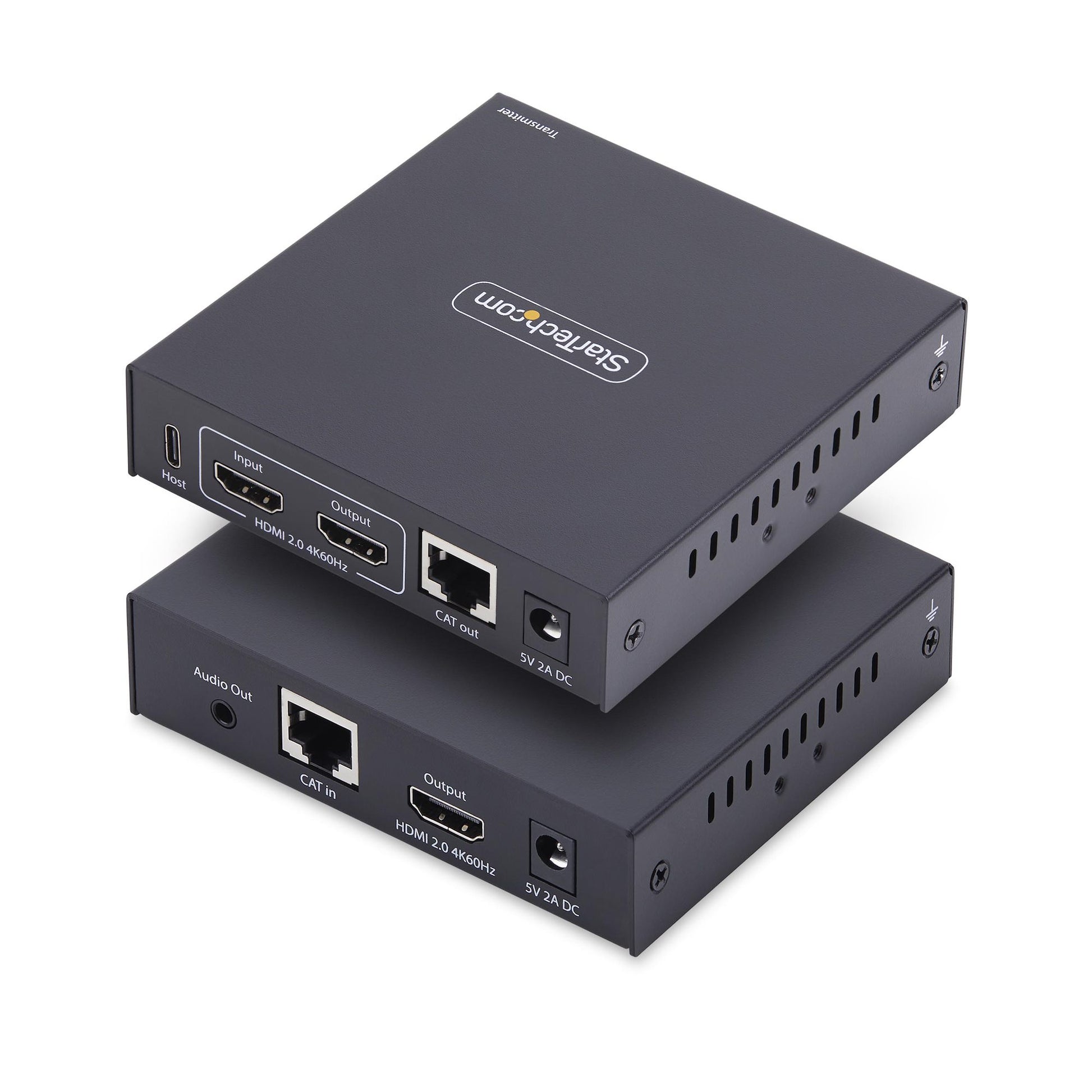

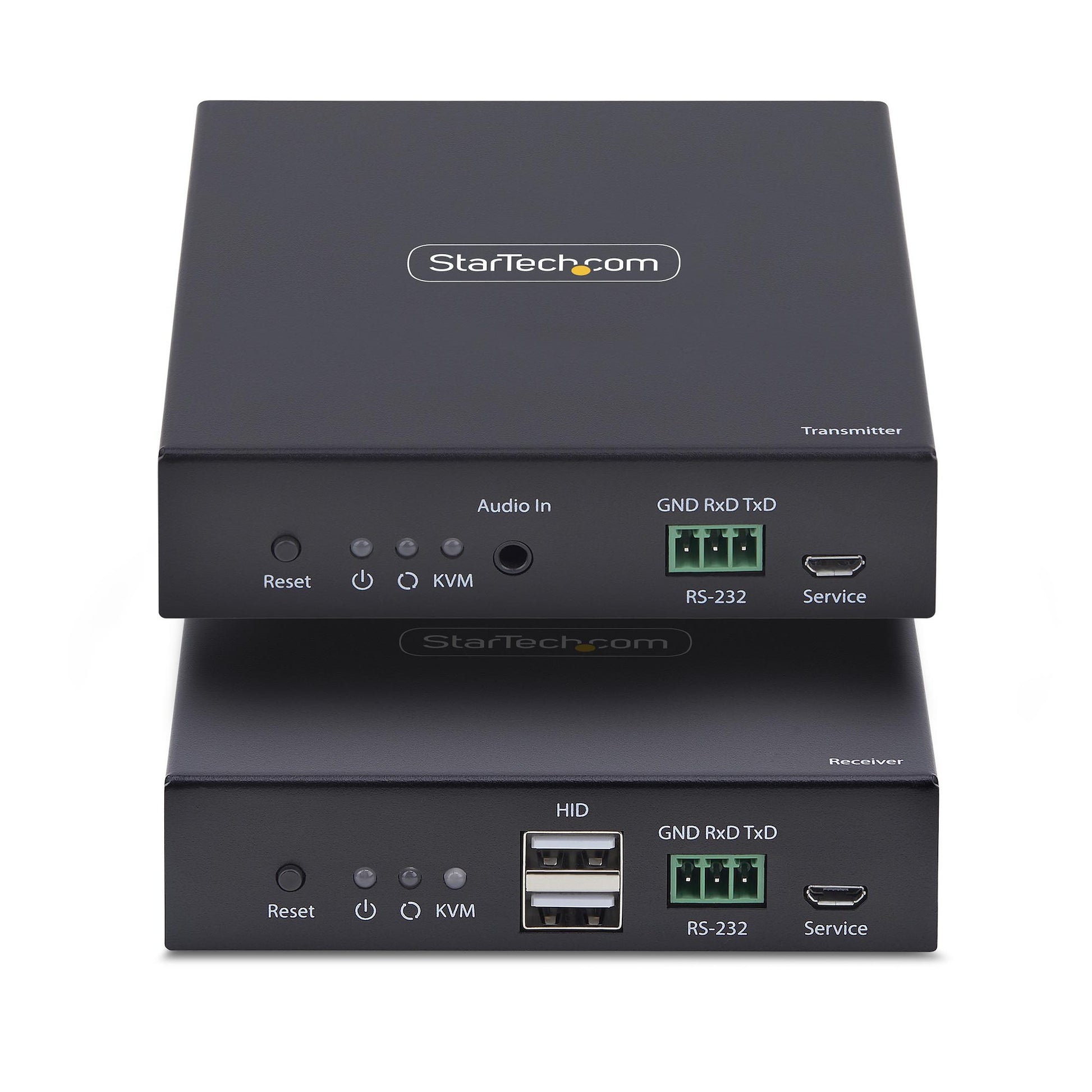

Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Yes
Transmitter local video port type	HDMI
RJ-45 ports quantity (transmitter)	1
Transmitter Micro-USB ports quantity	1
Receiver
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver USB Type-A ports quantity	2
Receiver Micro-USB ports quantity	1
Ports & interfaces
USB port type	USB Type-C
RS-232 ports	2
PC Audio in	Yes
PC Audio out	Yes
HDMI version	2.0
Power
AC input voltage	100 - 240 V
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (transmitter) (max)	10 W
Power consumption (receiver) (max)	10 W
Power plug type	Type M
Input current	0.3 A
DC-in jack	Yes
Weight & dimensions
Package width	240 mm
Package depth	176 mm
Package height	80 mm
Package weight	1.1 kg
Packaging data
AC adapter included	Yes

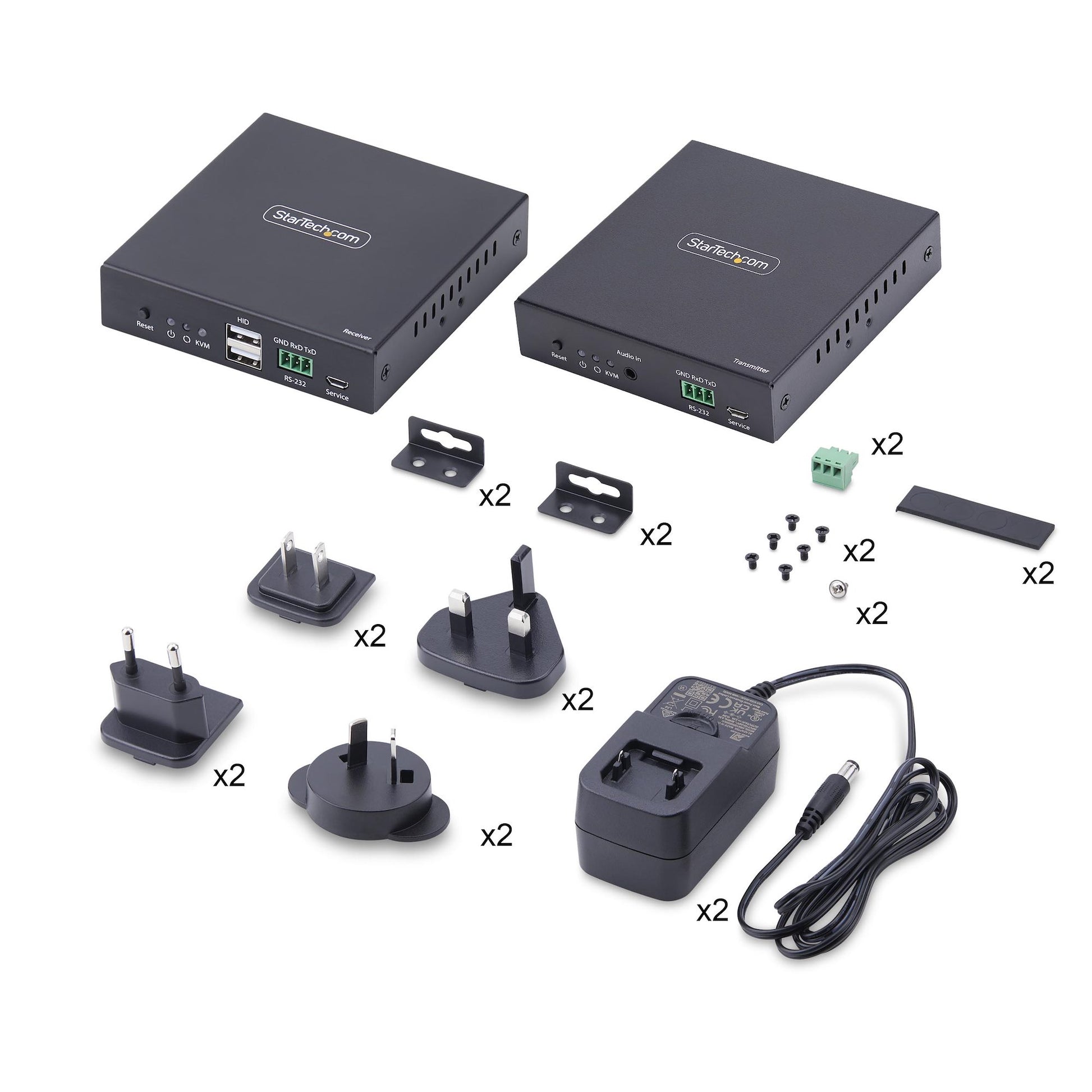

Packaging content
Mounting bracket(s) included	Yes
Included power plug types	ANZ, EU, NA, UK
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Logistics data
Master (outer) case width	380 mm
Master (outer) case length	270 mm
Master (outer) case height	420 mm
Products per master (outer) case	10 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
