StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP KVM Switch

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com HDMI.

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz

The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

Versatile Configuration Options

The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).

SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

Specifications

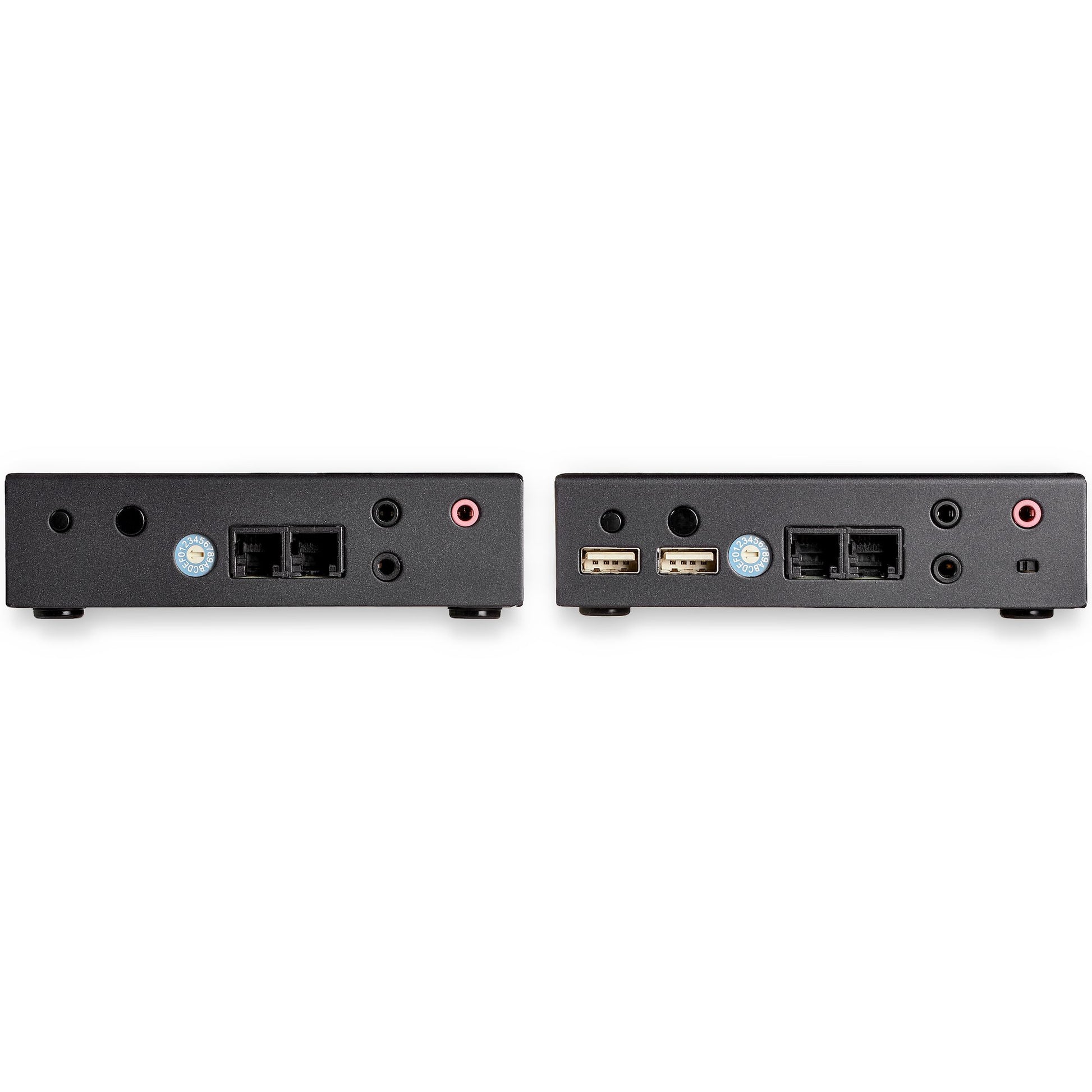

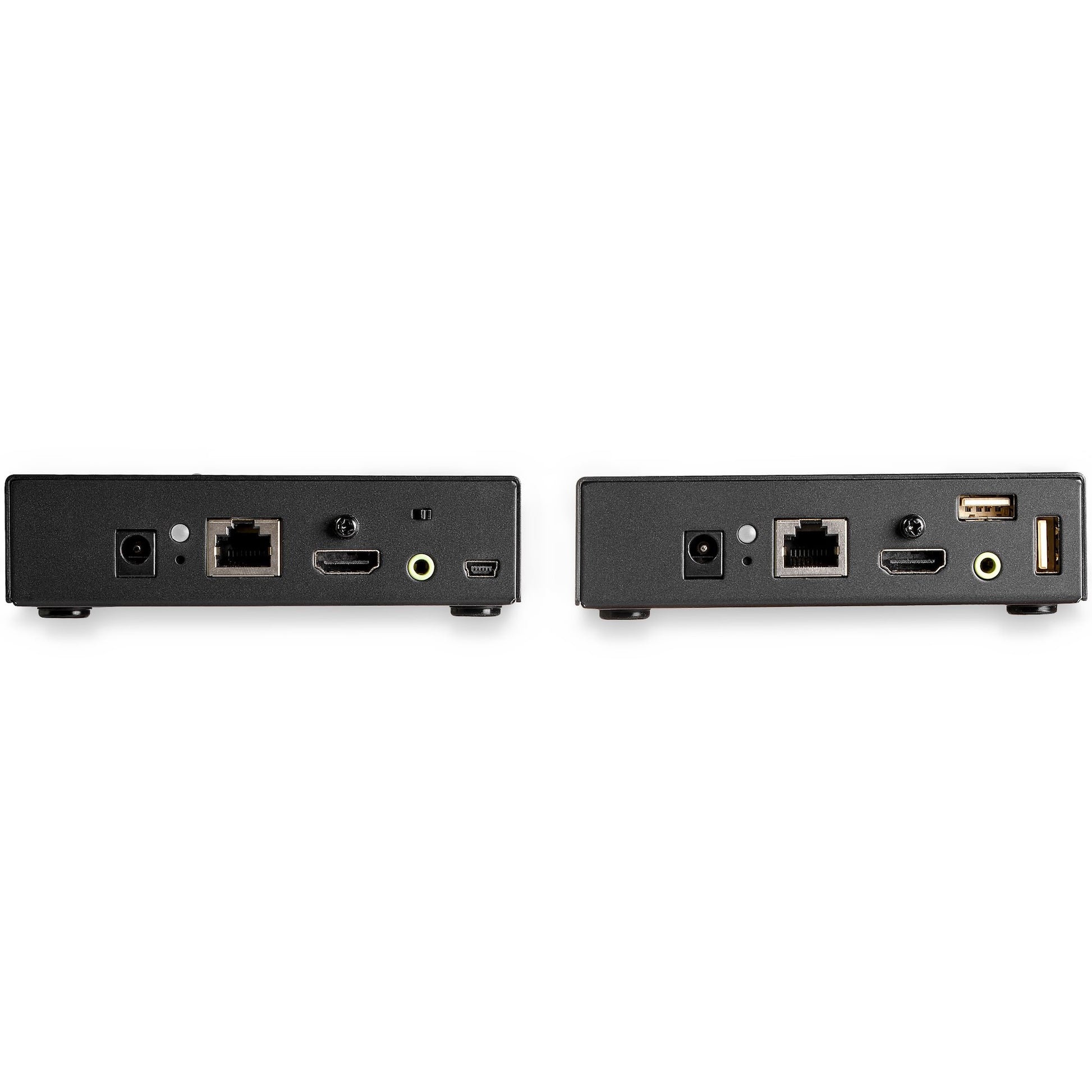

Ports & interfaces
Number of microphone inputs	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	8
HDMI ports quantity	2
DC-in jack	Yes
USB hub	Yes
USB 2.0 Type-A hub ports quantity	2
Ethernet LAN (RJ-45) ports	2
Performance
Daisy chain	No
Chipset	ASPEED - AST1520
HD type	4K Ultra HD
Video bandwidth	30 Hz
Maximum resolution	3840 x 2160 pixels
Maximum operating distance	100 m
Audio channels	7.1
Technical details
Product colour	Black
On Screen Display (OSD)	Yes
LED indicators	Yes
Hot keys	No
IP control	No
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	60000 h
Certification	CE, FCC, TAA, REACH
Housing material	Steel
Display
Built-in display	No
Power
Input current	0.6 A
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	AU, EU, JP, UK
Output voltage	12 V
Power consumption (typical)	18 W
External power adapter	Yes
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	117 mm
Depth	130 mm
Height	28 mm
Weight	610 g
Package width	354 mm
Package depth	368 mm
Package height	80 mm

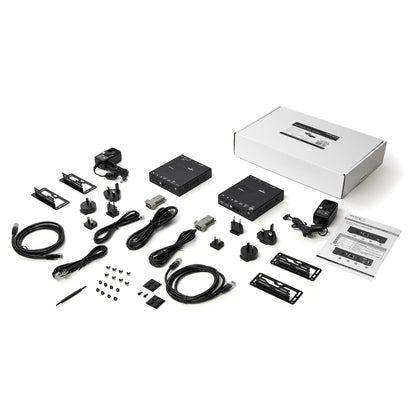

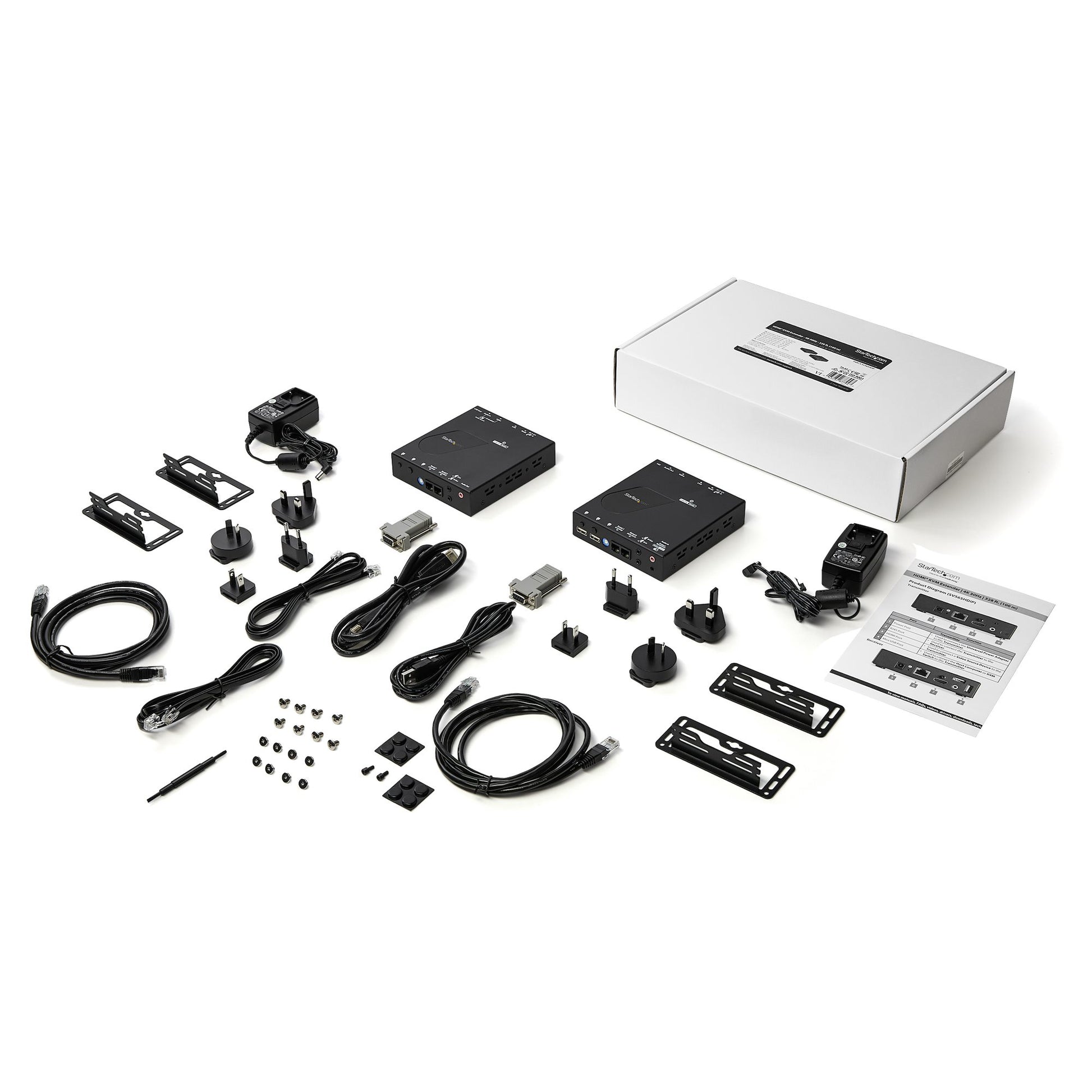

Packaging content
Rubber feet	Yes
Cables included	HDMI, LAN (RJ-45), Phone (RJ-11), USB
Quick installation guide	Yes
AC adapter included	Yes
Logistics data
Master (outer) case width	394 mm
Master (outer) case length	490 mm
Master (outer) case height	272 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200
