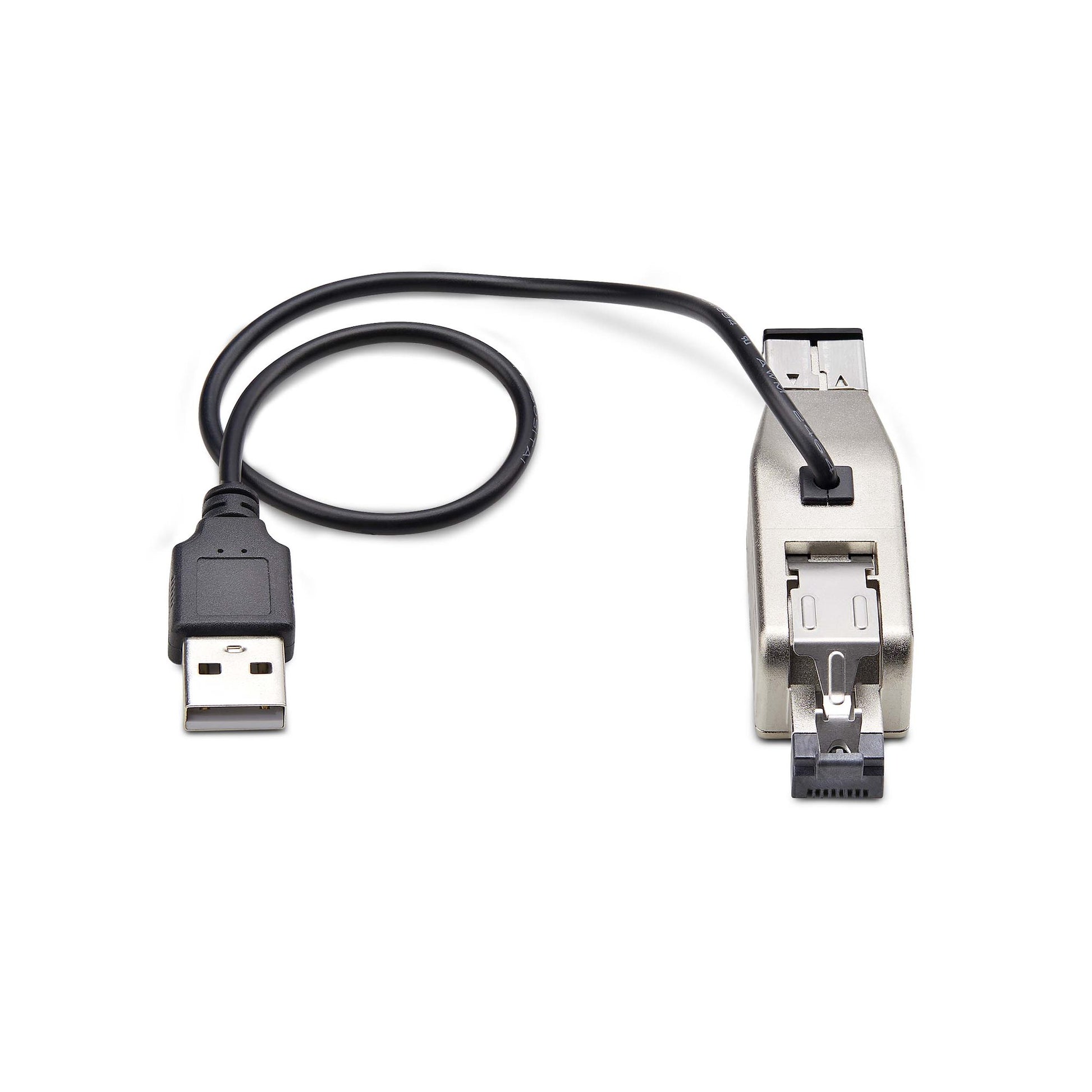

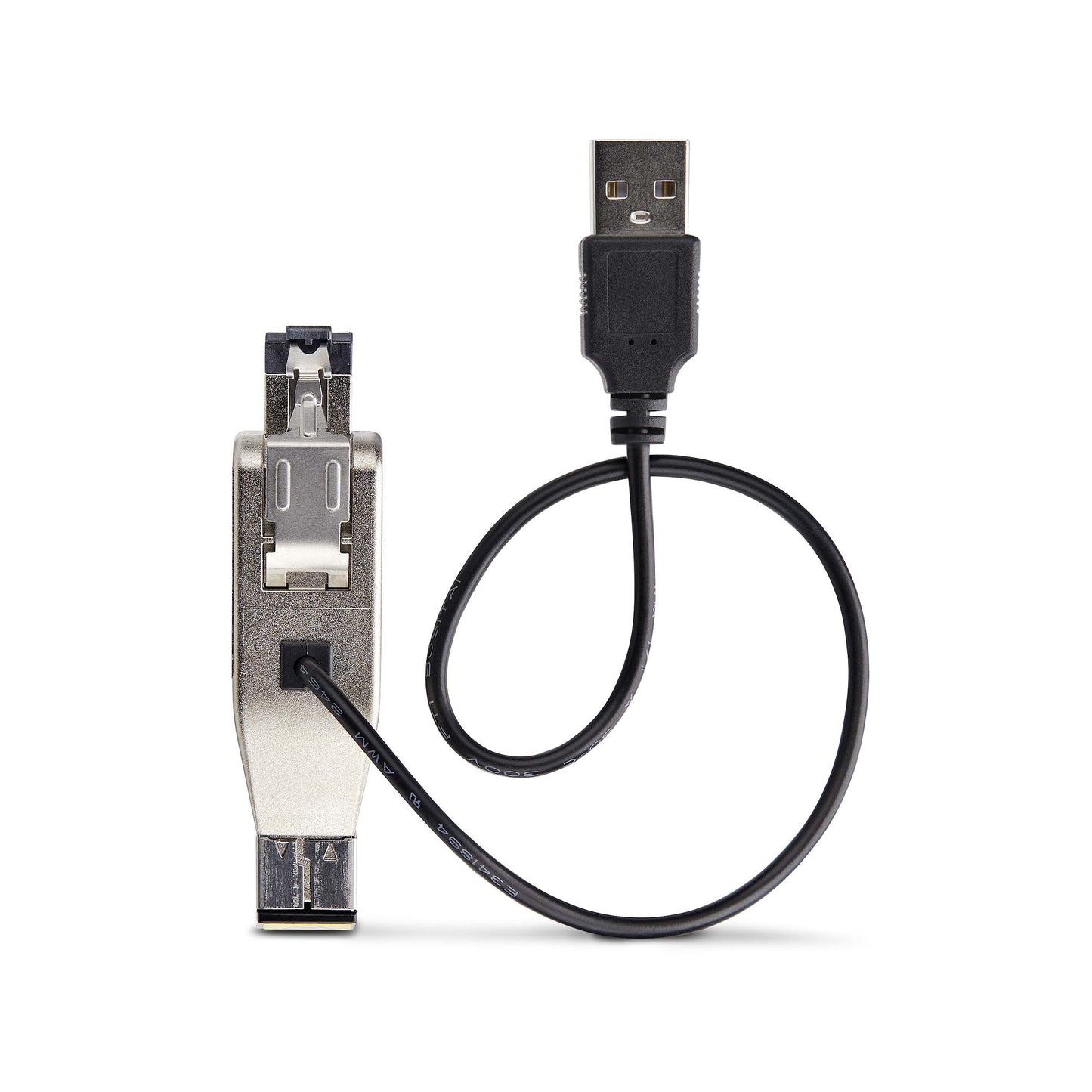

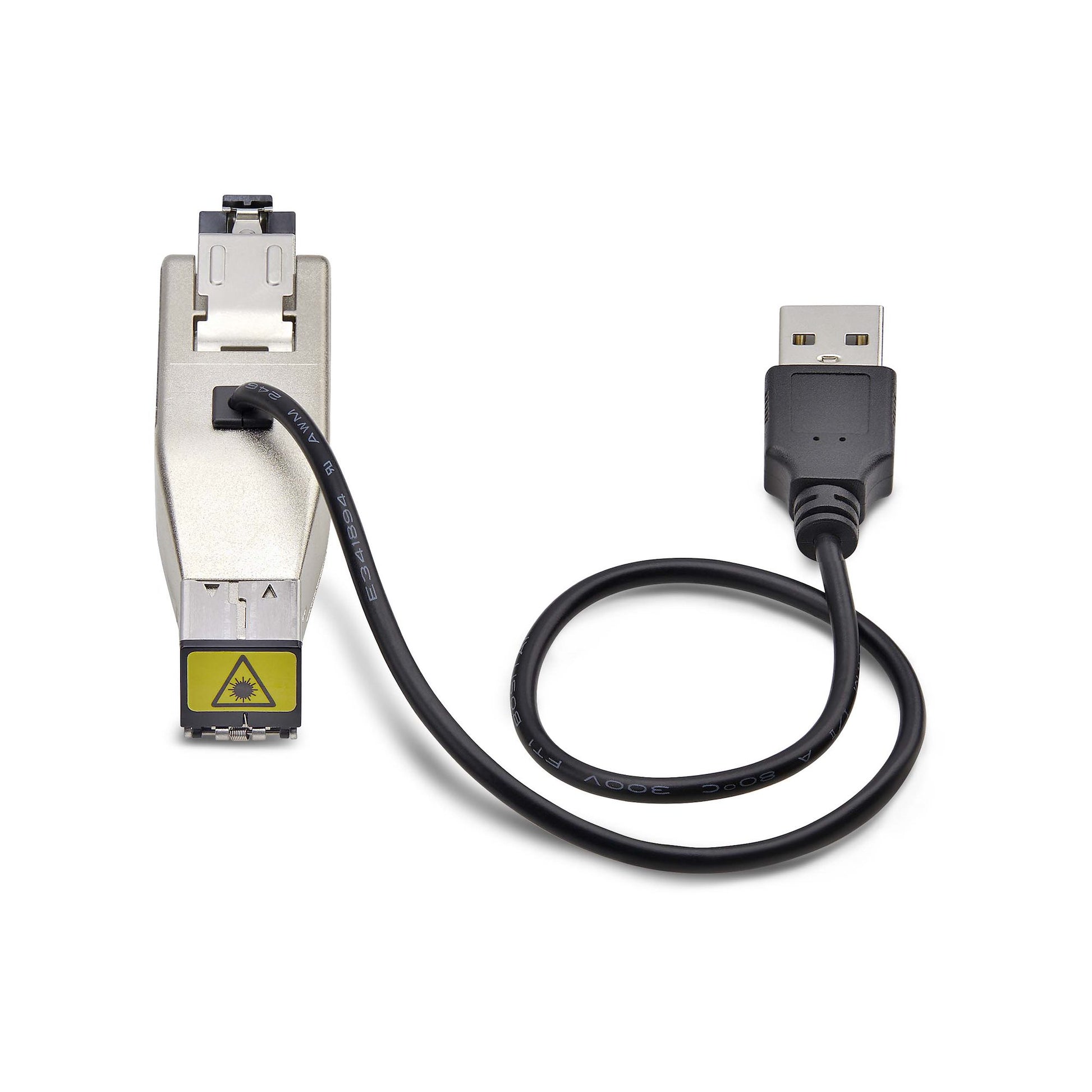

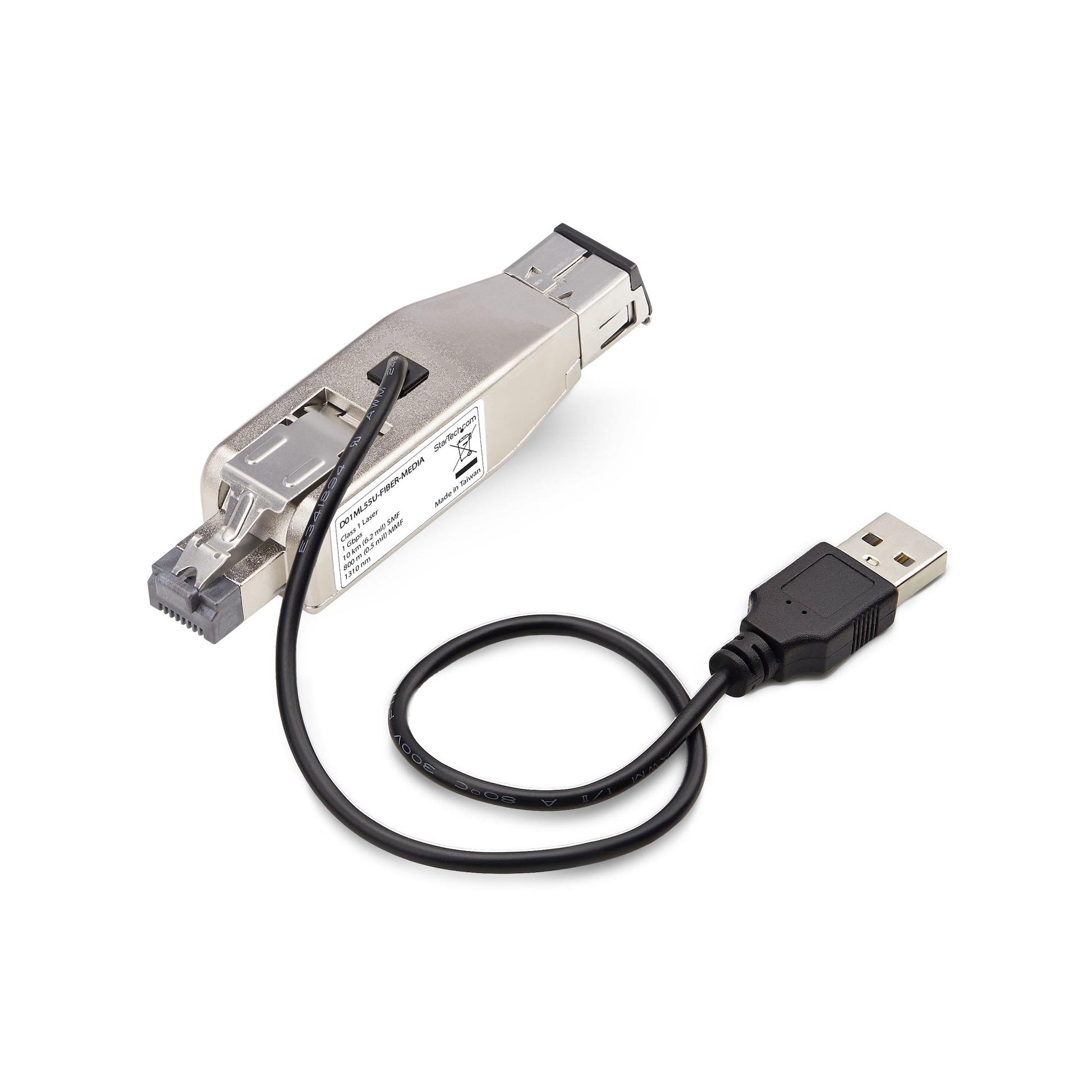

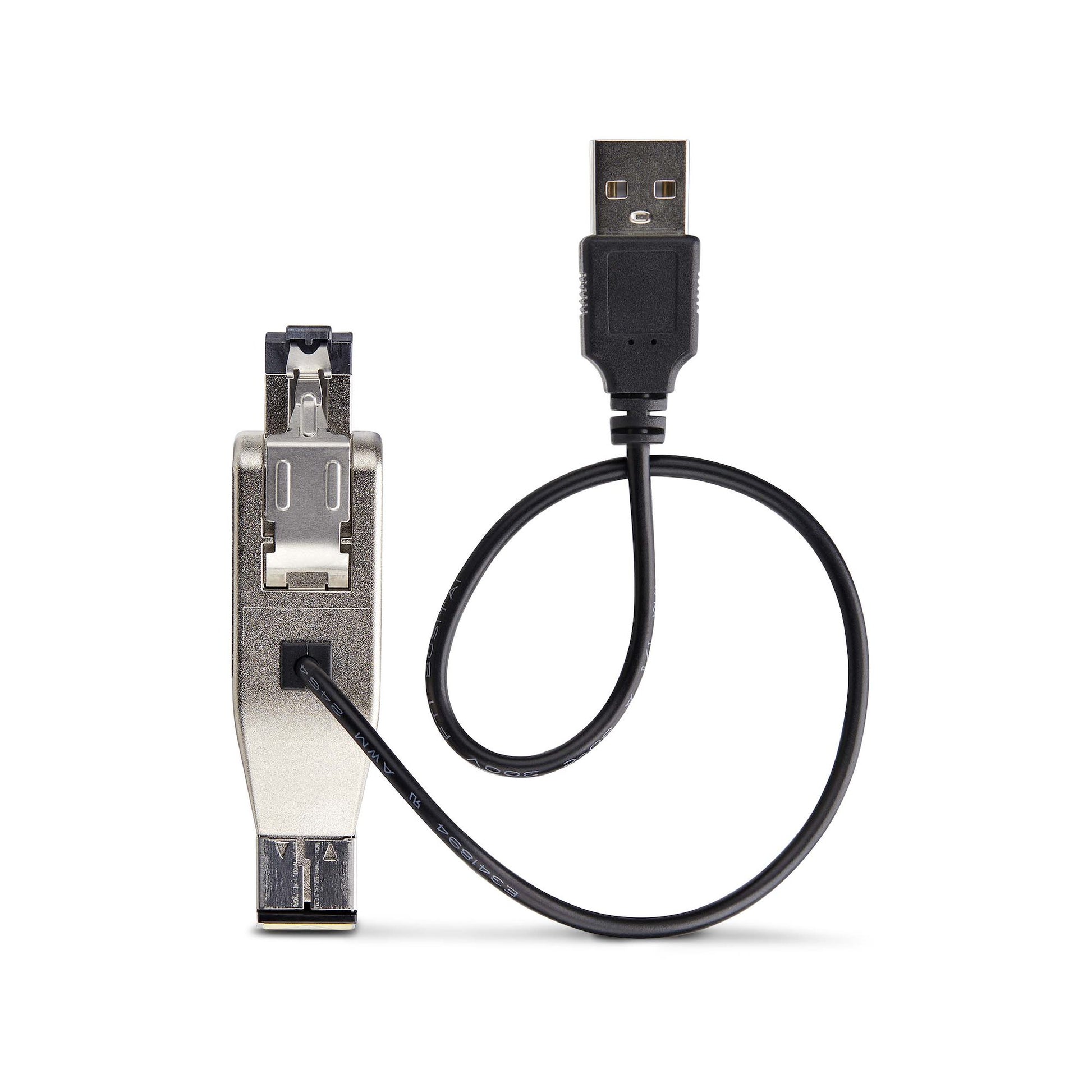

StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, USB Powered, Compact Design, Metal Housing, Micro Mini, TAA Networking

The StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, USB Powered, Compact Design, Metal Housing, Micro Mini, TAA is a dependable addition to any modern network installation.

Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber

This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.

Simplified Installation

The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.

Network Features

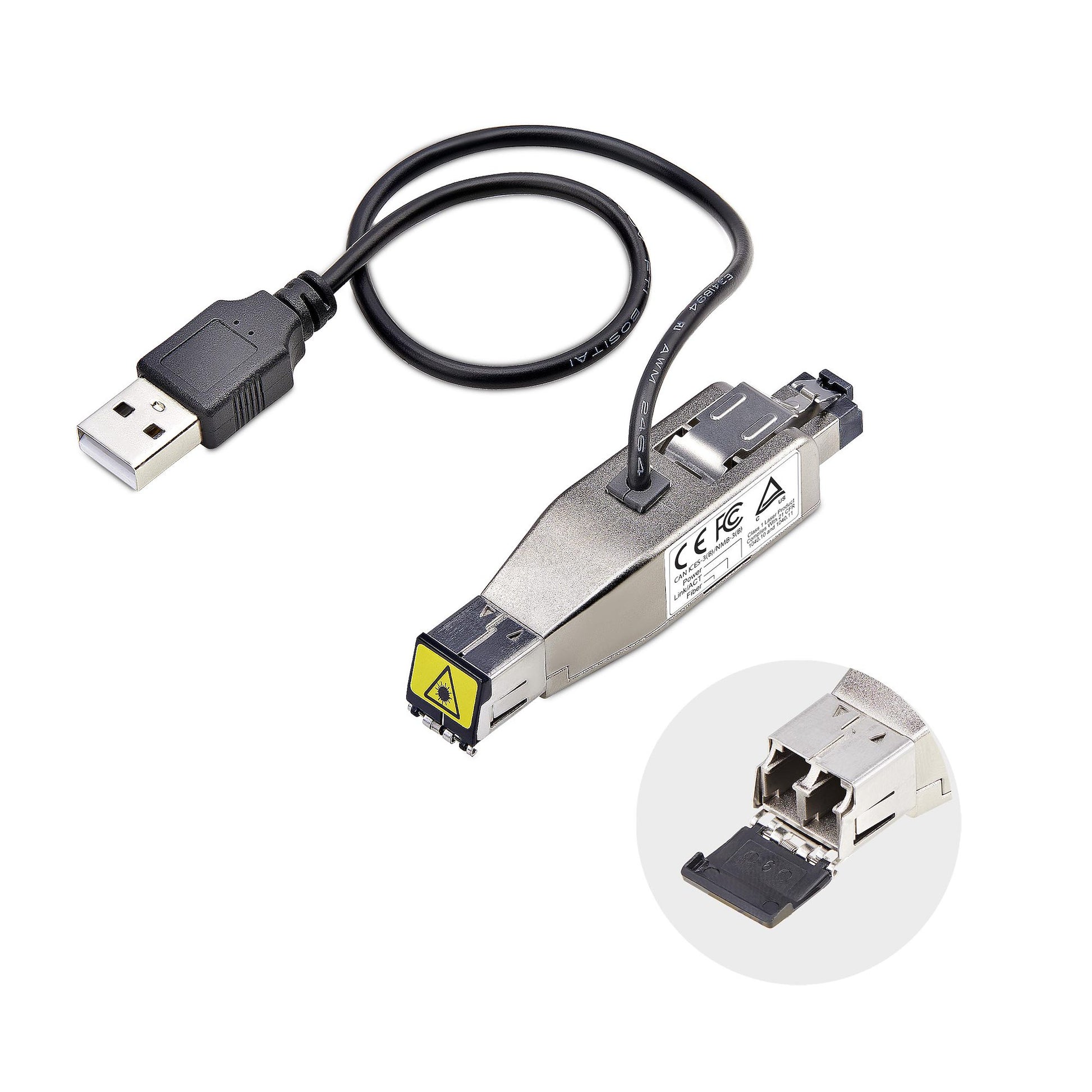

The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.

Compatibility

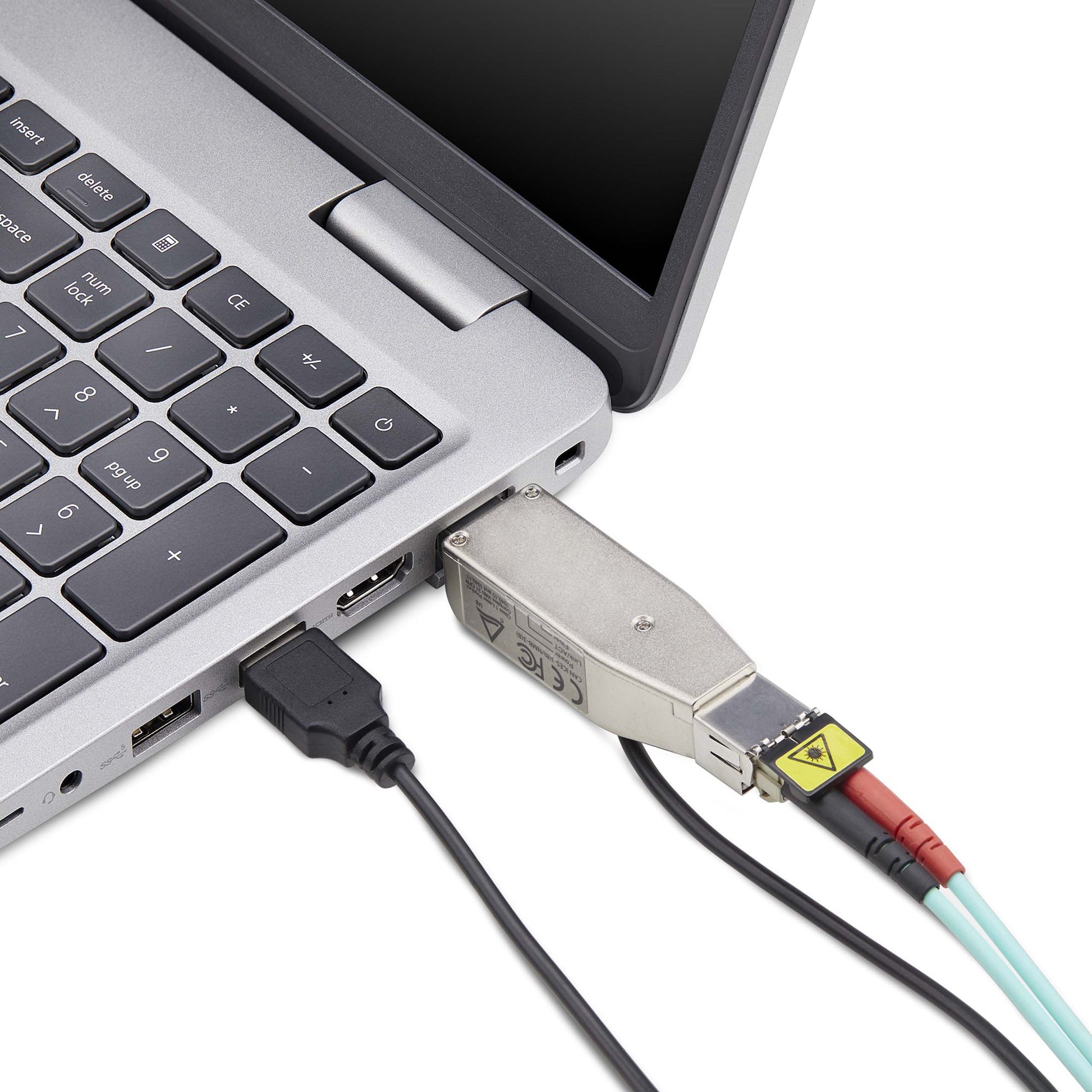

This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.

Specifications

Network
Auto-negotiation	Yes
Converter input interface	1000Base-T
Networking standards	IEEE 802.3ab, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Converter output interface	1000Base-LX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1000 Mbit/s
Chipset	Marvell - 88E1512
Fiber optic connector	LC
Performance
Wavelength	1310 nm
Maximum transfer distance	1000 m
Fiber mode structure	Multi-mode, Single-mode
Features
International Protection (IP) code	IP20
Housing material	Metal, Plastic
LED indicators	Activity, Link, Power
Product colour	Black, Silver
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power
Power consumption (max)	2.5 W
Power over Ethernet (PoE)	No
Weight & dimensions
Width	82 mm
Depth	20 mm
Weight	49 g
Height	18 mm
Package depth	139 mm
Package width	80 mm
Package height	35 mm
Package weight	80 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 85%
Packaging content
User guide	Yes
Technical details
Compliance certificates	Trade Agreements Act (TAA)
Logistics data
Master (outer) case width	340 mm
Master (outer) case length	290 mm
Master (outer) case height	126 mm
Products per master (outer) case	24 pc(s)

Downloads

• Datasheet (PDF)
