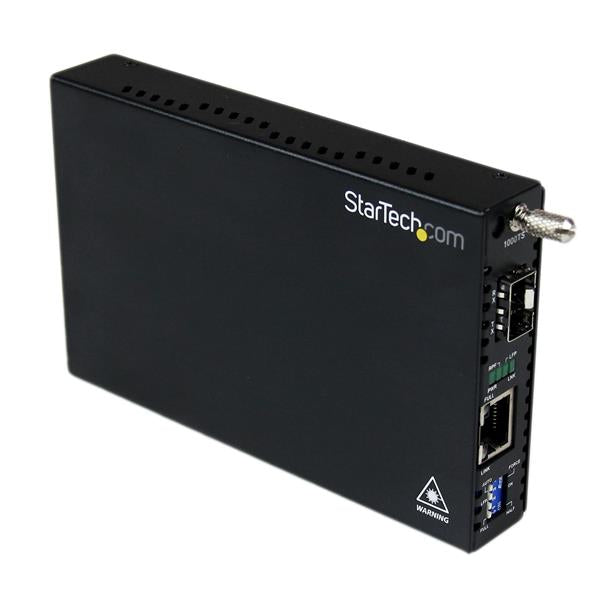

StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot Networking

The StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot is a dependable addition to any modern network installation.

Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice

The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.

A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).

The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.

For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, ETCHS2U" text="2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a ET91000SFP2C" text="Card Module only (ET91000SFP2C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Install the SFP of your choice with the open SFP slot
- Operate as a standalone media converter or install into the ETCHS2U chassis
- Ensure maximum up-time with link-loss forwarding and remote status monitoring

Specifications

Network
Converter input interface	1000Base-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1250 Mbit/s
Fiber optic connector	SFP
Performance
Mean time between failures (MTBF)	65000 h
Features
Housing material	Steel
LED indicators	Yes
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power
Power over Ethernet (PoE)	No
Input voltage	100 - 240 V
Input current	0.36 A
Output voltage	12 V
Output current	1 A
Power consumption (typical)	8 W
External power adapter	Yes
Weight & dimensions
Width	95 mm
Depth	160 mm
Weight	400 g
Height	20 mm
Package depth	208 mm
Package width	137 mm
Package height	92 mm
Package weight	786 g
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Manual	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Design
Certification	FCC
