StarTech.com Full Motion TV Wall Mount - Heavy Duty Articulating TV Wall Mount

Position your screen exactly where you need it with the StarTech.com Full Motion TV Wall — VESA fit and load ratings are below.

Display Wall Mount | Steel/Aluminum | For 32" to 75" TVs

Strong and sleek, this full-motion TV wall mount lets you free up space by wall-mounting your 32" to 75" TV, and adjust it to the right viewing position with ease.

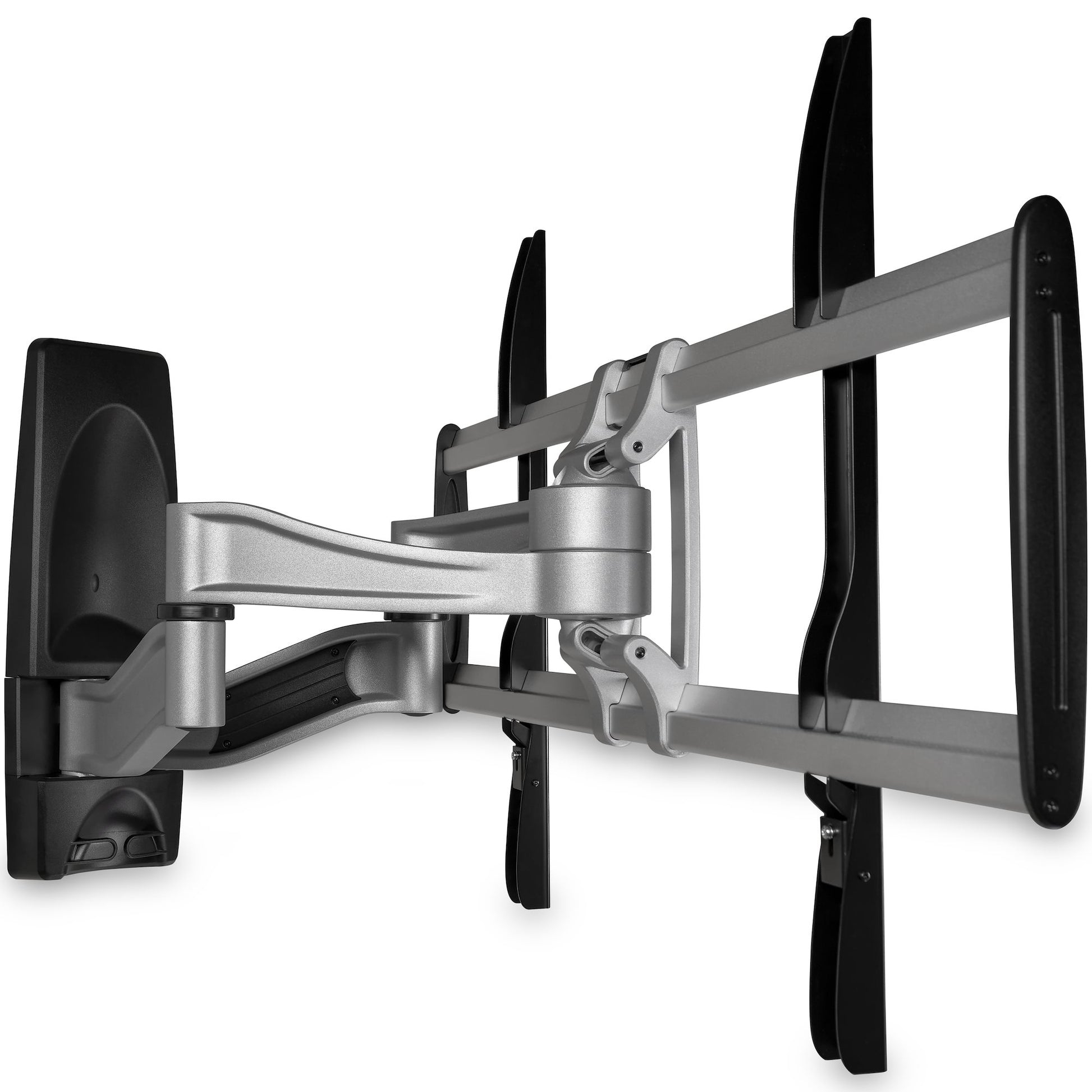

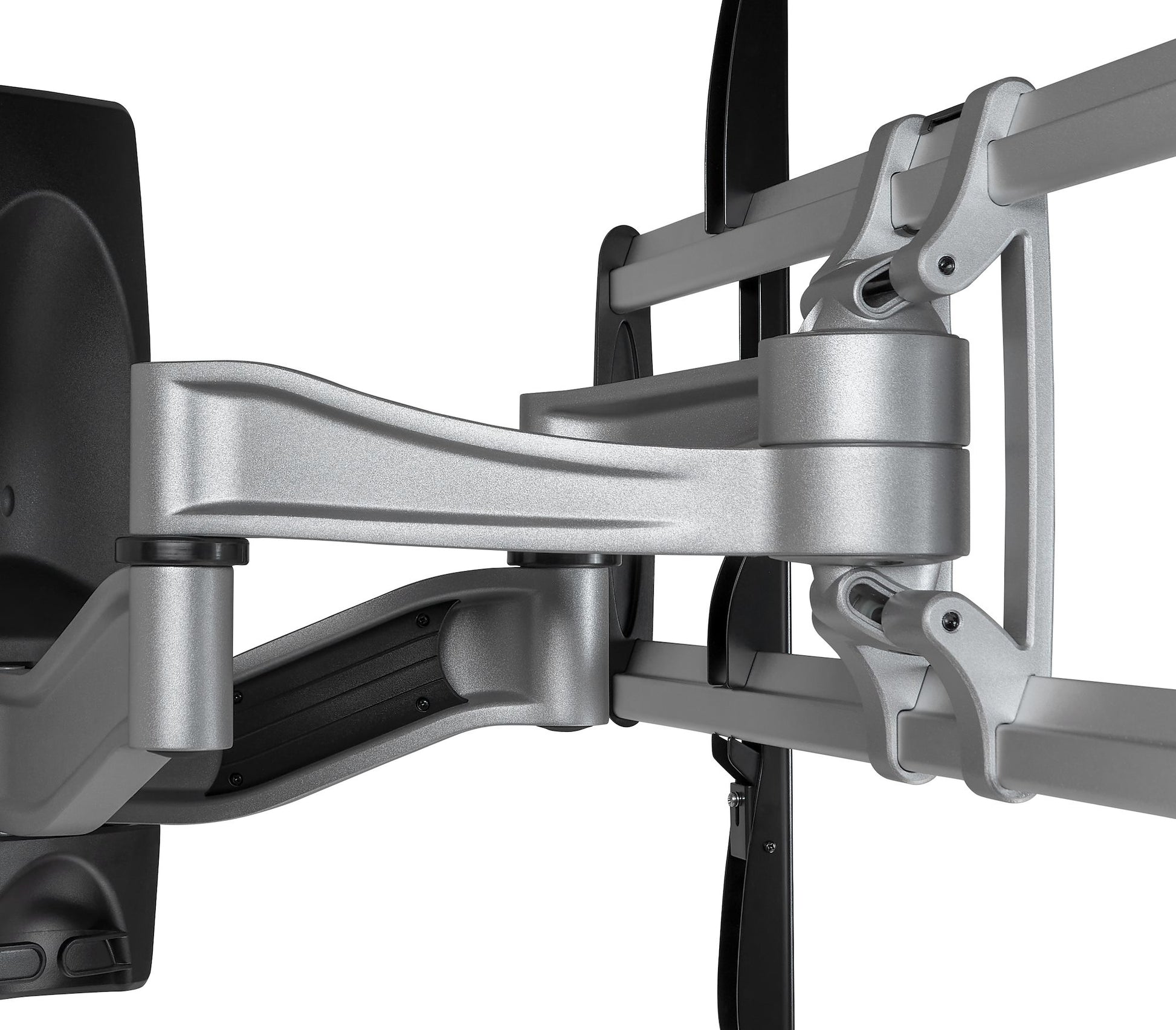

Smooth Full-Motion Adjustability

Once it's installed, the flat-screen TV wall mount is simple to adjust without using tools. You can extend the arms with ease to position your TV anywhere from 4.1" to 21.6" (105 to 550 mm) away from the wall. The TV mount swivels +/-60 degrees and tilts +/-15 degrees for optimum viewing.

Sleek Design

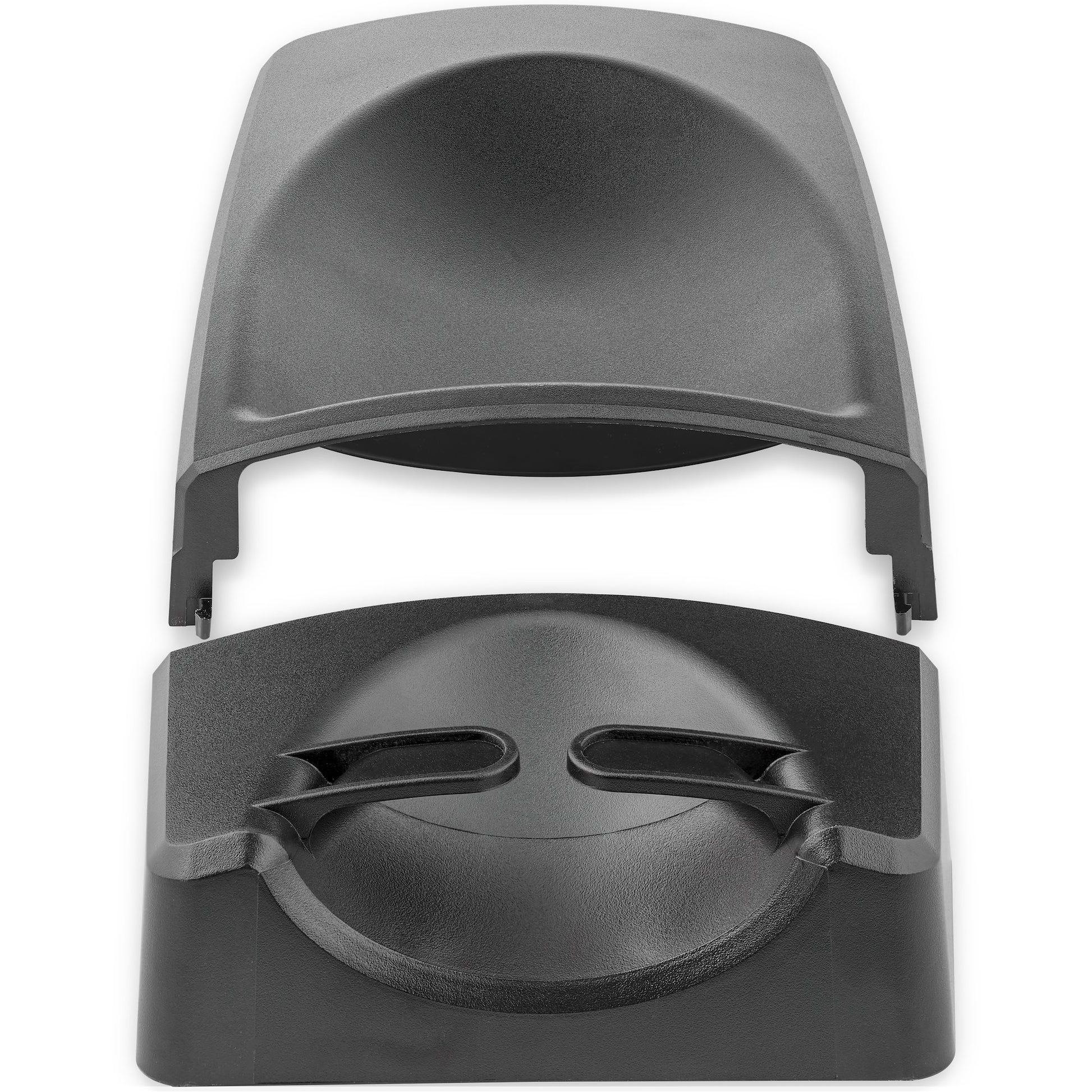

This premium television wall mount beautifully combines form and function. Designed to provide an impressive appearance in every position, the premium black and silver design makes it ideal in a company lobby or hallway, information kiosk, or living space. With the arms extended, the protective covers provide a tidy, professional look. The cable-management channel inside the arms keeps cables neatly tucked away.

Durable Construction

Engineered with steel and aluminum, the robust TV mount securely supports a TV with a maximum weight capacity of 165 lb. (75 kg).

FPWARPS is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Panel mounting interface	150 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,500 x 300,600 x 300,600 x 400,800 x 400,800 x 500
Minimum VESA mount	150 x 100 mm
Maximum VESA mount	800 x 500 mm
Maximum screen size	190.5 cm (75")
Maximum weight capacity	85 kg
Ergonomics
Tilt angle range	-15 - 15°
Swivel angle range	-60 - 60°
Distance to the wall (min)	10.5 cm
Distance to the wall (max)	55 cm
Technical details
Product colour	Black, Silver
Compliance certificates	RoHS
Design
Certification	REACH
Housing material	Aluminium, Plastic, Steel

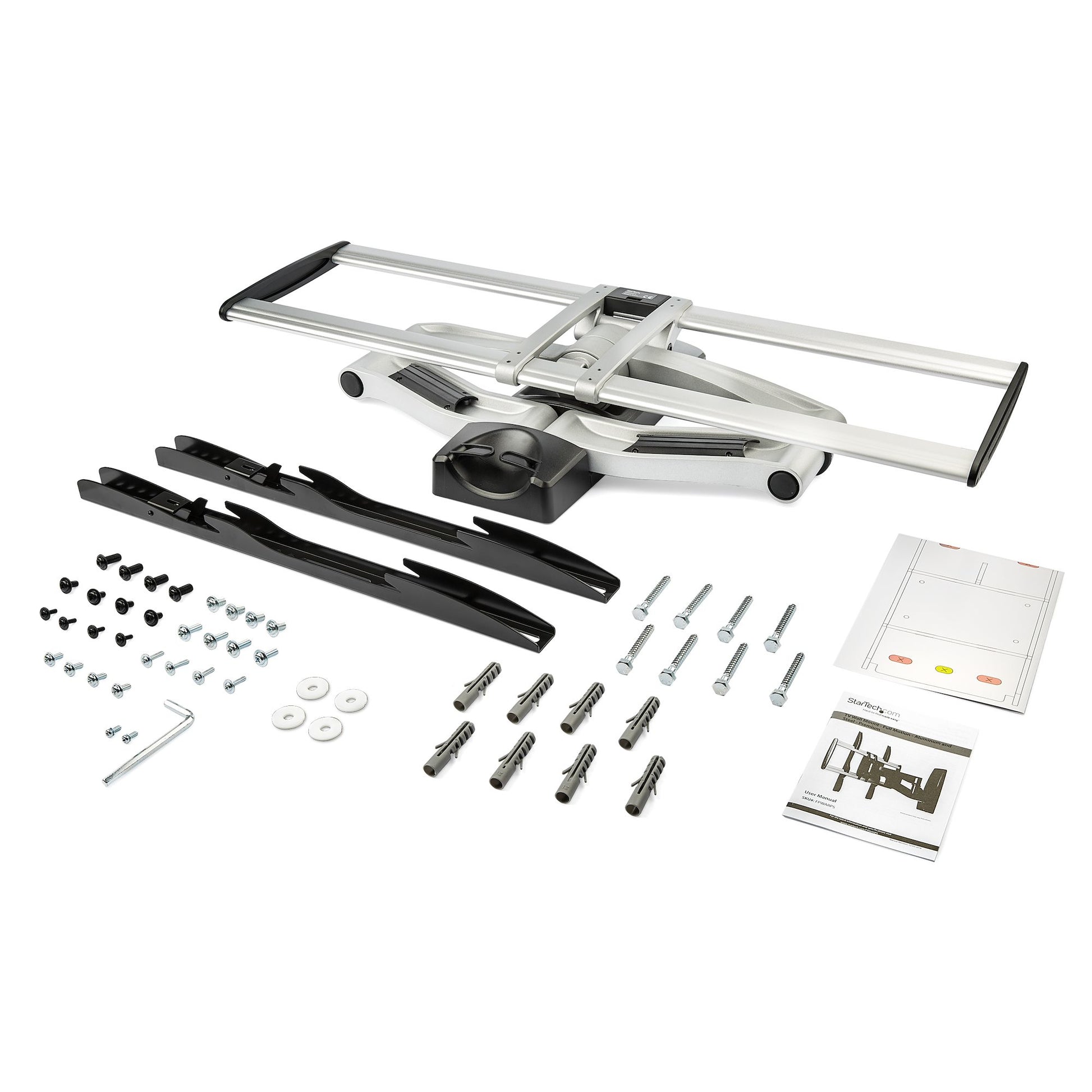

Packaging content
Screws included	Yes
Adapter bracket included	Yes
Number of adapter brackets included	2
Anchors included	Yes
Number of anchors included	8
Washers included	Yes
Number of washers included	4
Number of screws	38
Wrench included	Yes
Wrench type	Hexagonal wrench
Manual	Yes
Weight & dimensions
Width	520 mm
Depth	550 mm
Height	524 mm
Weight	10.3 kg
Depth (max)	86.5 cm
Packaging data
Package width	918 mm
Package depth	471 mm
Package height	155 mm
Package weight	12.6 kg
Logistics data
Master (outer) case width	460 mm
Master (outer) case length	910 mm
Master (outer) case height	140 mm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85299097

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
