StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen

Position your screen exactly where you need it with the StarTech.com Dual TV Ceiling Mount — VESA fit and load ratings are below.

Dual Display Mount | Full Motion | For 32" to 75" Displays

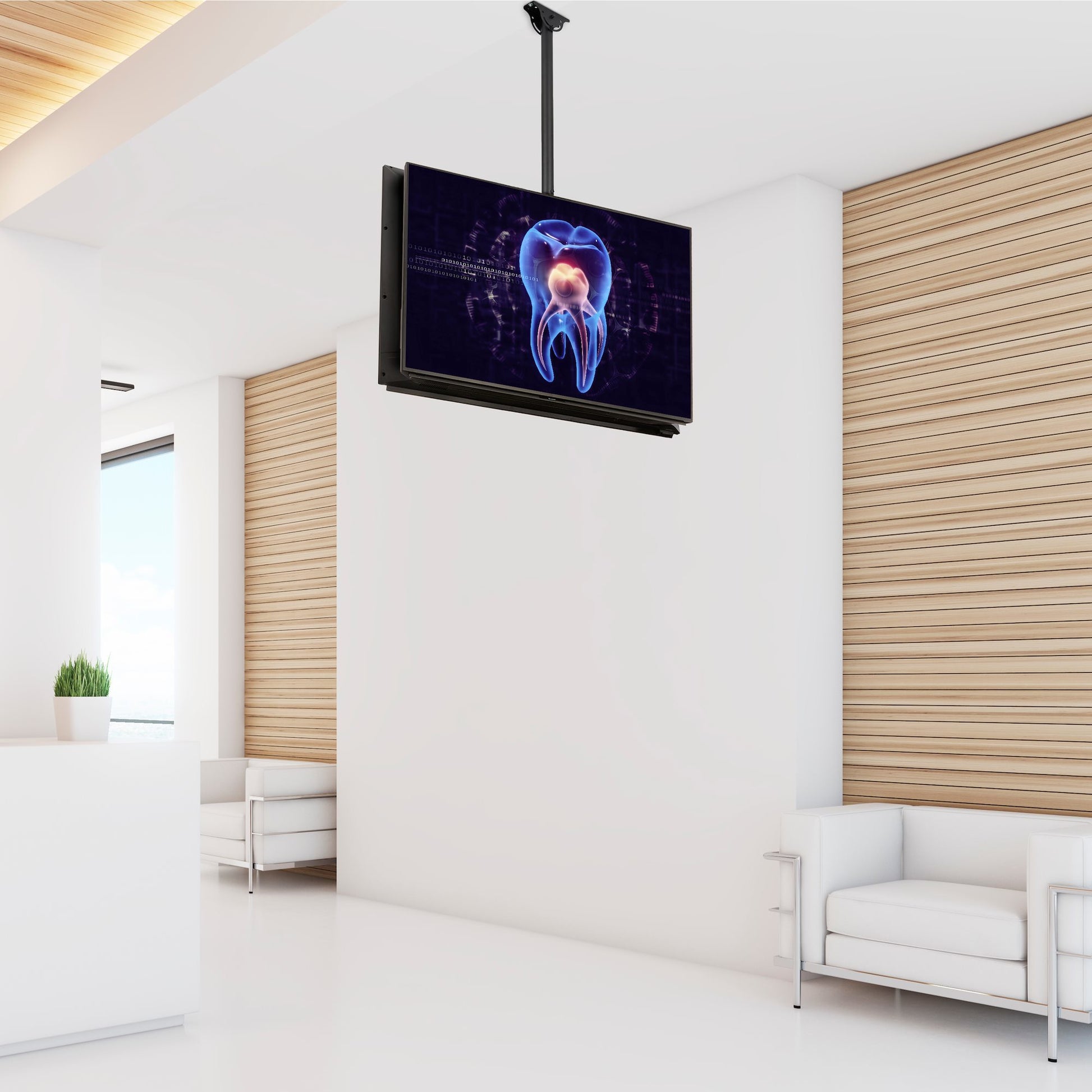

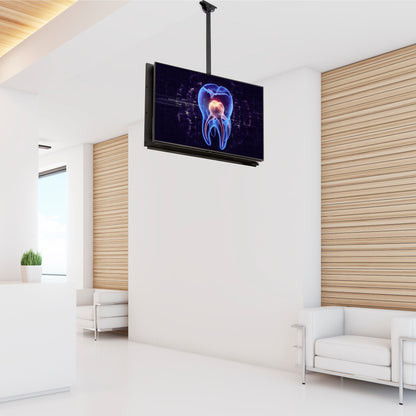

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

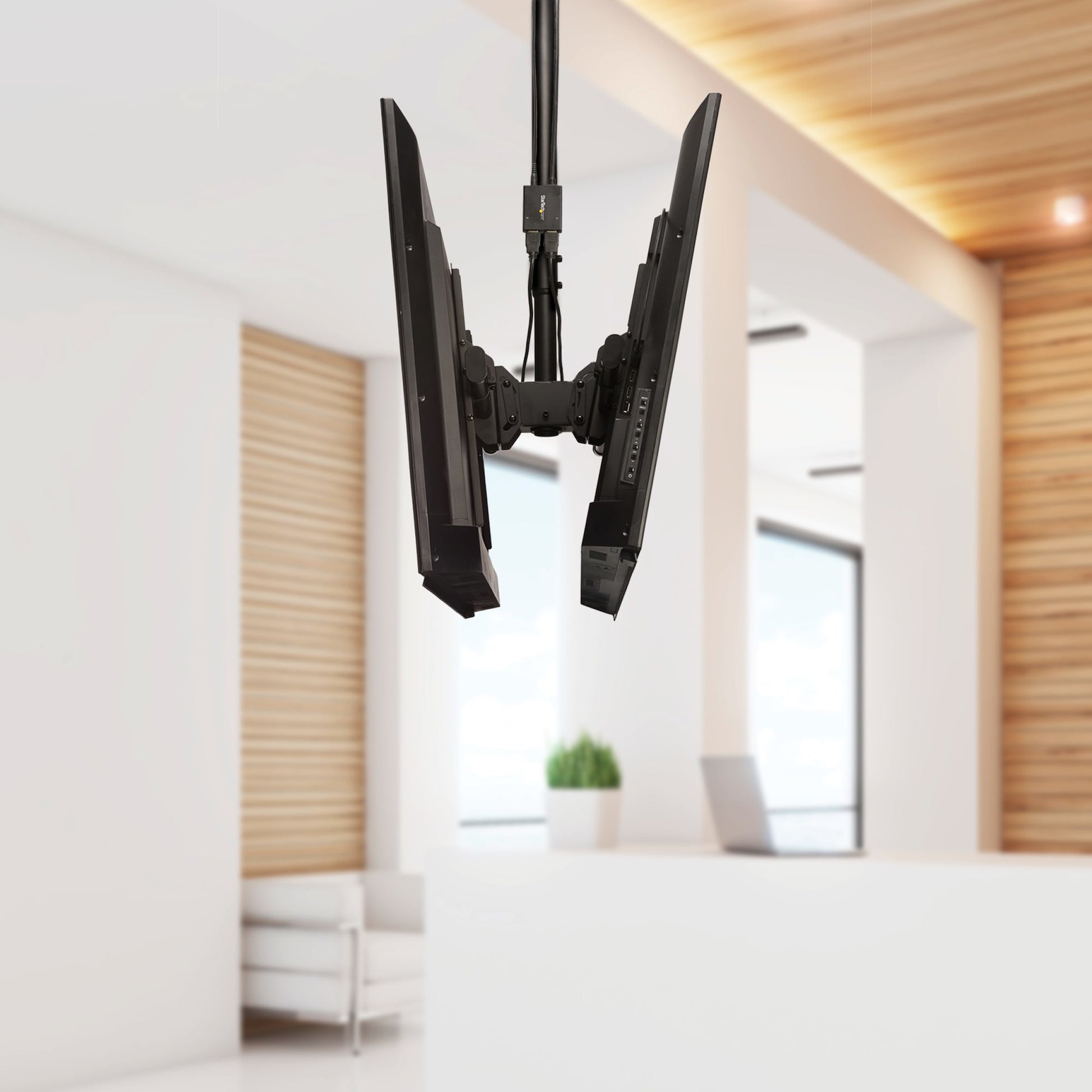

Back-to-Back TV Mount

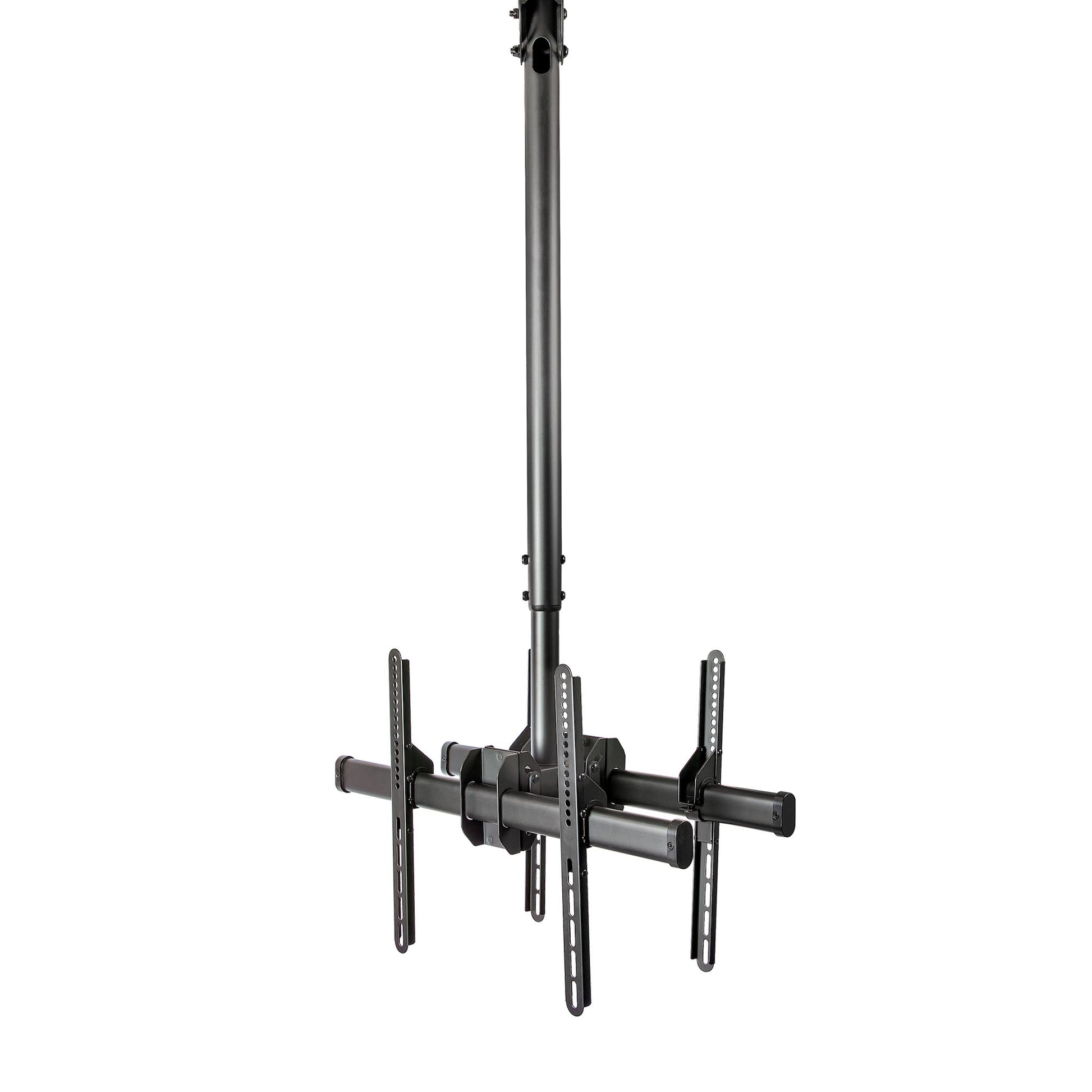

The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

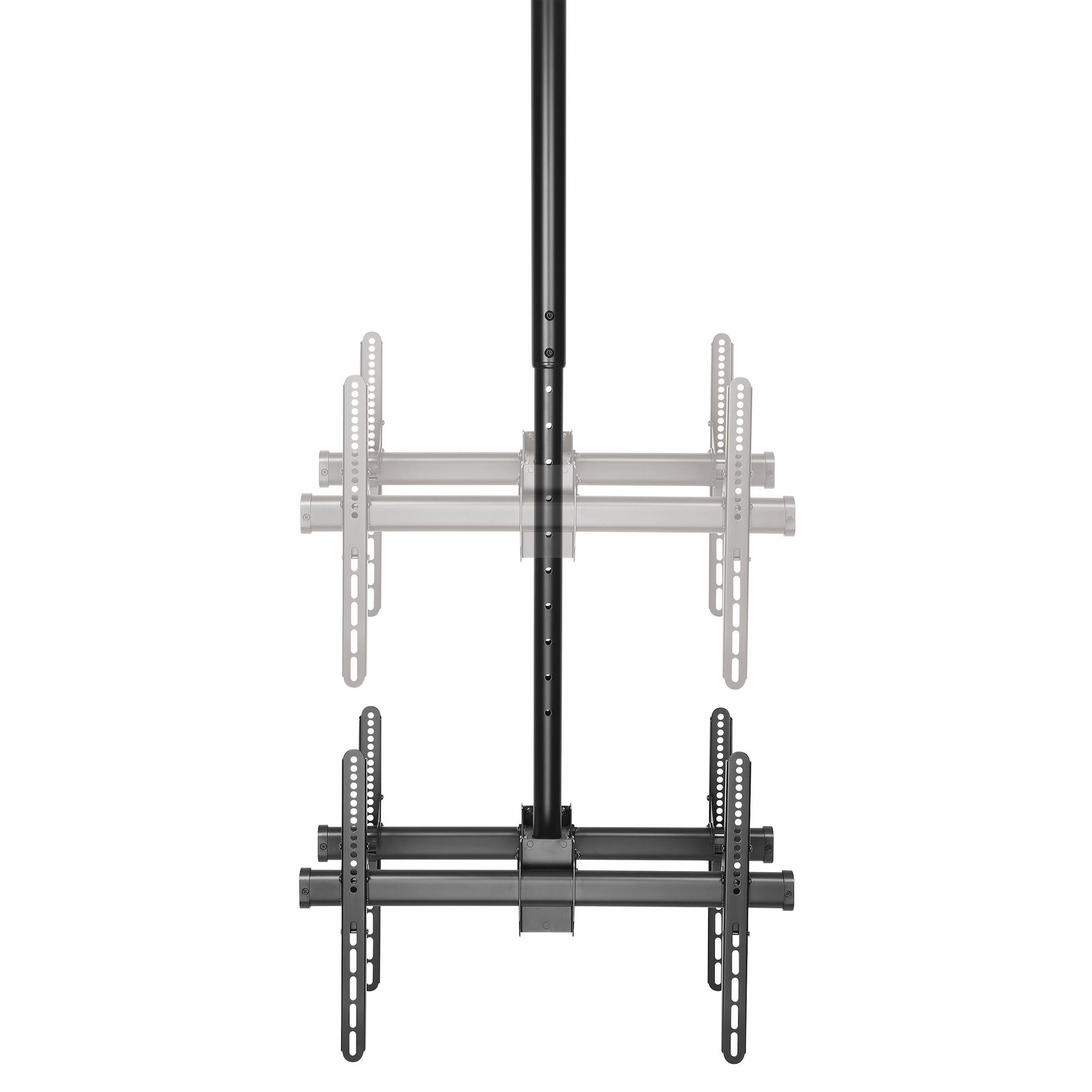

Adjustable Height

With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).

Easy Screen Adjustment

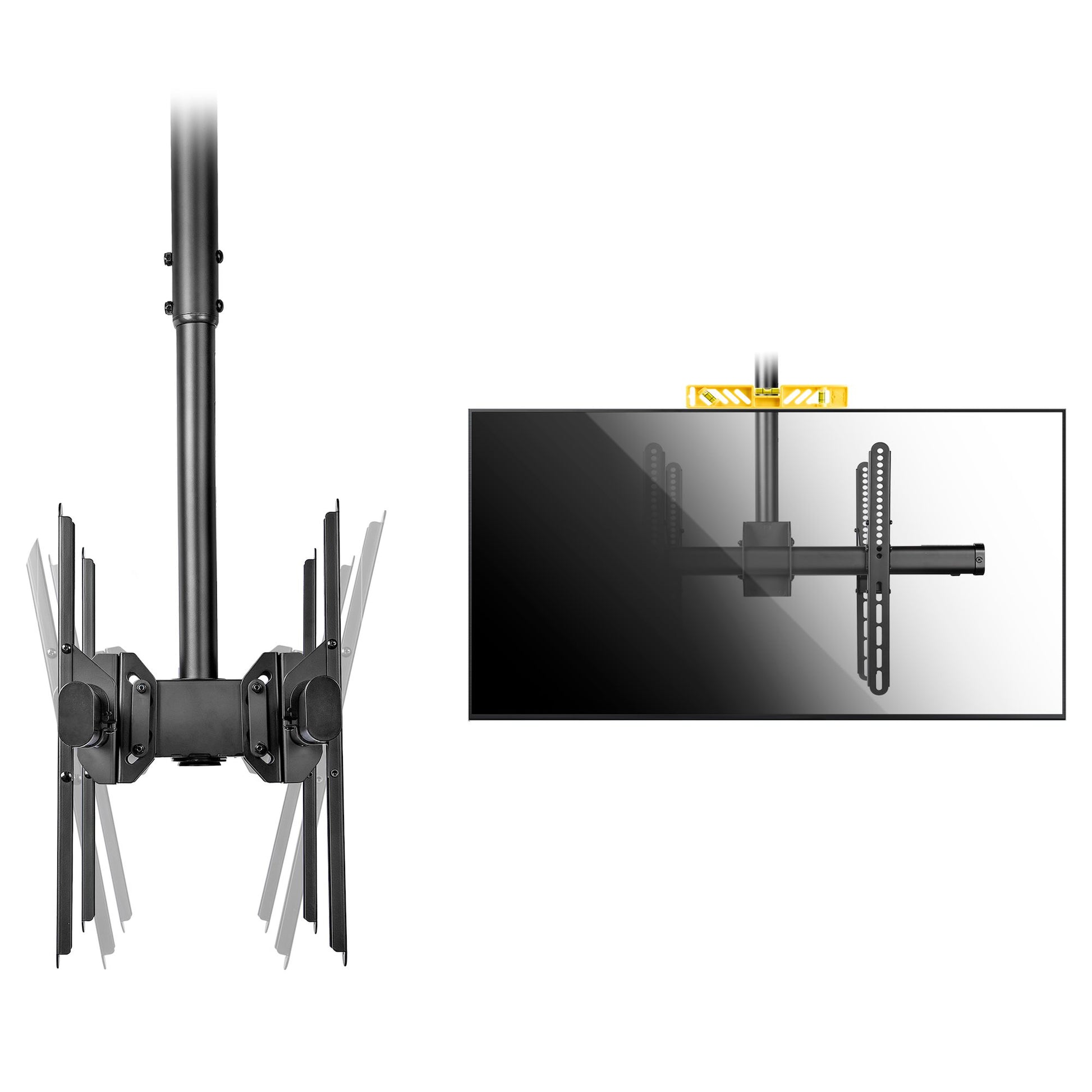

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

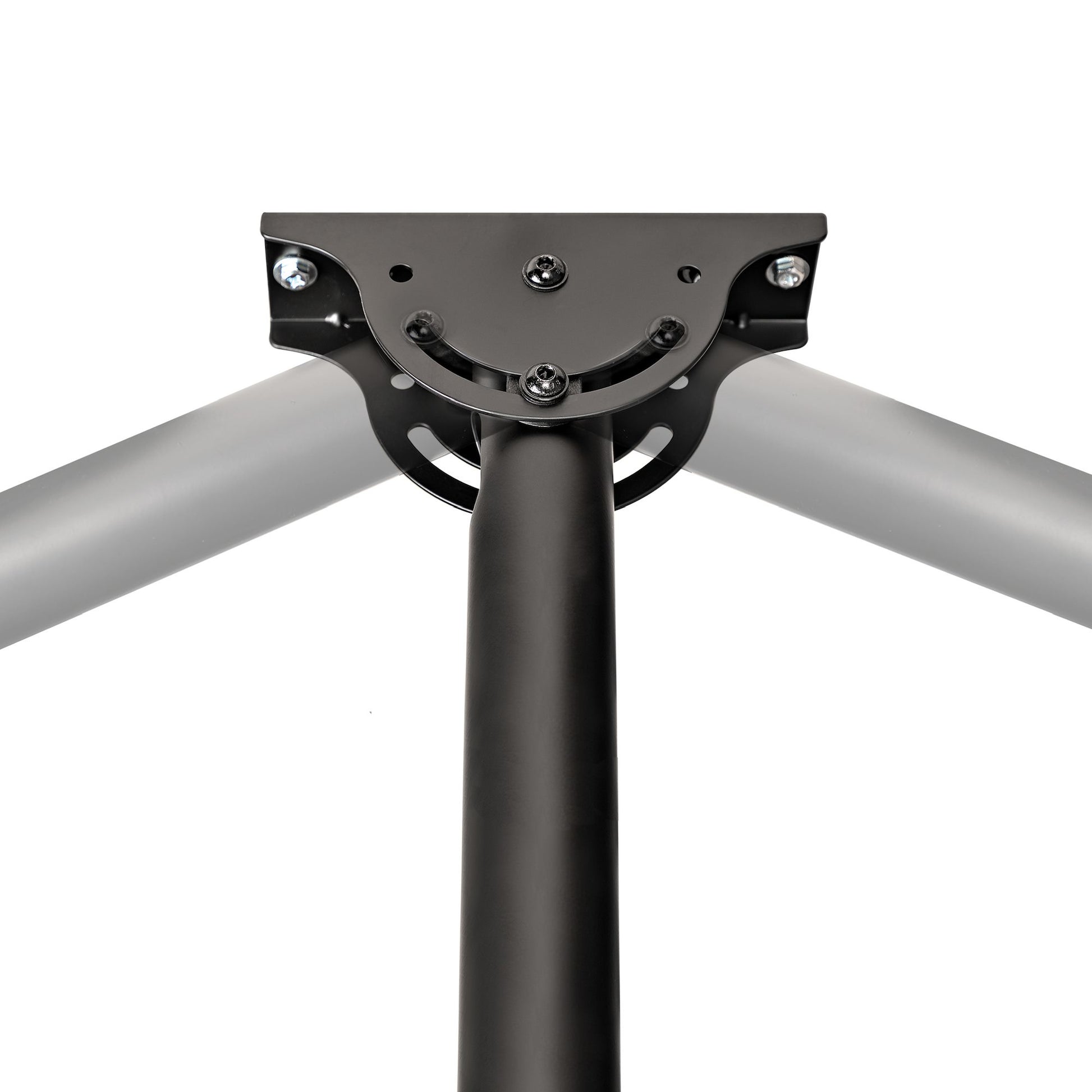

Swivels to Suit Your Ceiling

The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

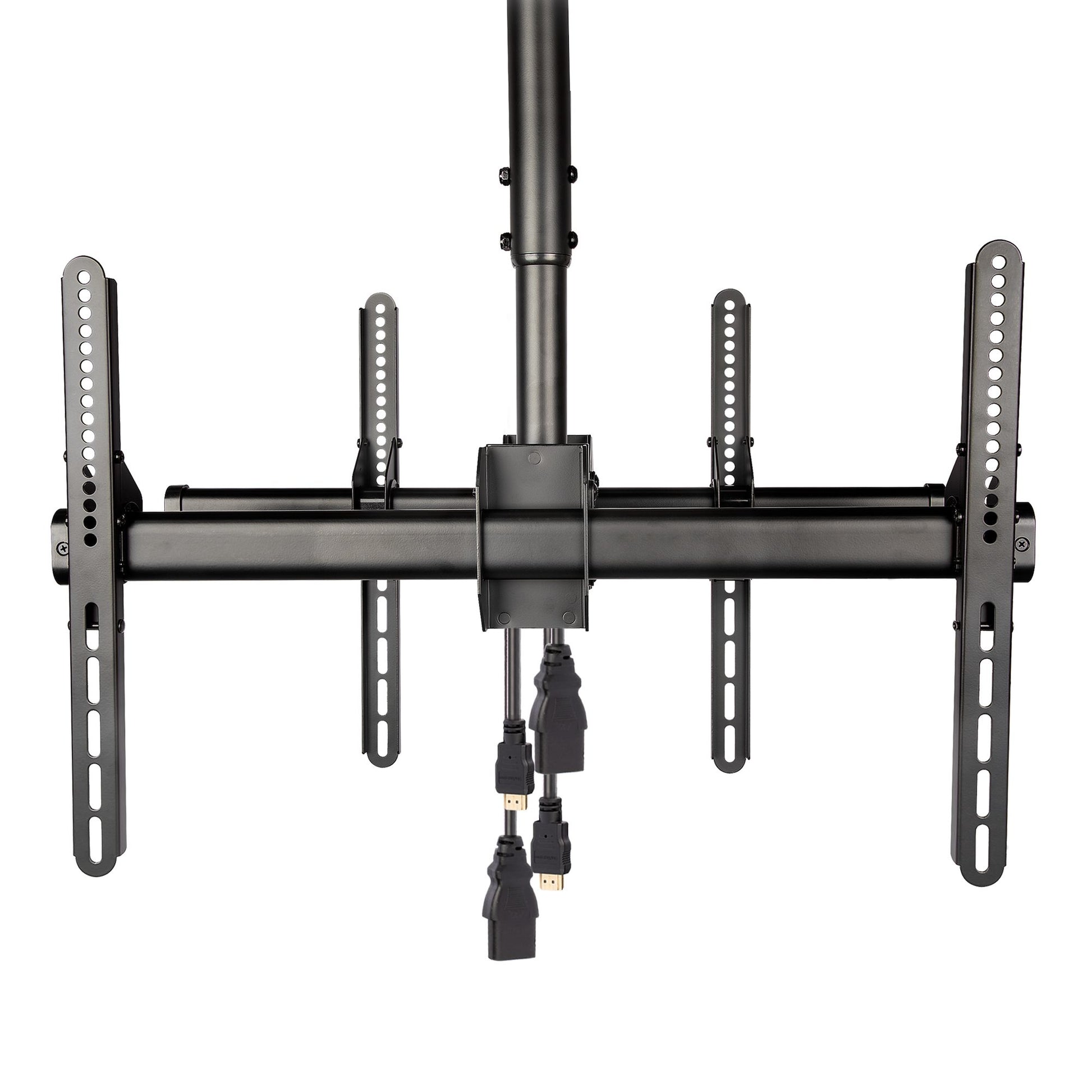

Simple Setup and Cable Management

The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting
Maximum weight capacity (per display)	45 kg
Minimum screen size	81.3 cm (32")
Maximum weight capacity	90 kg
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Number of displays supported	2
Mounting type	Ceiling
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	190.5 cm (75")
Ergonomics
Height adjustment	Yes
Height adjustment range	1060 - 1560 mm
Swivel angle range	-180 - 180°
Tilt angle range	-20 - 5°
Angle of rotation	360°
Adjustable	Yes
Design
Housing material	Steel
Product colour	Black
Anti-theft function	No
Weight & dimensions
Width	165 mm
Depth	680 mm
Height	835 mm
Weight	9.8 kg
Depth (max)	68 cm
Package width	934 mm
Package depth	317 mm
Package height	153 mm
Package weight	10.8 kg

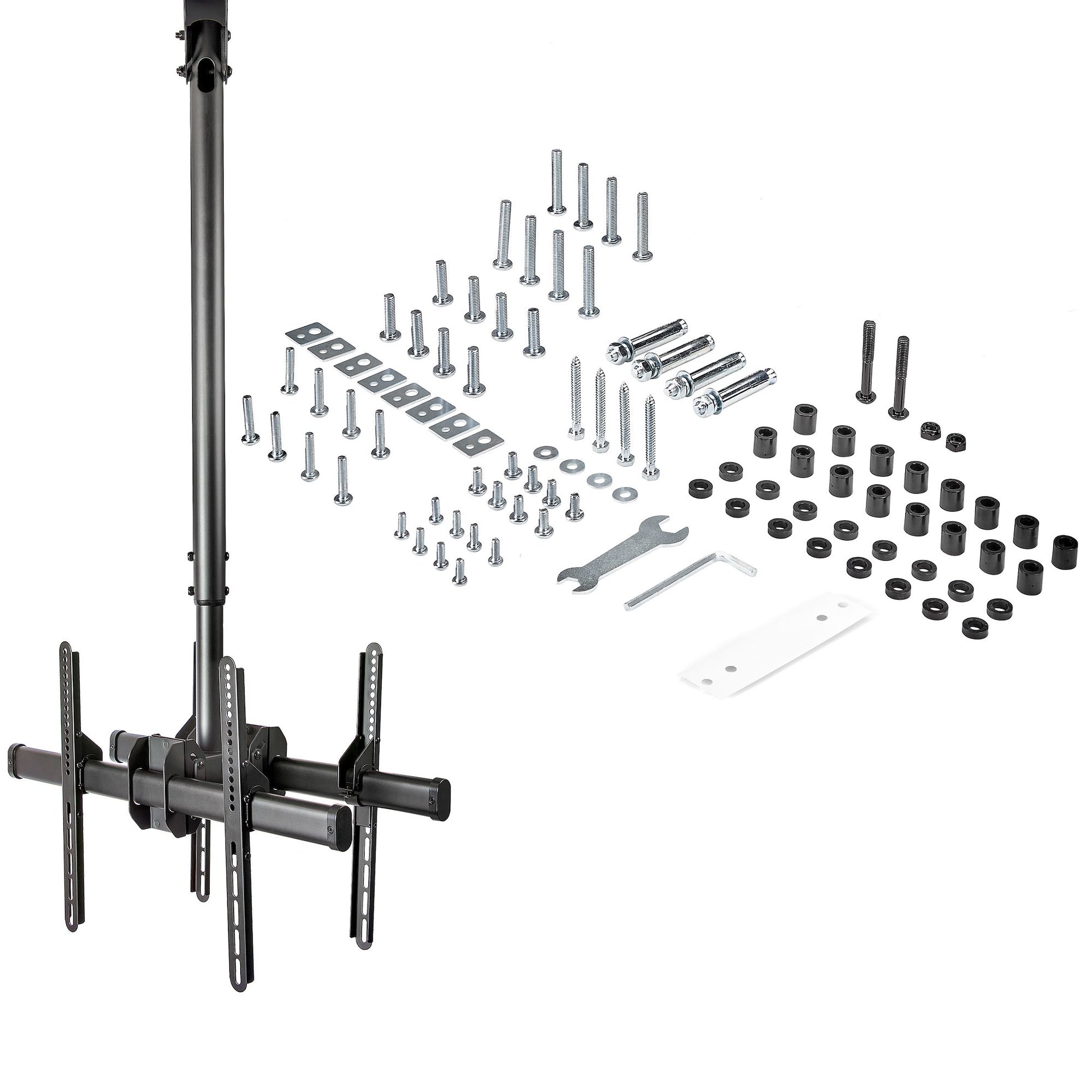

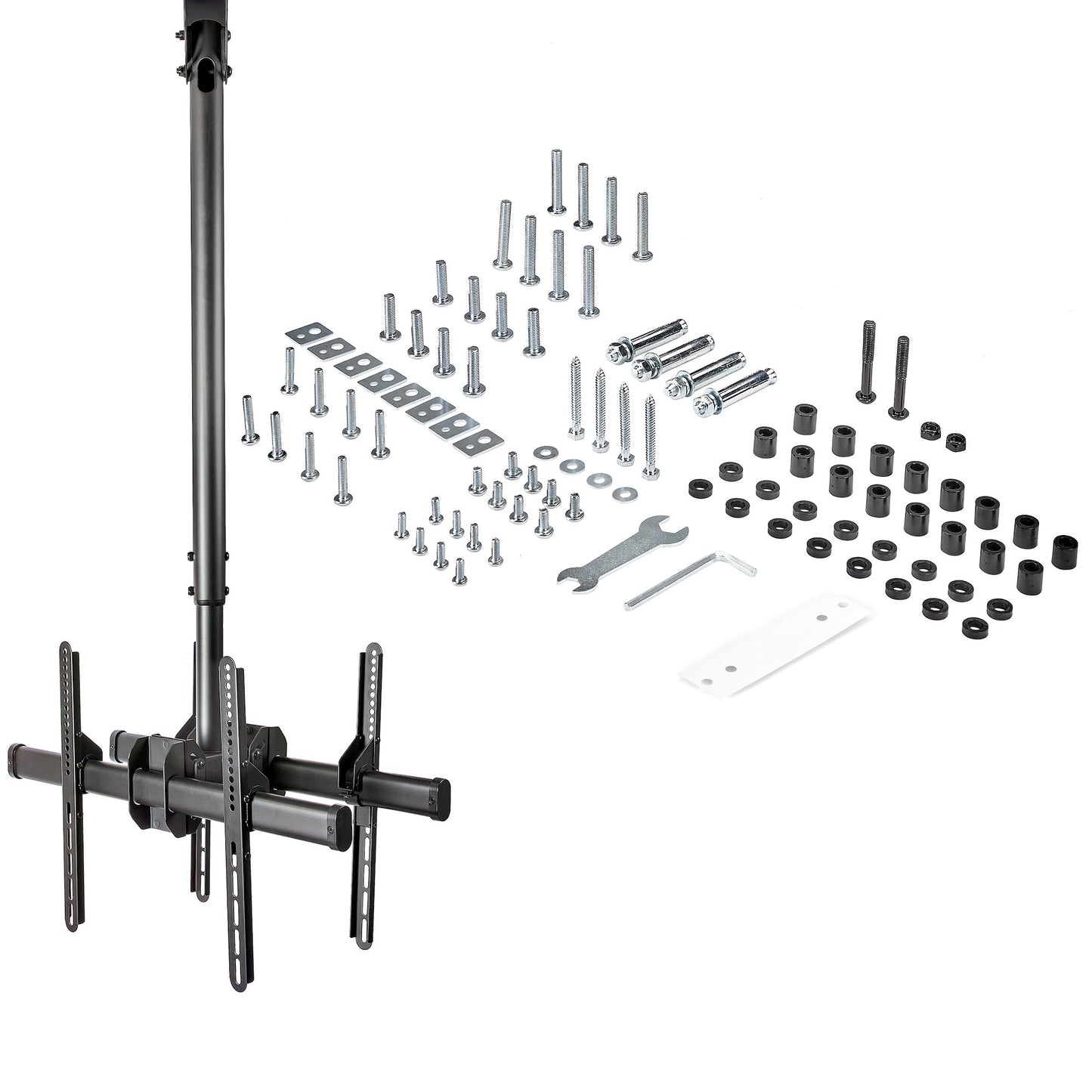

Packaging content
Wrench included	Yes
Washers included	Yes
Spacer included	Yes
Screws included	Yes
Nuts included	Yes
Number of washers included	12
Number of spacers included	32
Number of screws	46
Number of nuts	2
Manual	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	345 mm
Master (outer) case length	960 mm
Master (outer) case height	312 mm
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	85299097
