StarTech.com Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM

Build a tidy install with the StarTech.com Dual Rail Rackmount — dimensions and mounting details are in the spec table.

1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included

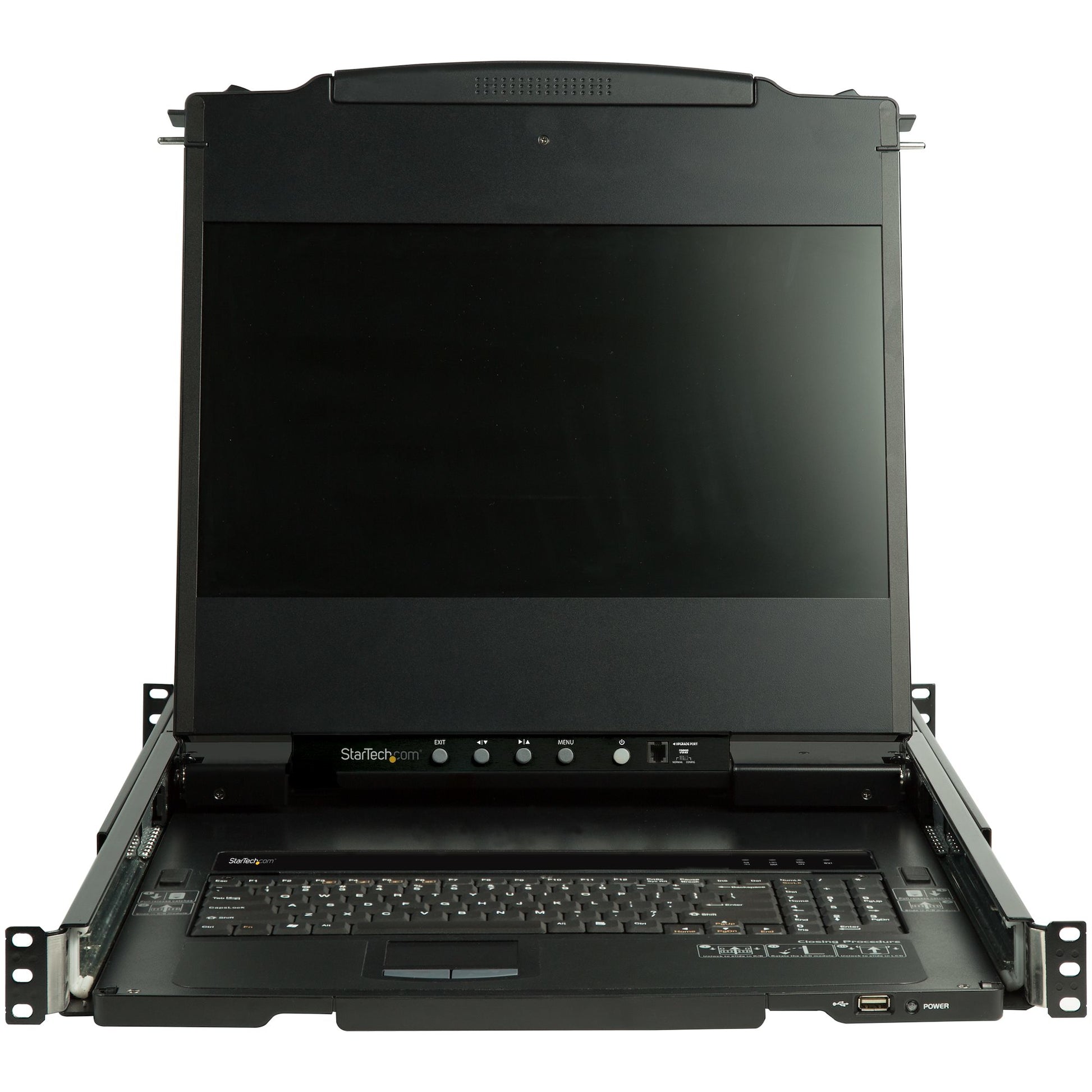

Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.

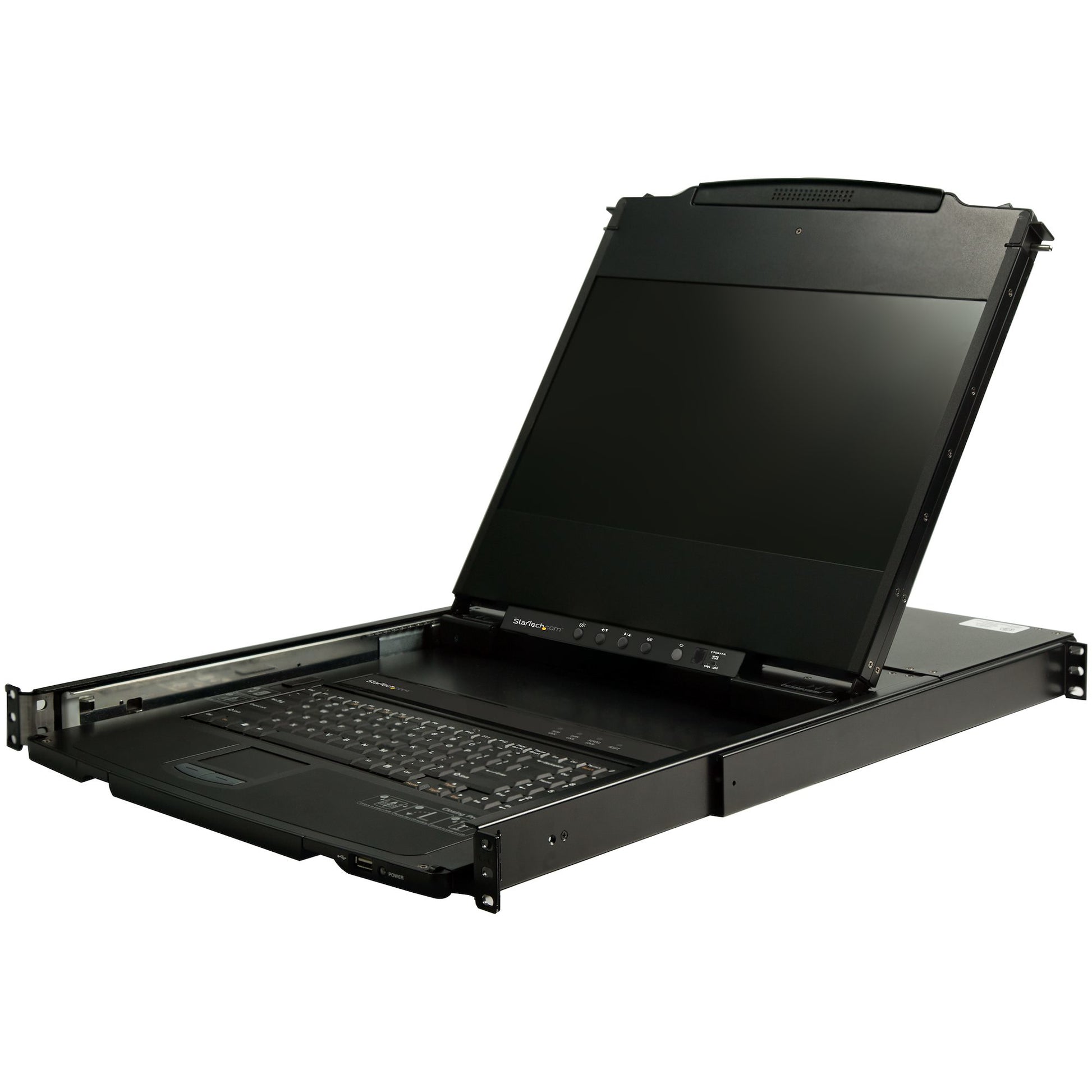

Dual Rail Design

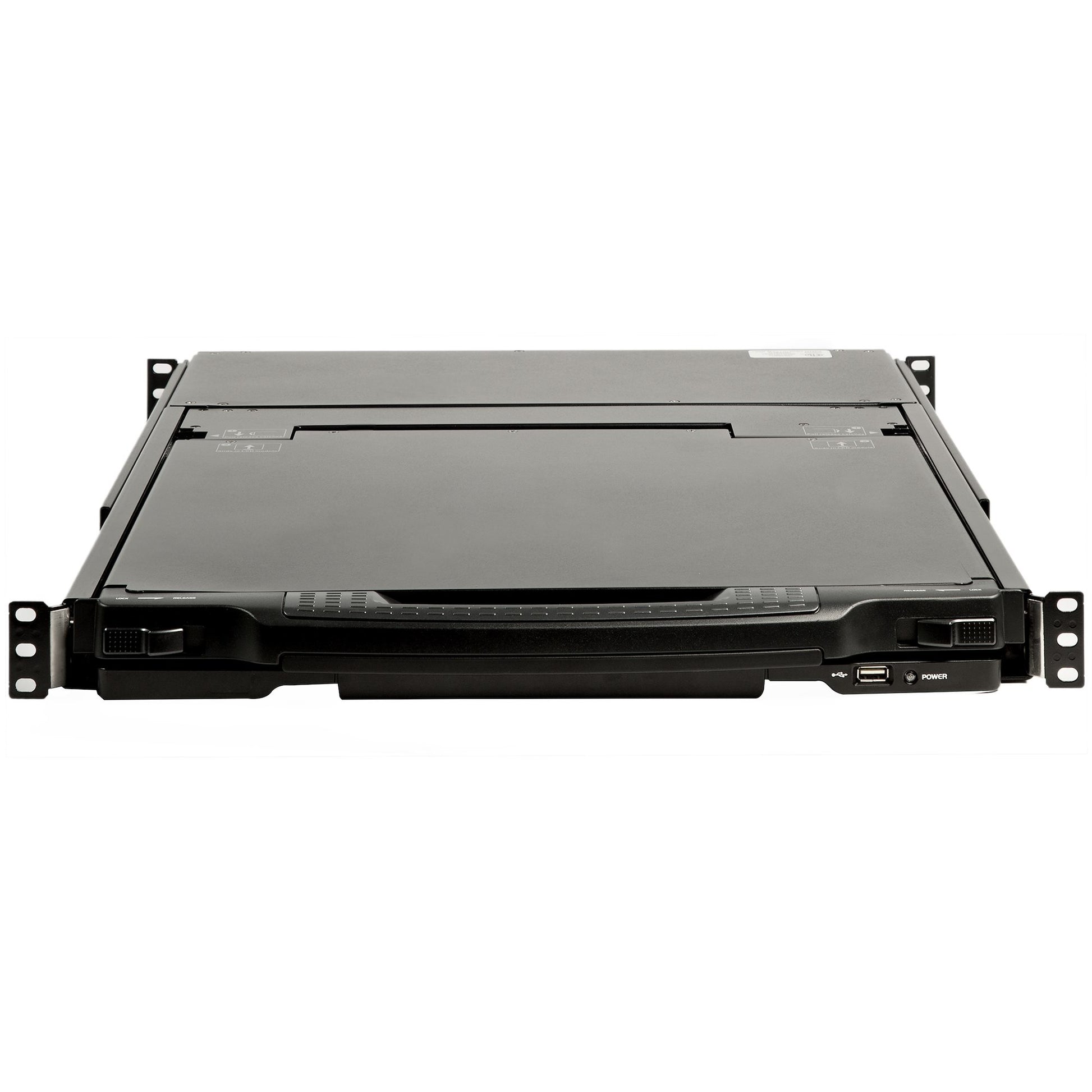

The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.

High Definition LCD Monitor

The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.

Digital & Analog Support

Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.

Simple Setup

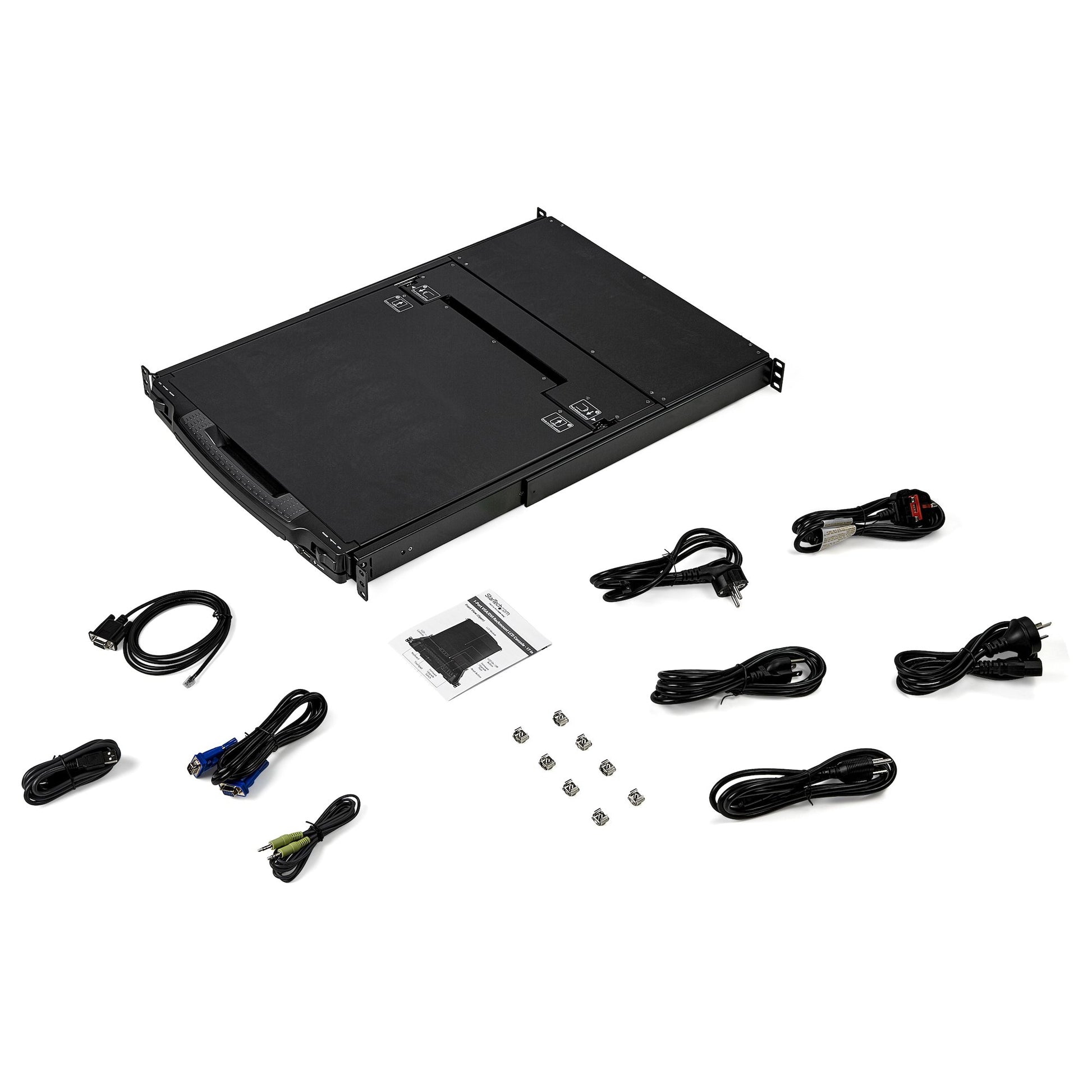

This KVM console comes with everything you need to set up:

✔ 1 Audio Cable
✔ 1 Set of KVM Cables (USB/VGA)
✔ 2 Rear Mounting Brackets
✔ M5 Cage Nuts and Screws

Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.

StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.

Specifications

Display
Response time	8 ms
Display number of colours	262144 colours
Display type	LCD
Display	TFT LCD
Display diagonal	43.9 cm (17.3")
Viewing angle, vertical	120°
Viewing angle, horizontal	140°
Pixel pitch	0.199 x 0.199 mm
On Screen Display (OSD)	No
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
Contrast ratio (typical)	650:1
Aspect ratio	16:9
Supported resolutions	1024x576 1152x648 1280x720 1366x76 1600x900 1920x1080
Technical details
LED indicators	Yes
Rack mounting	Yes
Rack capacity	1U
Operating relative humidity (H-H)	0 - 80%
Mean time between failures (MTBF)	44230 h
Material	Steel
Product colour	Black
Cables included	Audio (3.5mm), KVM
Compliance certificates	RoHS

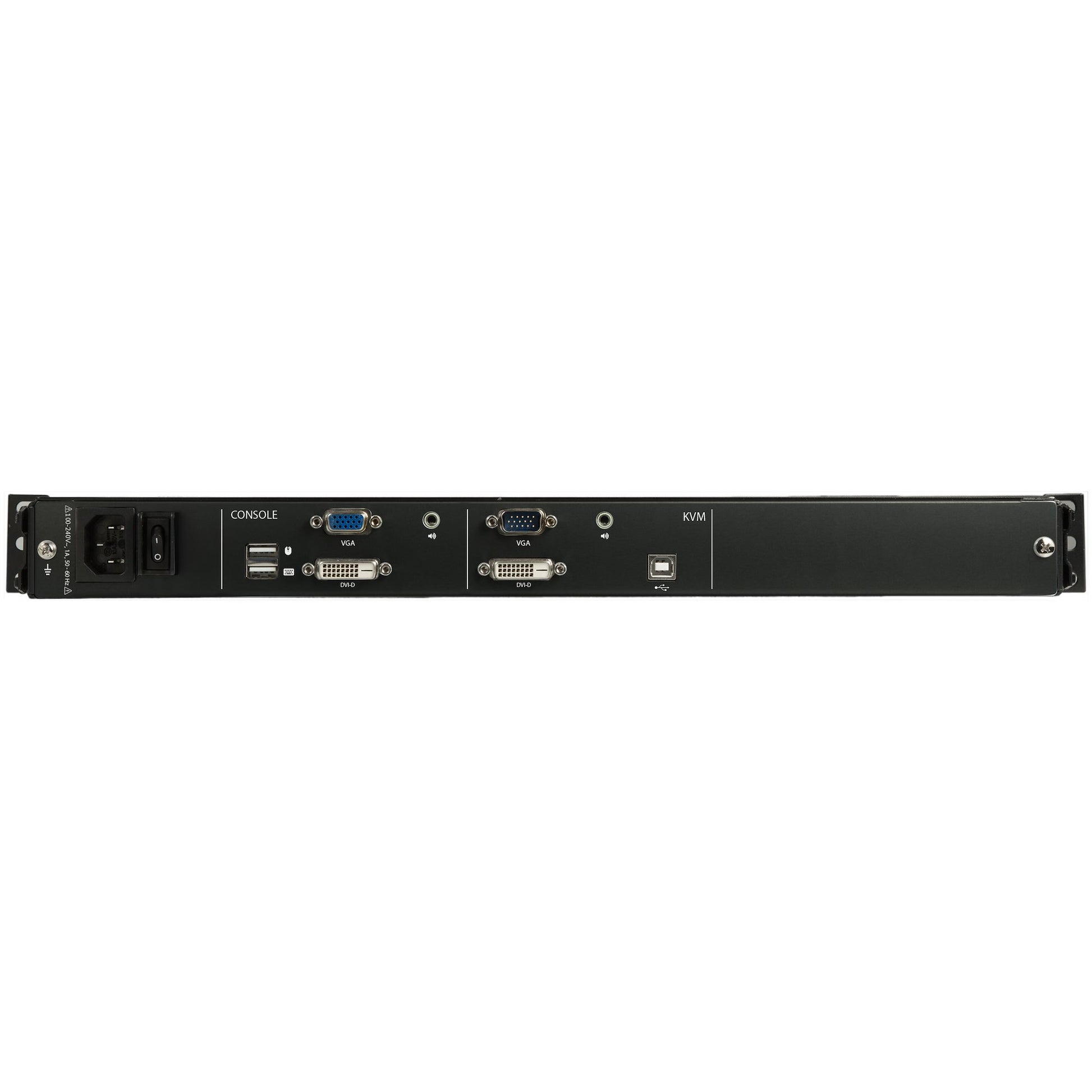

Ports & interfaces
Video port type	DVI/VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	2
3.5 mm (1/8-inch) out	Yes
3.5 mm (1/8-inch) in	Yes
DVI connector type	DVI-D
DVI output ports	1
DVI input ports	1
USB 2.0 Type-B ports quantity	1
Keyboard
Hot keys	Yes
Power
AC adapter input voltage	100 - 240 V
Input current	1 A
Power consumption (typical)	19.4 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	CE, FCC, UL, REACH
Weight & dimensions
Mounting depth (min)	65 cm
Mounting depth (max)	100 cm
Weight	13.6 kg
Width	480 mm
Height	44 mm
Depth	727 mm
Packaging data
Package width	680 mm
Package depth	840 mm
Package height	133 mm
Package weight	18.9 kg
Packaging content
Screws included	Yes
Mounting brackets included	Yes
Quick installation guide	Yes
Number of screws	8
Number of cage nuts	8
Included power plug types	ANZ, EU, JP, NA, UK
Cage nuts included	Yes
Logistics data
Master (outer) case width	680 mm
Master (outer) case length	840 mm
Master (outer) case height	133 mm
Products per master (outer) case	1 pc(s)
