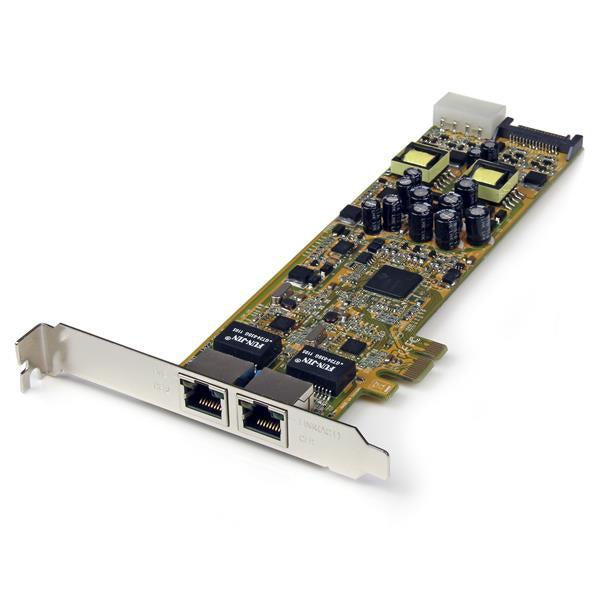

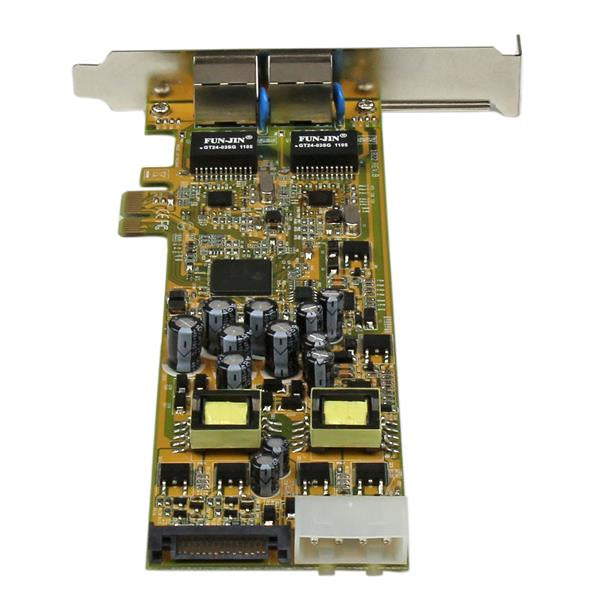

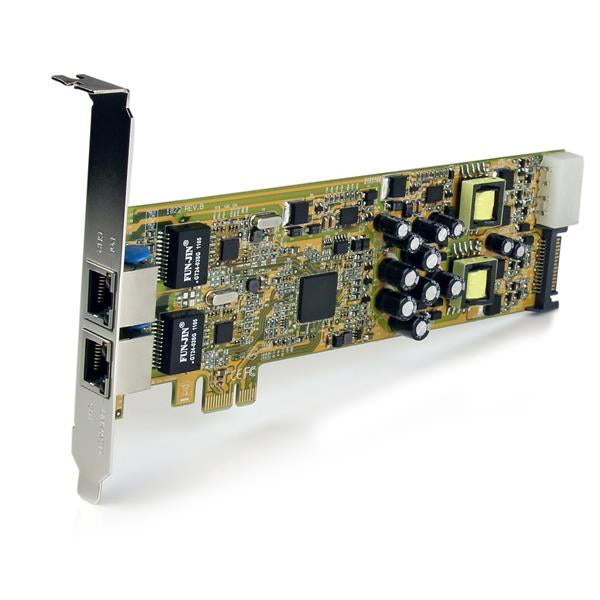

StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter

Upgrade your connectivity with the StarTech.com Dual Port PCI Express — ports, speeds and interface details are in the spec table.

Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Power over Ethernet (PoE) ports quantity	2
Ethernet LAN (RJ-45) ports	2
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Buffer size	48 KB
Full duplex	Yes
Maximum data transfer rate	2000 Mbit/s
Network
Chipset	Realtek - RTL8111E
VLAN tagging	Yes
Ethernet LAN	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Auto MDIX IEEE	Yes
LAN controller	Realtek RTL8111E
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Technical details
Mean time between failures (MTBF)	140981 h
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Design
Certification	CE, FCC, REACH

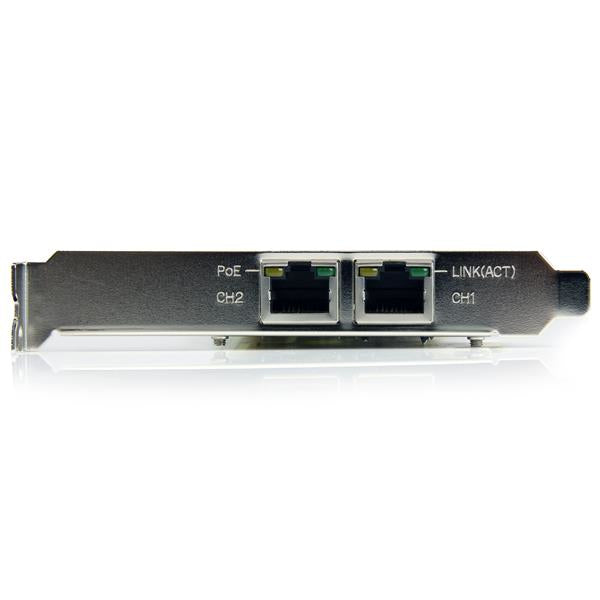

LED indicators	Activity, Link, PoE
Component for	PC
Software
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Power
Output voltage	48 V
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	19 mm
Depth	195 mm
Height	68 mm
Weight	104 g
Package width	164 mm
Package depth	229 mm
Package height	44 mm
Package weight	246 g
Packaging data

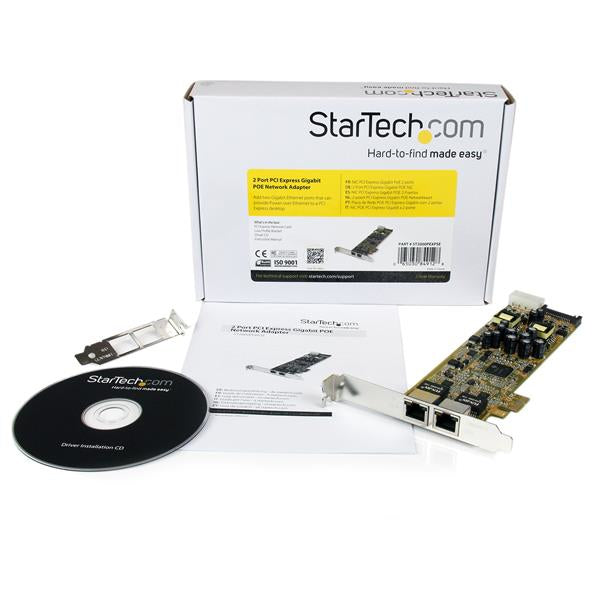

Drivers included	Yes
Low-profile bracket	Yes
Manual	Yes
Logistics data
Master (outer) case width	444 mm
Master (outer) case length	522 mm
Master (outer) case height	344 mm
Products per master (outer) case	40 pc(s)

Downloads

• Datasheet (PDF)
