StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T &

Upgrade your connectivity with the StarTech.com Dual Port 10G PCIe — ports, speeds and interface details are in the spec table.

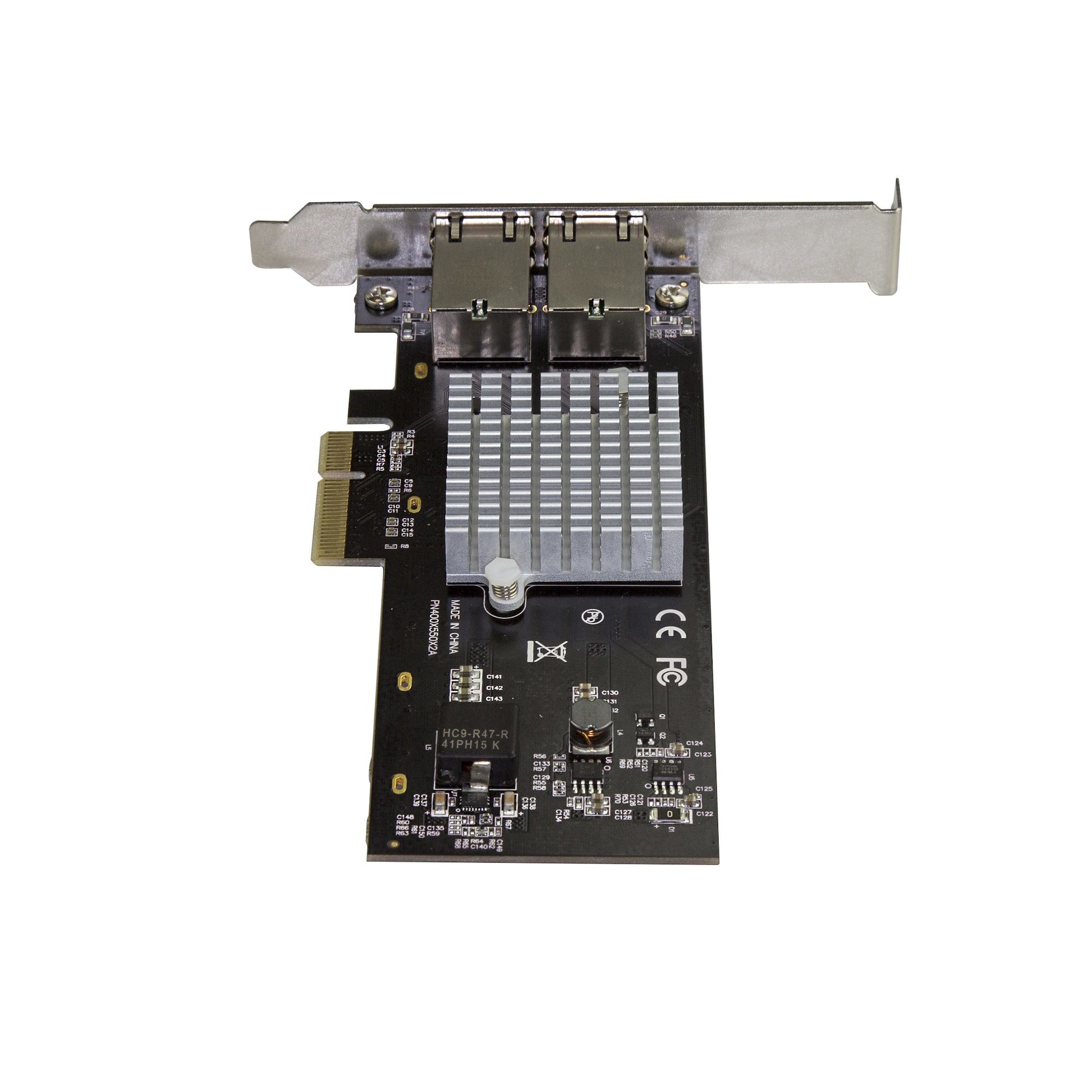

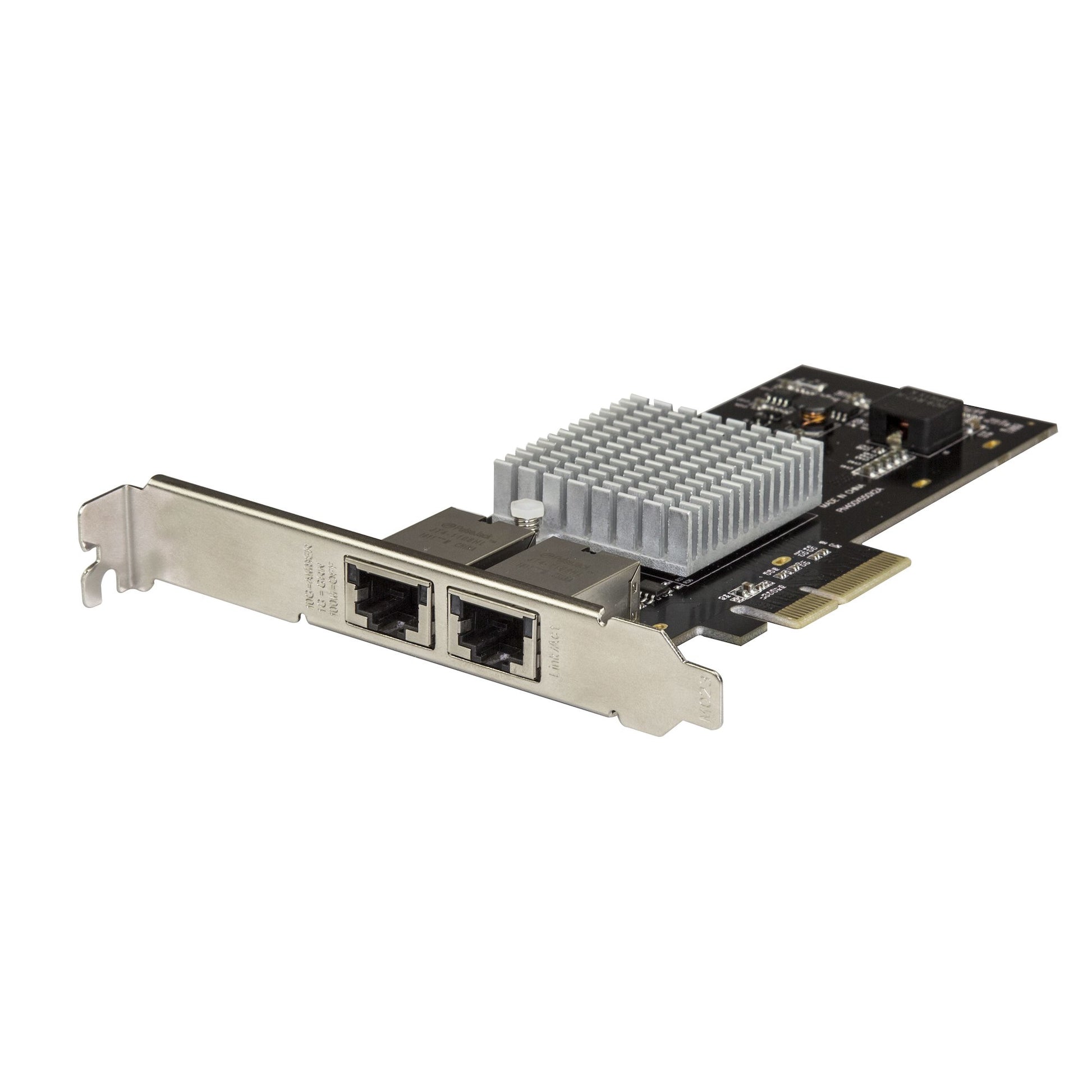

Add two Ethernet ports to a server or workstation through one PCI Express slot, with support for five network speeds: 10G/5G/2.5G/1G/100Mbps

This dual-port network card offers versatile and cost-efficient network connectivity, by increasing the available network bandwidth without having to replace your existing cabling infrastructure. The 5-speed network card lets you add two 10G/NBASE-T RJ45 ports to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G, 1G, and 100Mbps.

Cost-effective, multimode network connectivity

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. Fully compliant with 10GBASE-T and NBASE-T™ specifications, the network card is a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)

Connect to NBASE-T equipment

The network card supports advanced NBASE-T technology, compatible with the latest multi-gigabit Ethernet switches and routers, such as new Cisco campus switches (including Catalyst 4500E, 3850 and 3560-CX). The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a.

NBASE-T technology accelerates the speed of twisted pair Cat5e copper cabling over a distance of up to 100 meters. The Ethernet network card also supports 10Gbps network speeds if using Cat6a cabling, and 1Gbps network speeds if using Cat5e (or better) cabling.

The Ethernet ports are based on the Intel® X550AT2 chipset, designed to deliver the power, performance, and enhanced capabilities you need for reliable network connections to your server or computer. The network card also supports advanced features including 9K jumbo frames and 802.1q VLAN tagging.

Easy installation

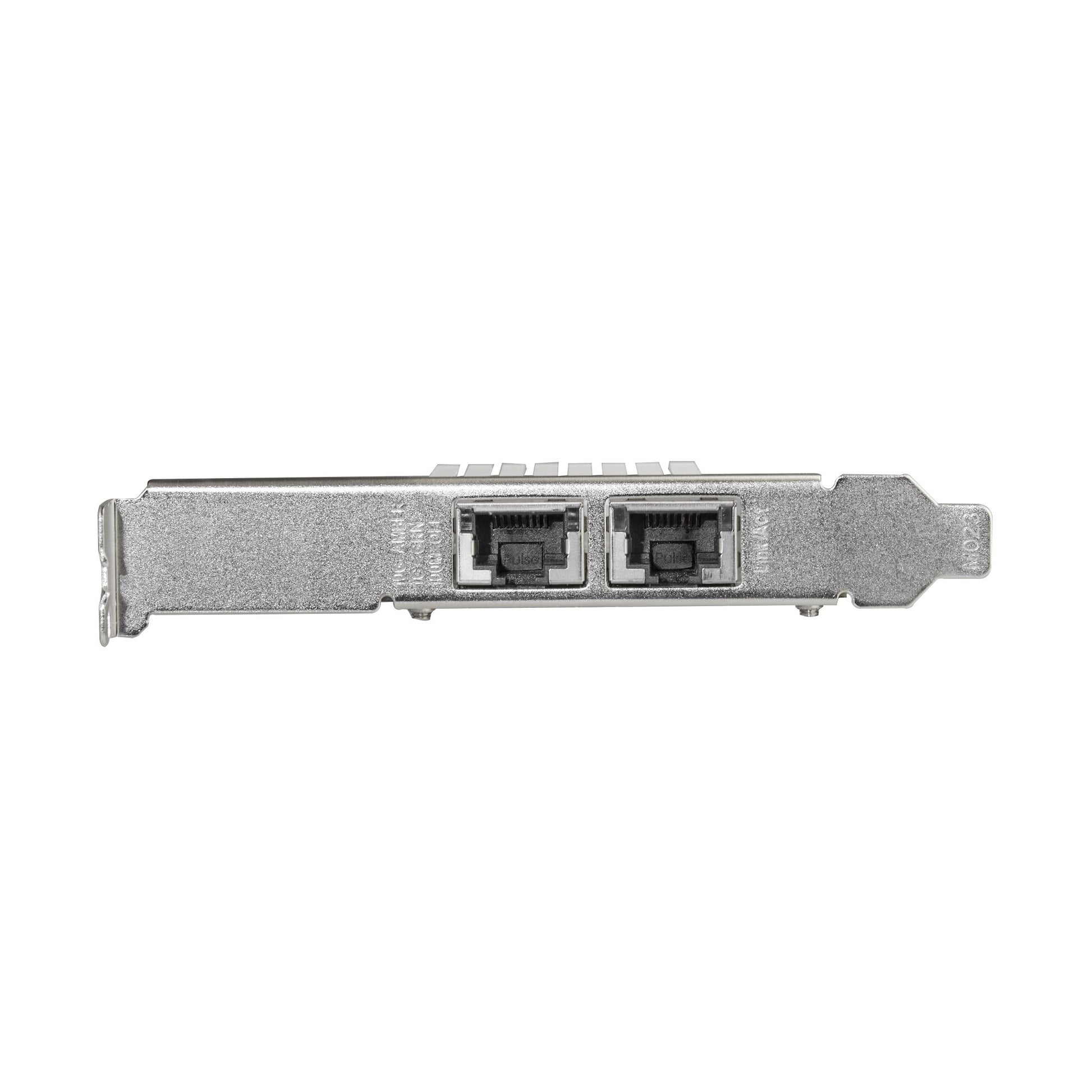

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a standard-profile bracket for installation in a full-sized chassis and includes a low-profile/half-height bracket for installation in small form-factor computers.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Ethernet LAN (RJ-45) ports	2
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	10000 Mbit/s
Network
Chipset	Intel X550AT
VLAN tagging	Yes
Jumbo frames	9000
iSCSI support	Yes
Ethernet LAN	Yes
Cabling technology	10GBase-T
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Flow control support	Yes
Technical details
Product colour	Black
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Design
Certification	CE, FCC, REACH
LED indicators	Activity, Link, Speed
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	15 mm
Depth	228 mm
Height	132 mm
Weight	98 g
Package width	144 mm
Package depth	210 mm
Package height	41 mm
Package weight	199 g
Packaging data
Low-profile bracket	Yes
Quick start guide	Yes
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	436 mm
Master (outer) case height	316 mm
Products per master (outer) case	40 pc(s)
