StarTech.com Dual-Monitor USB-C Docking Station 100W (201UE)

One cable, full desk: the StarTech.com Dual-Monitor turns your laptop into a workstation with dual displays, wired networking, 100W charging over a single USB-C connection.

Transform a USB-C laptop into a dual-monitor workstation with DisplayPort video and USB-A and USB-C ports

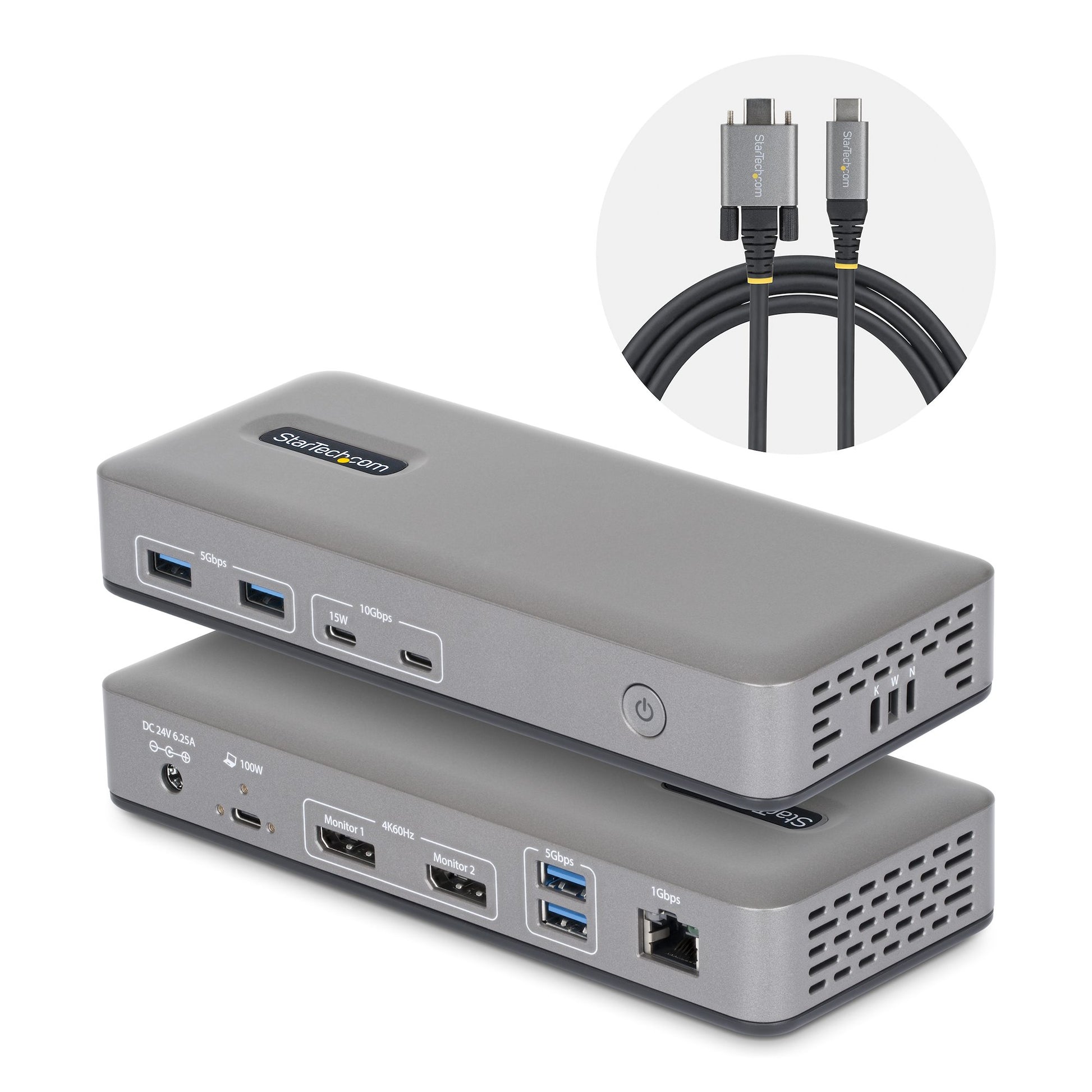

Connect up to two 4K 60 Hz DisplayPort displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.

Uncompressed Video Over USB-C

Connect up to two 4K 60Hz DisplayPort displays through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression

Driverless Deployment

Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.

Flexible, High-Speed I/O

This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.

Mounting and Security

This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).

*Note: Not compatible with macOS or ChromeOS

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Network
Full duplex	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Number of displays supported	2
On/off switch	Yes
Product colour	Grey
Card reader integrated	No
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Power
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington, Nano, Noble, Wedge
Housing material	Plastic
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
User guide	Yes
Products per master (outer) case	10 pc(s)
Master (outer) case width	430 mm
Master (outer) case length	270 mm
Master (outer) case height	280 mm
Power
Power source type	DC
Input current	2.5 A
Power consumption (max)	150 W
Compatible power plug types	EU, UK
AC input voltage	100 - 240 V
Output voltage	24 V
Output current	6.25 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Ubuntu 24.04 LTS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Weight	300 g
Width	79 mm
Depth	190 mm
Height	27 mm
Package weight	1 kg
Package width	250 mm
Package depth	205 mm
Package height	50 mm
Packaging content

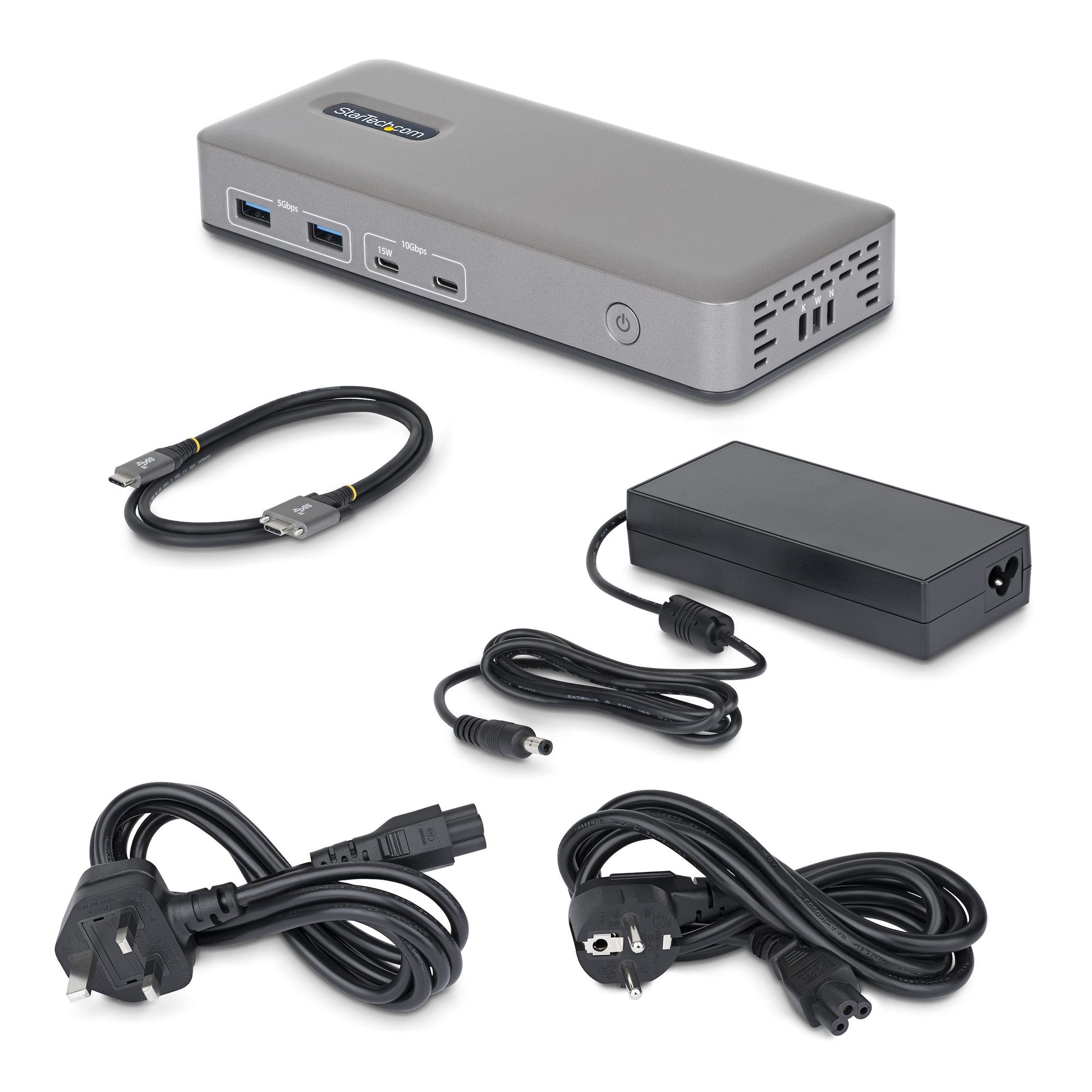

Cables included	USB
AC adapter included	Yes
Other features
Chipset	Synaptics - VMM5220, VIA Labs - VL103R, VIA Labs - VL171, VIA Labs - VL822-Q8T, VIA Labs - VL817-Q7S, VIA Labs - VP226, Realtek - RTL8153E
