StarTech.com DP to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - DisplayPort Multi Monitor Cable

Make the connection with the StarTech.com DP to Dual HDMI — length and connector details are in the spec table.

2 x 4K 60Hz | Multi-Monitor Video Splitter | Windows® | DSC | HDR

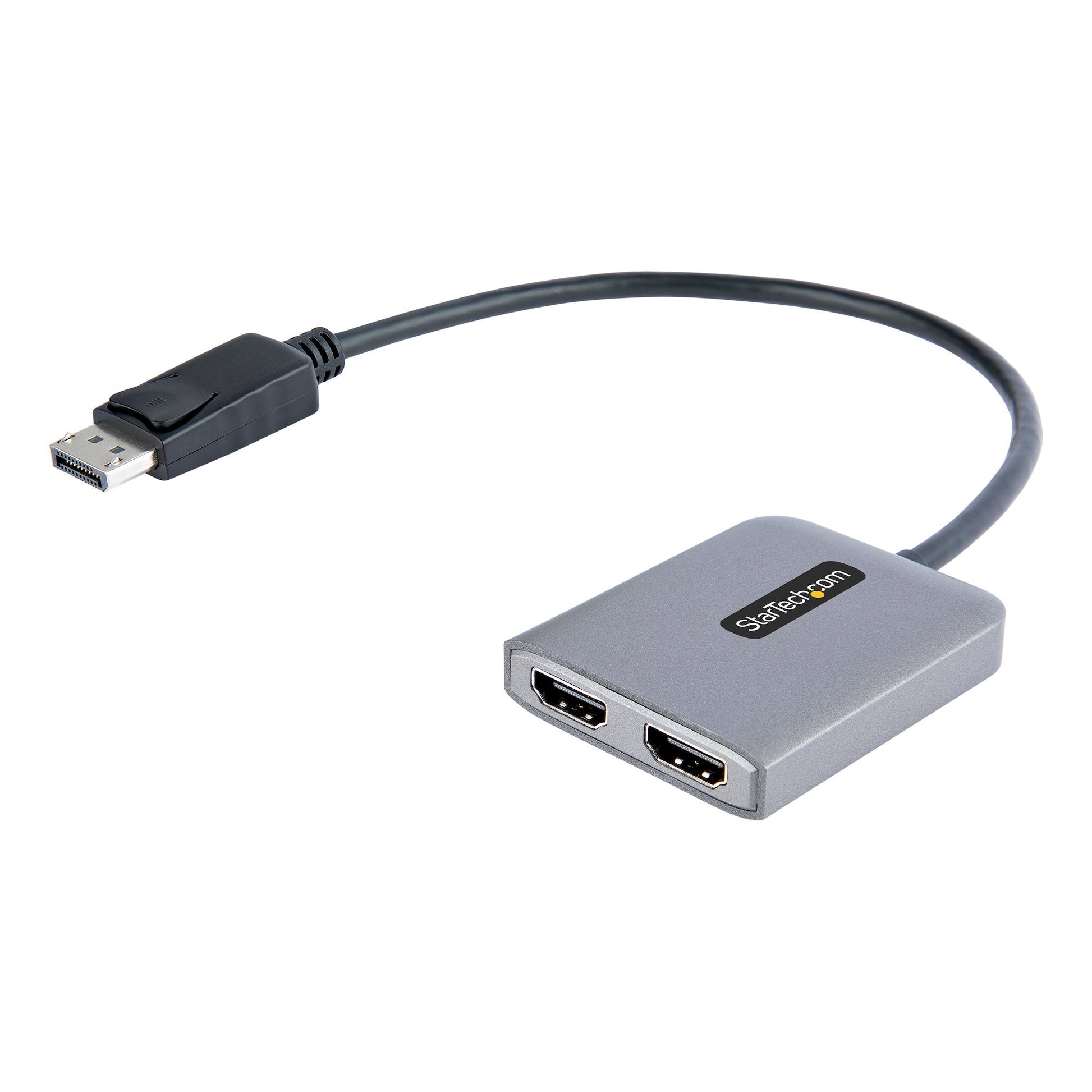

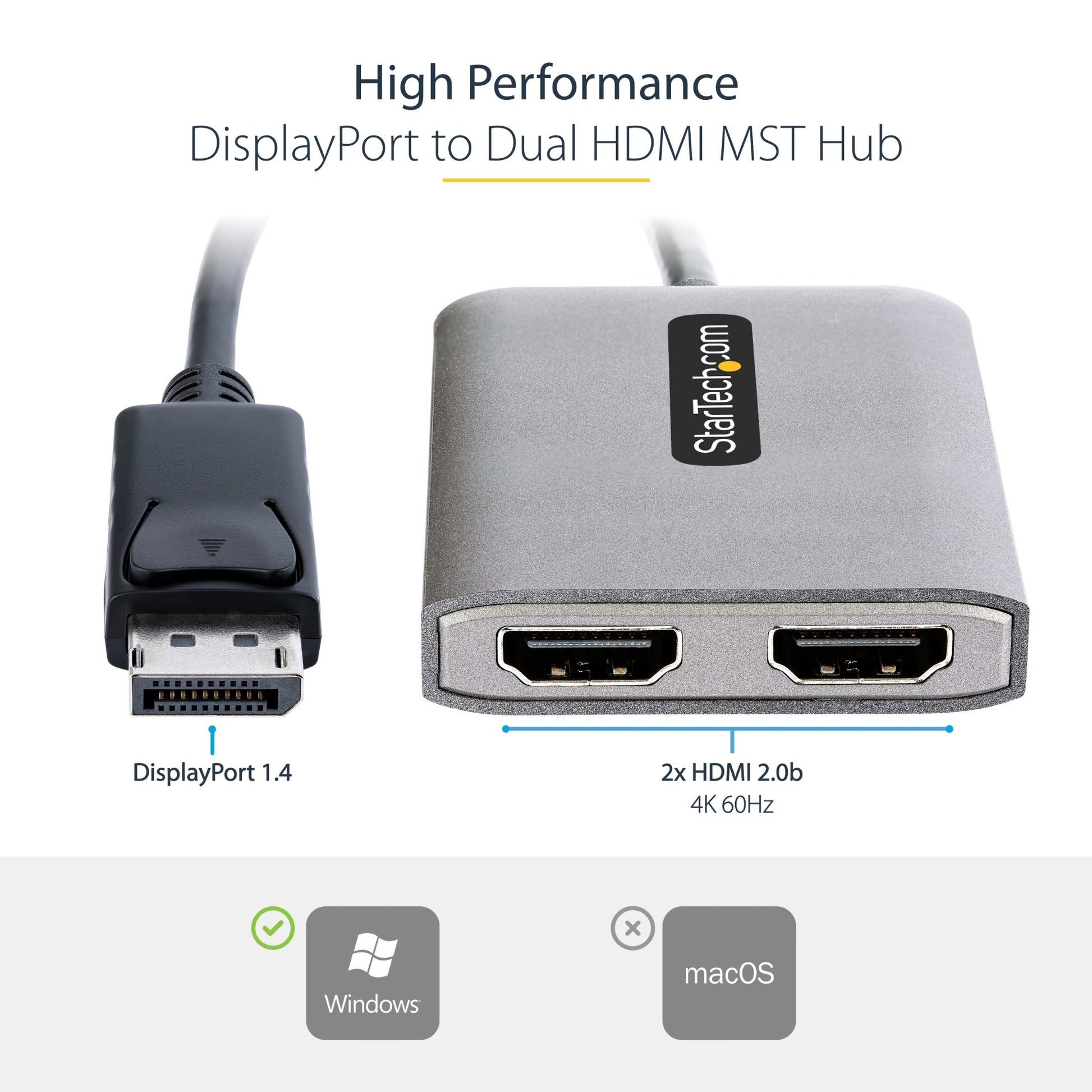

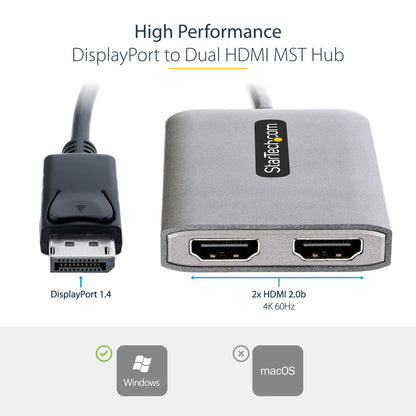

This DisplayPort to HDMI MST Hub drives two 4K 60Hz HDMI monitors from a DisplayPort enabled Windows device.

Multi-tasking Made Easy

This DisplayPort to HDMI video splitter allows you to connect up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations for users in your organization, enabling easier multi-tasking, resulting in increased productivity.

Native support for MST, on any Windows device, enables an easy set up. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Hassle-Free Setup

MST offers an easy setup, by natively working on any Windows device. Plug-and-play installation with no drivers or software required. A 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB powered (USB Cable included).

MST14DP122HD is backed by a StarTech.com 3-year warranty, and a lifetime of free, North American based, multilingual technical support.

Specifications

Features
HDMI version	2.0
DisplayPort version	1.4
Product colour	Black, Grey
Cable length	0.3 m
Connector 1	DisplayPort
Connector 2	2 x HDMI
Connector 1 gender	Male
Connector 2 gender	Female
Bandwidth	32400 MB/s
Maximum resolution	3840 x 2160 pixels
Plug and Play	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) supported	Yes
Supported audio channels	7.1
Power source	USB
Latching connectors	Yes
Other features

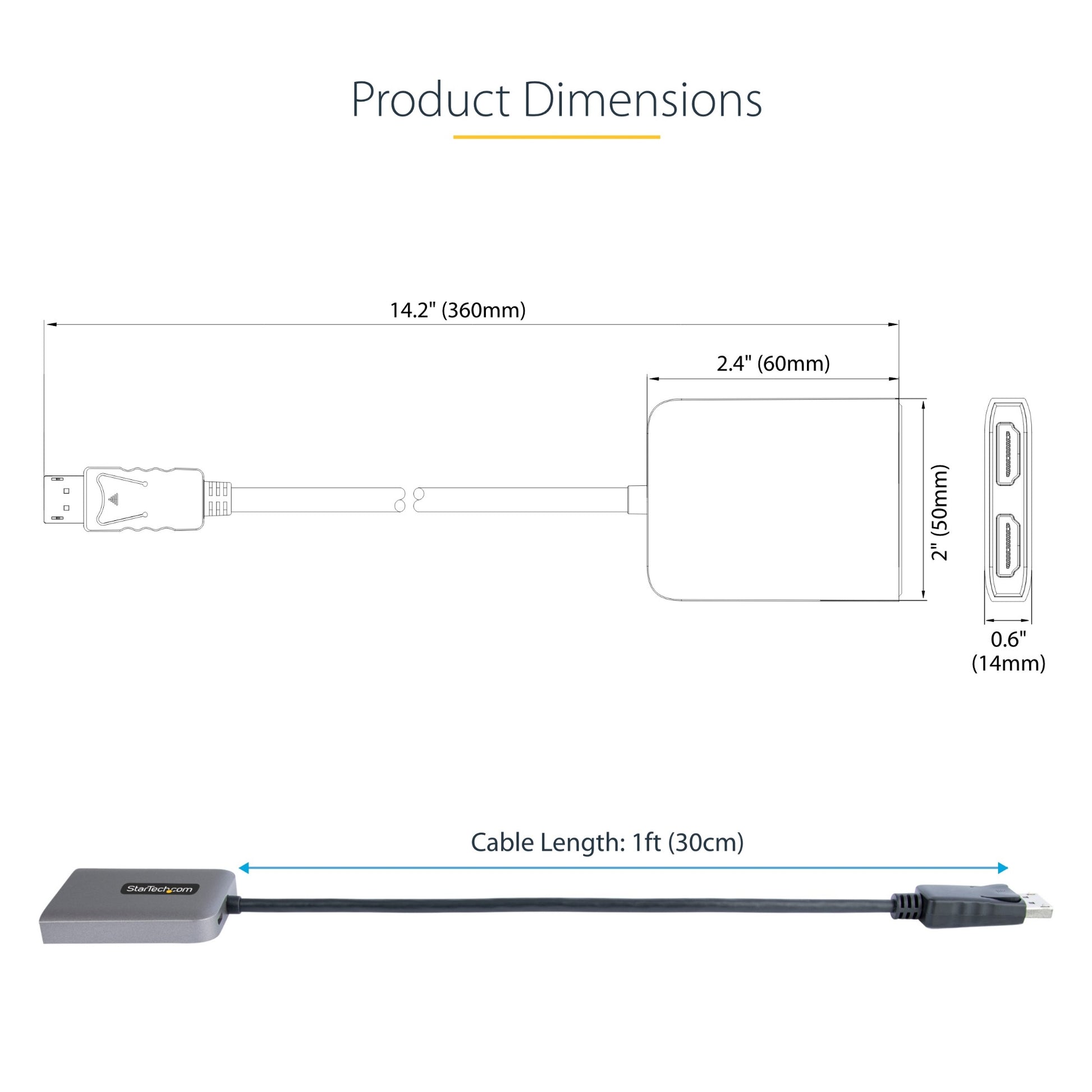

Width	105 mm
Height	14 mm
Depth	43 mm
Weight & dimensions
Weight	53 g
Package width	147 mm
Package depth	174 mm
Package height	32 mm
Package weight	110 g
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	477 mm
Master (outer) case length	347 mm
Master (outer) case height	449 mm
Products per master (outer) case	80 pc(s)

Downloads

• Datasheet (PDF)
