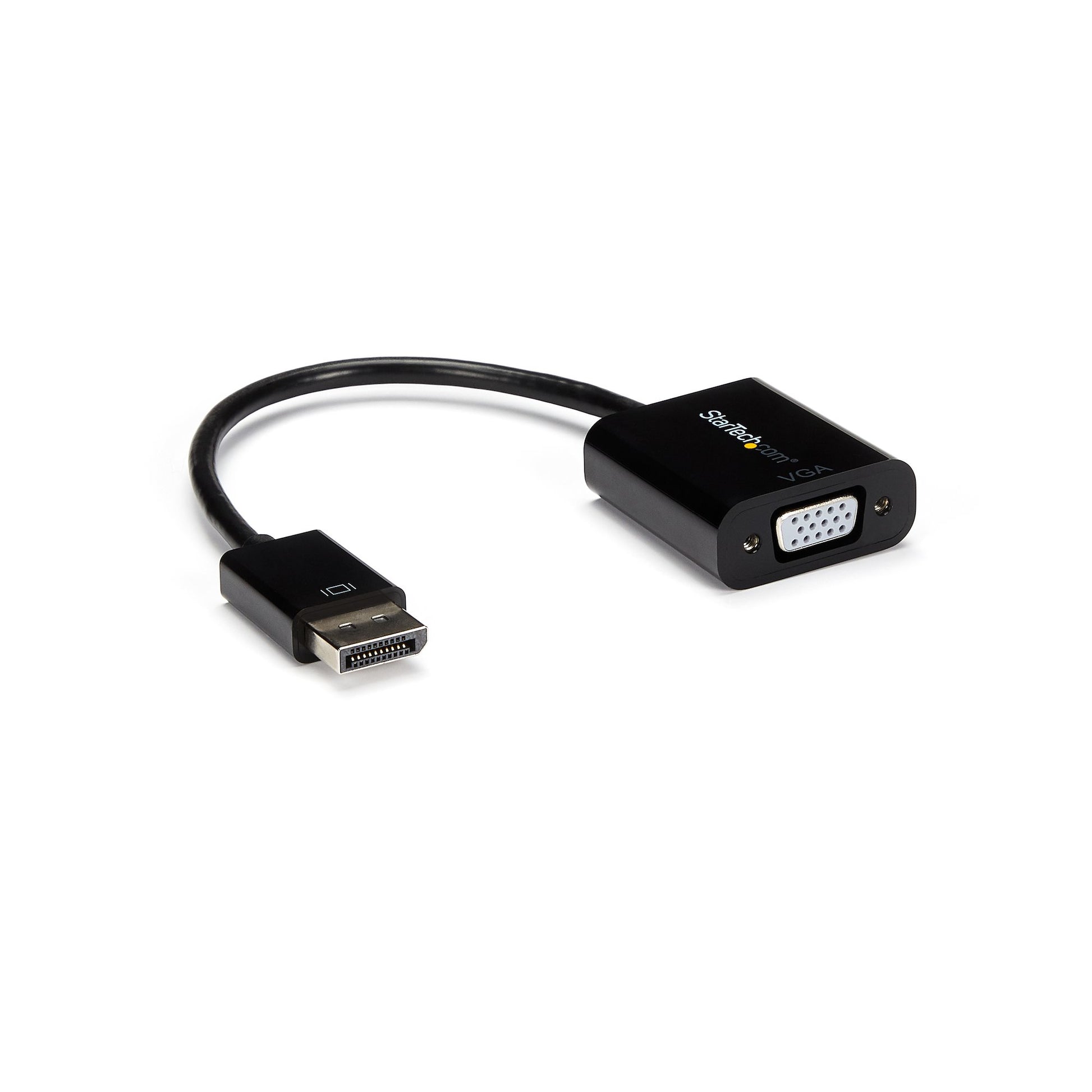

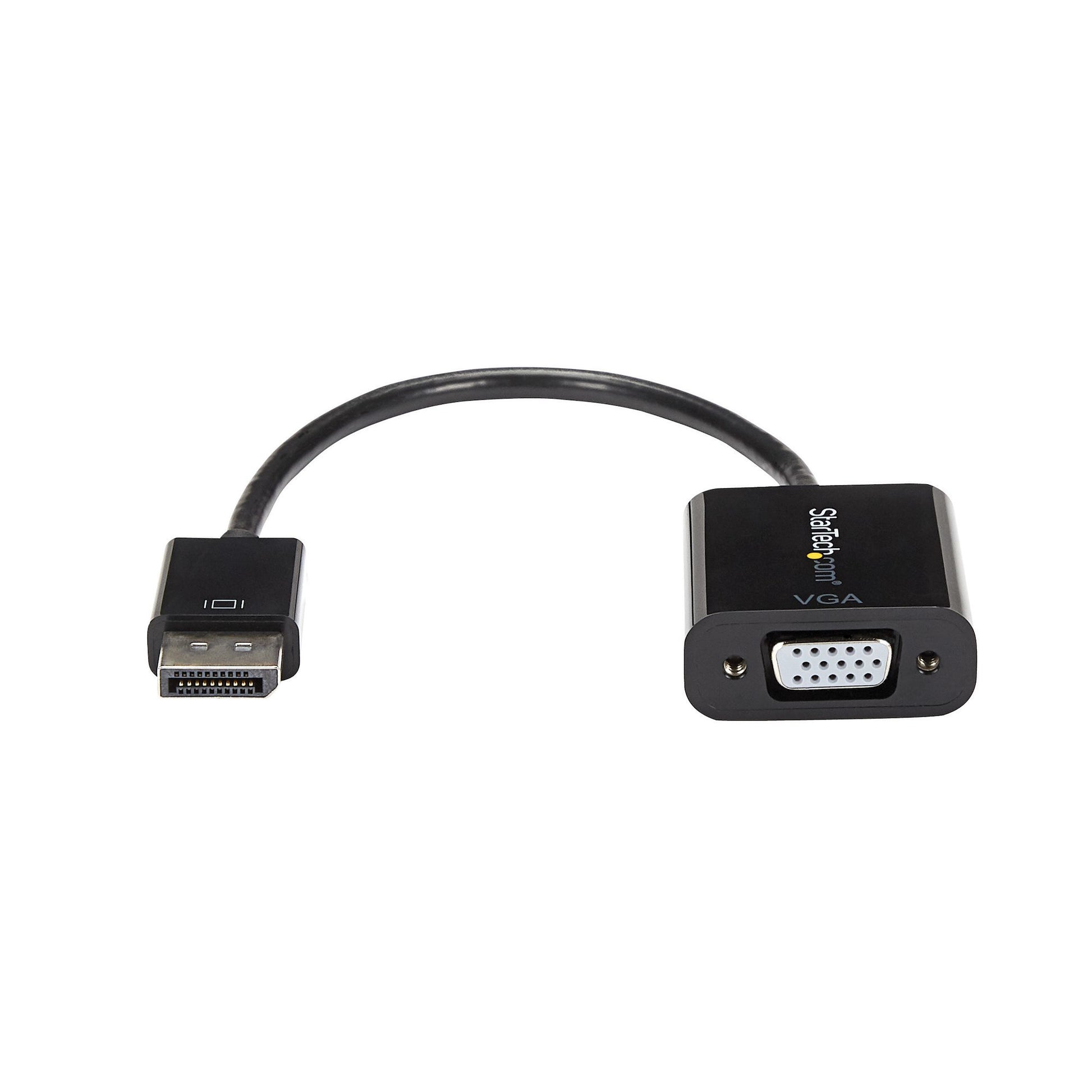

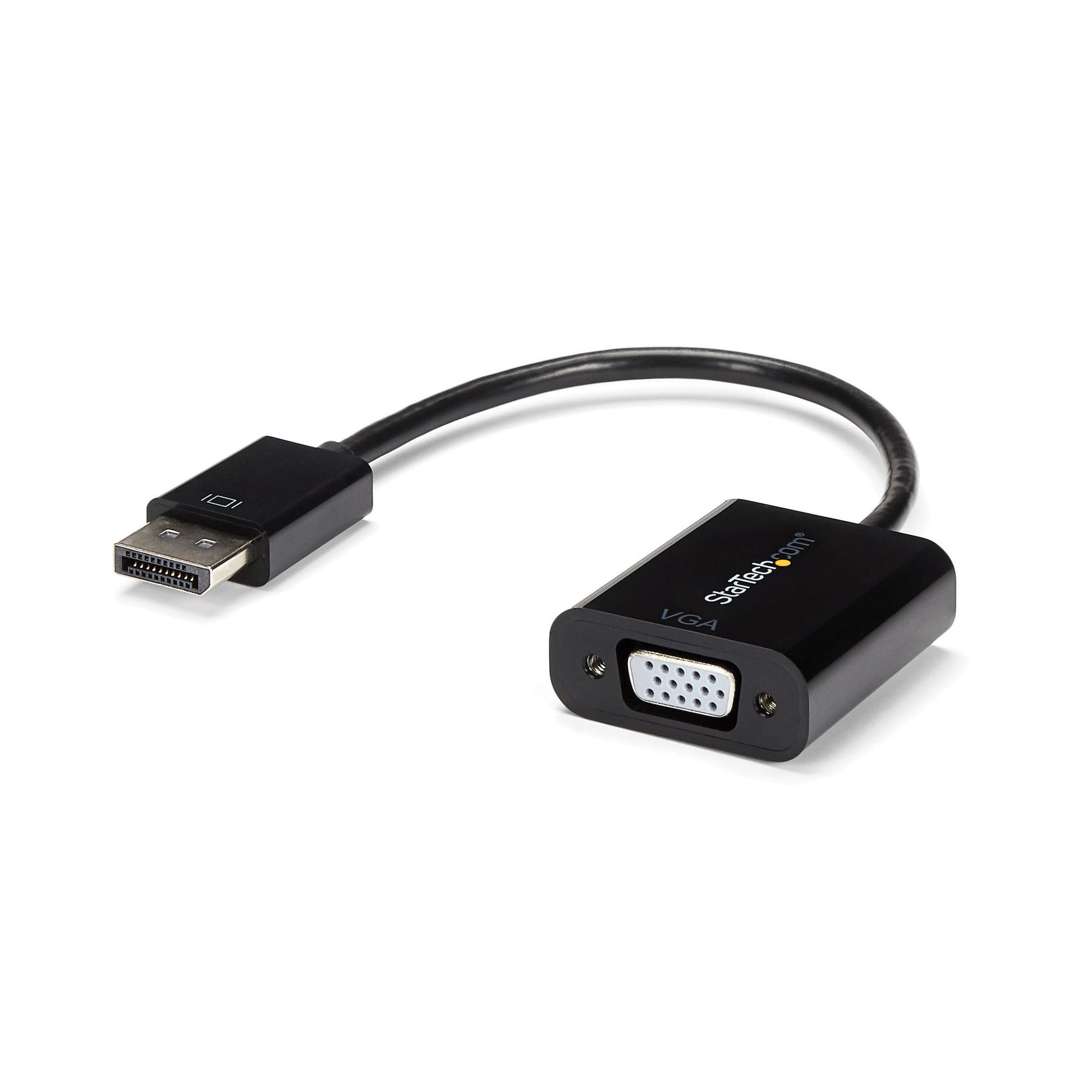

StarTech.com DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video Cable (DP2VGA3)

Make the connection with the StarTech.com DisplayPort to VGA Adapter — length and connector details are in the spec table.

DisplayPort 1.2 | Multi-Monitor Solution | Plug & Play Connectivity

This DisplayPort to VGA adapter lets you connect your DisplayPort equipped laptop or desktop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DP display.

Crystal-Clear Picture Quality

With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to an older VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DisplayPort connection to deliver every detail in stunning high-definition.

Works with Your Legacy VGA Displays & Projectors

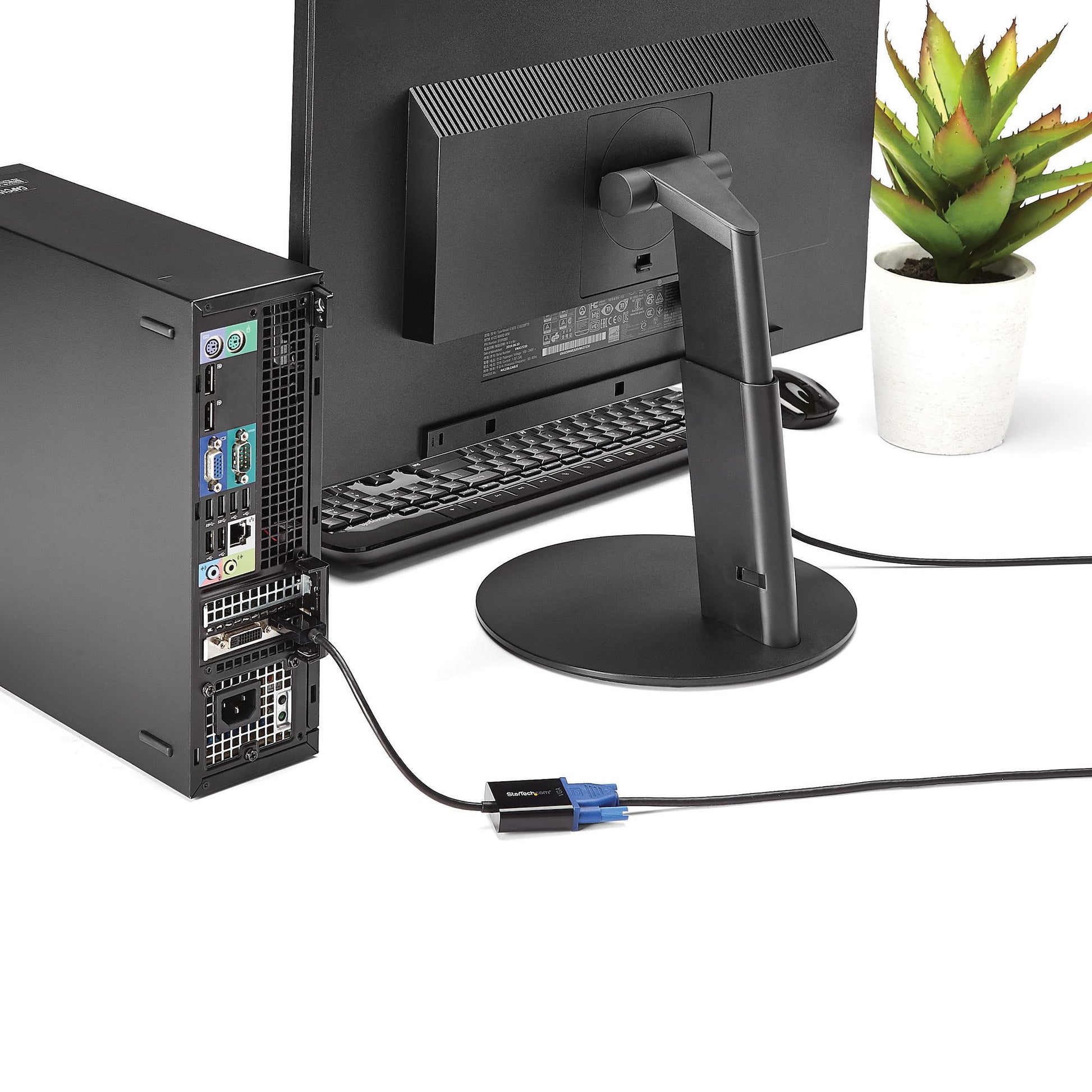

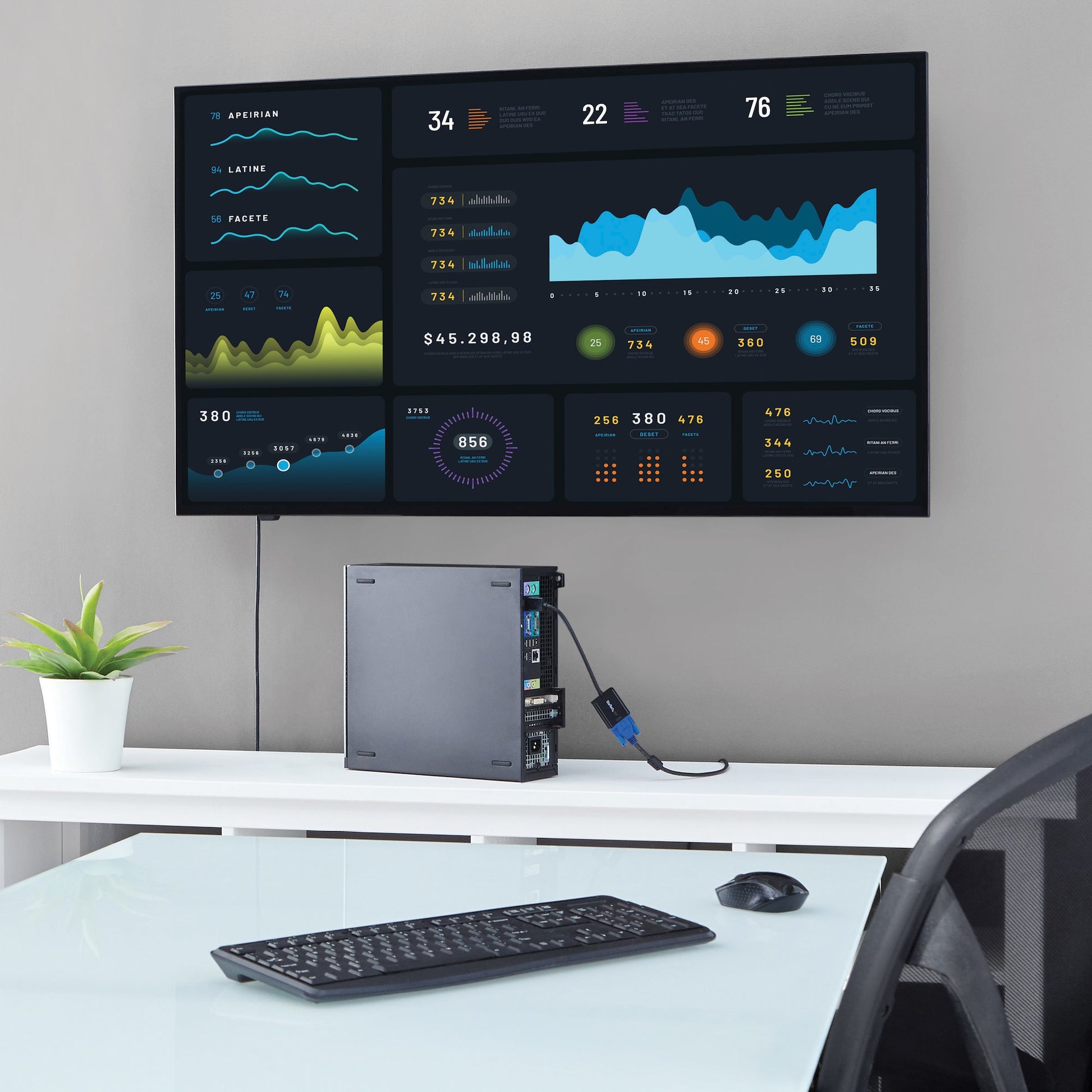

This DisplayPort video adapter makes your DP computer fully compatible with legacy VGA monitors or projectors in your home or around the office. You can use the converter to either connect to an existing VGA display or add a secondary monitor to your workstation, helping to boost your productivity.

Designed for Maximum Portability

This DisplayPort to VGA dongle maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort devices. The ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office, delivering HD video presentations on-the-go or even staying connected at home.

For added convenience, this DP to VGA converter supports plug-and-play connectivity and requires no additional software or drivers for a hassle-free setup.

DP2VGA3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Converter type	Active video converter
Country of origin	China
Chipset	Analogic ANX9833
DisplayPort version	1.2
Product colour	Black
Cable length	0.1 m
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	2048 x 1152 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152
Supported video modes	720p, 1080p
Plug and Play	Yes
Certification	CE, FCC, RoHS
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	CE, RoHS
Technical details
Harmonized System (HS) code	84733080
Other features
Width	37 mm
Height	14 mm
Depth	230 mm
Weight & dimensions
Weight	32 g
Package width	198 mm
Package depth	204 mm
Package height	18 mm
Package weight	41 g
Logistics data
Master (outer) case width	510 mm
Master (outer) case length	333 mm
Master (outer) case height	222 mm
Products per master (outer) case	150 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
