StarTech.com DisplayPort to HDMI VGA Adapter - DisplayPort 1.2 HBR2 to HDMI 2.0 (4K Cable

Make the connection with the StarTech.com DisplayPort to HDMI VGA — length and connector details are in the spec table.

2-in-1 Video Adapter | Mac & Windows® | HDR

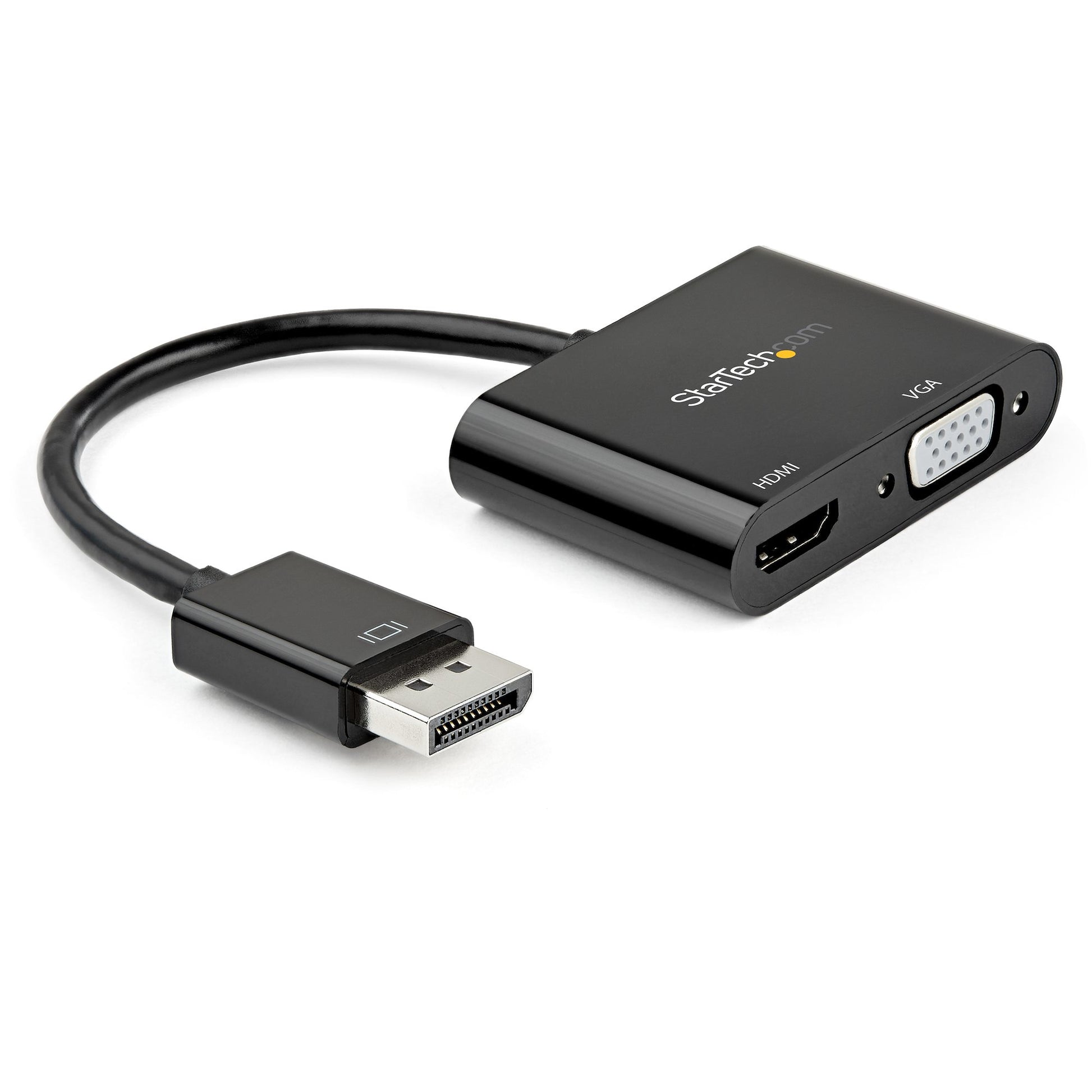

This DisplayPort to HDMI VGA adapter offers a portable solution for connecting your DP laptop to a VGA or HDMI display. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.

Two-in-One Video Connectivity with Travel in Mind

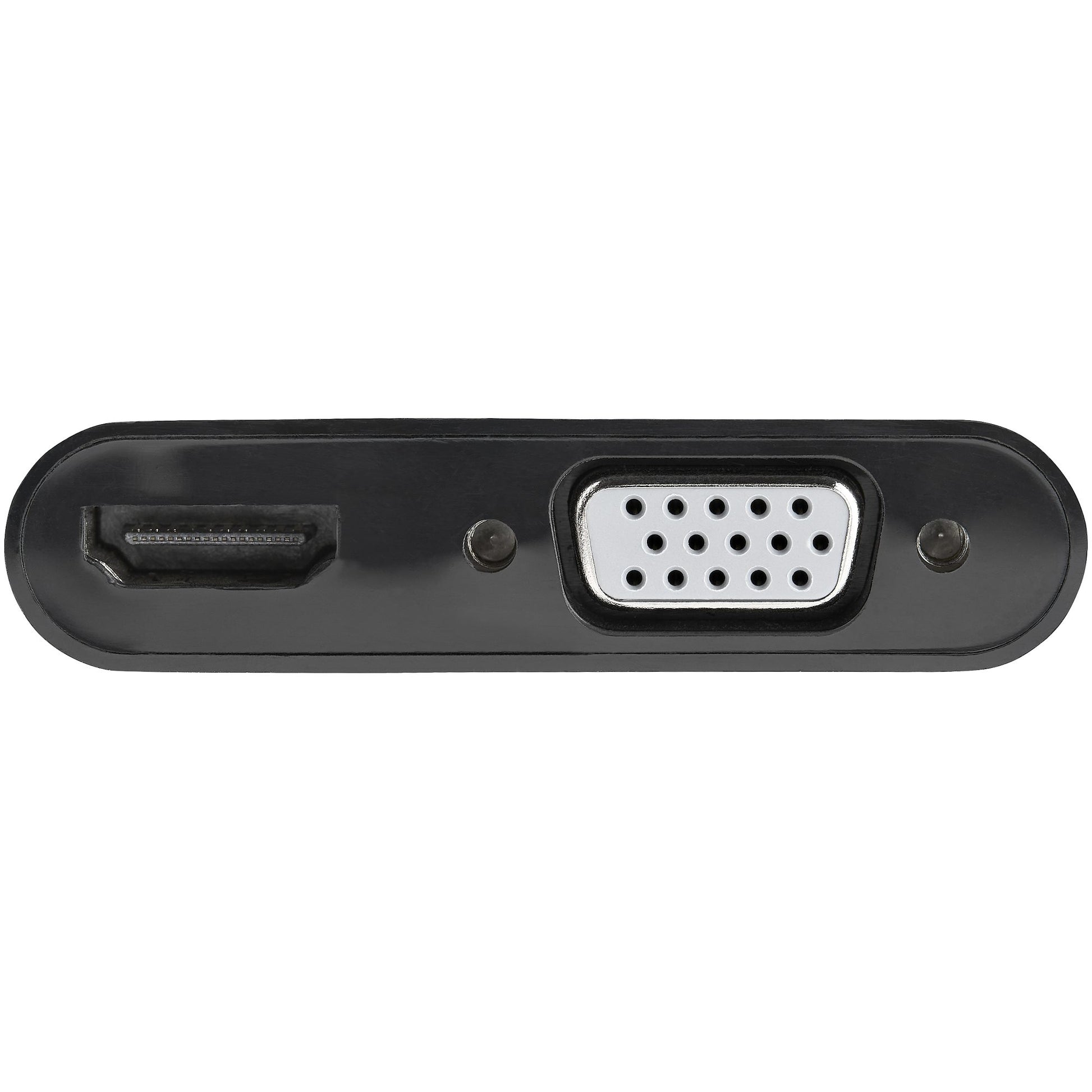

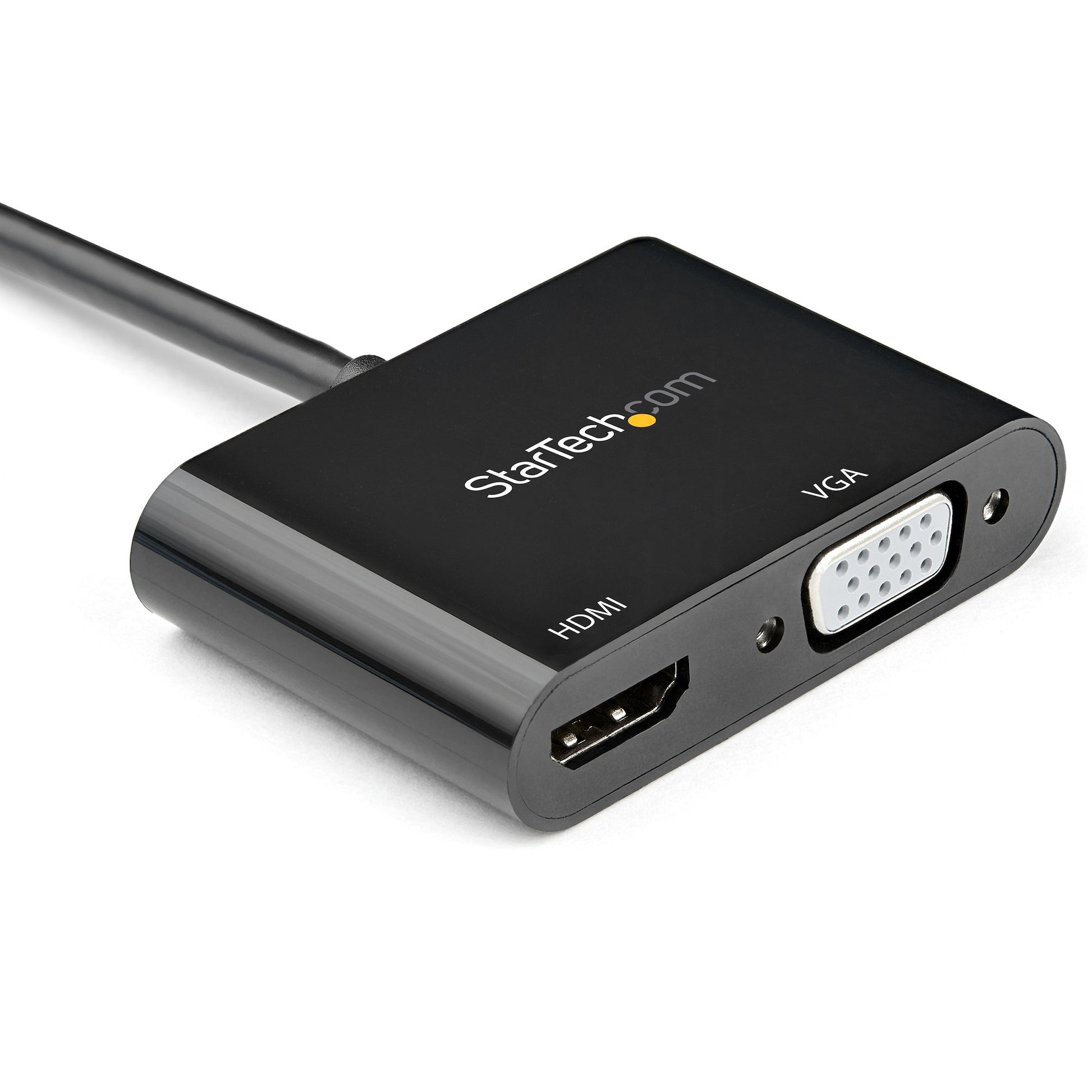

Avoid the hassle of carrying different adapters, with a 2-in-1 DisplayPort monitor adapter. Featuring both VGA and HDMI outputs, you can conveniently connect your laptop to any HDMI or VGA-equipped display, using this multiport video converter.

With its small footprint and lightweight design, the travel adapter fits easily into your laptop bag, making it perfect for professionals on the go.

Astonishing 4K Picture Quality

The HDMI output on this DisplayPort video adapter lets you harness the video capabilities that are built into your computer's DP connection, delivering the astonishing quality of UHD to your 4K 60Hz HDMI display. Plus, the VGA output supports HD resolutions up to 1920 x 1080, ensuring you won’t have to sacrifice picture quality when connected to a VGA monitor or projector.

With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

Hassle-Free Setup

With no additional software or drivers to install, this DP (male) to HDMI (female) and VGA (female) dongle offers a plug-and-play setup for a user-friendly experience. It allows you to walk into virtually any boardroom ready to present, making a great first impression.

DP2VGAHD20 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Chipset	ITE Tech - IT6564
HDMI version	2.0
DisplayPort version	1.2
Product colour	Black
Connector 1	DisplayPort
Connector 2	HDMI + VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160
HDCP	Yes
Certification	CE, FCC, REACH
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HDCP version	1.4/2.2
High Dynamic Range (HDR) supported	Yes
Supported audio channels	7.1
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	RoHS
Other features
Width	60 mm
Height	14 mm
Depth	42 mm
Weight & dimensions
Weight	38 g
Package width	126 mm
Package depth	129 mm
Package height	17 mm
Package weight	91 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	513 mm
Master (outer) case length	336 mm
Master (outer) case height	226 mm
Products per master (outer) case	200 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
