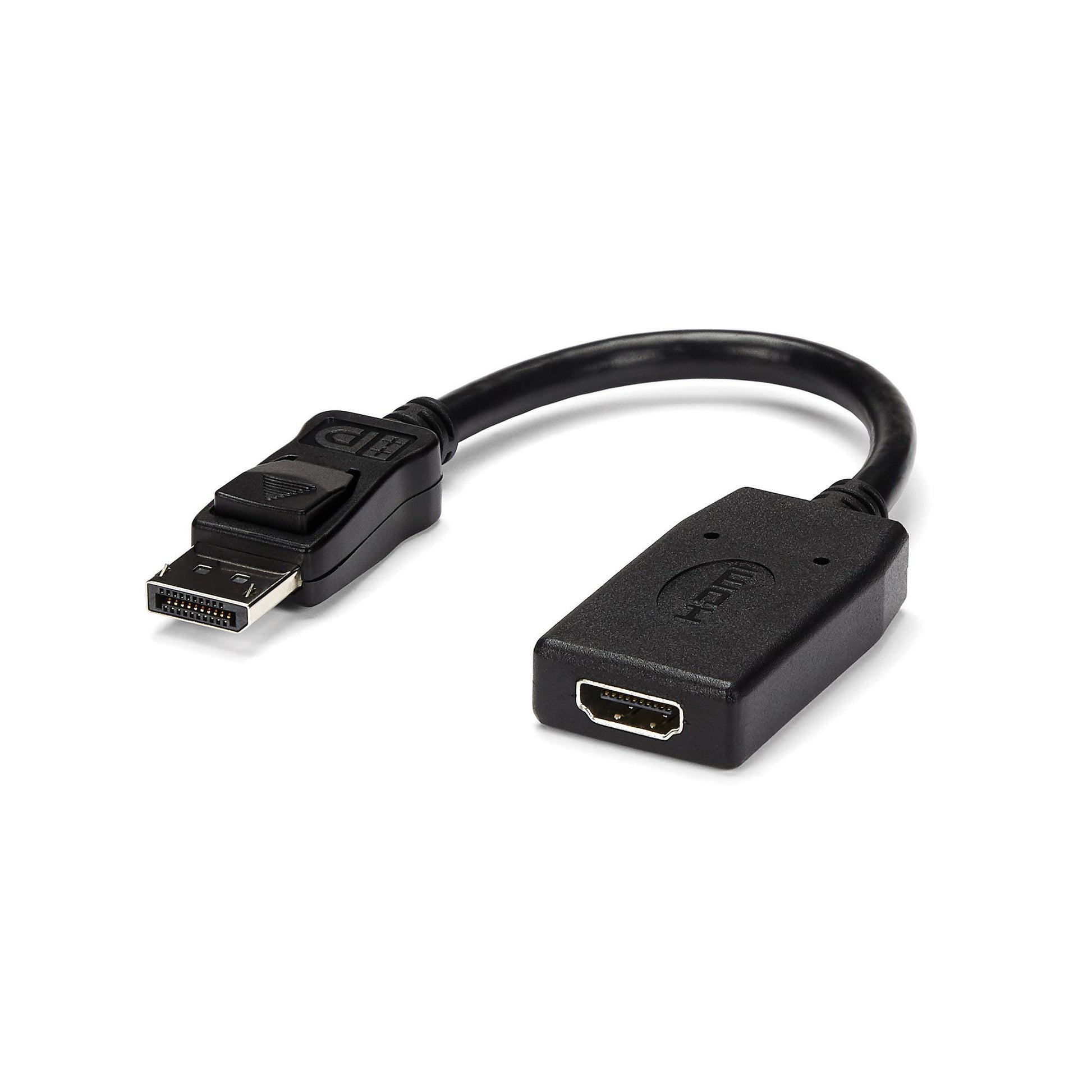

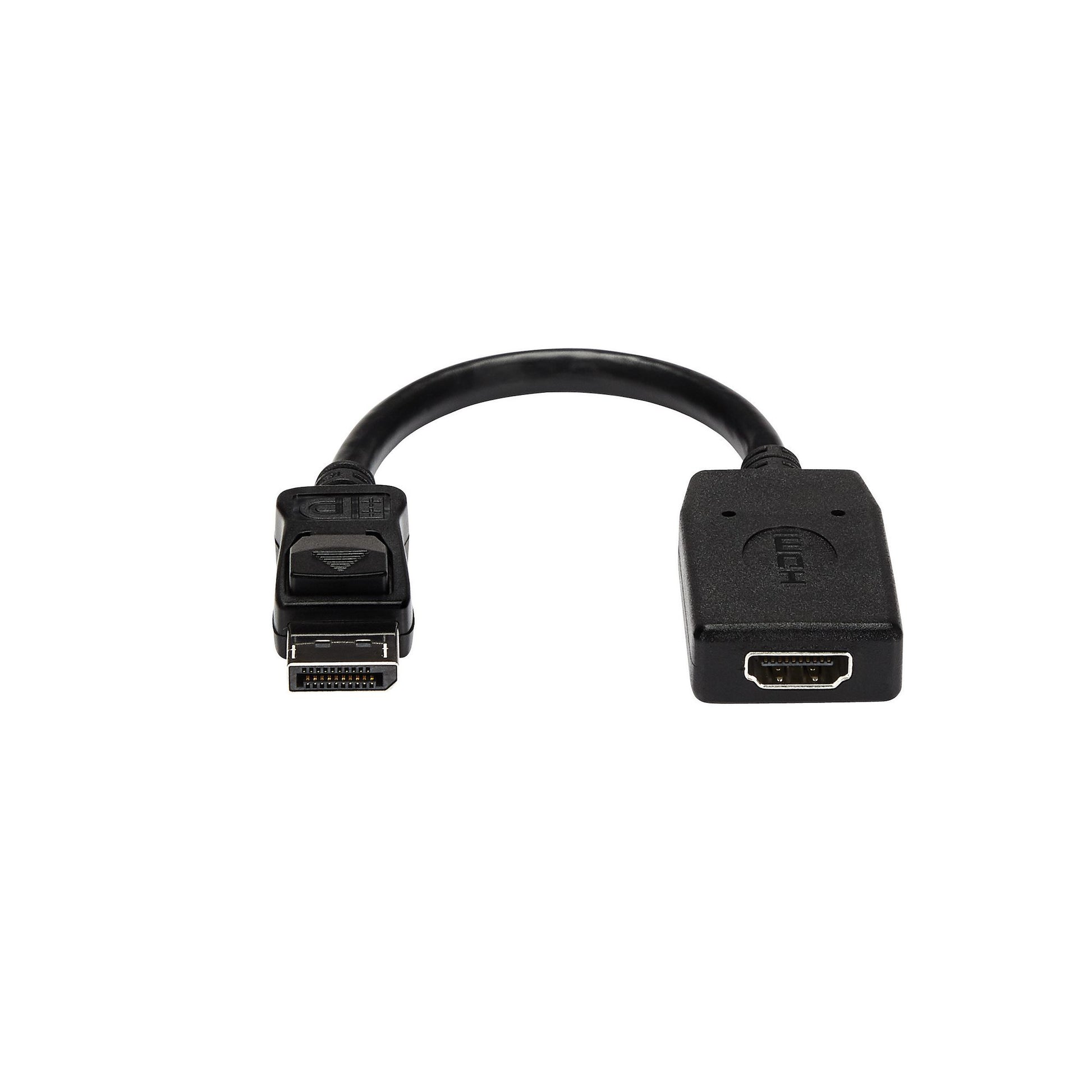

StarTech.com DisplayPort to HDMI Adapter - DP to HDMI Adapter/Video Converter Cable

Make the connection with the StarTech.com DisplayPort to HDMI Adapter — length and connector details are in the spec table.

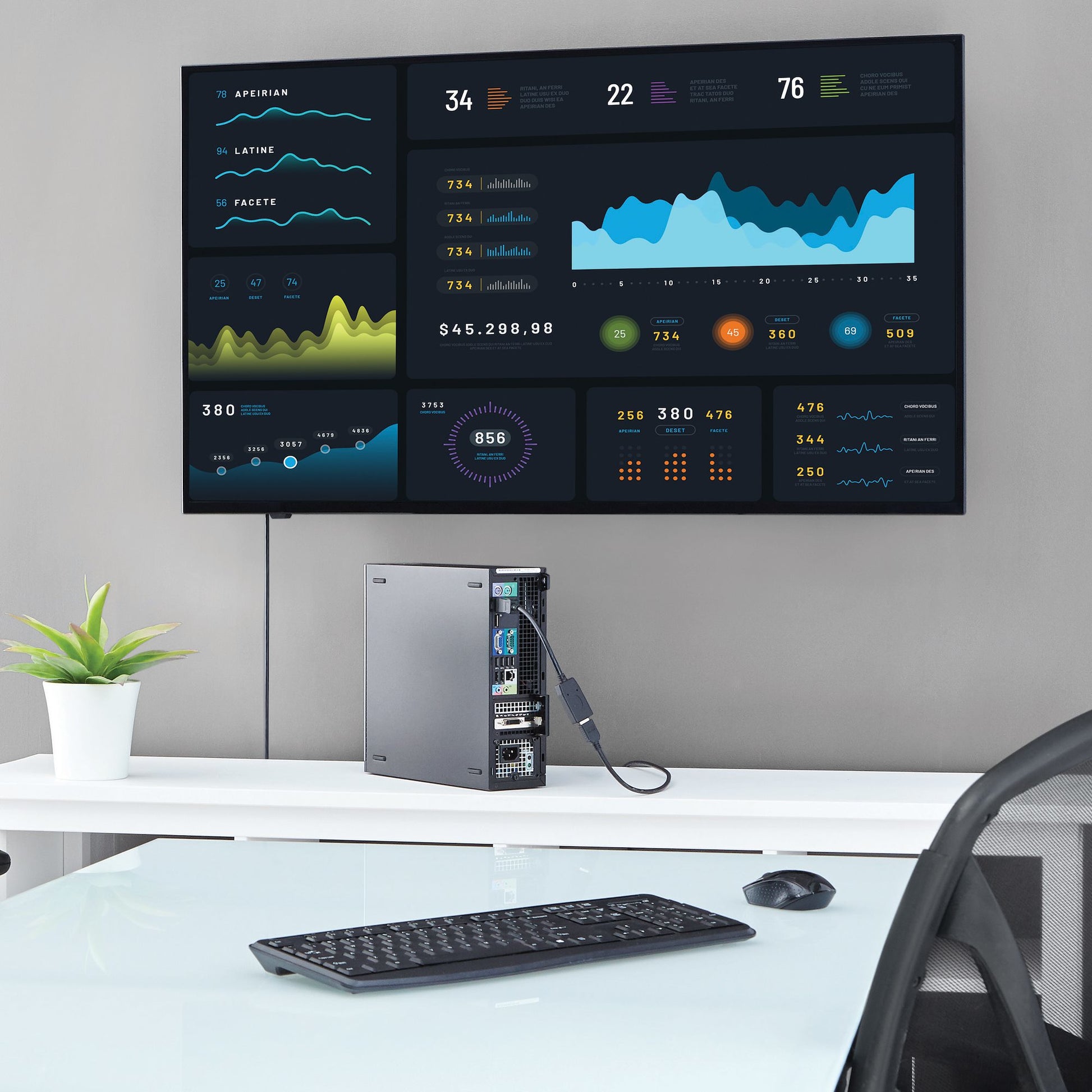

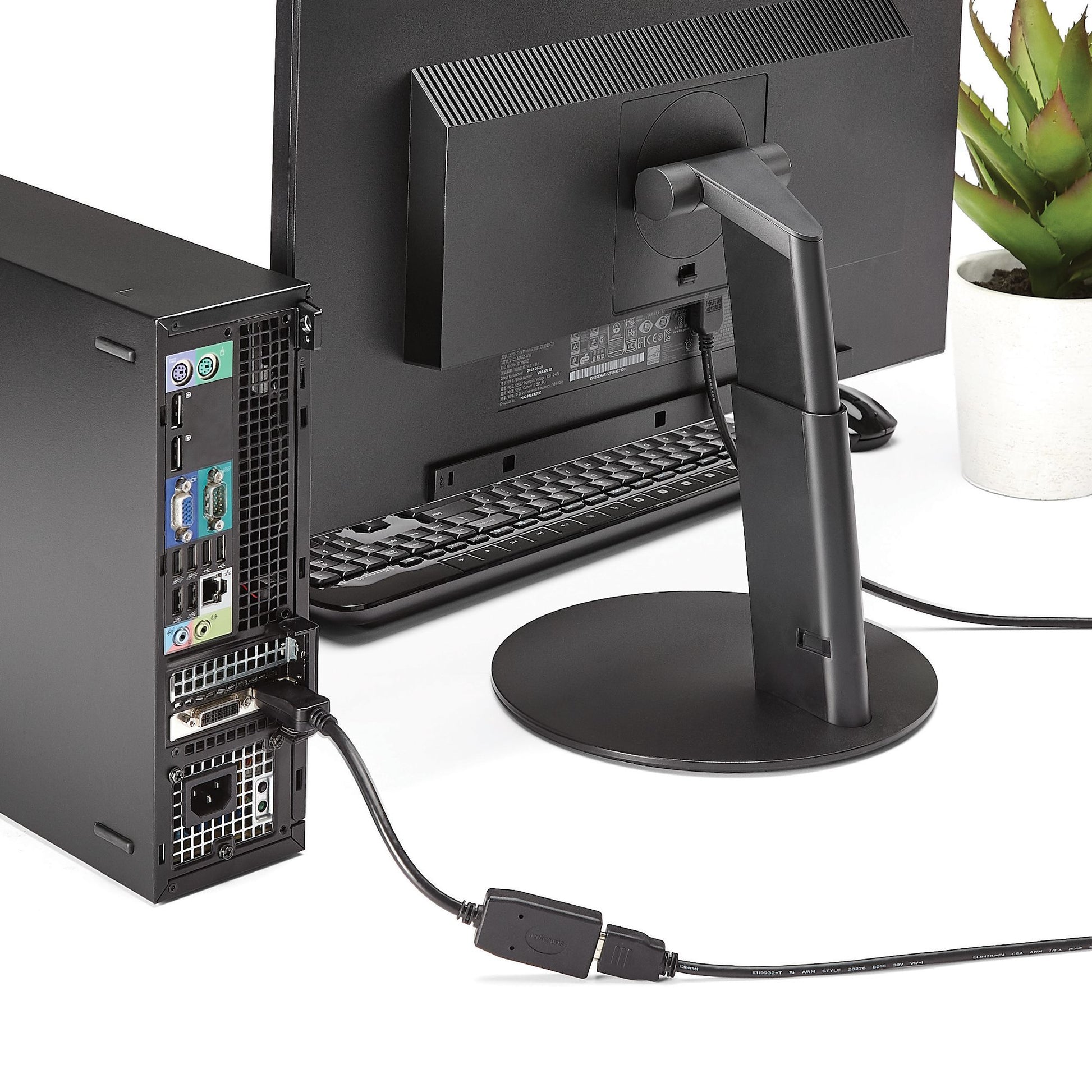

Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer

The StarTech.com DisplayPort® to HDMI® adapter lets you connect an HDMI-enabled video display to a DisplayPort video source (e.g.DisplayPort video cards, etc.), eliminating the expense of having to upgrade your display for DisplayPort compatibility.

This adapter supports display resolutions of up to 1920x1200 allowing you to take full advantage of HDMI video capability.

DP2HDMI is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specifications

Features
Chipset	Parade Technologies Inc. PS8121E
DisplayPort version	1.2
Product colour	Black
Cable length	0.24 m
Connector 1	HDMI Type A (Standard)
Connector 2	DisplayPort
Connector 1 gender	Female
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
HDCP	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	1.4
Supported audio channels	7.1
Certificates
Compliance certificates	CE, RoHS
Other features
Depth	240 mm
Weight & dimensions
Weight	50 g
Package width	197 mm
Package depth	103 mm
Package height	16 mm
Package weight	59 g
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	506 mm
Master (outer) case length	341 mm
Master (outer) case height	224 mm
Products per master (outer) case	120 pc(s)

Downloads

• Datasheet (PDF)
