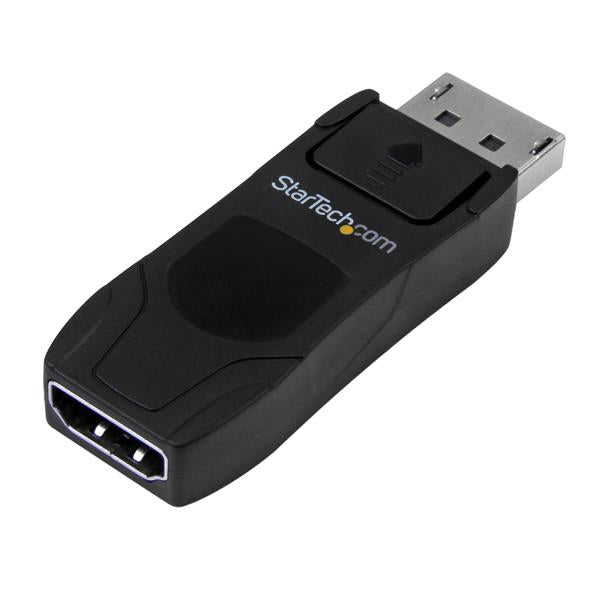

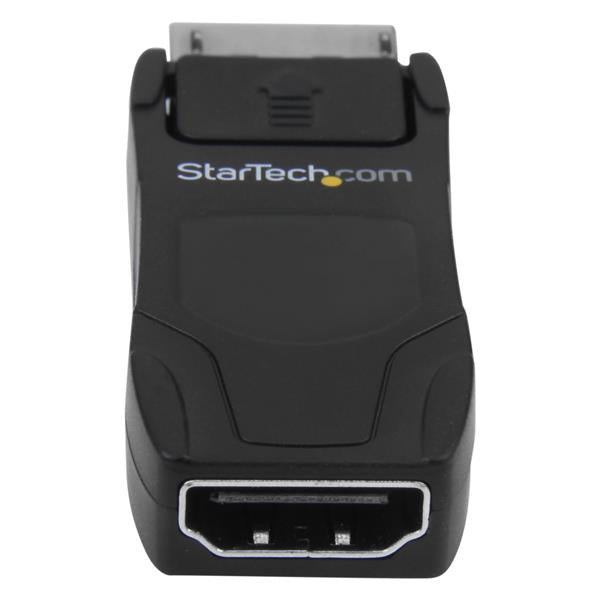

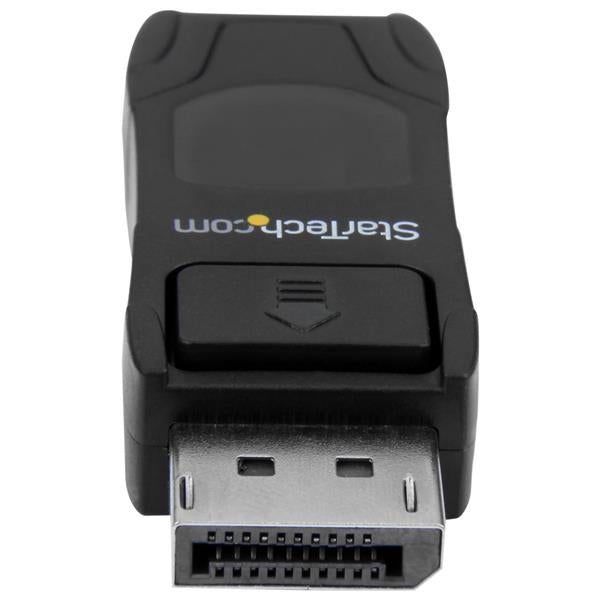

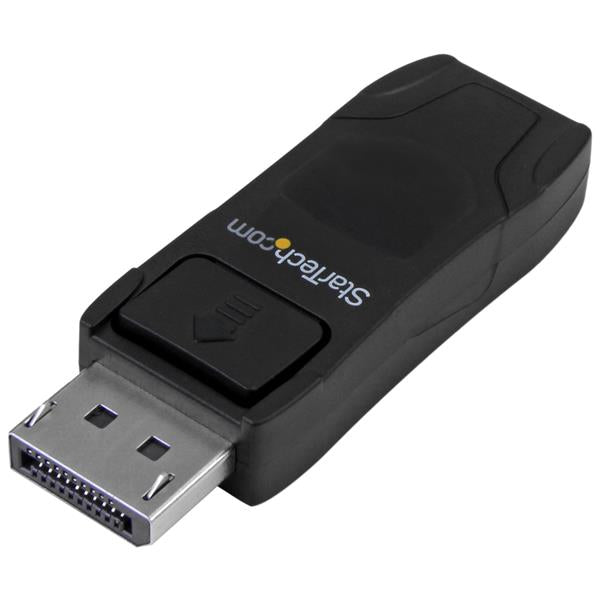

StarTech.com DisplayPort to HDMI Adapter - 4K 30Hz Compact DP 1.2 to HDMI 1.4 Video Cable

Make the connection with the StarTech.com DisplayPort to HDMI Adapter — length and connector details are in the spec table.

Connect your 4K HDMI display to a DP video source using this compact, passive adapter

This DisplayPort™ to HDMI® adapter supports 4K video resolution, enabling you to connect DisplayPort devices, such as an Ultrabook™ or desktop computer, to a 4K HDMI display or projector.

Astonishing 4K picture quality

You will be amazed at how this adapter flawlessly manages your graphics-intensive content. With support for resolutions up to 4K - four times the resolution of high-definition 1080p - its lossless performance makes the adapter the ideal solution for high-resource applications such as graphic design, CAD & CAM design, or health care imaging (MRI, radiology diagnostics, etc.).

Plus, the 4K adapter supports 1080p displays, which makes it a great accessory for home, office or other workspace applications.

Arrive prepared, wherever you go

This DP to HDMI adapter is extremely portable, with a lightweight, small-footprint design. It’s the perfect accessory to carry with your Ultrabook, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes the adapter ideal for BYOD (Bring Your Own Device) applications at the office, and enables you to arrive prepared when you’re presenting to a potential client, teaching off-site, or traveling to meet with a customer.

The DP2HD4KADAP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Ports & interfaces
DisplayPort version	1.2
Connector 2	HDMI
Connector 1	DisplayPort
Connector 2 gender	Female
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Performance
Converter type	Passive video converter
Supported video modes	1080p, 720p
Maximum resolution	3840 x 2160 pixels
Product colour	Black
Audio support	Yes
Certification	CE, FCC, RoHS
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Relative humidity	10 - 85%
Operating temperature (T-T)	0 - 60 °C
Certificates
Compliance certificates	RoHS
Weight & dimensions
Width	21 mm
Weight	7.5 g
Height	11 mm
Depth	64 mm
Packaging data
Package width	92 mm
Package height	22 mm
Package depth	50 mm
Package weight	36 g
Technical details
Host interface	DisplayPort
Logistics data
Products per master (outer) case	400 pc(s)
Master (outer) case width	355 mm
Master (outer) case length	450 mm
Master (outer) case height	280 mm

Downloads

• Datasheet (PDF)
