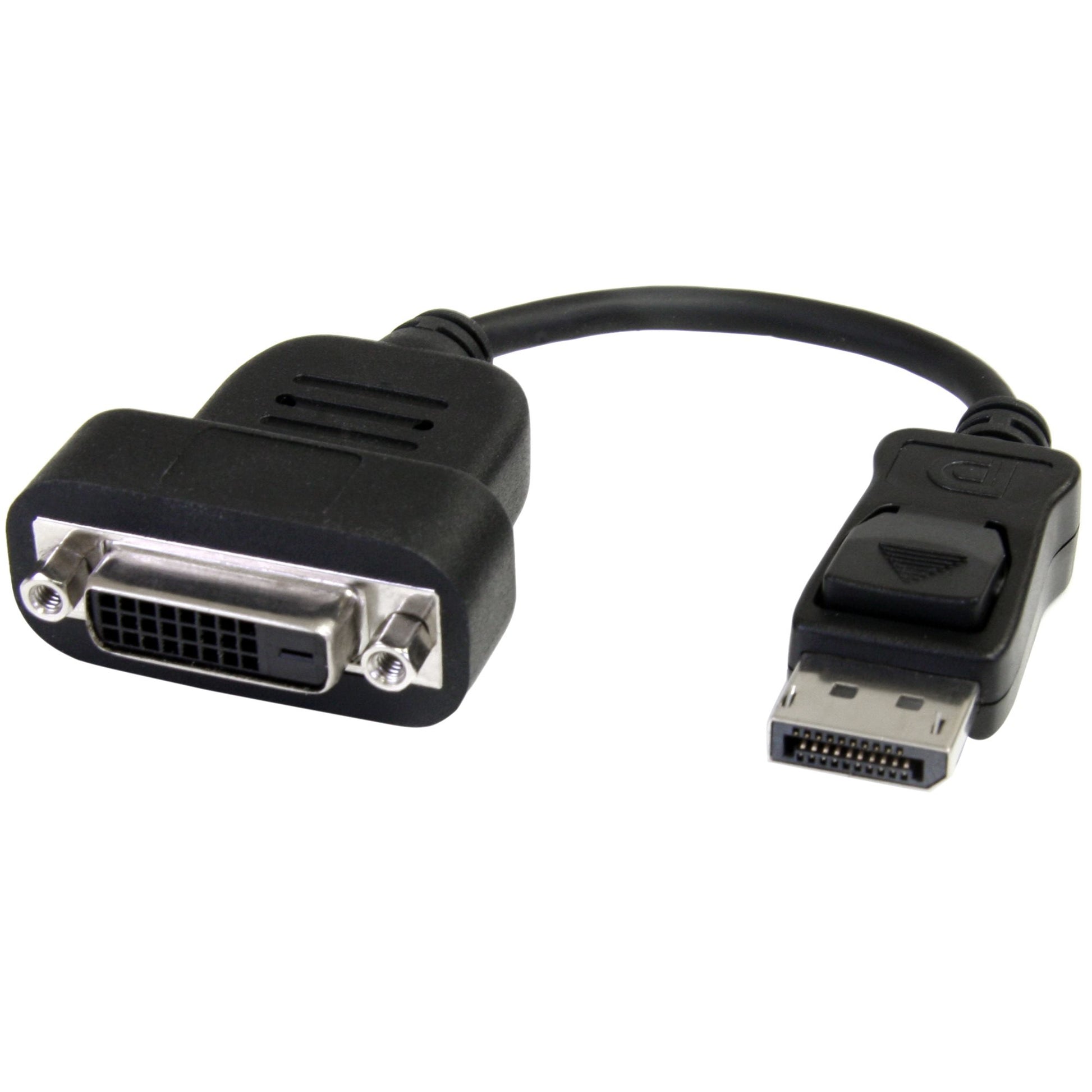

StarTech.com DisplayPort to DVI Adapter - Active DisplayPort to DVI-D Adapter/Video Cable

Make the connection with the StarTech.com DisplayPort to DVI Adapter — length and connector details are in the spec table.

Connect a DVI monitor to a single-mode DisplayPort output from your computer

The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.

Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920x1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
Chipset	Parade PS 161
DisplayPort version	1.2
Product colour	Black
Cable length	0.2 m
Connector 1	DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Female
HDCP	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
HDCP version	1.3
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	80 - 90%
Storage relative humidity (H-H)	80 - 90%
Other features
Width	44 mm
Height	20 mm
Depth	200 mm
Weight & dimensions
Weight	48 g
Package width	200 mm
Package depth	220 mm
Package height	20 mm
Package weight	57 g
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	337 mm
Master (outer) case length	496 mm
Master (outer) case height	226 mm
Products per master (outer) case	90 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
