StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender KVM Switch

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com DisplayPort.

Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable

The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).

4K 60Hz DisplayPort Video

The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.

Universal Compatibility

The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.

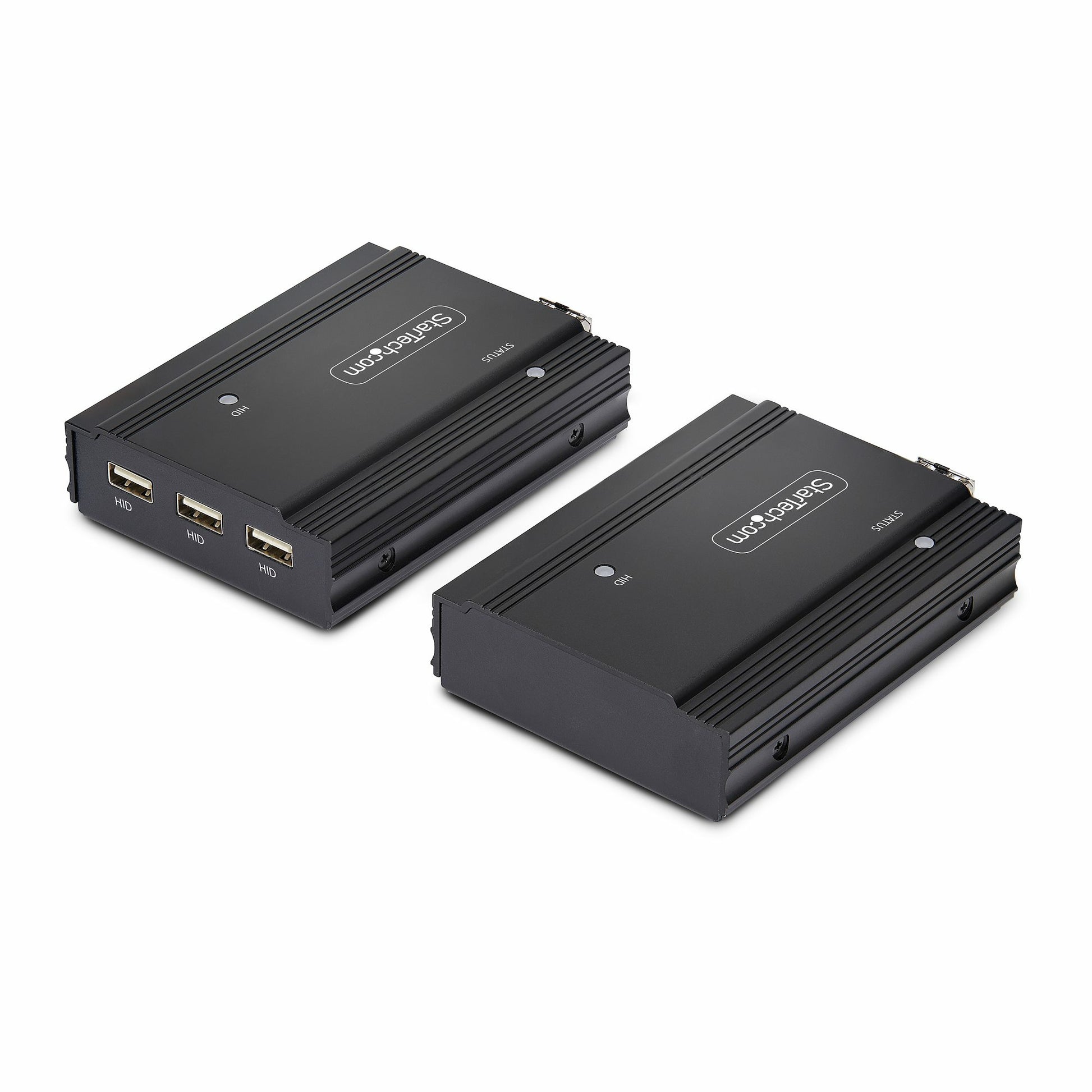

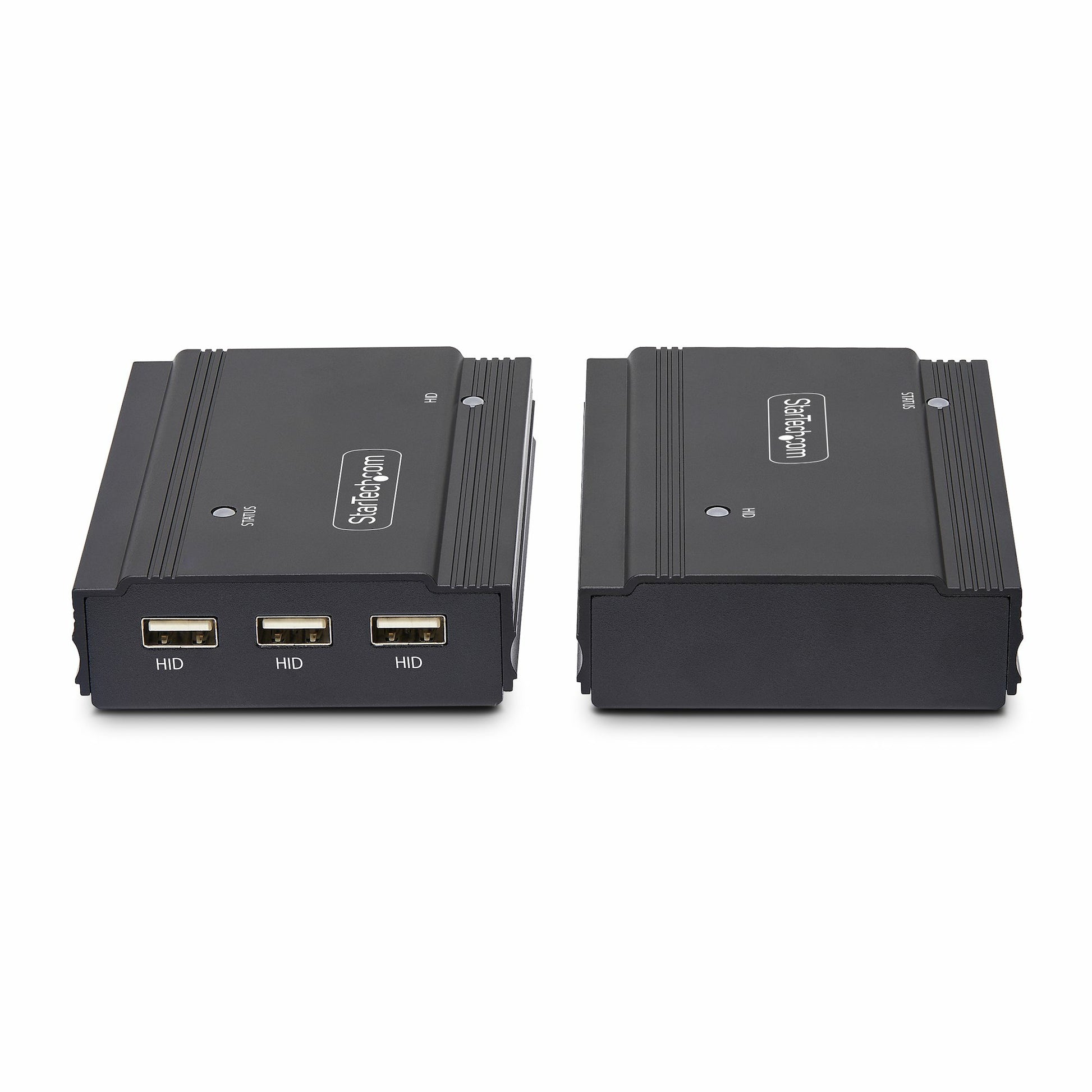

Built-In USB Hub

Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.

Durable Design

The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	300 m
Maximum digital resolution	4096 x 2160 pixels
On Screen Display (OSD)	No
Product colour	Black
LED indicators	Yes
Supported resolutions	4096 x 2160 @ 60hz 3840 x 2160 @ 60hz 3440 x 1440 @ 60hz 3200 x 1800 @ 60hz 3072 x 1728 @ 60hz 2560 x 1440 @ 60hz 2048 x 1536 @ 60hz 1920 x 1200 @ 60hz 3840 x 1080 @ 60hz 1920 x 1080 @ 60hz 1760 x 990 @ 60hz 1680 x 1050 @ 60hz 1600 x 1200 @ 60hz 1600 x 900 @ 60hz 1440 x 900 @ 60hz 1366 x 768 @ 60hz 1280 x 1024 @ 60hz 1280 x 720 @ 60hz 1128 x 634 @ 60hz 1024 x 768 @ 60hz 800 x 600 @ 60hz
USB 1.1 ports quantity	3
Maximum refresh rate	60 Hz
Mean time between failures (MTBF)	156000 h
Extended display identification data (EDID)	Yes
Transmitter
Transmitter local video port	Yes
Transmitter local video port type	DisplayPort
Number of displays supported	1
Transmitter Micro-USB ports quantity	1
Receiver
Receiver local video port type	DisplayPort
Receiver Micro-USB ports quantity	2
Ports & interfaces
Installed SFP+ modules quantity	2
Power
AC input voltage	100 - 240 V
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (transmitter) (max)	10 W
Power consumption (receiver) (max)	10 W
Input current	0.3 A
Weight & dimensions
Transmitter width	7.4 cm
Transmitter depth	10 cm
Transmitter height	2.8 cm
Transmitter weight	235 g
Receiver width	7.4 cm
Receiver depth	10 cm
Receiver height	2.8 cm
Receiver weight	235 g
Package width	308 mm
Package depth	179 mm
Package height	72 mm
Packaging data

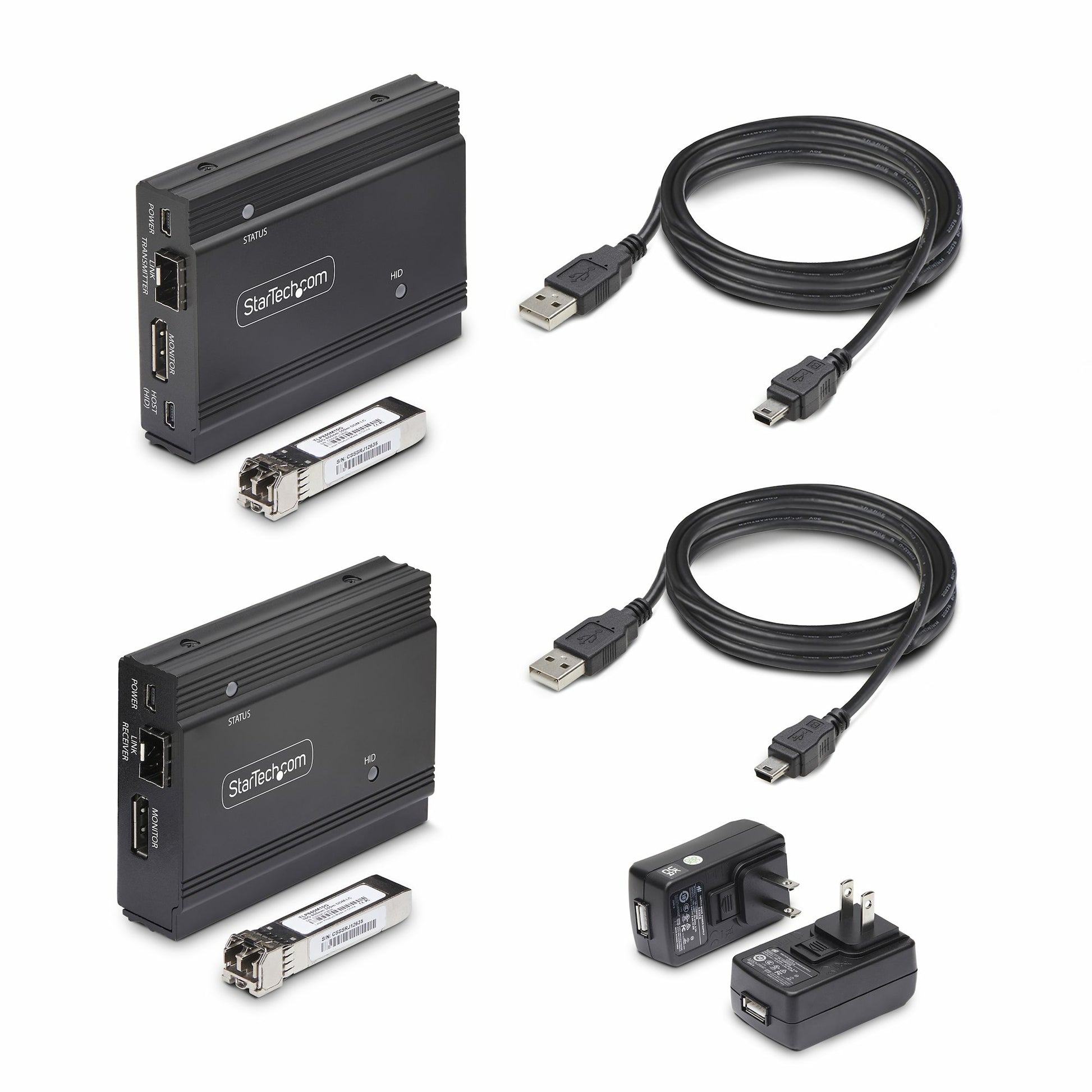

Cables included	Mini-USB
Quick installation guide	Yes
Packaging content
Included power plug types	ANZ, EU, NA, UK
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	328 mm
Master (outer) case height	265 mm
Products per master (outer) case	6 pc(s)
