StarTech.com Desk Mount Triple Monitor Arm For Up To Three 27in Screens, VESA

Position your screen exactly where you need it with the StarTech.com Desk Mount Triple Monitor — VESA fit and load ratings are below.

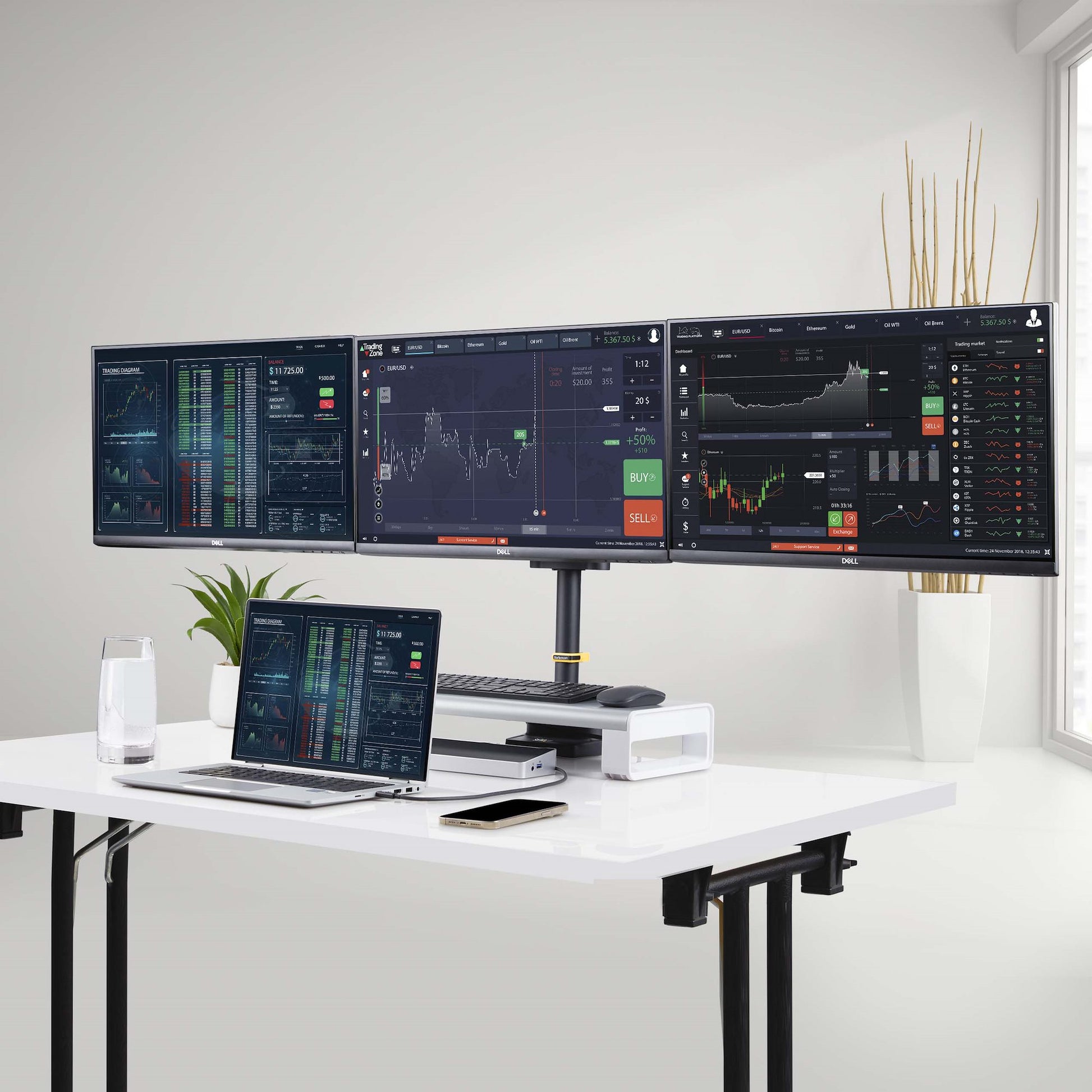

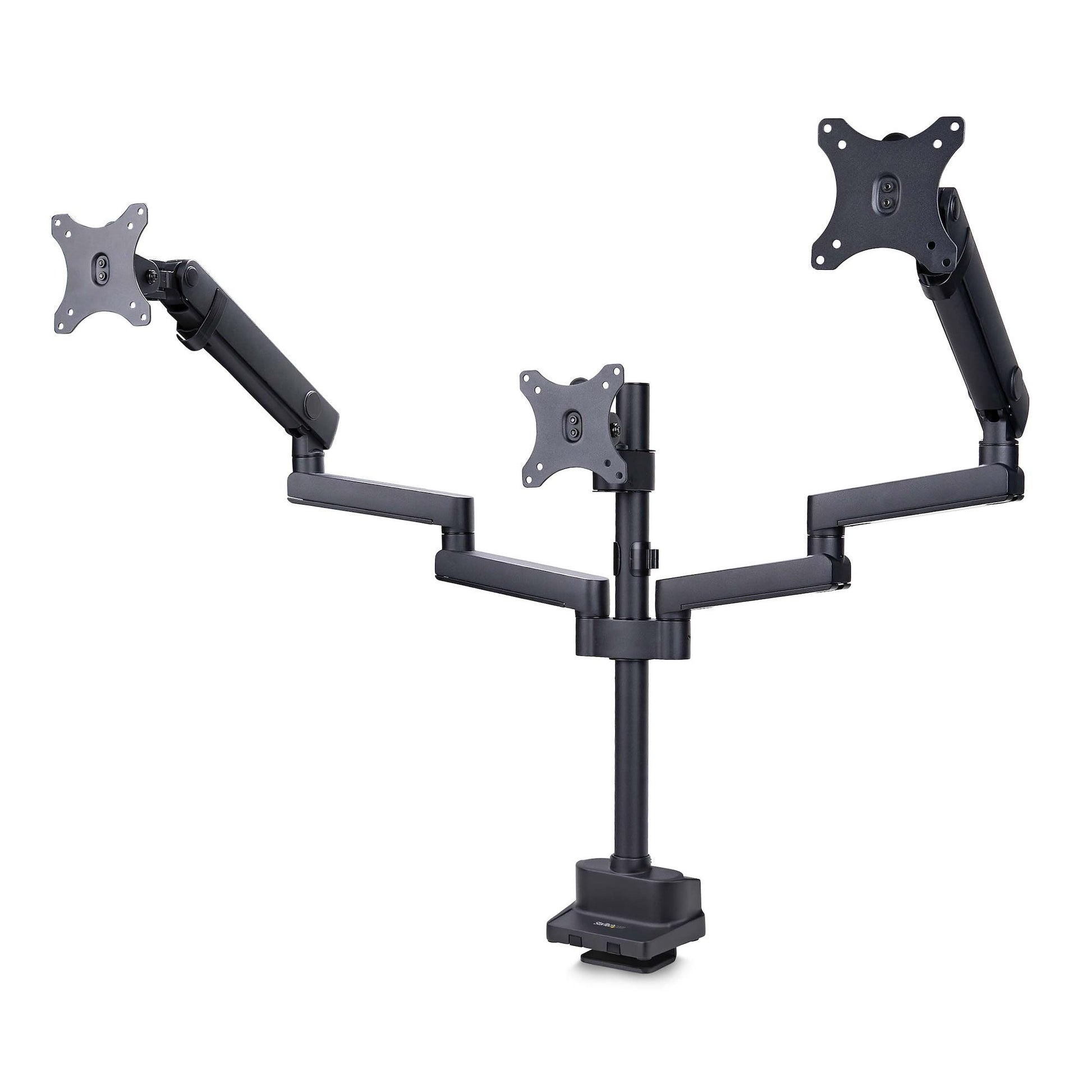

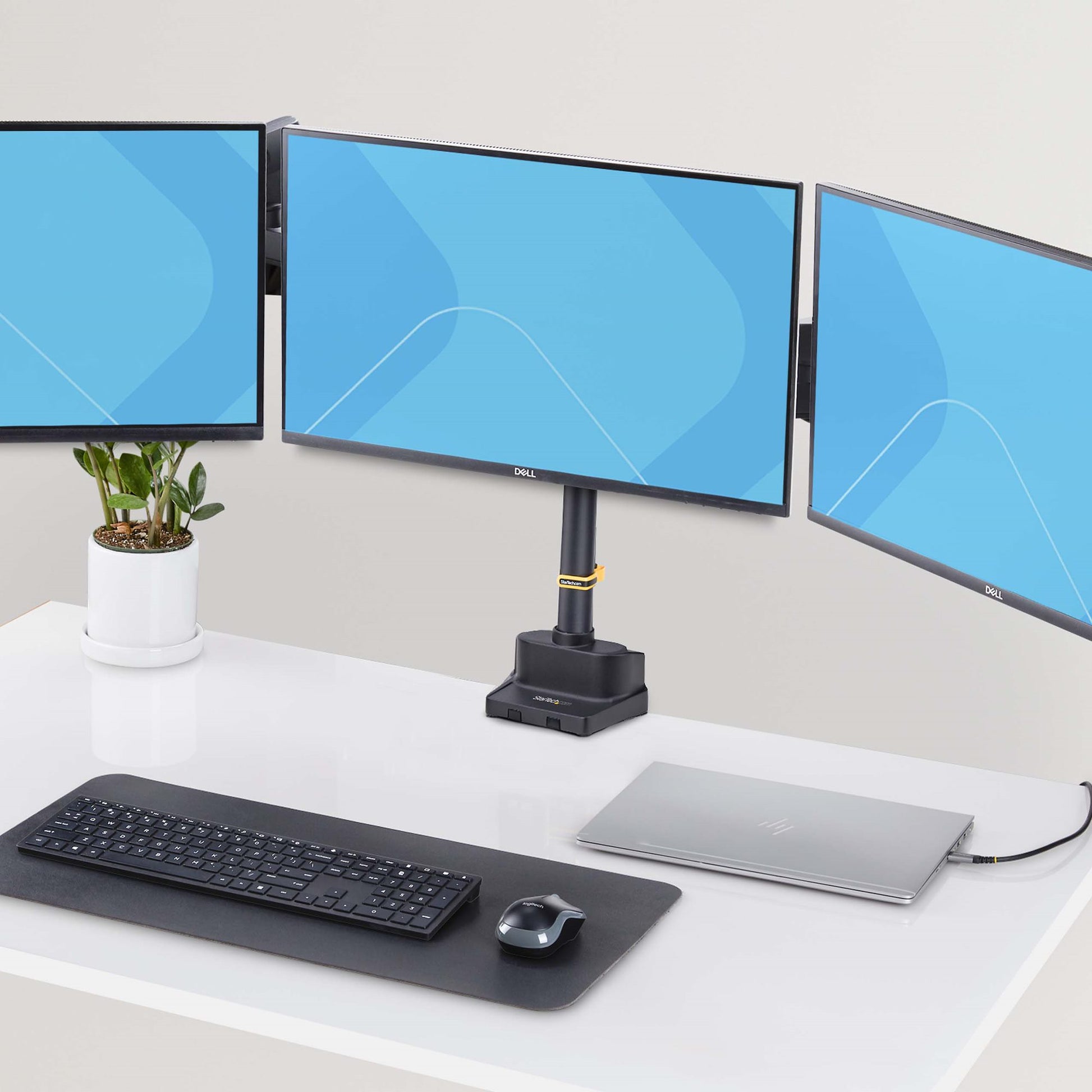

Triple monitor desk mount with support up to 27" monitors with height adjustable articulating arms

This monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. The mechanical spring-assisted arms allow multiple adjustment to suit different ergonomic needs.

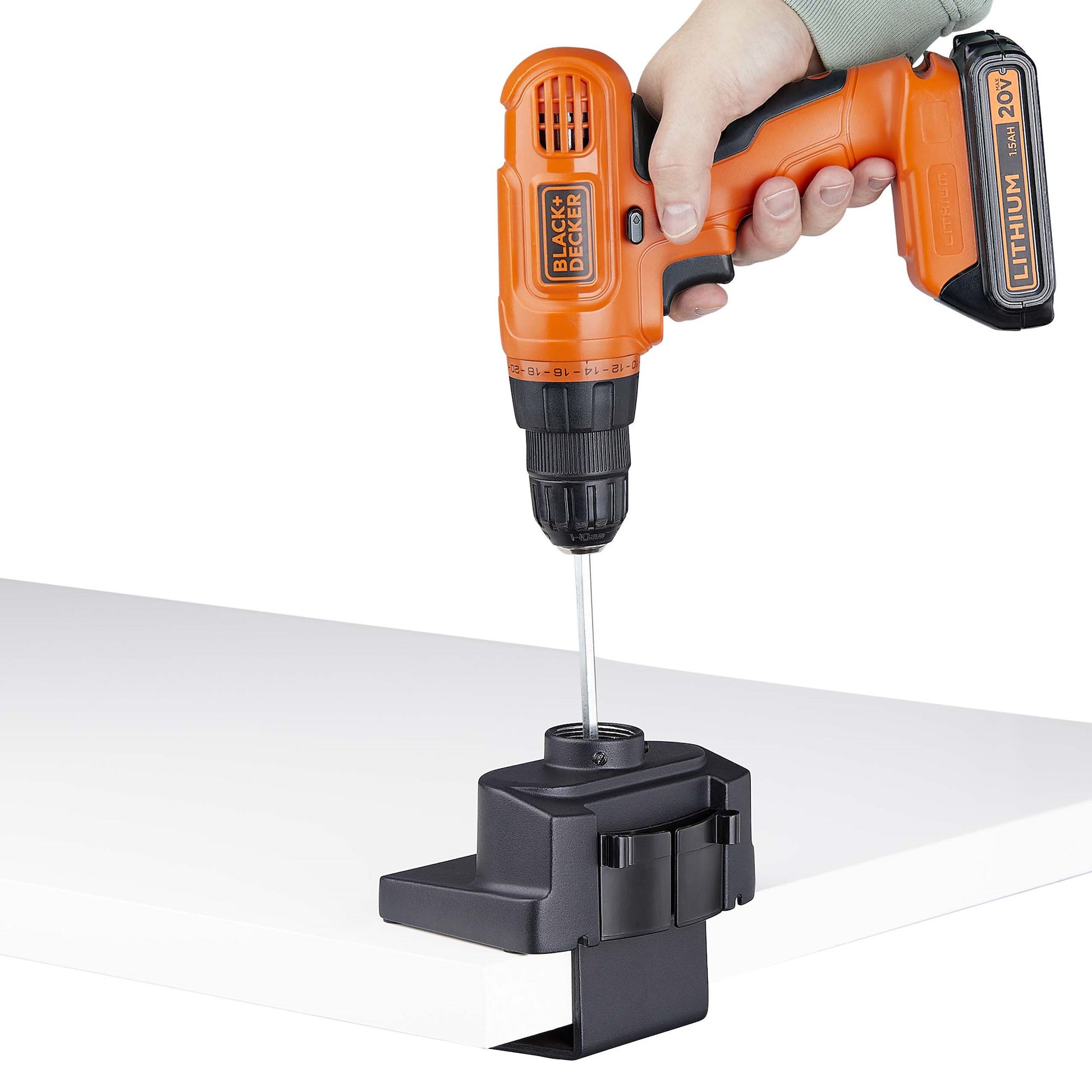

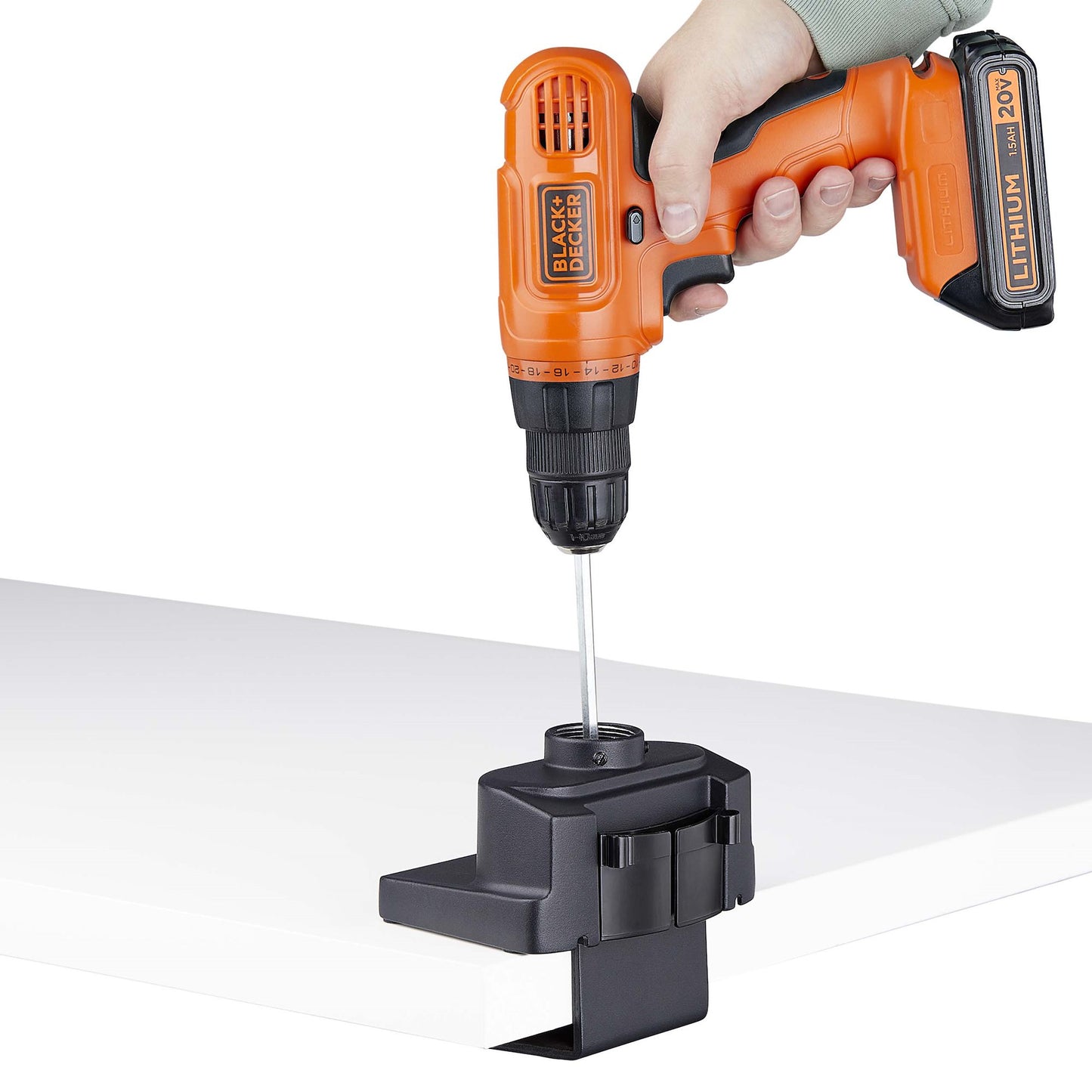

Top-Down Installation

The unique top-screw desk clamp simplifies installation by enabling users to tighten the clamp from manually from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with an interchangeable C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

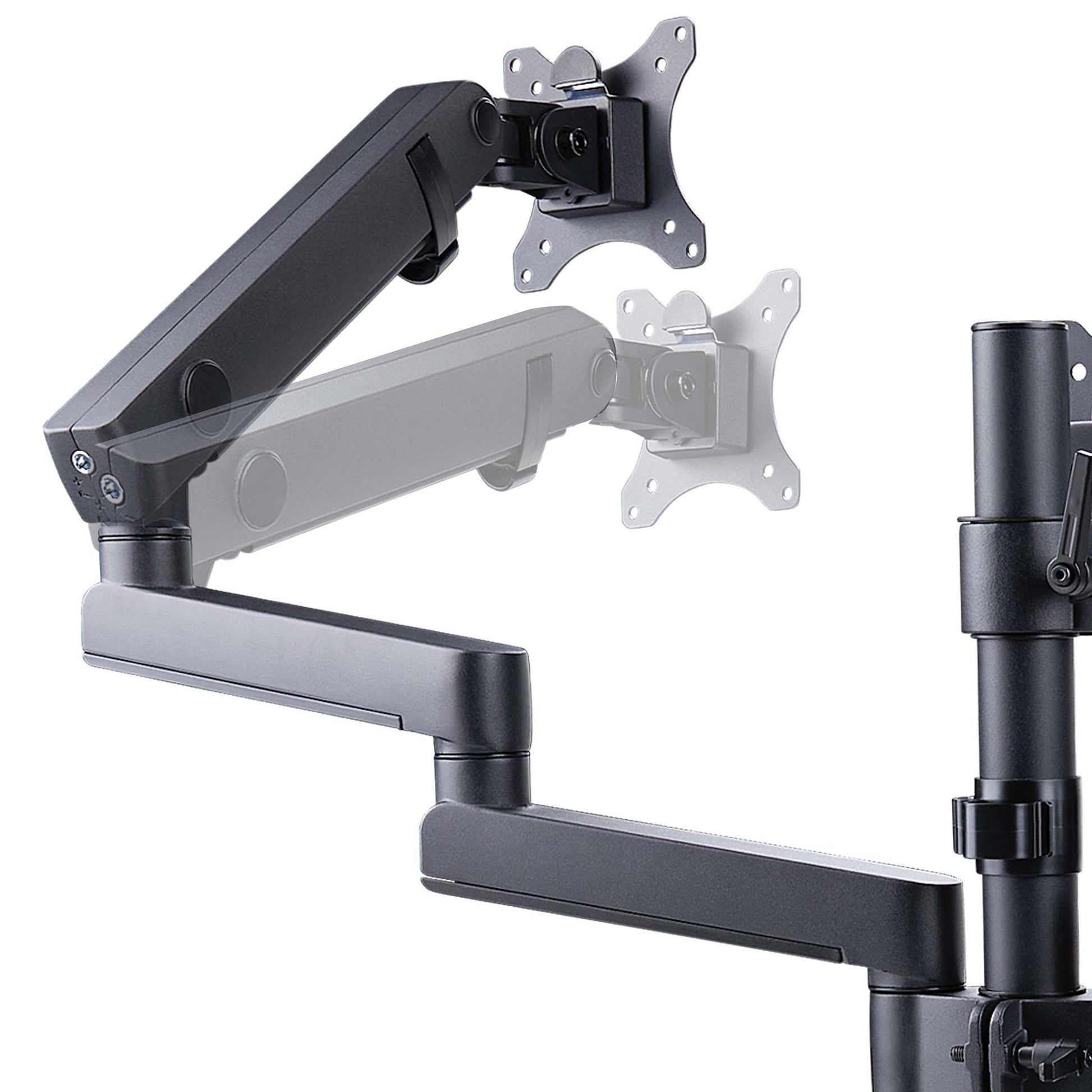

Height Adjustment with One Smooth Motion

The central monitor mount enables height adjustments along the 19-inch (483mm) pole, allowing users to customize the screen placement for maximum productivity and comfort. The outboard arms enable independent toolless height adjustment of up to 10in (255mm) with effortless one-touch motion. For additional adjustments, reposition the outboard arms along the pole for different height ranges. The arms can extend up to 28.4in (722mm) from the pole.

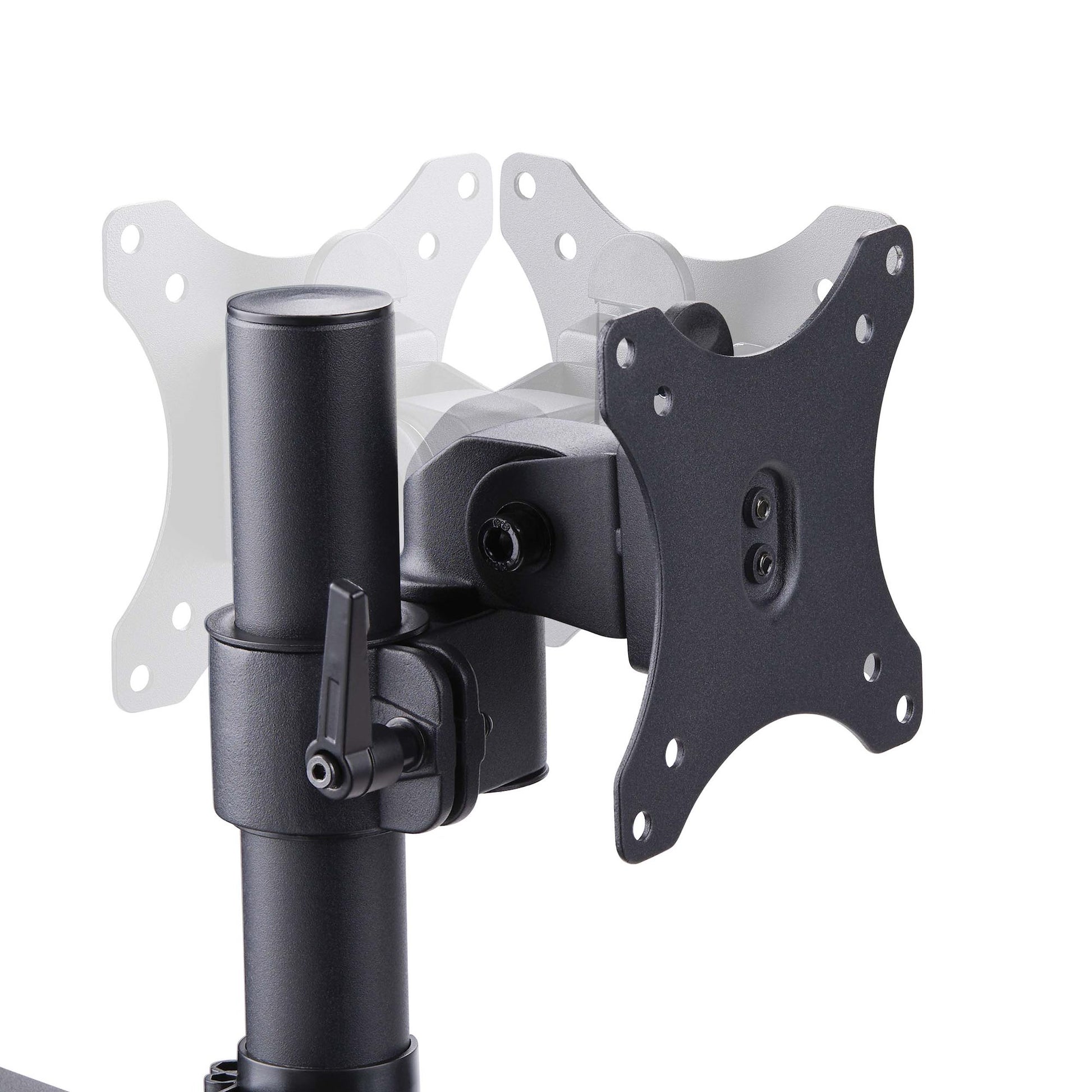

Range of Motion

The articulating arms allow toolless adjustments of +/-180° horizontal swivel and +/-90° screen rotation on the VESA plates for portrait or landscape orientations. The VESA mounting plates allow for +/-90° display tilt to provide an ideal viewing angle.

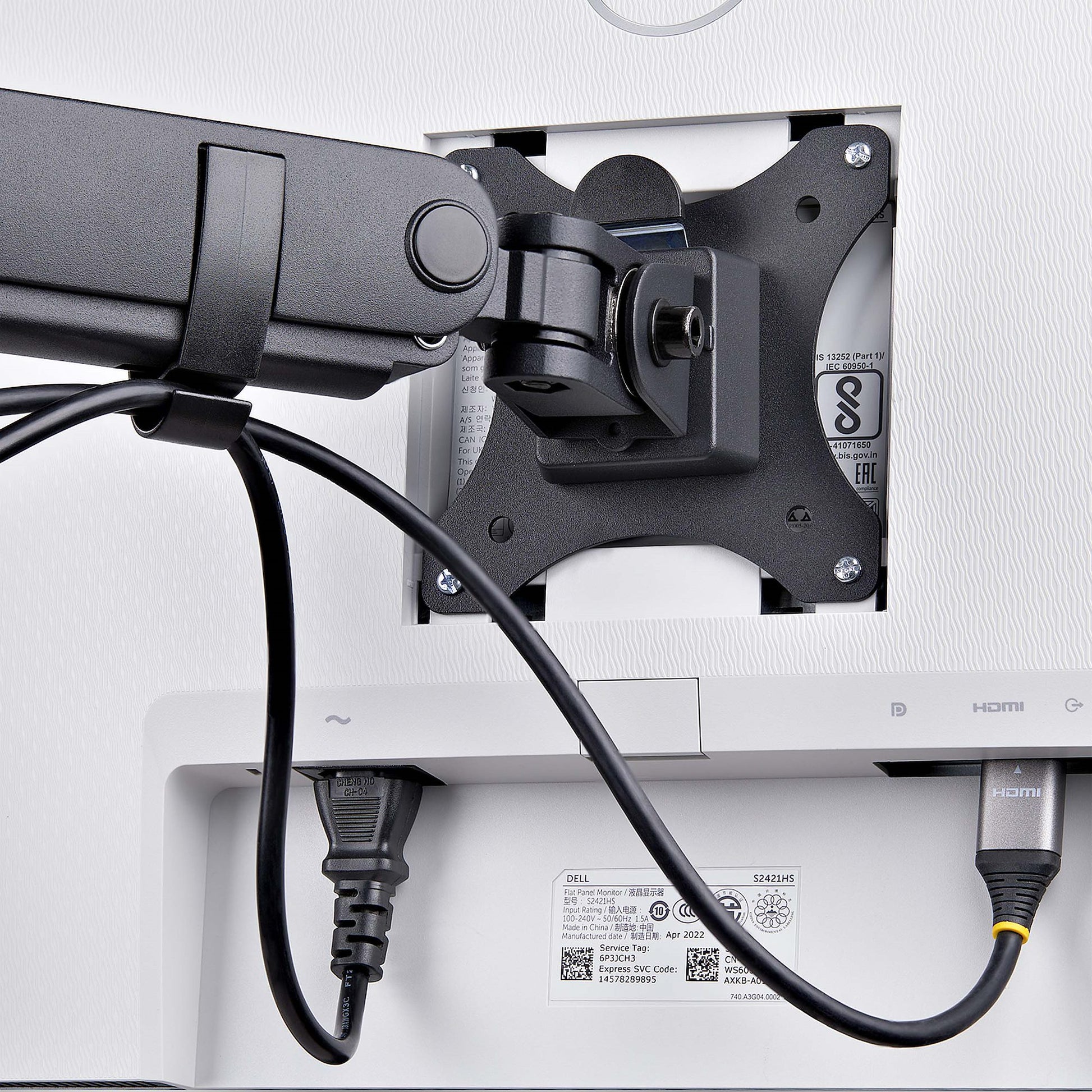

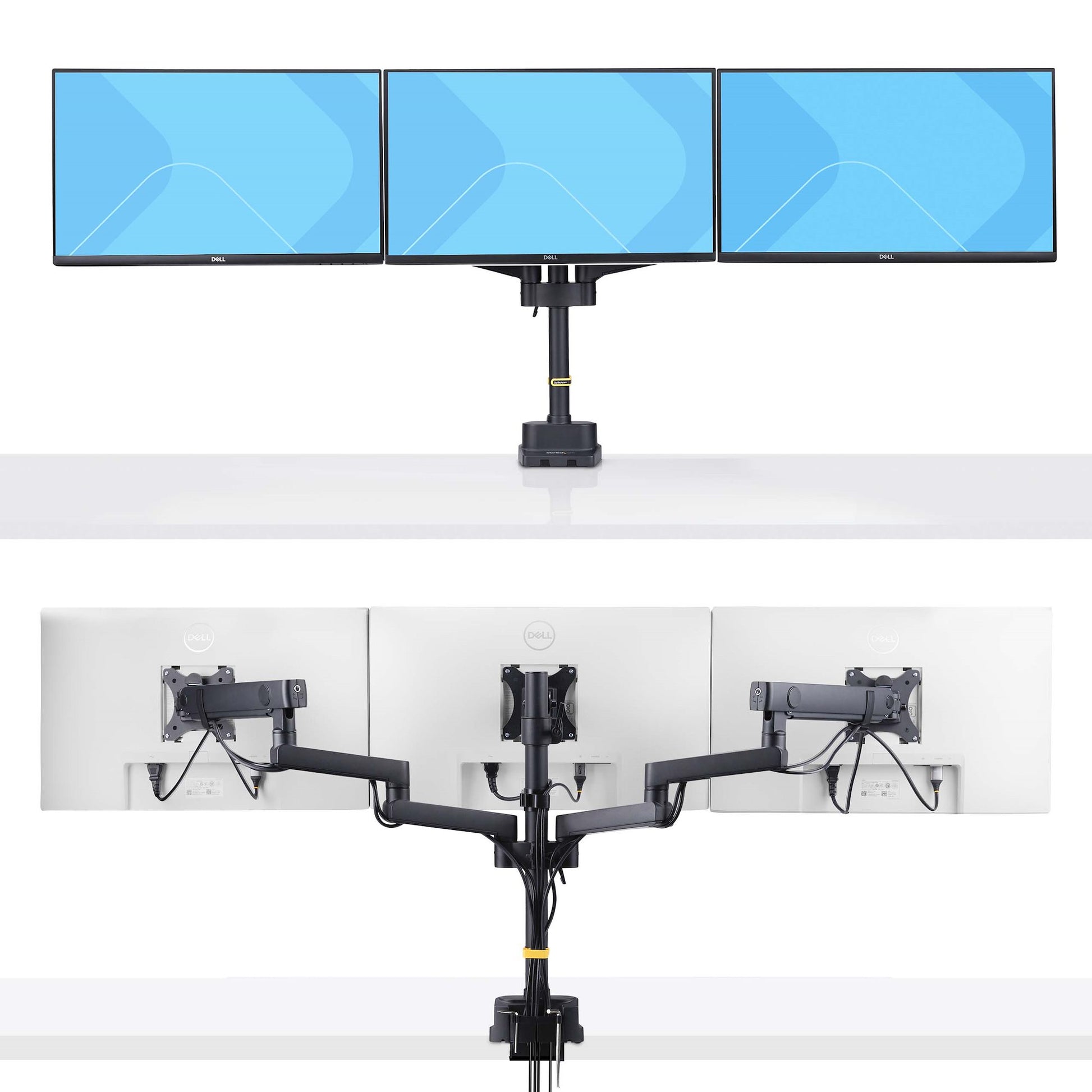

Cable Management

To maintain an organized workspace, the adjustable arms feature cable management channels along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.

Specifications

Mounting
Maximum weight capacity (per display)	7 kg
Desk thickness (max)	5 cm
Number of displays supported	3
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	21 kg
Maximum screen size	68.6 cm (27")
Extension arm (max)	72.2 cm
Ergonomics
Cable management	Yes
Height adjustment	Yes
Height adjustment range	225 - 562 mm
Pivot angle	-180 - 180°
Tilt angle range	-90 - 90°
Angle of rotation	90°
Rotating	Yes
Design
Product colour	Black
Housing material	Aluminium, Plastic, Steel
Anti-theft function	No
Weight & dimensions
Width	176 mm
Depth	1400 mm
Height	649 mm
Weight	1 kg
Package width	562 mm
Package depth	405 mm
Package height	121 mm
Package weight	8.9 kg
Packaging data
Wrench type	Hexagonal wrench
Screws included	Yes
Clamp included	Yes
Wrench included	Yes
Manual	Yes
Packaging content
Number of screws	49
Number of washers included	12
Number of spacers included	12
Grommet plate included	Yes
VESA mount included	Yes
Number of cable clips	1
Logistics data
Master (outer) case width	590 mm
Master (outer) case length	426 mm
Master (outer) case height	268 mm
Products per master (outer) case	2 pc(s)
