StarTech.com Desk Mount Quad Monitor Arm - Ergonomic VESA 4 Monitor Mount 2x2 up to

Position your screen exactly where you need it with the StarTech.com Desk Mount Quad Monitor — VESA fit and load ratings are below.

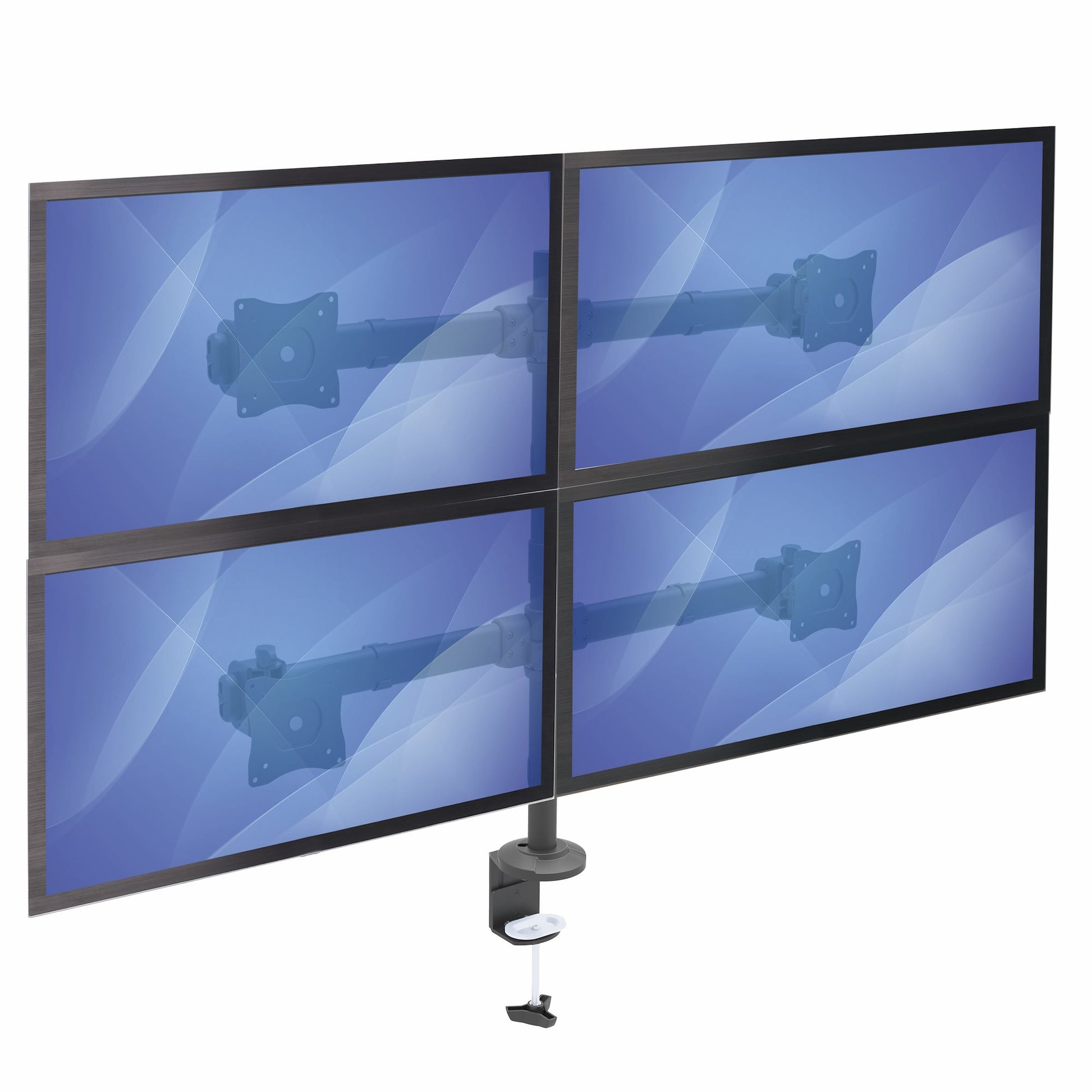

Mount four monitors to your desk to maximize productivity and save space

Free up valuable space by mounting four monitors on one base, to suspend your monitors above the surface of your desk, workstation or table. This sturdy desk-mount quad-monitor arm is constructed of heavy-duty steel and will hold all four displays securely in place to create an impressive and productive workspace.

Enhance your productivity while saving space

Create the ultimate workstation by mounting four monitors on one base that attaches securely to your desk, table or other surface. You can view multiple screens at the same time to work more efficiently while freeing up space.

The quad-monitor arm offers enhanced productivity in numerous office and commercial applications, such as banking and finance, letting you compare documents and analyze data more effectively. It’s also ideal for software developers, programmers, CAD designers, and many other professionals. You can also create engaging digital signage displays to communicate with your clients or employees.

Rugged Steel Design

With its heavy-duty solid steel construction, the quad-monitor mount securely holds your monitors and helps to ensure long-lasting performance. Each monitor arm supports a flat-panel display from 13” to 27” (330 to 686 mm) in size and up to 17.6 lb. (8 kg) in weight.

Adjust your monitors for ideal viewing

You can adjust the position and angle of your monitors for comfortable viewing, with +30° to -30° swivel and tilt. The quad-monitor mount enables smooth and effortless tilting, which makes it easy to reduce glare and find the ideal viewing angle. For precise alignment, the monitor arm offers micro adjustments that enable you to perfectly line up your displays.

Easy installation

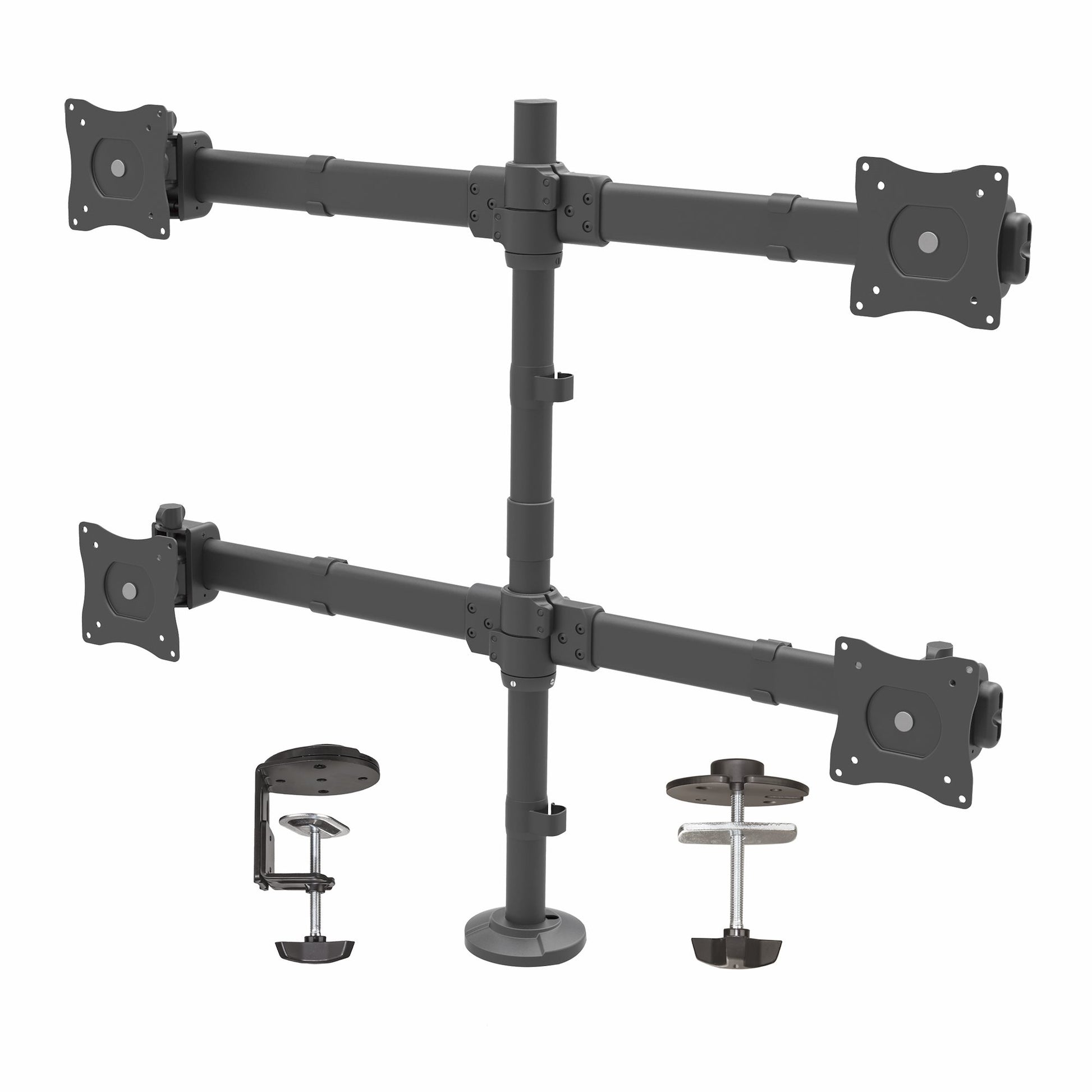

The monitor mount supports four VESA mount compliant monitors and it's easy to install using the desk clamp or grommet mount. To keep your cables neatly tucked away, the quad-monitor arm features cable management clips that help to keep your workstation tidy.

The ARMQUAD is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting
Desk thickness (min)	1 cm
Desk thickness (max)	8 cm
Minimum screen size	33 cm (13")
Panel mounting interface	75 x 75,100 x 100 mm
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Maximum weight capacity	32 kg
Maximum screen size	68.6 cm (27")
Ergonomics
Cable management	Yes
Rubber feet	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-30 - 30°
Angle of rotation	360°
Design
Product colour	Black
Housing material	Steel
Certification	CE, REACH
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	115 mm
Depth	835 mm
Height	828 mm
Weight	7.6 kg
Package width	378 mm
Package depth	478 mm
Package height	126 mm
Package weight	9.2 kg
Packaging data
Wrench type	Hexagonal wrench
Screws included	Yes
Clamp included	Yes
Wrench included	Yes
Manual	Yes

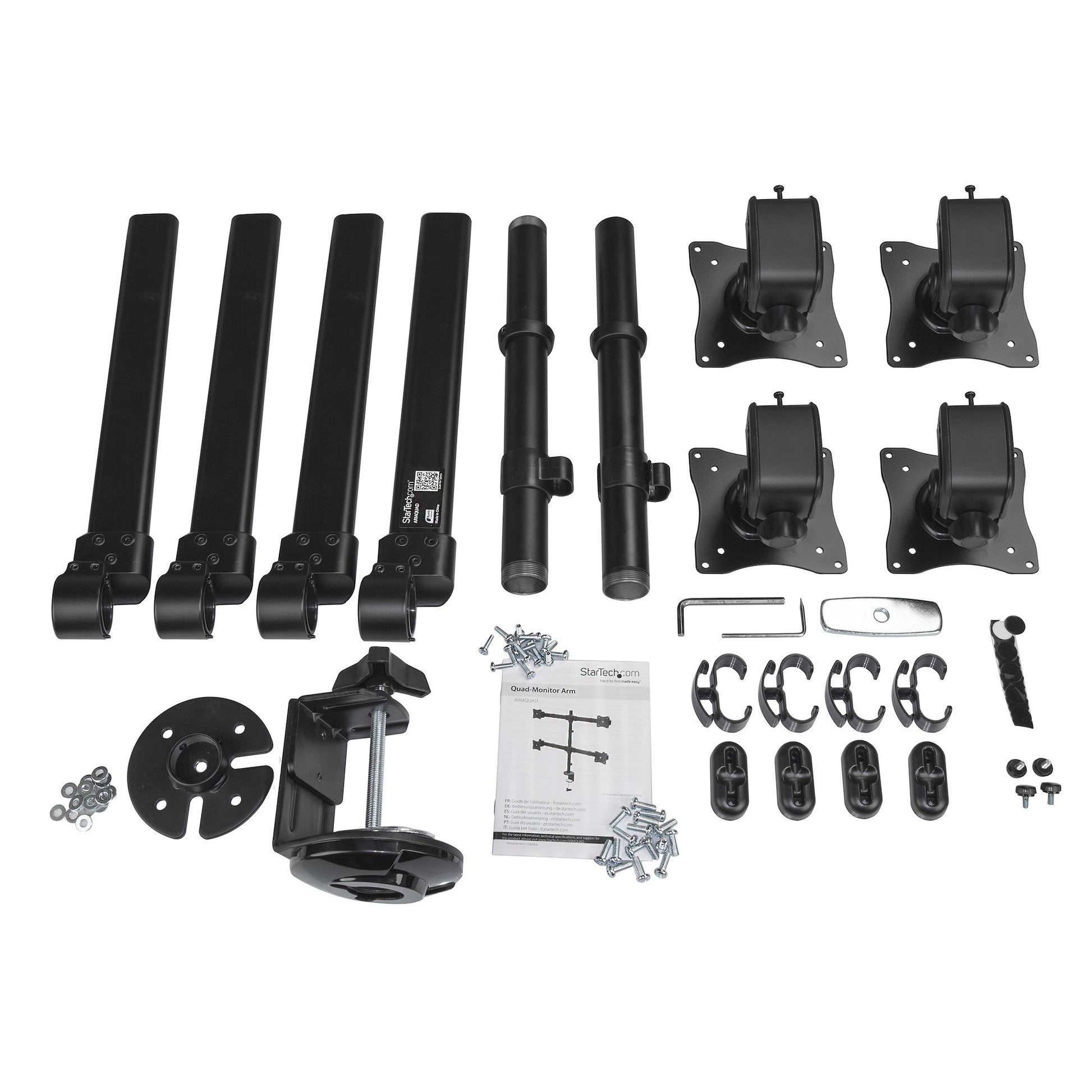

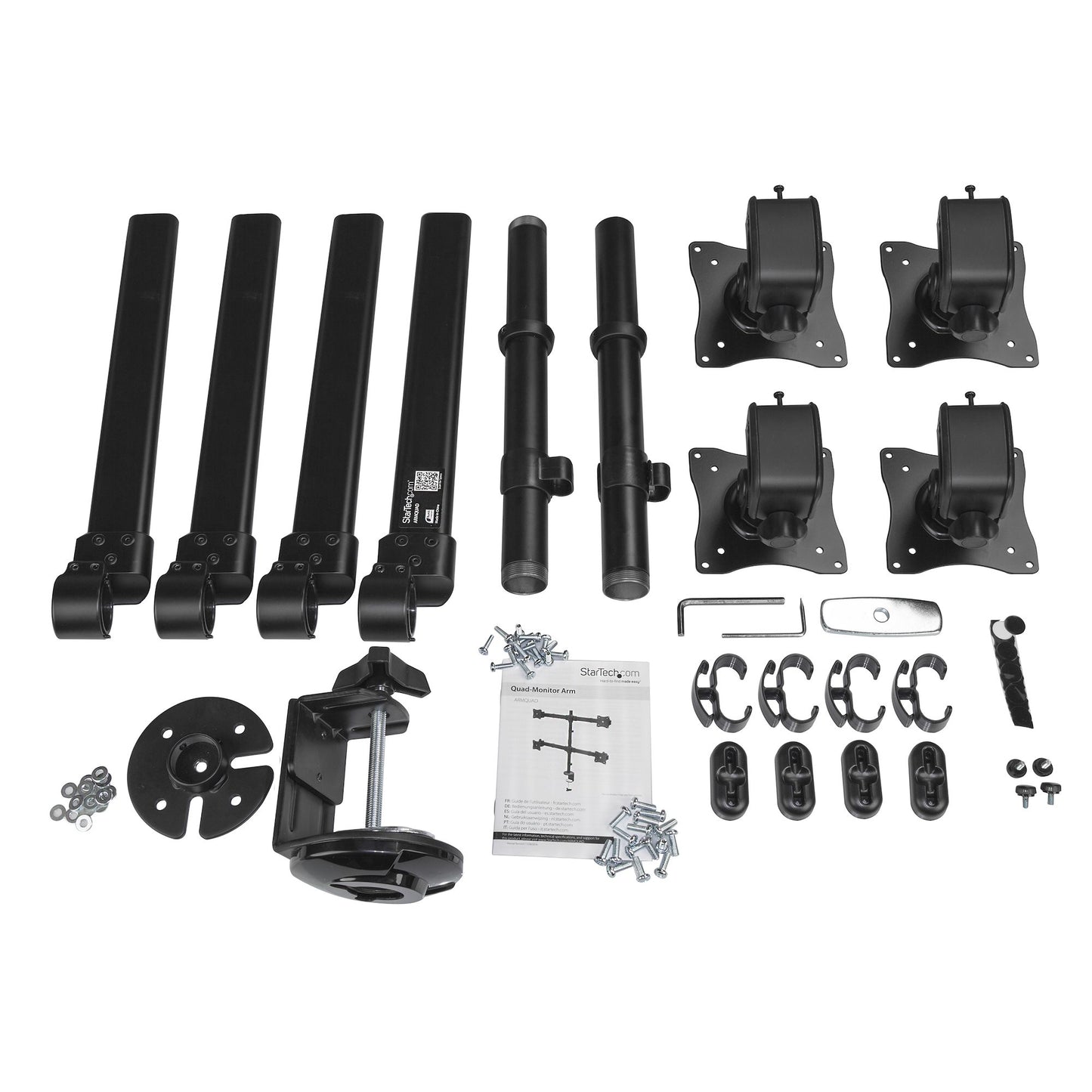

Packaging content
Number of screws	36
Number of washers included	16
Grommet plate included	Yes
Number of cable clips	4
Number of rubber pads included	5 pc(s)
Number of end caps included	4 pc(s)
Logistics data
Master (outer) case width	400 mm
Master (outer) case length	496 mm
Master (outer) case height	274 mm
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	85299097
