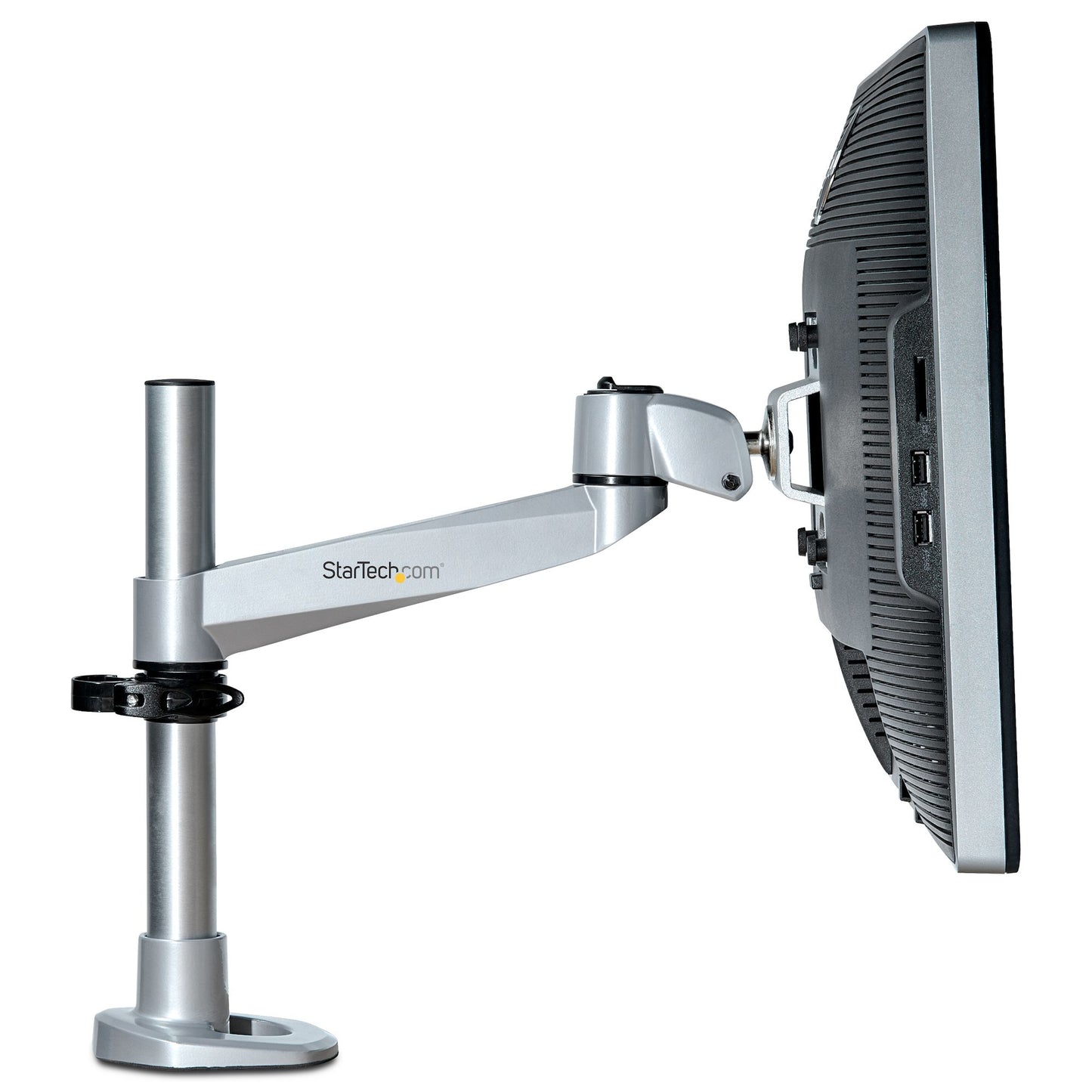

StarTech.com Desk Mount Monitor Arm - VESA or Apple iMac/Thunderbolt or Ultrawide

Position your screen exactly where you need it with the StarTech.com Desk Mount Monitor Arm — VESA fit and load ratings are below.

Monitor Mount | For up to 30lb VESA Mount, iMac, Apple Cinema and Thunderbolt Displays

Save space with this premium desk-mount monitor arm, by suspending your display above your desk. It supports a monitor up to 30" (16:9) or up to 49" (32:9 / ultrawide), with an articulating arm that makes it easy to adjust your screen.

Versatile Use

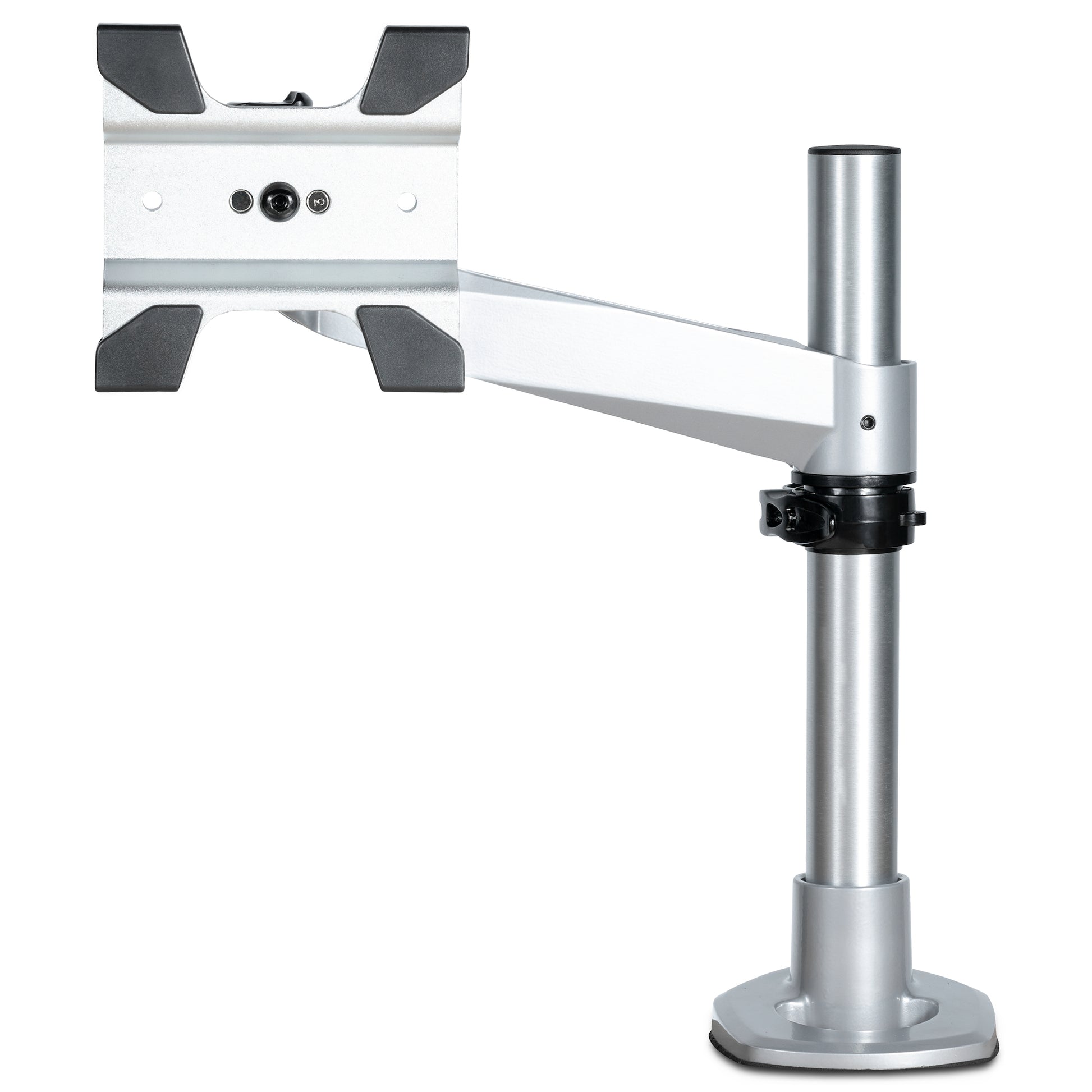

Use the single monitor desk mount to mount your VESA mount monitor (75x75, 100x100) up to 30" (16:9) or up to 49" (32:9 / ultrawide)). You can also mount your Apple Cinema Display, 24-inch iMac or 27-inch iMac, or Thunderbolt Display that came with a removable stand or built-in VESA mount adapter. The attractive silver finish complements Apple displays, making it ideal for customer-facing workstations.

Sleek and Stable Aluminum Design

Made of aluminum, the heavy-duty monitor arm provides stable support for your display, with a weight capacity of up to 30.9 lb. (14 kg).

Enjoy Optimum Viewing

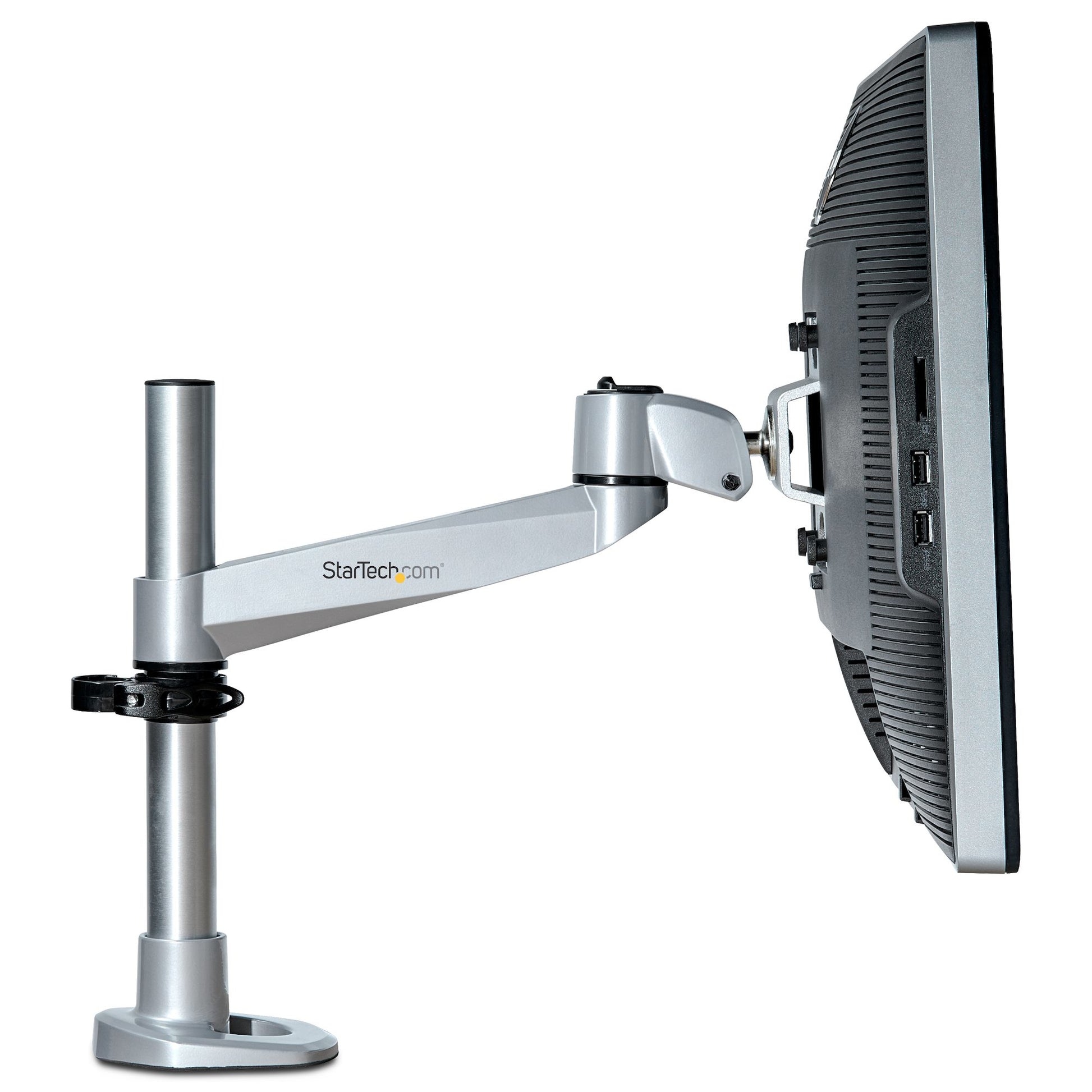

The arm extends 8.3" (210 mm) to allow a wide range of motion. Move the monitor arm effortlessly side to side to adjust your screen position.

With its articulating arm, the monitor mount makes it easy to find the right viewing angle. Pan a full +180/-180 degrees left or right and tilt your display +90/-15 degrees to adjust the angle up or down. For landscape or portrait viewing, rotate your display 360 degrees.

Height Adjustment

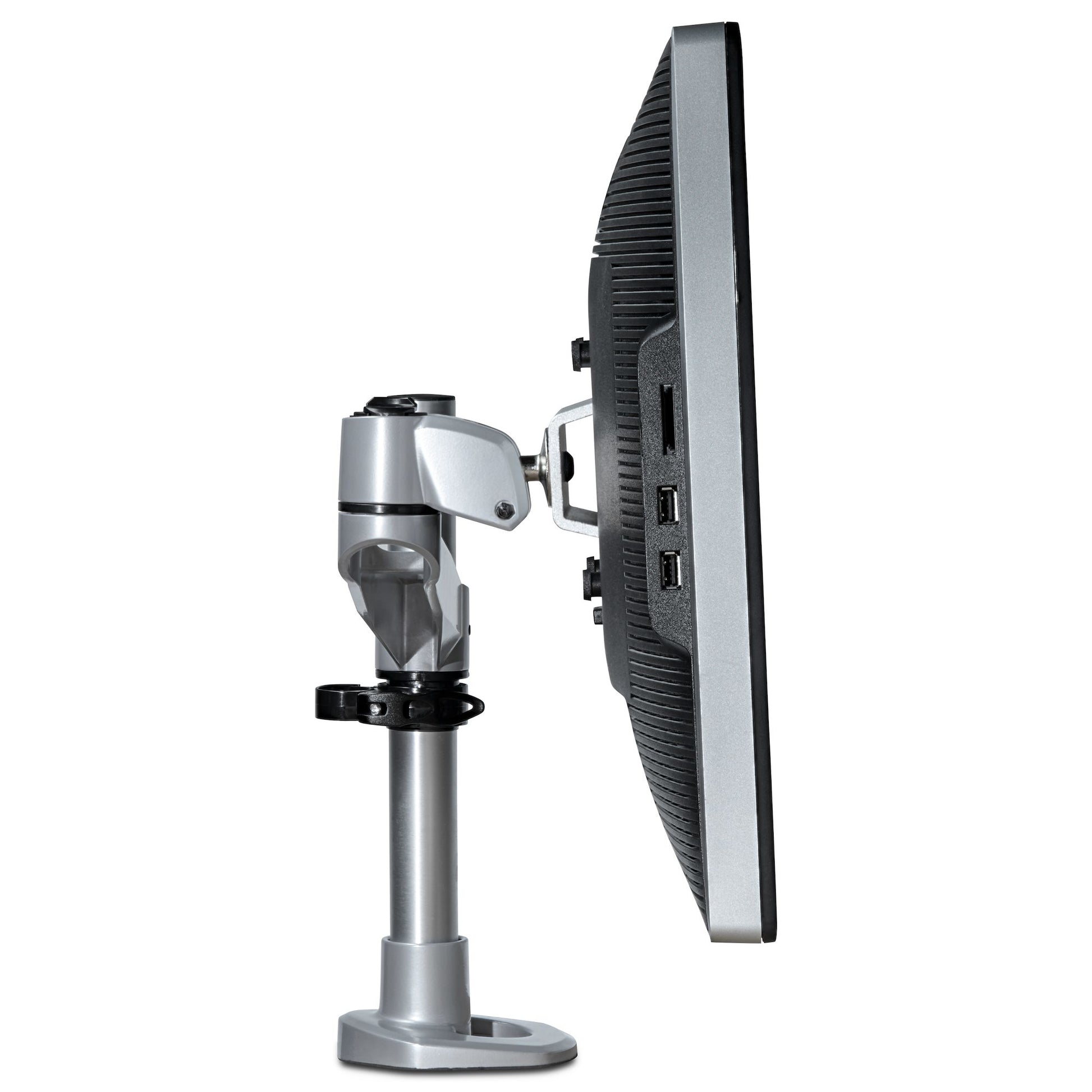

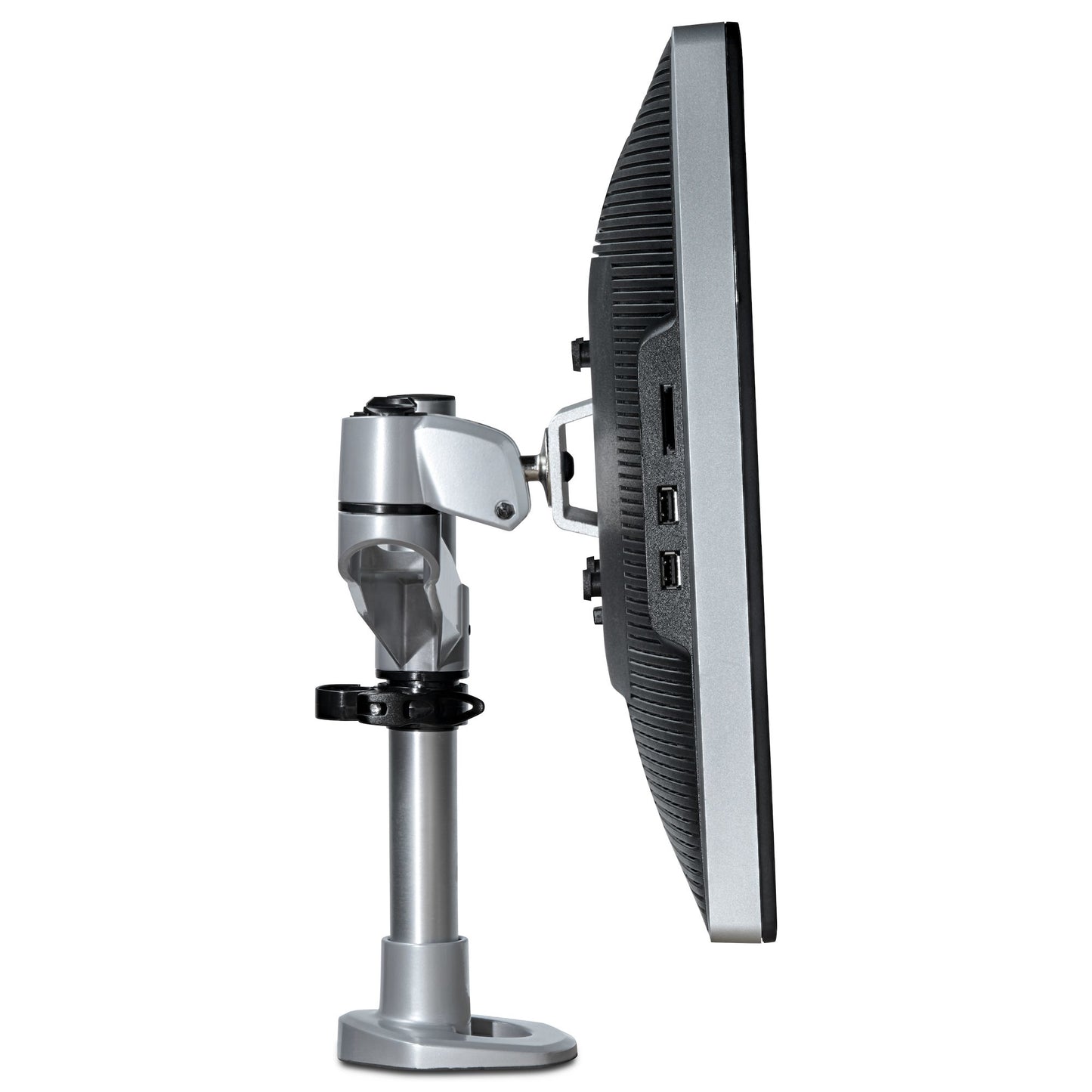

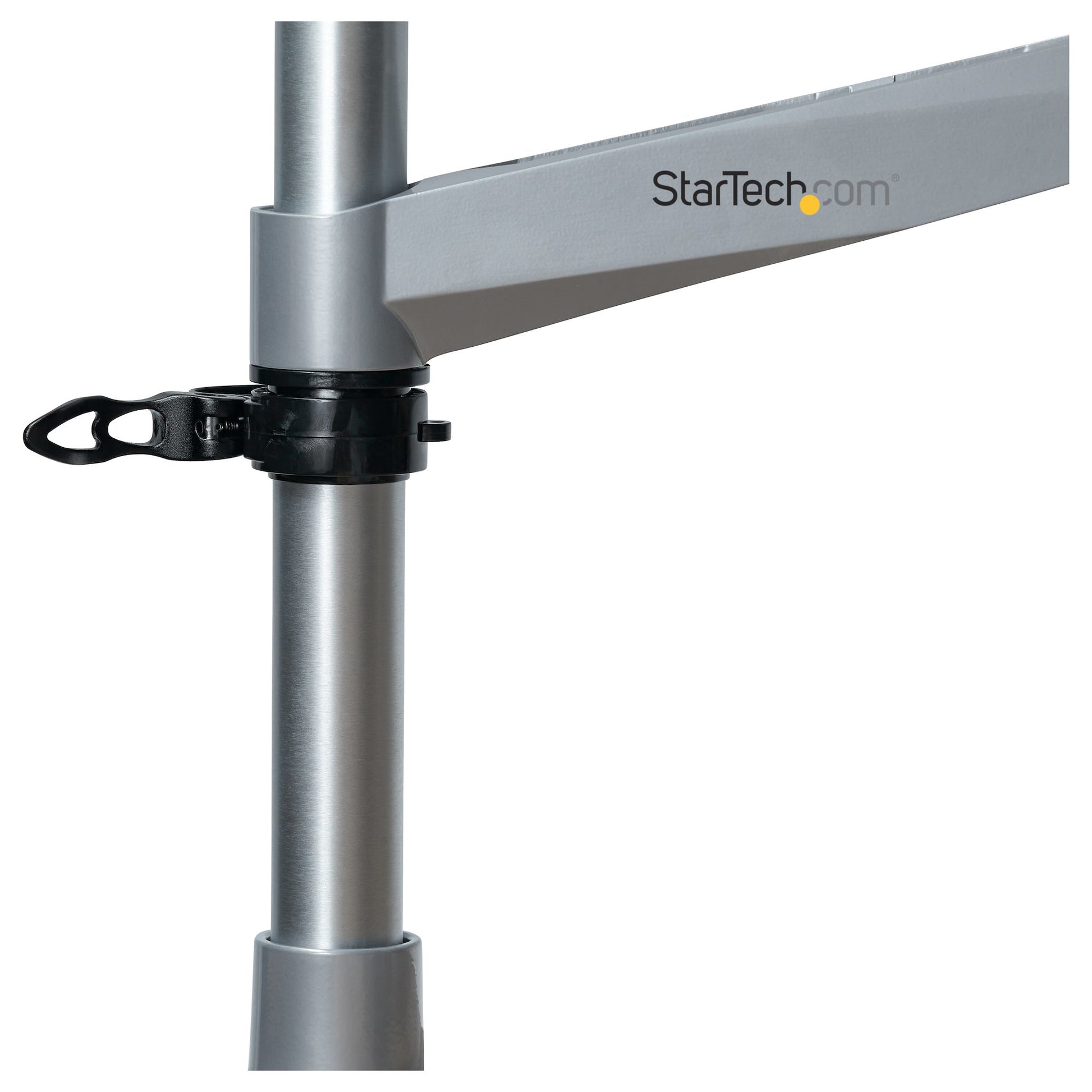

Work in comfort. This height adjustable computer monitor arm lets you raise or lower the monitor arm along the pole, with a range of up to 7.87" (200 mm).

Tool-less Assembly

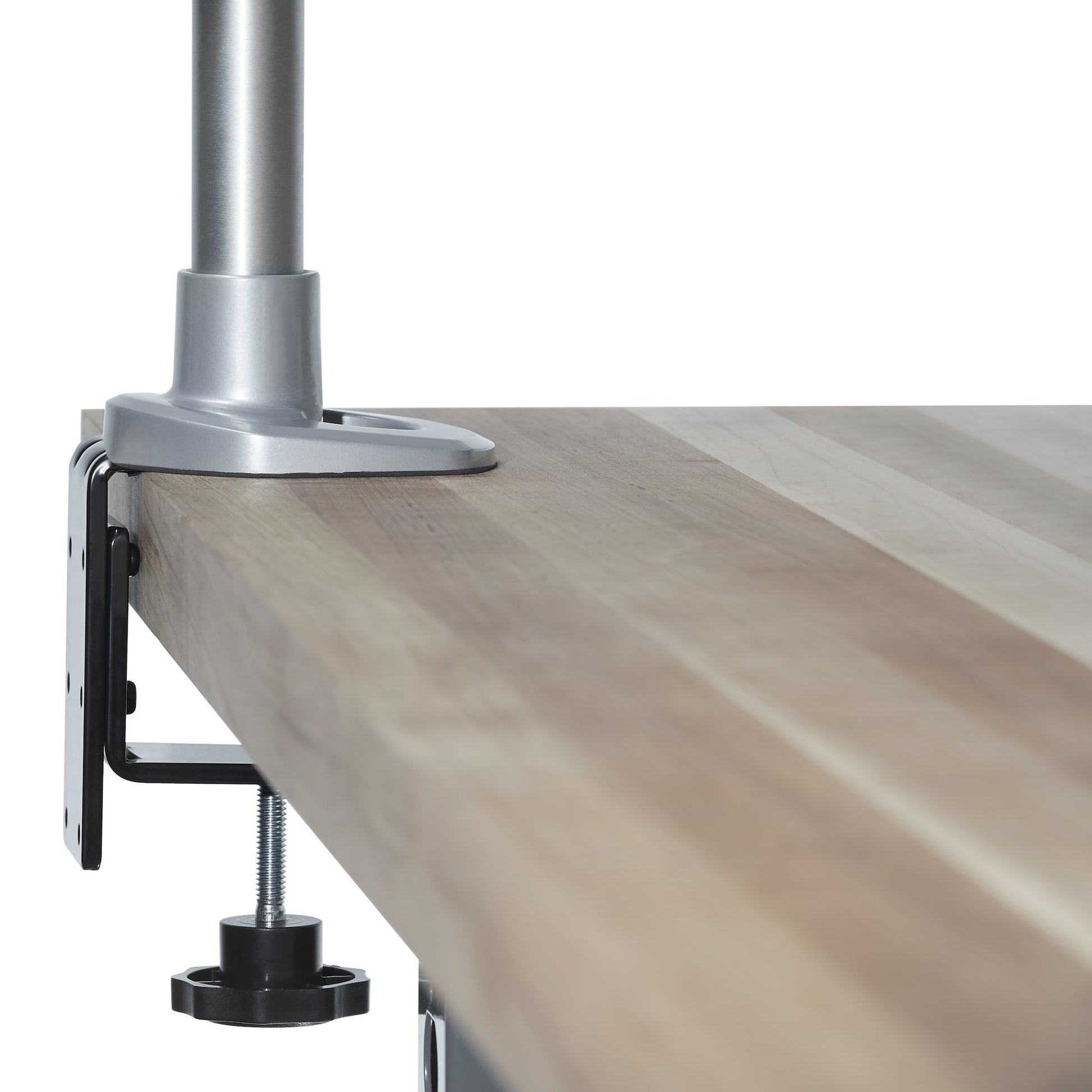

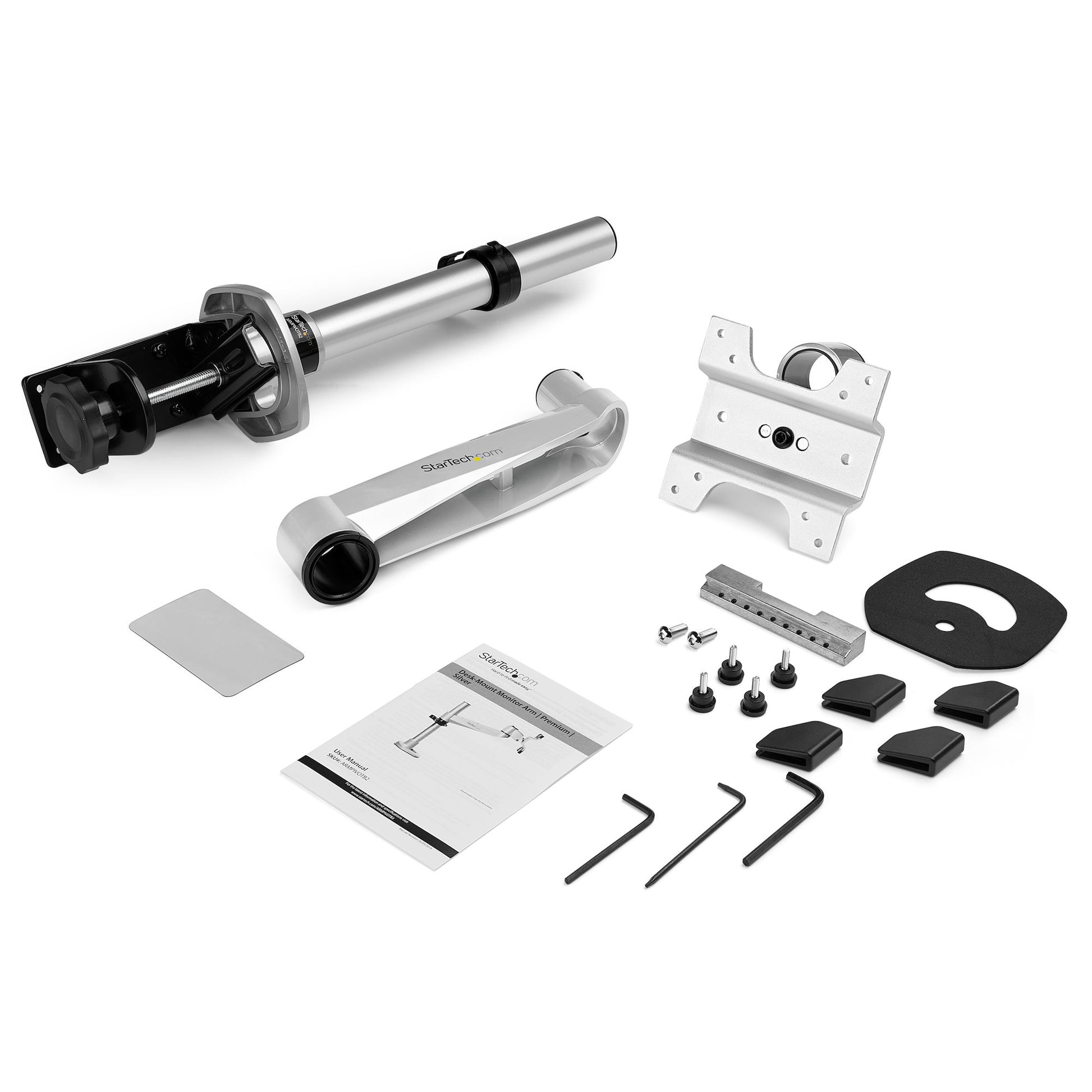

Quick slide-and-click connections ensure easy assembly and save time when setting up multiple units. The computer screen mount gives you the option of desk-clamp or grommet-hole mounting. Hardware is included for all mounting options.

Specifications

Mounting
Desk thickness (min)	2 cm
Desk thickness (max)	6 cm
Minimum screen size	30.5 cm (12")
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Maximum weight capacity	14 kg
Maximum screen size	86.4 cm (34")
Ergonomics
Tilt angle range	-15 - 90°
Angle of rotation	360°
Pan range	-180 - 180°
Design
Product colour	Silver
Housing material	Aluminium
Certification	CE, TAA, REACH
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	320 mm
Depth	320 mm
Height	520 mm
Weight	2.5 kg
Package width	228 mm
Package depth	474 mm
Package height	144 mm
Package weight	3.2 kg
Packaging data
Wrench type	Hexagonal wrench
Screws included	Yes
Wrench included	Yes
Manual	Yes
Packaging content
Number of screws	6
Logistics data
Master (outer) case width	486 mm
Master (outer) case length	710 mm
Master (outer) case height	314 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85299097
