StarTech.com Desk Mount Monitor Arm, Up to 40-inch Screen/17.6lb (8kg), Mechanical
StarTech.com Desk Mount Monitor Arm, Up to 40-inch Screen/17.6lb (8kg), Mechanical
Regular price
£93.98 GBP
Regular price
Sale price
£93.98 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the StarTech.com Desk Mount Monitor Arm — VESA fit and load ratings are below.

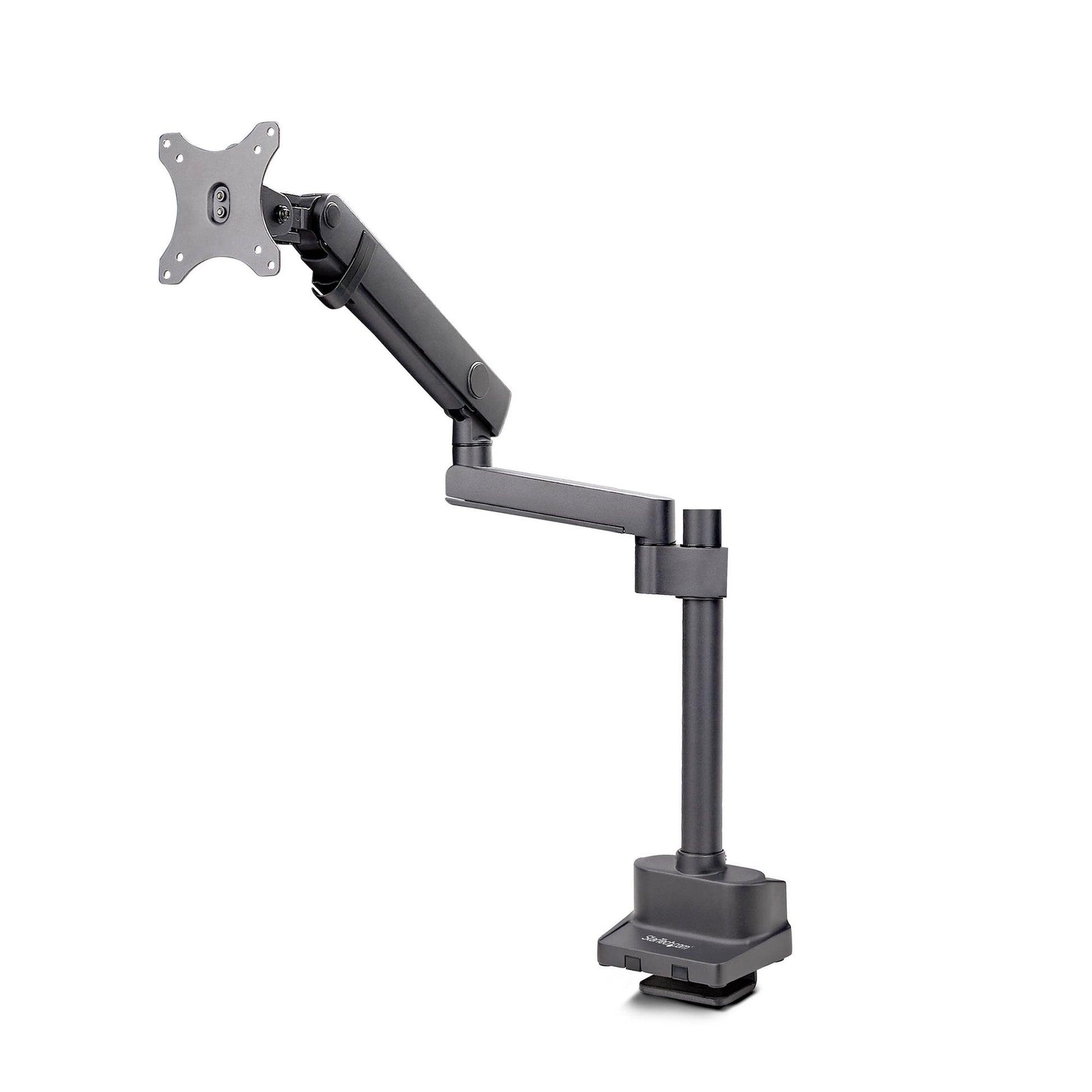

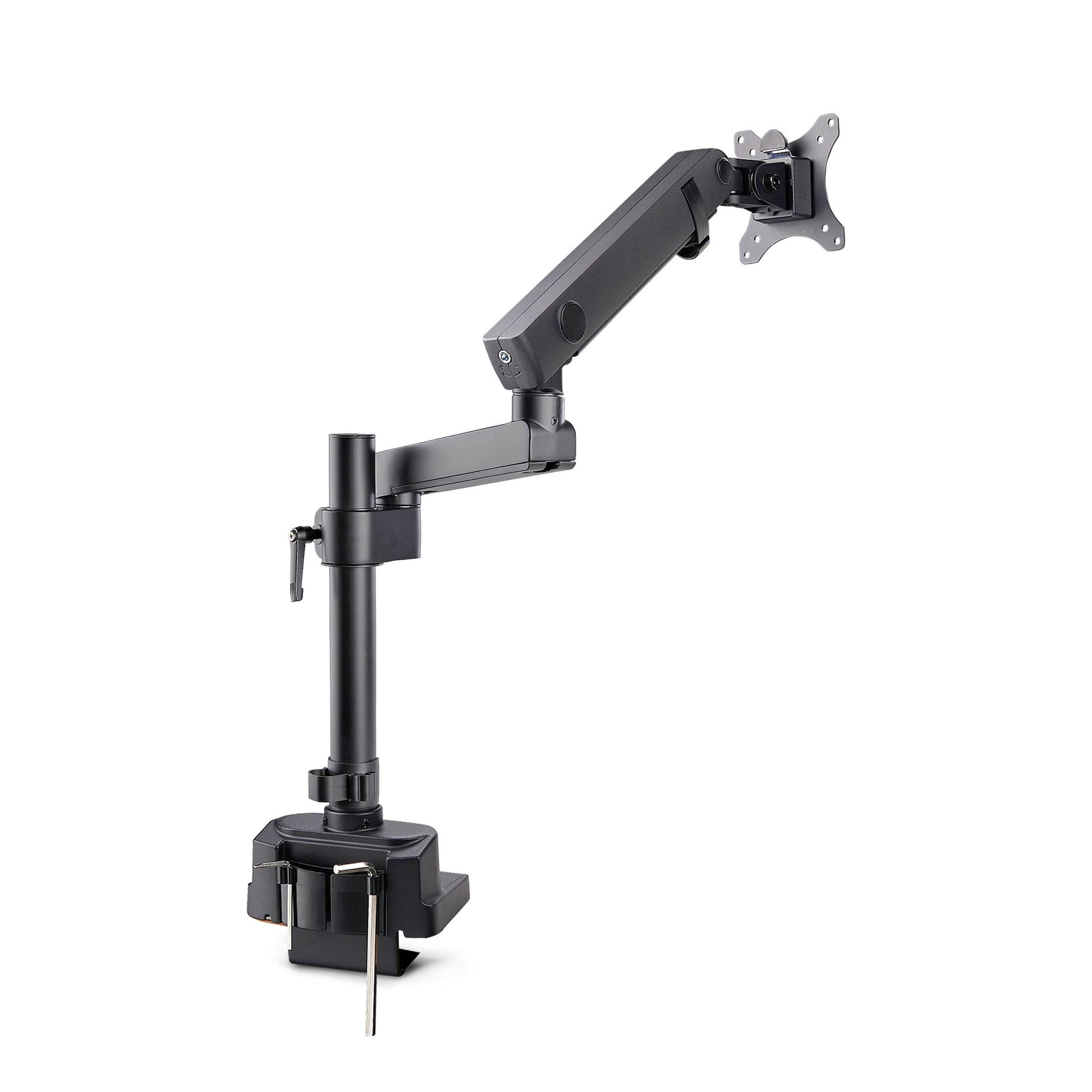

Monitor desk mount with support for up to 40" monitor with height adjustable spring armThis monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

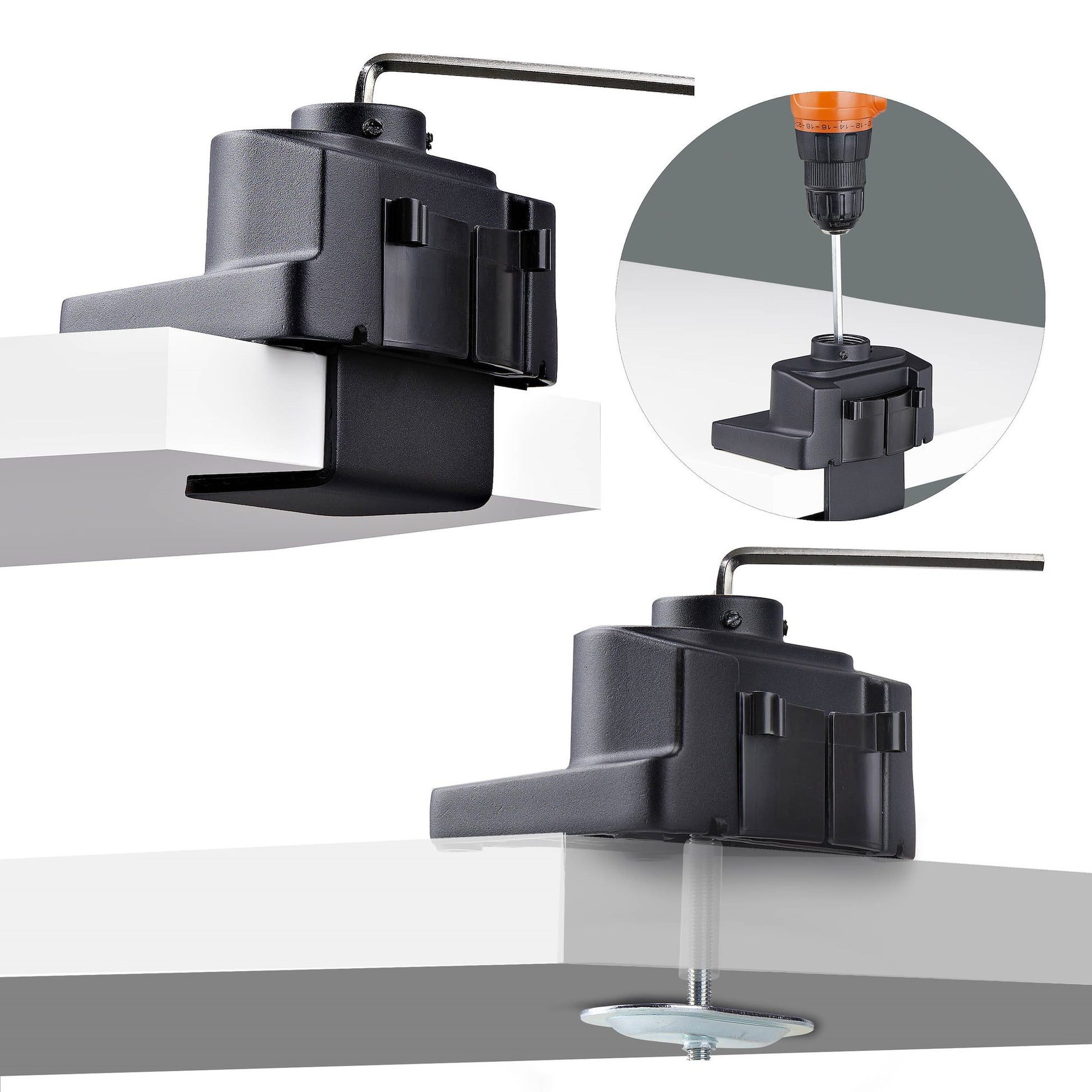

Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.
Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.
Range of Motion

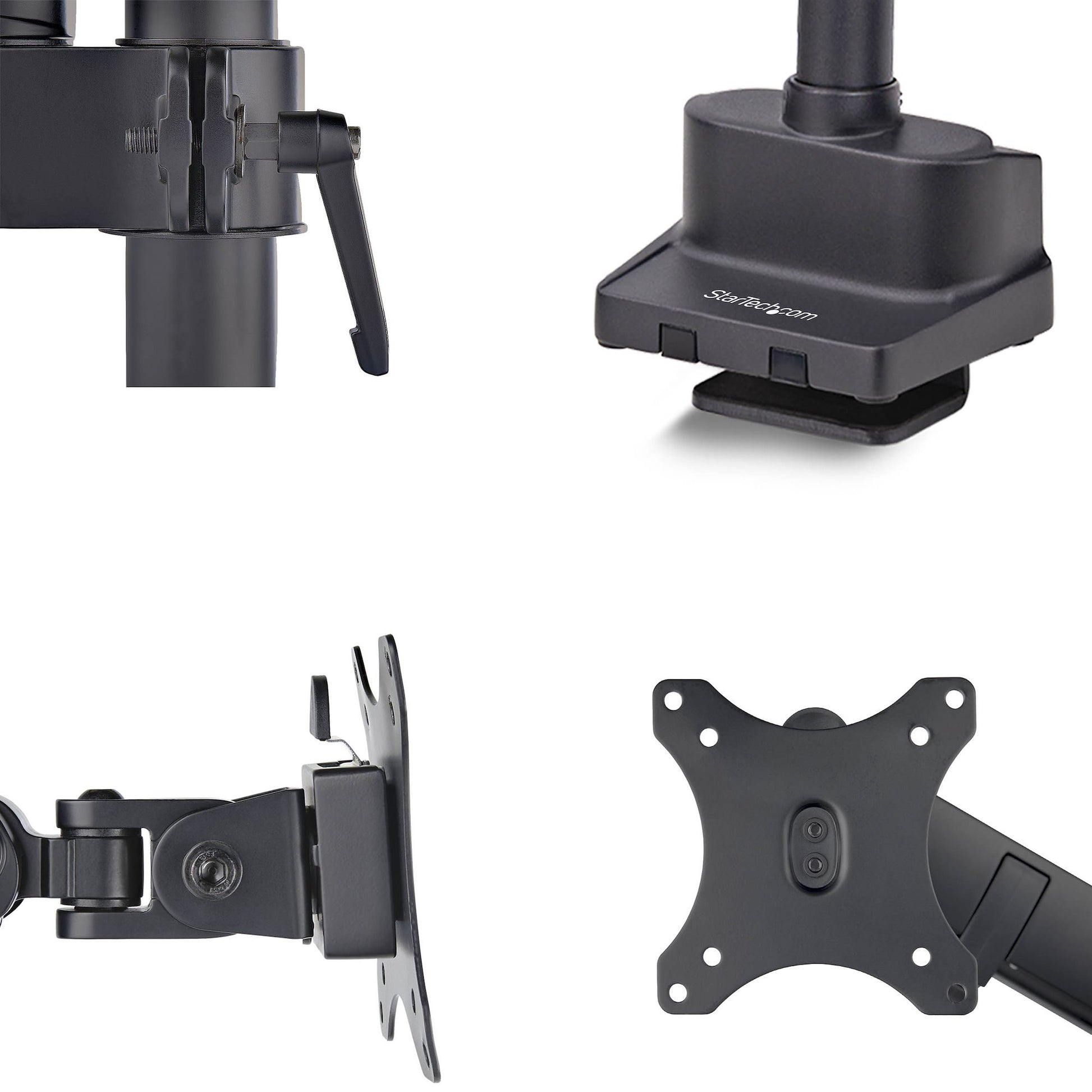

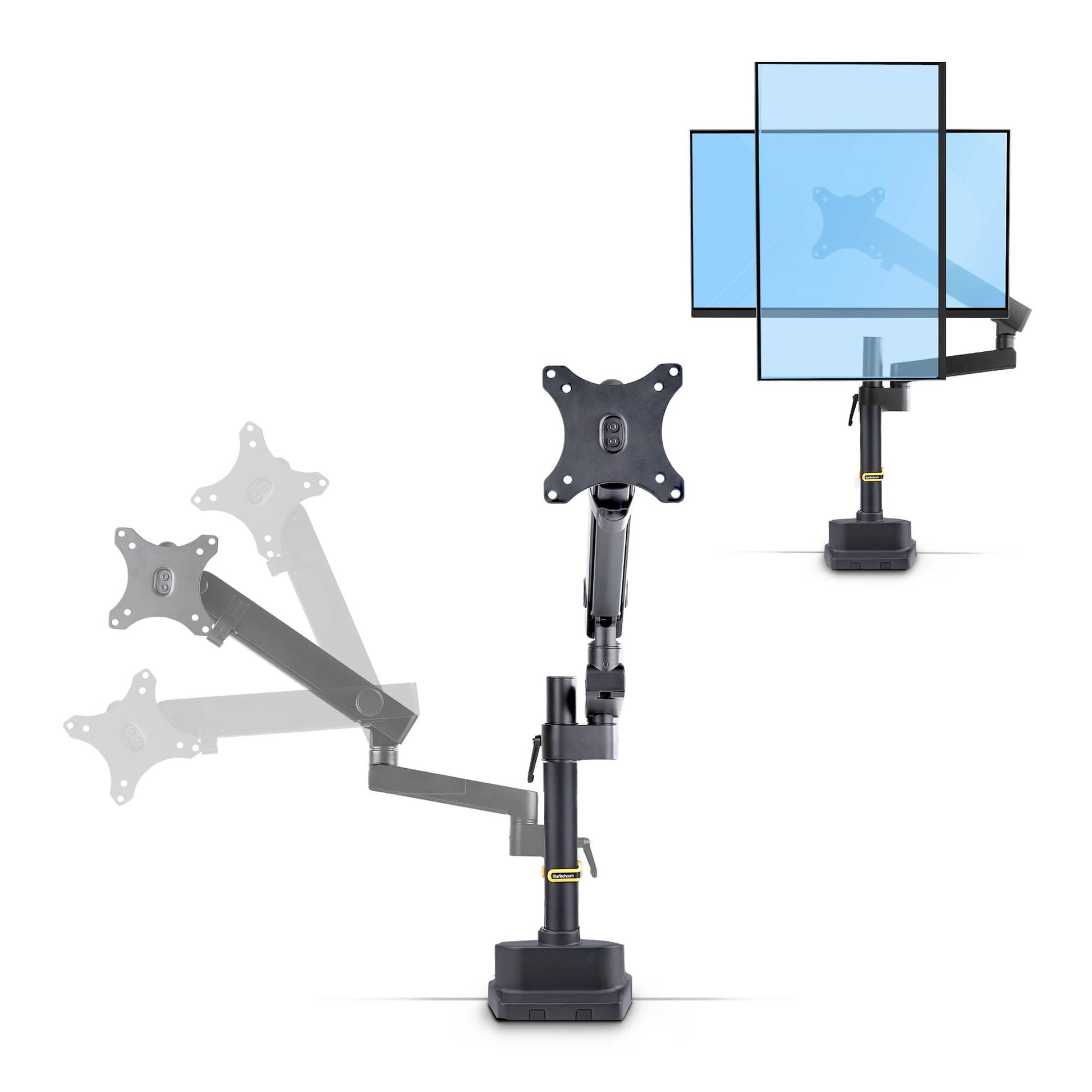

Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 101.6 cm (40") |
| Ergonomics | |
| Cable management | Yes |
| Depth adjustment range | 419 - 594 mm |
| Height adjustment | Yes |
| Height adjustment range | 180 - 620 mm |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -90 - 90° |
| Angle of rotation | 360° |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Plastic, Steel |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 703 mm |
| Height | 607 mm |
| Weight | 3.6 kg |
| Package width | 435 mm |
| Package depth | 240 mm |
| Package height | 117 mm |
| Package weight | 3.7 kg |
| Packaging data | |
| Screws included | Yes |

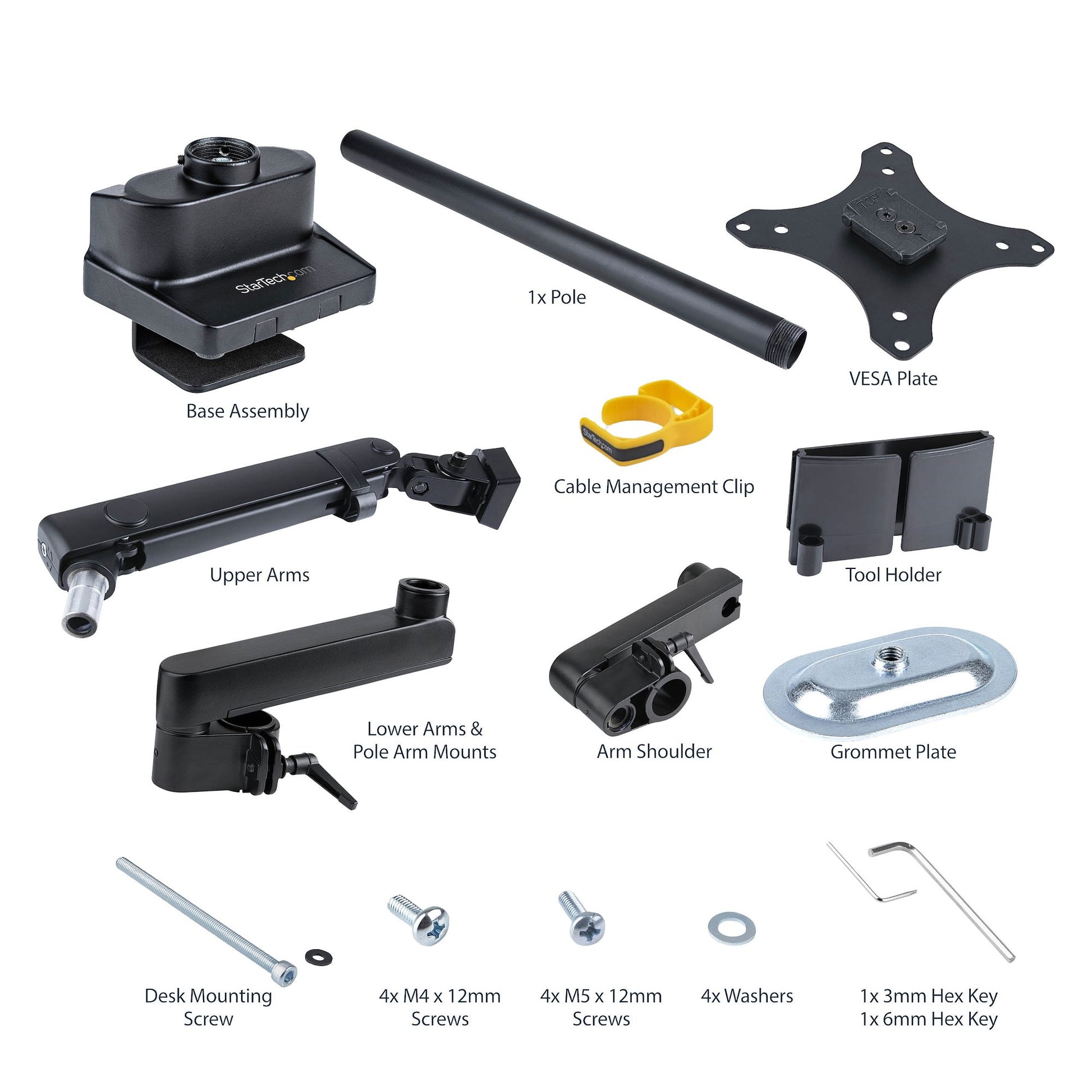

| Packaging content | |
| Number of screws | 9 |
| Number of washers included | 4 |
| Grommet plate included | Yes |
| VESA mount included | Yes |
| Number of cable clips | 1 |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 4 pc(s) |
