StarTech.com Desk Mount Monitor Arm for Single VESA Display up to 32" or 49"

Position your screen exactly where you need it with the StarTech.com Desk Mount Monitor Arm — VESA fit and load ratings are below.

VESA Monitor Mount | Desk/Grommet Mount | Height Adjustable | For up to 32" Monitors

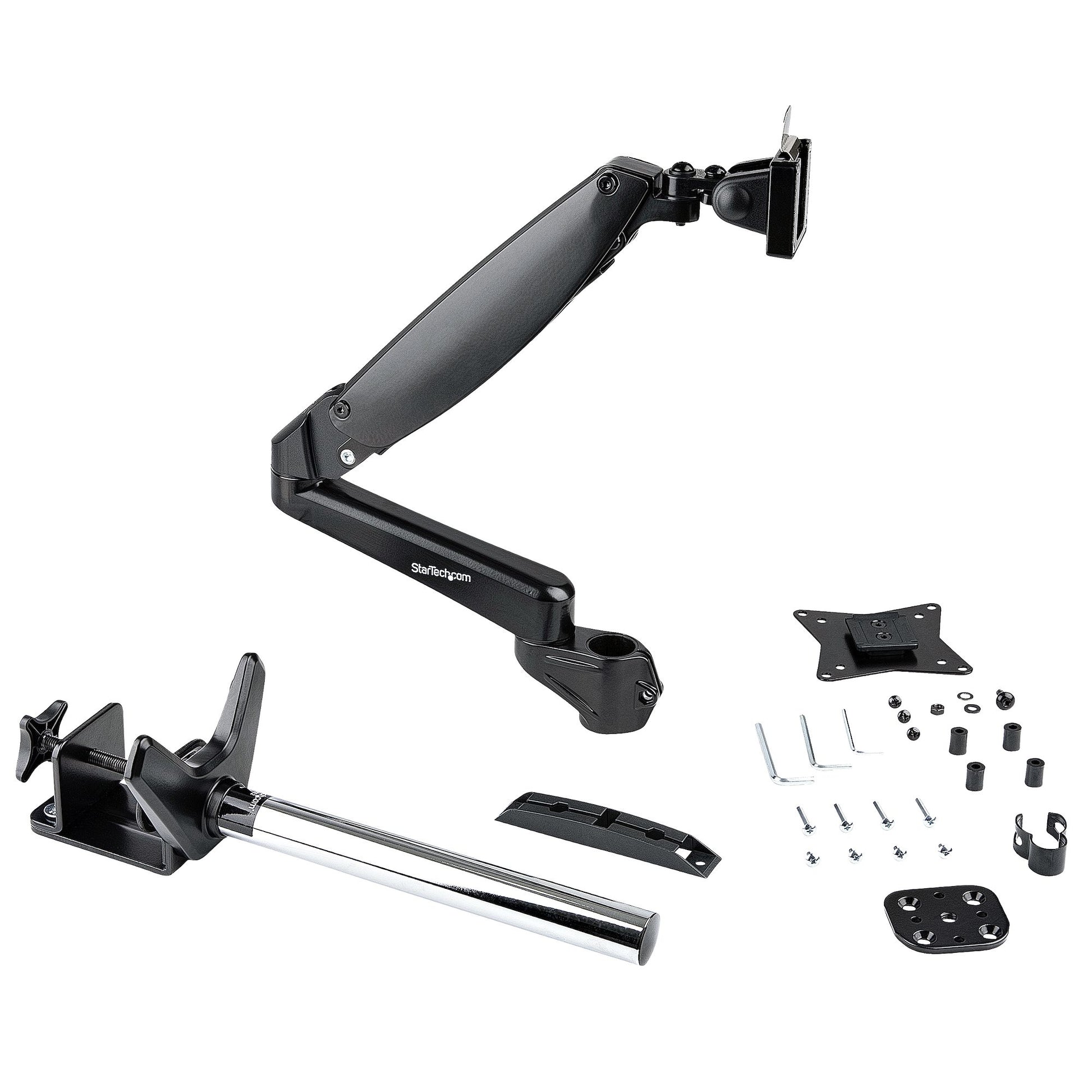

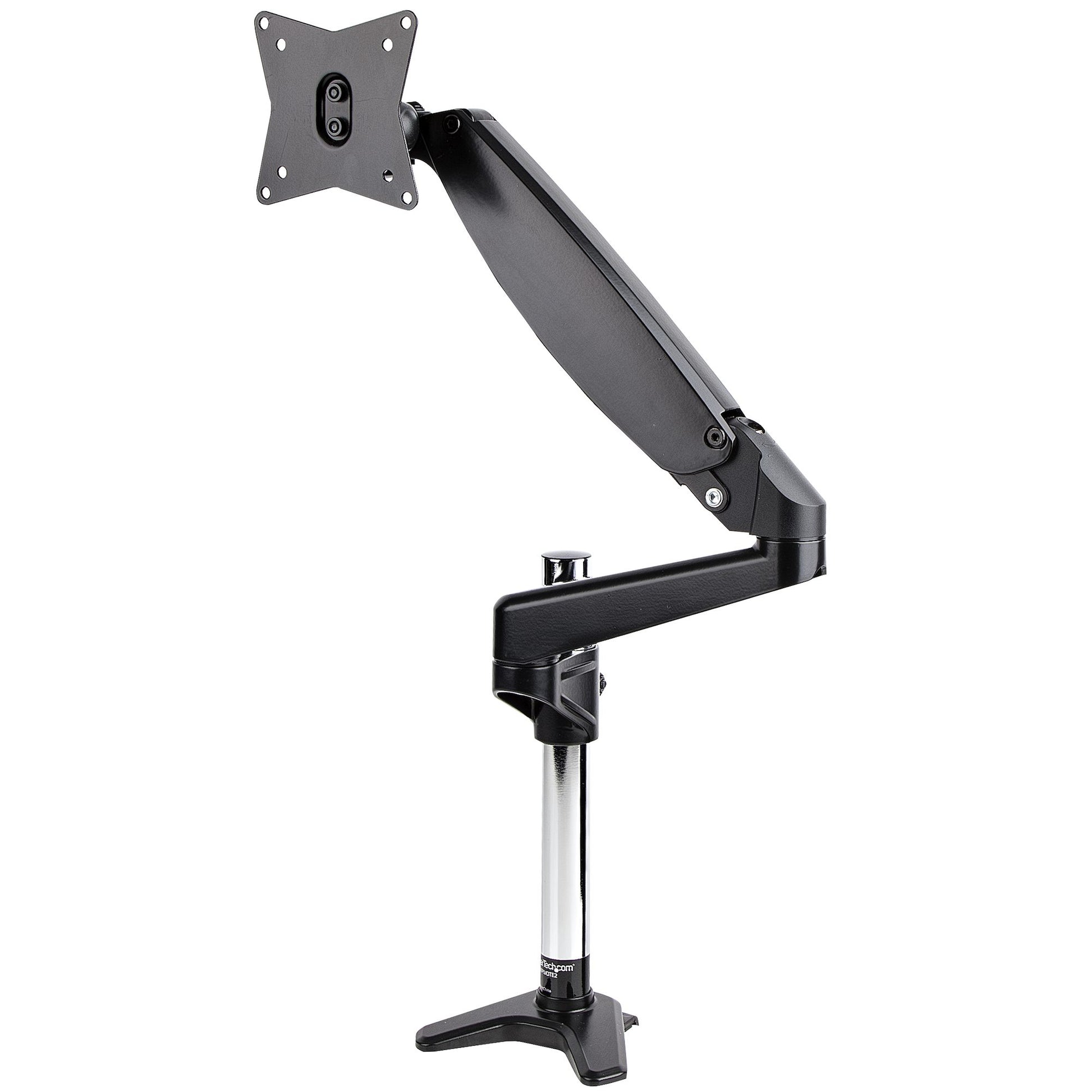

This desk mount monitor arm enables you to mount and raise a monitor with a maximum screen size of 32" (16:9) or 49" (32:9) ultrawide. Its solid steel construction allows this monitor arm to support up to 17.6lb (8kg) with two mounting options (C-Clamp or Grommet mount) to securely attach your monitor to your desk.

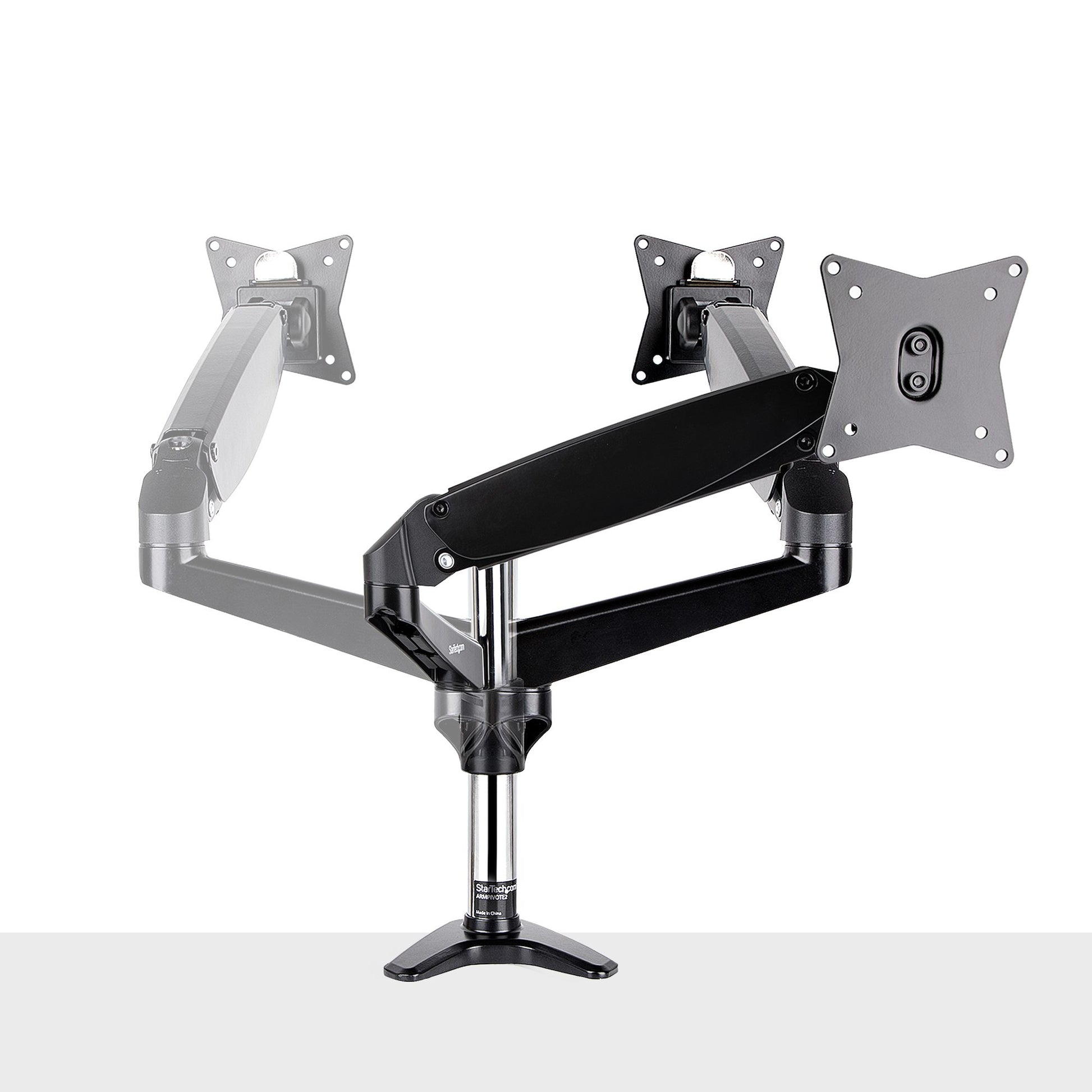

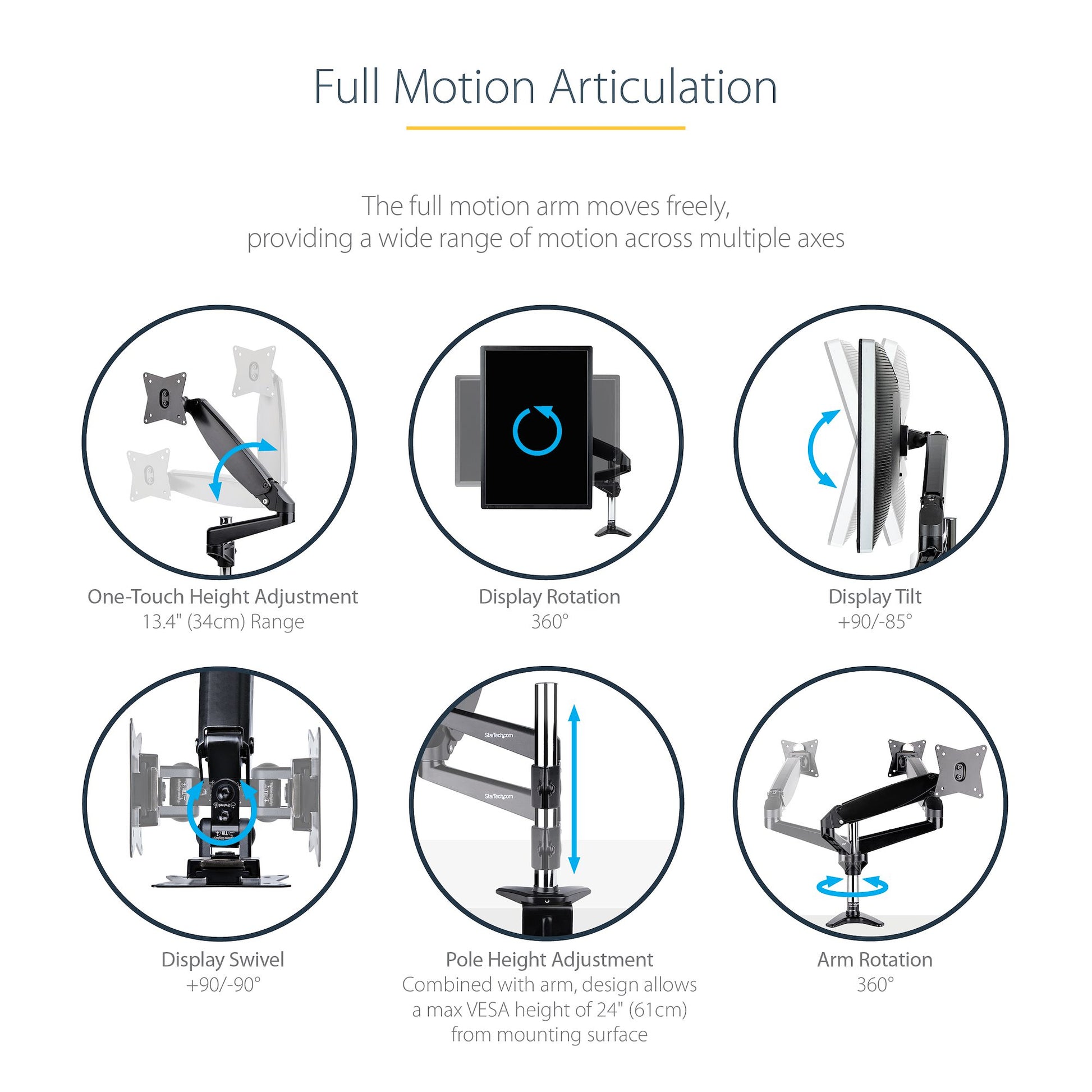

Full Motion Articulation

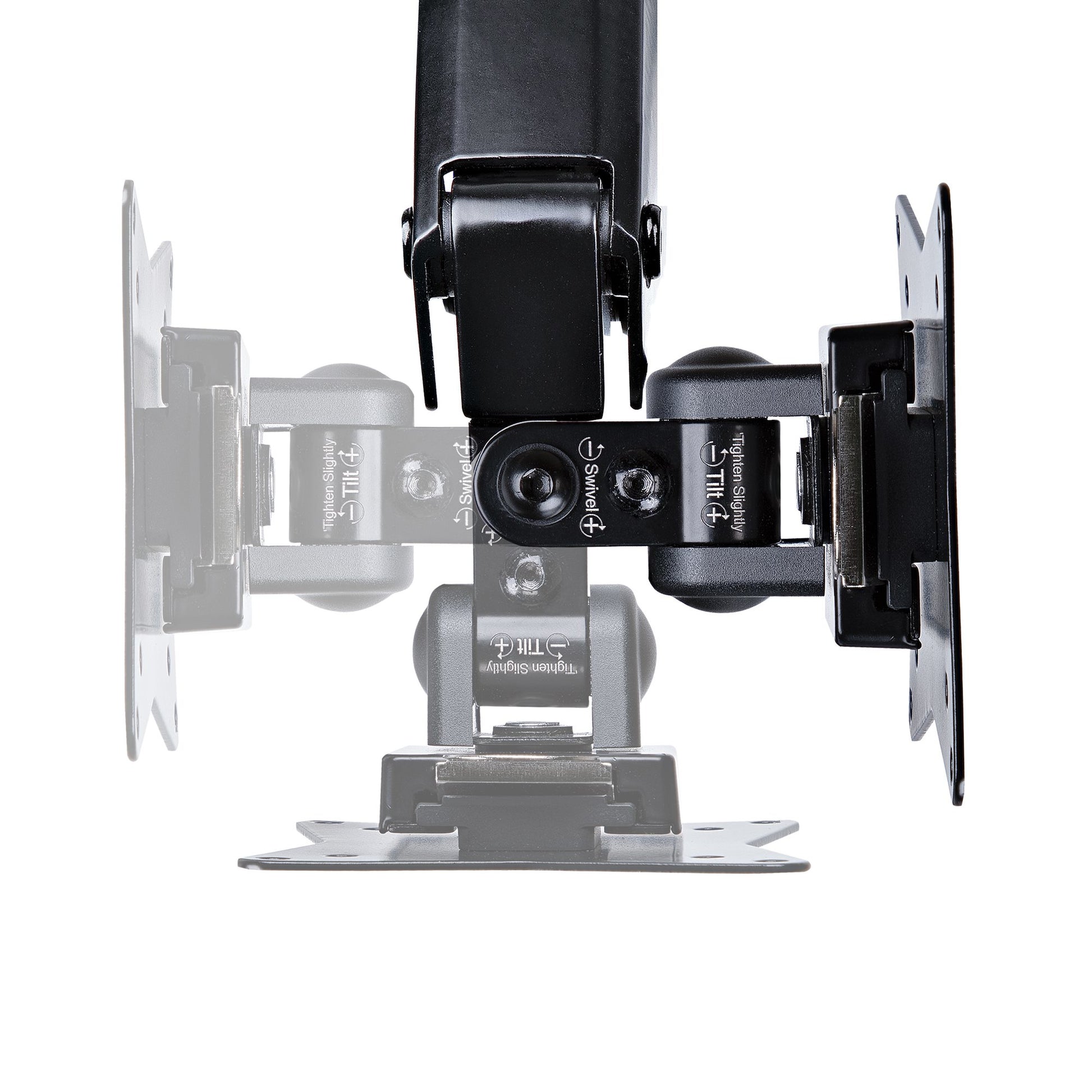

Setup an ergonomic work environment and reclaim valuable workspace on your desk. The adjustable monitor mount lets you extend the arm a full 23.2" (590mm) from the pole. The full motion arm moves freely provides a wide range of motion across multiple axes. You can tilt the monitor +90/-85 degrees, swivel +90/-90 degrees, and even rotate 360 degrees, to find the ideal viewing angle. Switch back and forth from landscape to portrait orientation at any time. Featuring spring-assisted height adjustment, the display mount lets you raise or lower your monitor up to 13.4" (341mm) with smooth, and effortless positioning by hand. Additional adjustments with the included tools allow you to raise the monitor arm along the pole for a maximum height of 24" (610 mm) from the mounting surface.

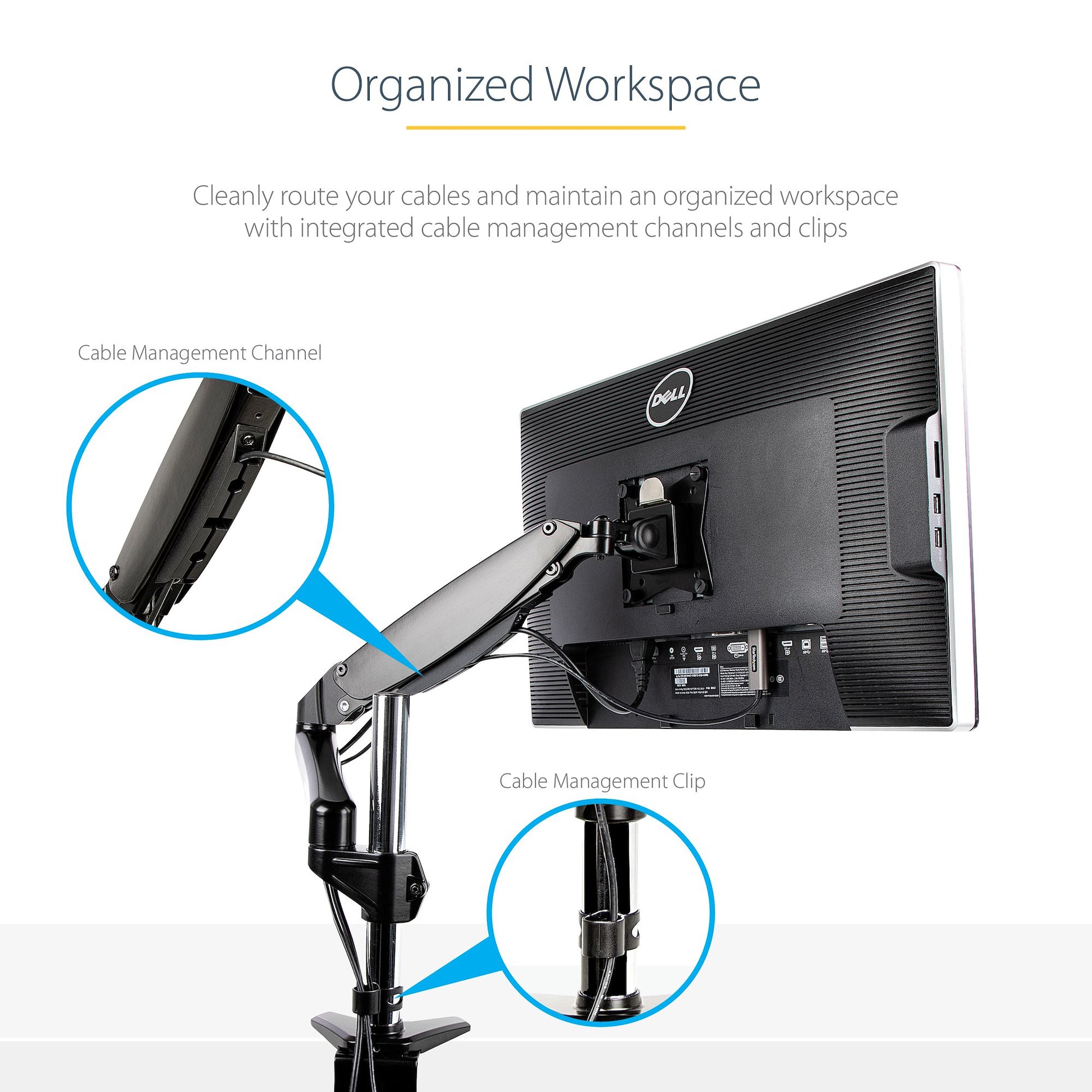

Organized Workspace

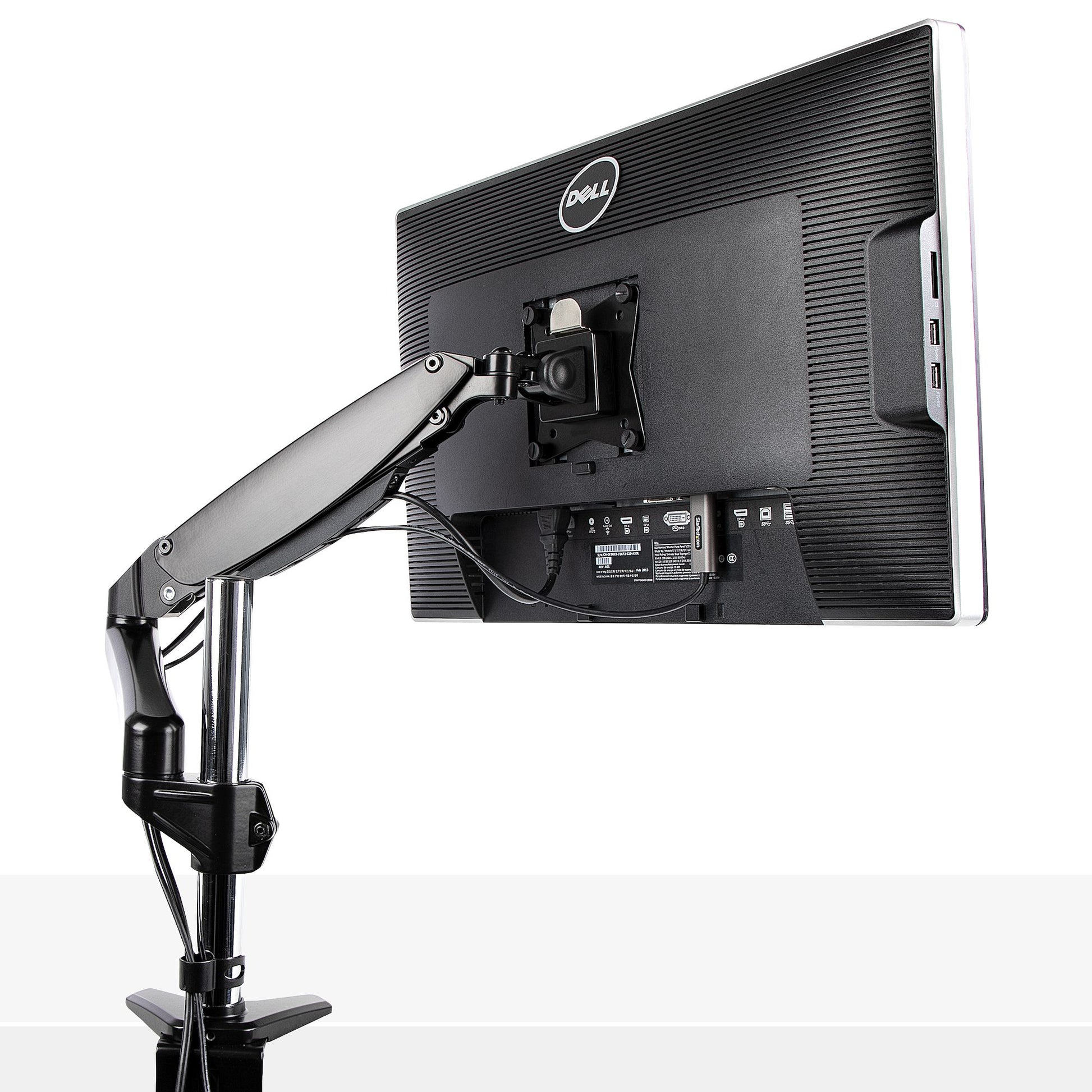

This single desk monitor arm enables you to free up space by letting you mount your monitor to your desk, table, or countertop. In addition, it features integrated cable management channels along the arm, and cable management clips to route your cables and maintain an organized and professional look on your workstation.

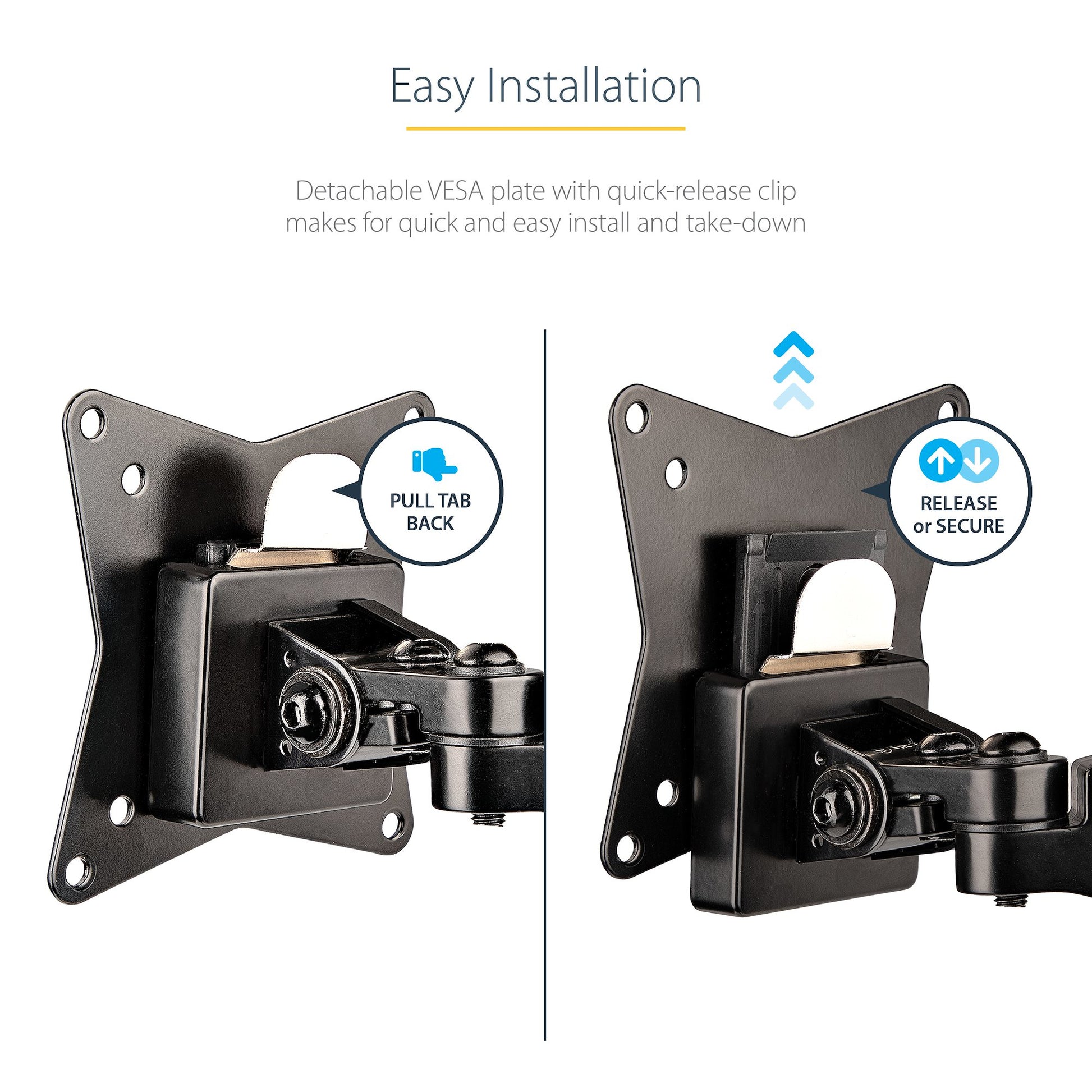

Easy Installation

With the detachable VESA plates with quick-release clips, you can mount your display to the mount with ease. Either clamp the mount to the side of a desk up to 85mm thick, table or mount it through a grommet hole on desks up to 70mm thick.

Specifications

Mounting
Desk thickness (min)	0 mm
Desk thickness (max)	8.5 cm
Minimum screen size	81.3 cm (32")
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Maximum weight capacity	8 kg
Maximum screen size	124.5 cm (49")
Ergonomics
Cable management	Yes
Swivel angle range	-90 - 90°
Tilt angle range	-85 - 90°
Angle of rotation	360°
Design
Product colour	Black
Anti-theft function	No
Weight & dimensions
Width	290 mm
Depth	485 mm
Height	140 mm
Weight	4.2 kg
Package width	516 mm
Package depth	291 mm
Package height	151 mm
Package weight	4.2 kg
Packaging data
Wrench type	Hexagonal wrench
Screws included	Yes
Manual	Yes
Packaging content
Number of screws	11
Number of spacers included	4
Grommet plate included	Yes
VESA mount included	Yes
Number of cable clips	1
Logistics data
Master (outer) case width	534 mm
Master (outer) case length	305 mm
Master (outer) case height	317 mm
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	85299097
