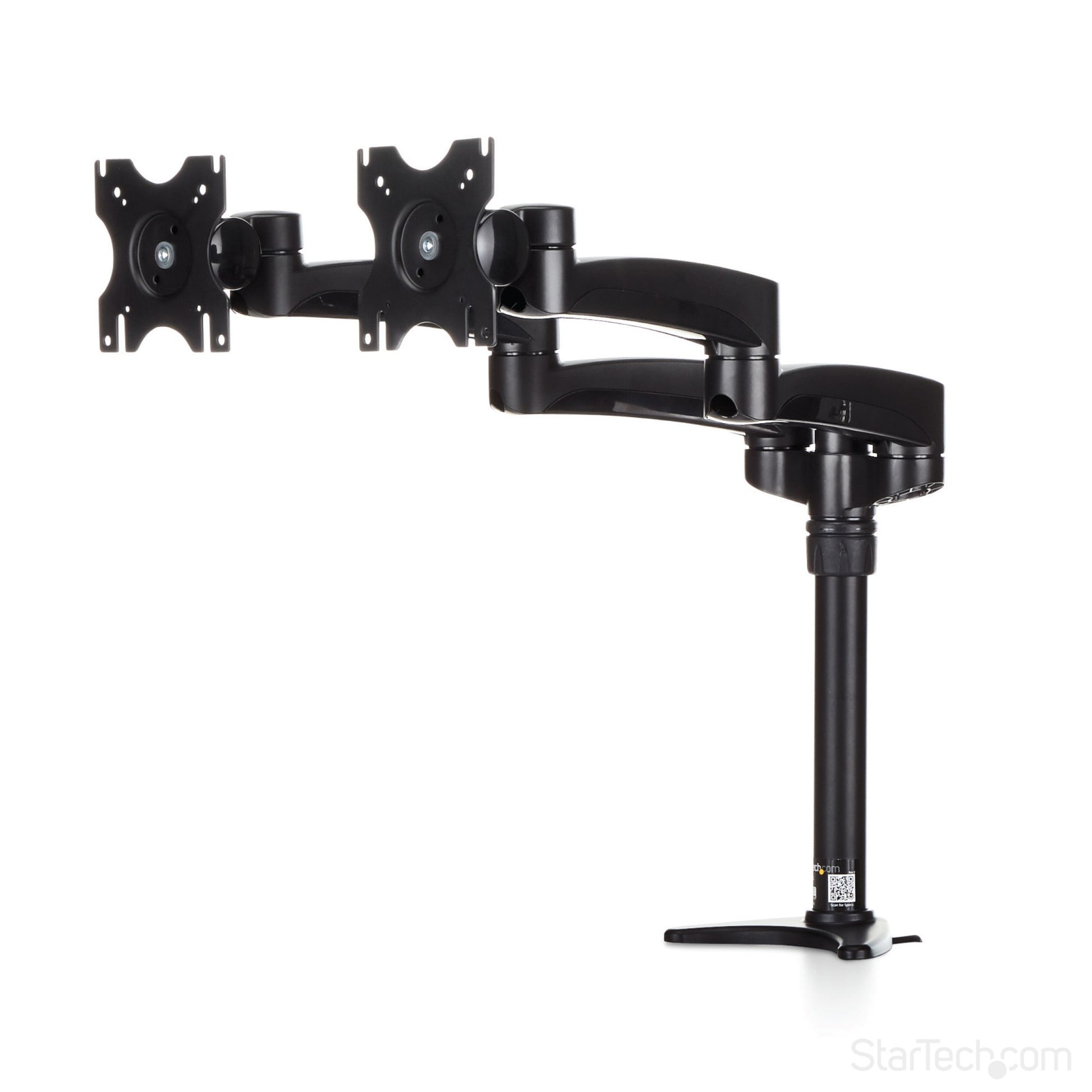

StarTech.com Desk-Mount Dual Monitor Arm - Articulating - For up to 24"

Position your screen exactly where you need it with the StarTech.com Desk-Mount Dual Monitor Arm — VESA fit and load ratings are below.

Monitor Mount | Desk/Grommet Mount | Height Adjustable | For 12” to 24” Monitors

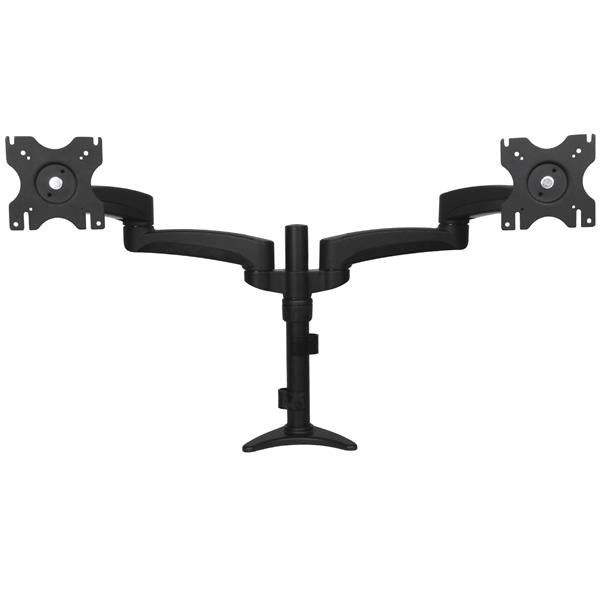

Enhance productivity while freeing up space. This desk mount dual monitor arm lets you mount two VESA (75x75, 100x100) displays to your desk or table, with extension, tilt, pan, swivel, pivot and height adjustments.

Wide Range of Motion for Optimum Viewing

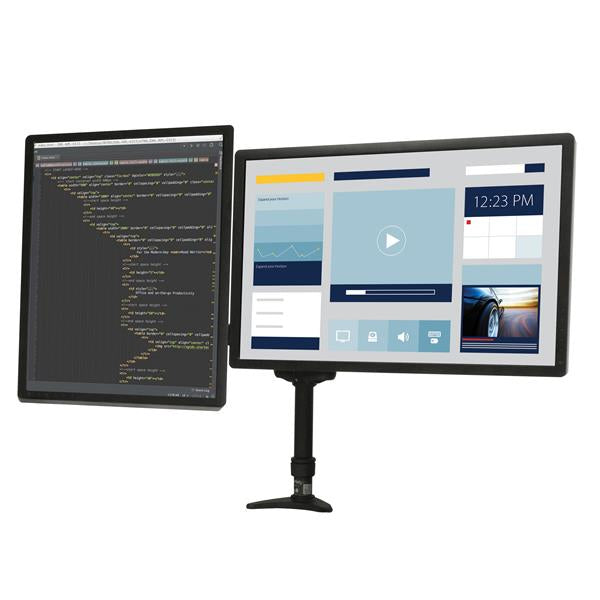

The dual articulating monitor arms offer a wide range of motion on several axes, giving you the freedom to place your displays side-by-side and adjust the viewing angle. Tilt your monitors +/-90 degrees and pan +/-90 degrees for ideal viewing. For viewing longer pages or blocks of code without scrolling, the dual monitor arm also supports landscape to portrait display rotation for either monitor.

Create a More Ergonomic Workspace

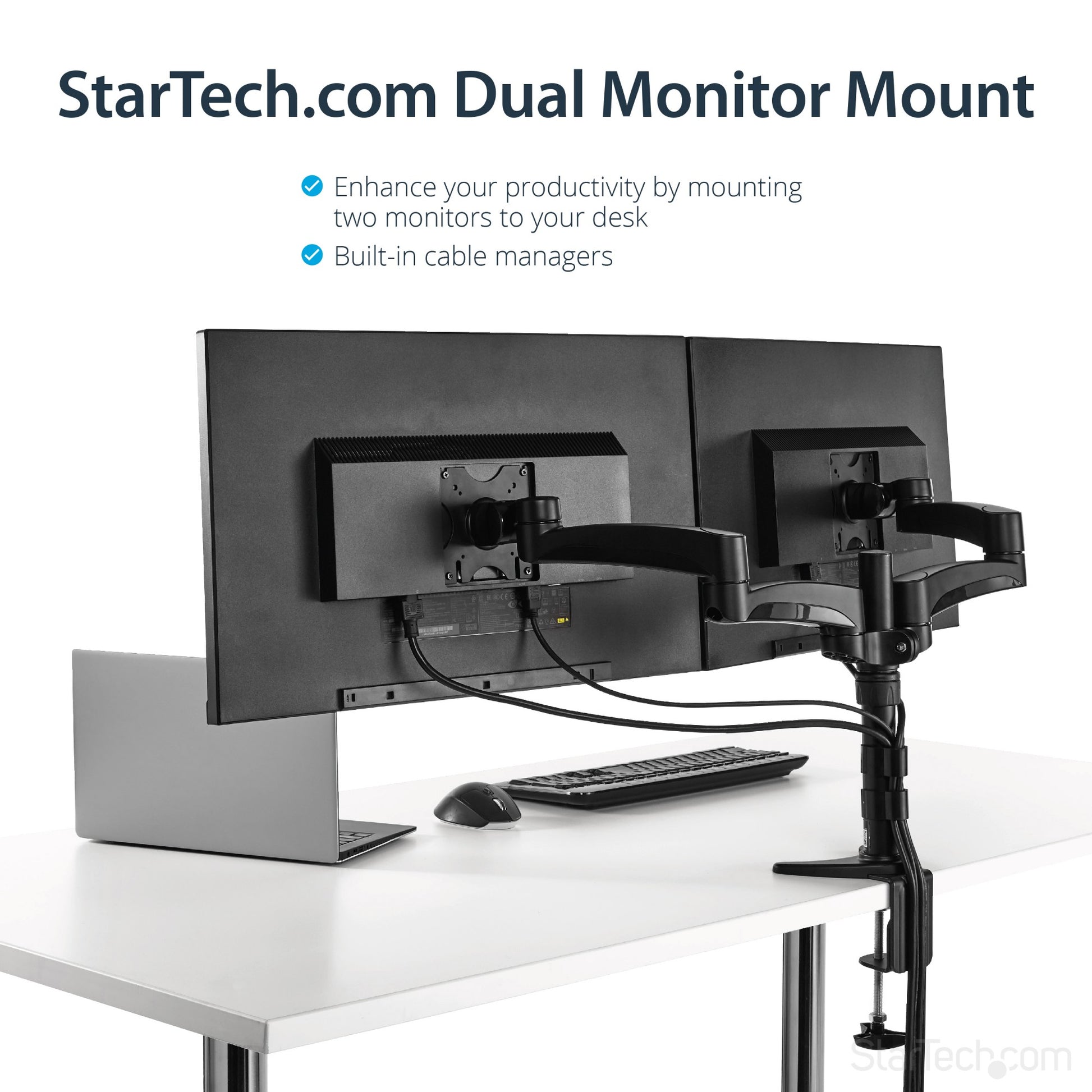

Mounting your displays on a dual monitor arm above the desk surface enables you to adjust your display height, position and viewing angles easily for an ergonomic work environment. Work in comfort, and reclaim valuable workspace on your desk or table.

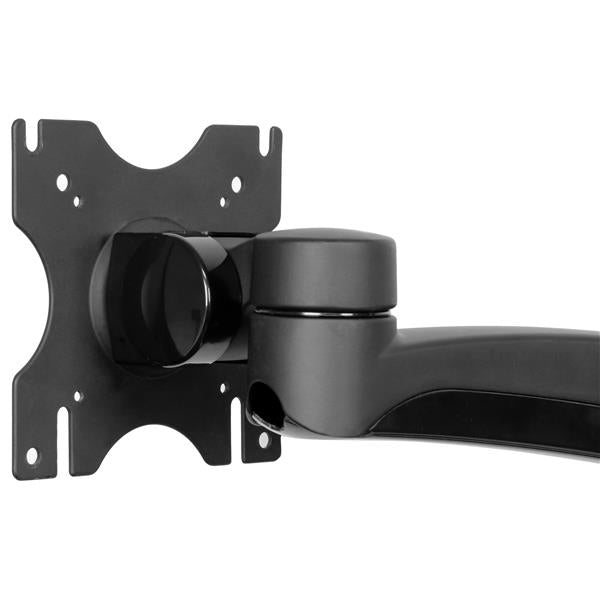

The dual monitor mount supports two VESA mount (75x75, 100x100) displays up to 24”, with a maximum weight capacity of 30lbs (13.6kg) per arm. The computer monitor mount holds your displays with ease, and integrates a cable management channel to keep things neat.

Flexible Mounting Options

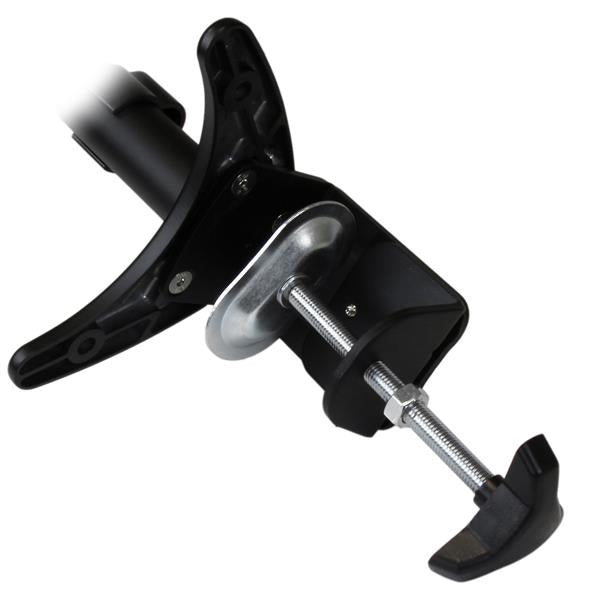

For added installation flexibility, the included mounting hardware can either clamp to the side of your desk / table or mount through a grommet hole, for a versatile dual-monitor mounting solution.

ARMDUAL is backed by a StarTech.com 5-year warranty and free, lifetime technical support.

Specifications

Mounting
Desk thickness (min)	1 cm
Desk thickness (max)	7.5 cm
Minimum screen size	30.5 cm (12")
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Maximum weight capacity	13.6 kg
Maximum screen size	61 cm (24")
Ergonomics
Cable management	Yes
Height adjustment	Yes
Swivel angle	360°
Tilt angle range	-90 - 90°
Angle of rotation	360°
Pan range	-90 - 90°
Design
Product colour	Black
Housing material	Plastic, Steel
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	834 mm
Depth	75 mm
Height	327 mm
Weight	4 kg
Package width	586 mm
Package depth	321 mm
Package height	176 mm
Package weight	4.89 kg
Packaging data

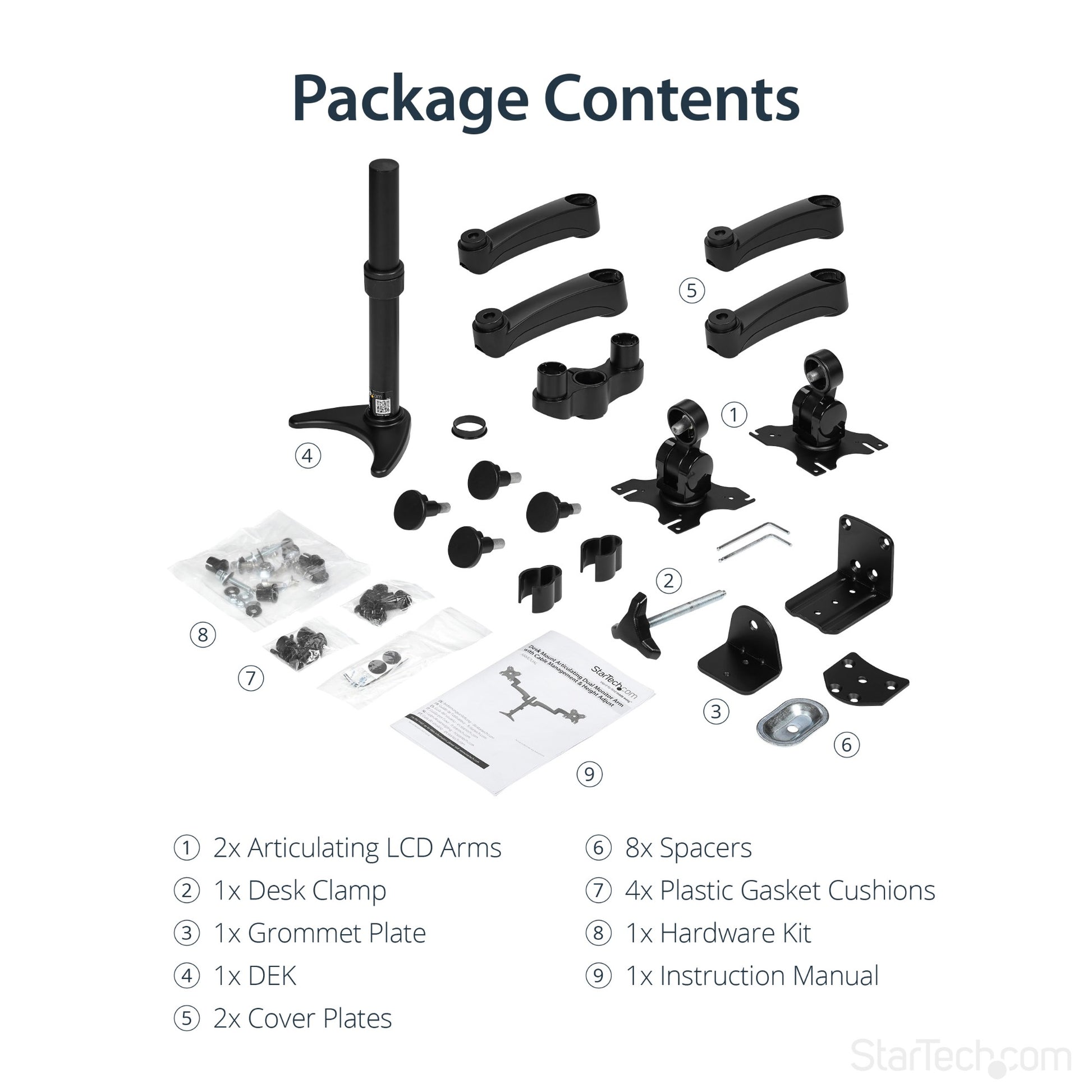

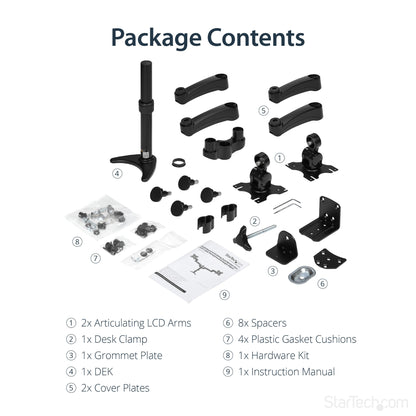

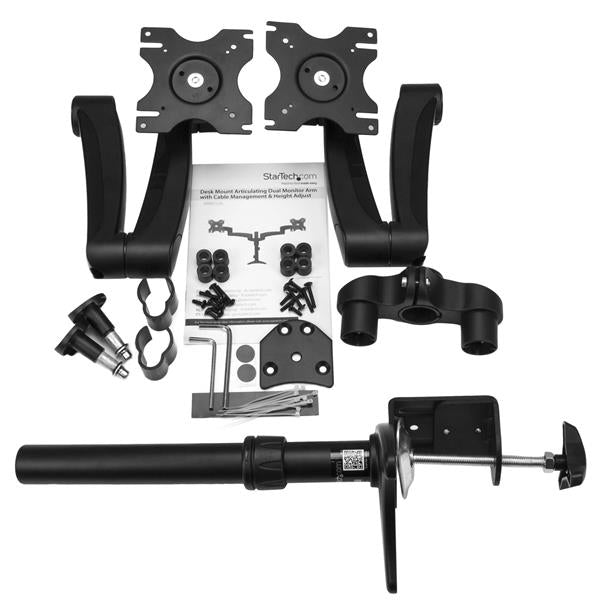

Screws included	Yes
Clamp included	Yes
Wrench included	Yes
Manual	Yes
Packaging content
Number of screws	18
Number of washers included	2
Number of spacers included	8
Number of cable clips	2
Logistics data
Harmonized System (HS) code	85299097
