StarTech.com Cisco SFP-10G-SR Compatible SFP+ Module - 10GBASE-SR - 10GbE Multimode Fiber MMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM Cisco Firepower, ASR9000, C9300 Networking

The StarTech.com Cisco SFP-10G-SR Compatible SFP+ Module - 10GBASE-SR - 10GbE Multimode Fiber MMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM Cisco Firepower, ASR9000, C9300 is a dependable addition to any modern network installation.

10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

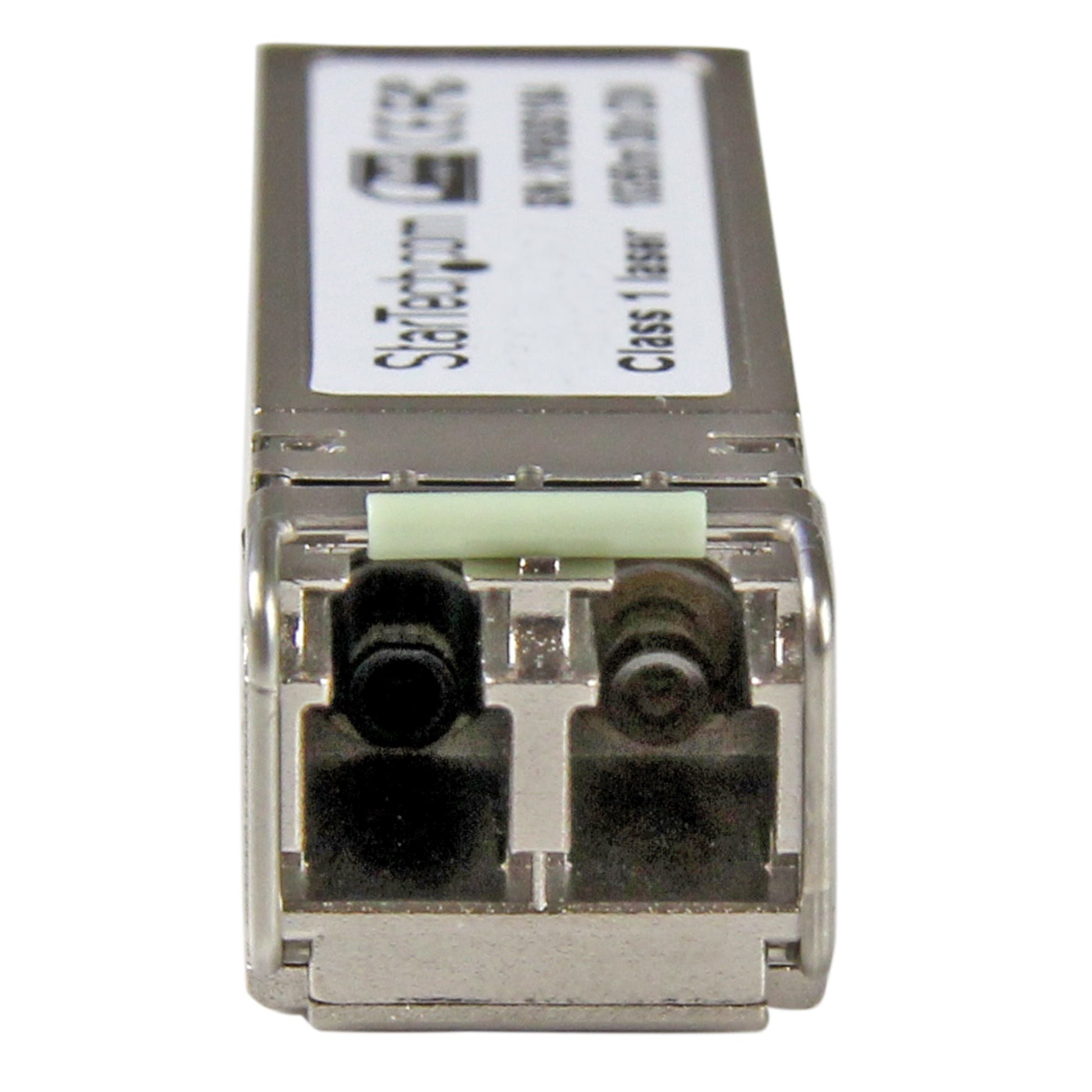

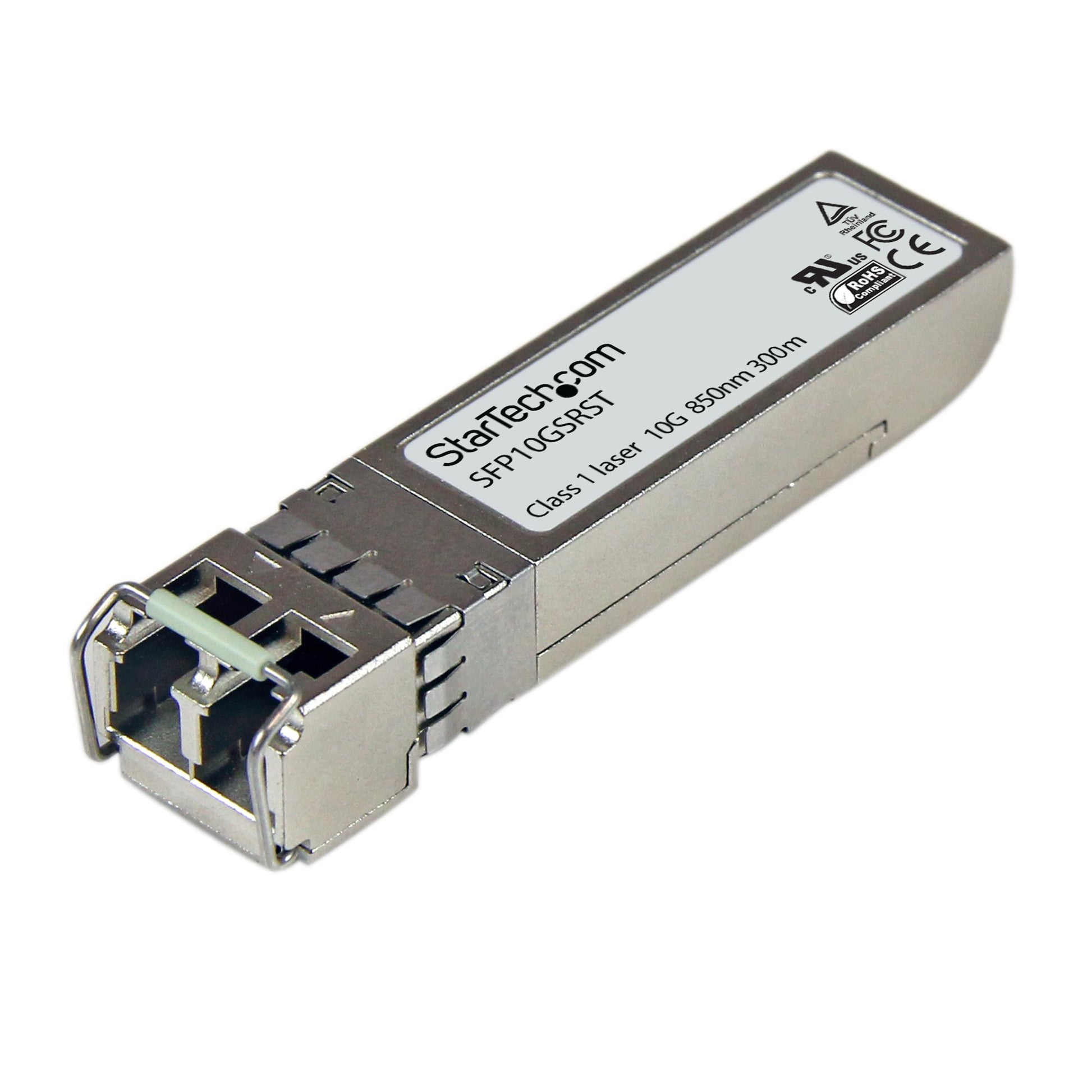

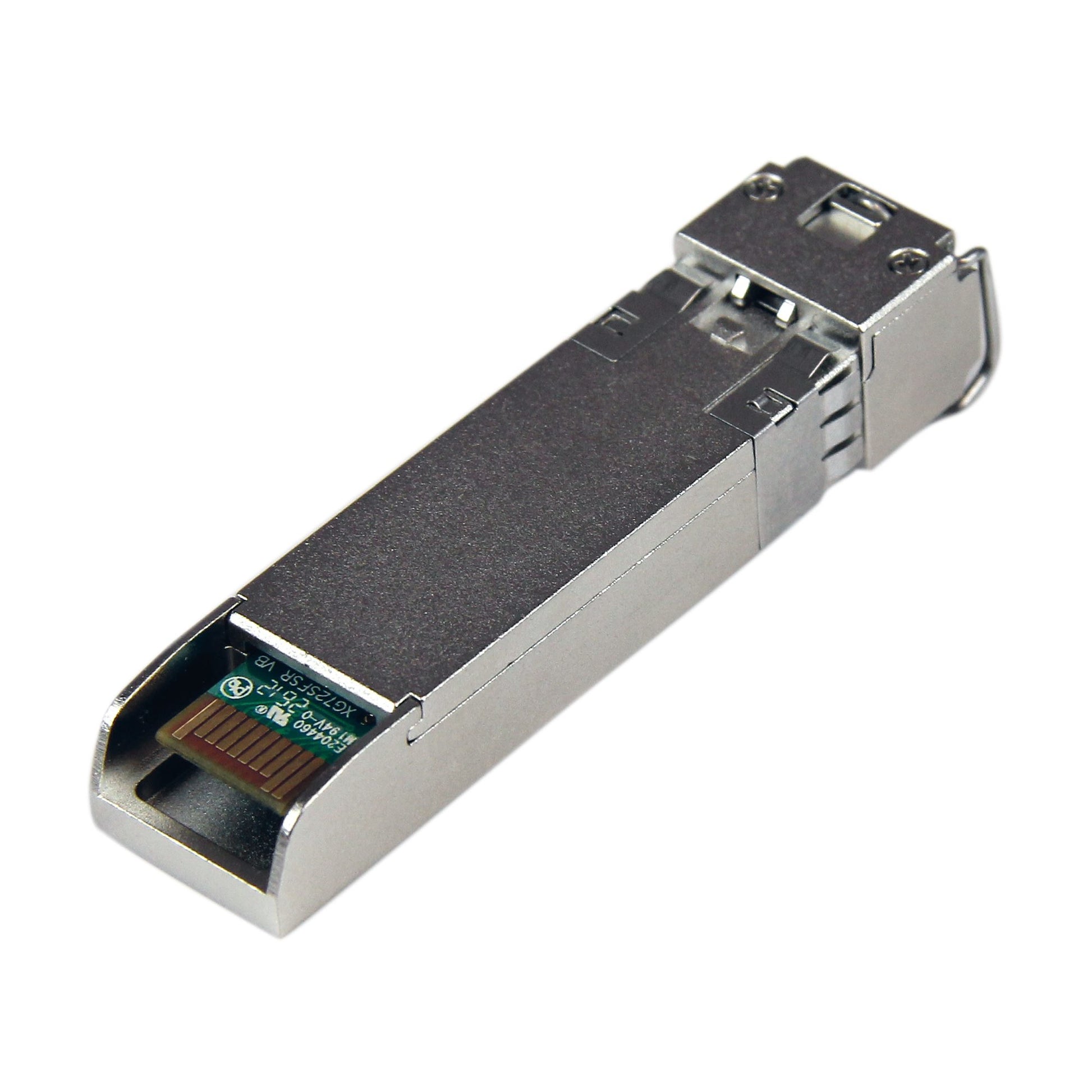

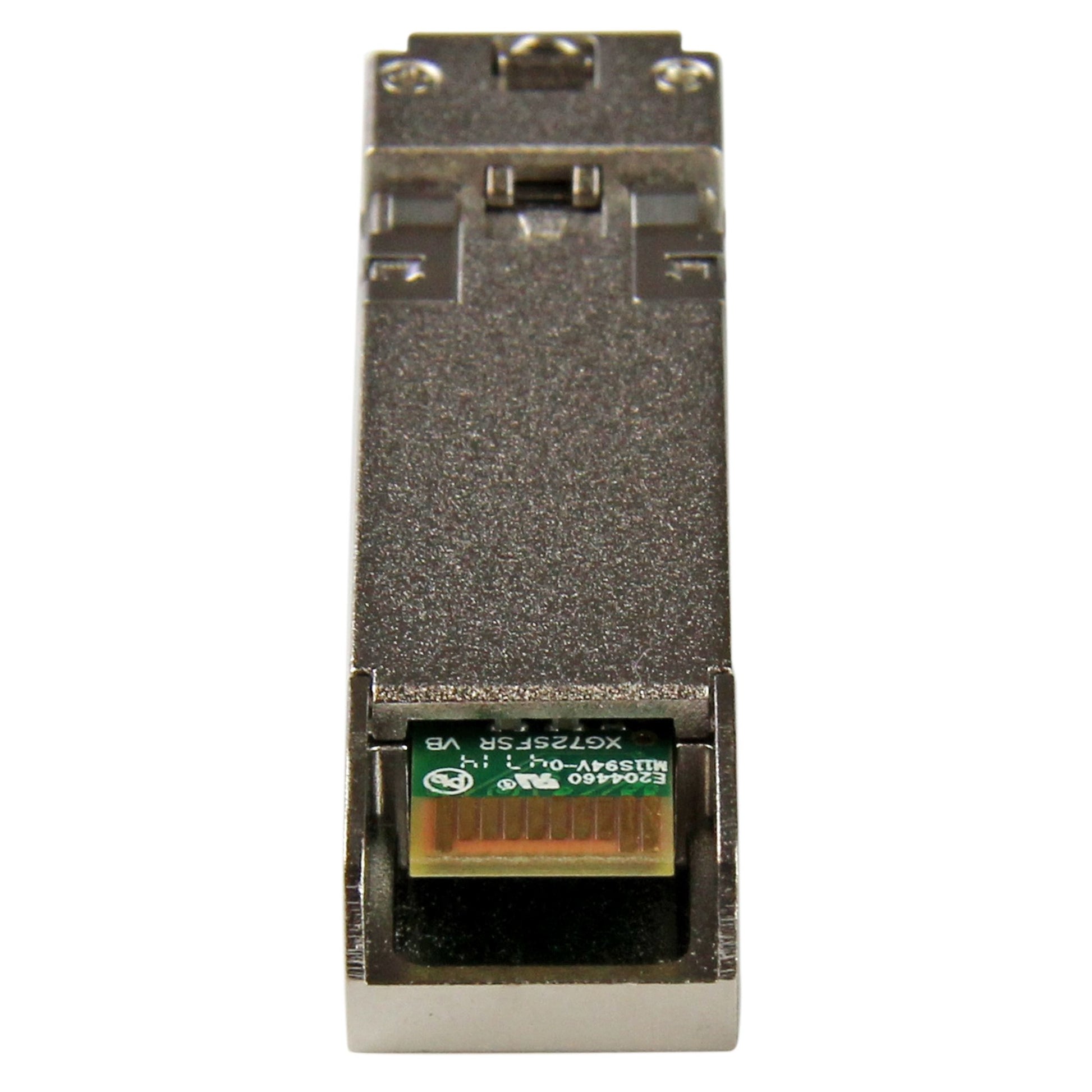

The SFP10GSRST is a Cisco SFP-10G-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft.).

Technical Specifications:

• Wavelength: 850 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft.)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Fiber optic
Wavelength-division multiplexing (WDM)	No
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum transfer distance	300 m
Wavelength	850 nm
Duplex system	Full, Half
Maximum data transfer rate	11100 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	1967709 h
Brand compatibility	Cisco
Harmonized System (HS) code	85369010
Features
Certification	CE, FCC, UL, REACH
Power
Power consumption (typical)	1.2 W
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	30 - 70%
Weight & dimensions
Width	12 mm
Depth	60 mm
Height	10 mm
Weight	22 g
Package depth	113 mm
Package width	91 mm
Package height	33 mm
Package weight	51 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	338 mm
Master (outer) case length	428 mm
Master (outer) case height	354 mm
Products per master (outer) case	108 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
