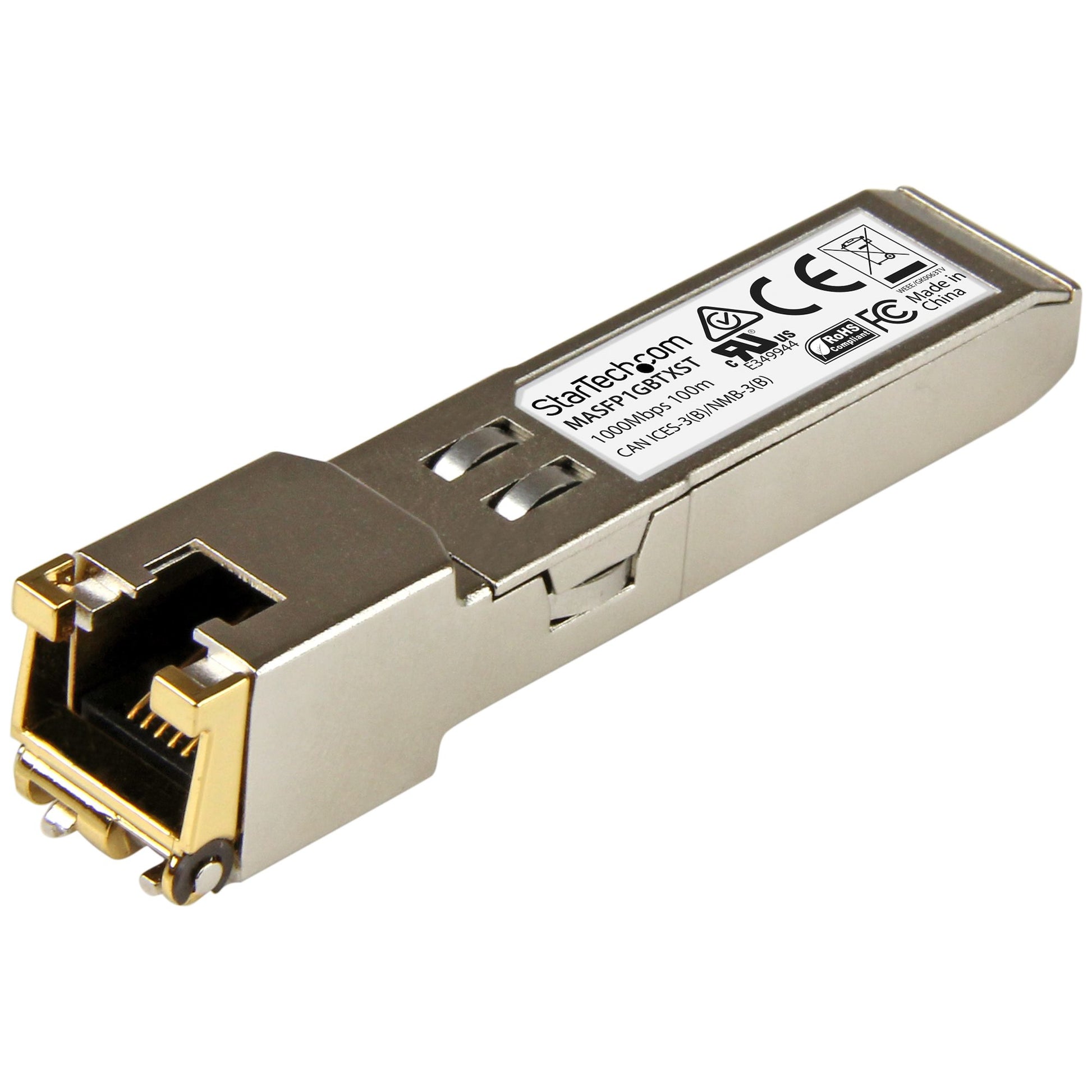

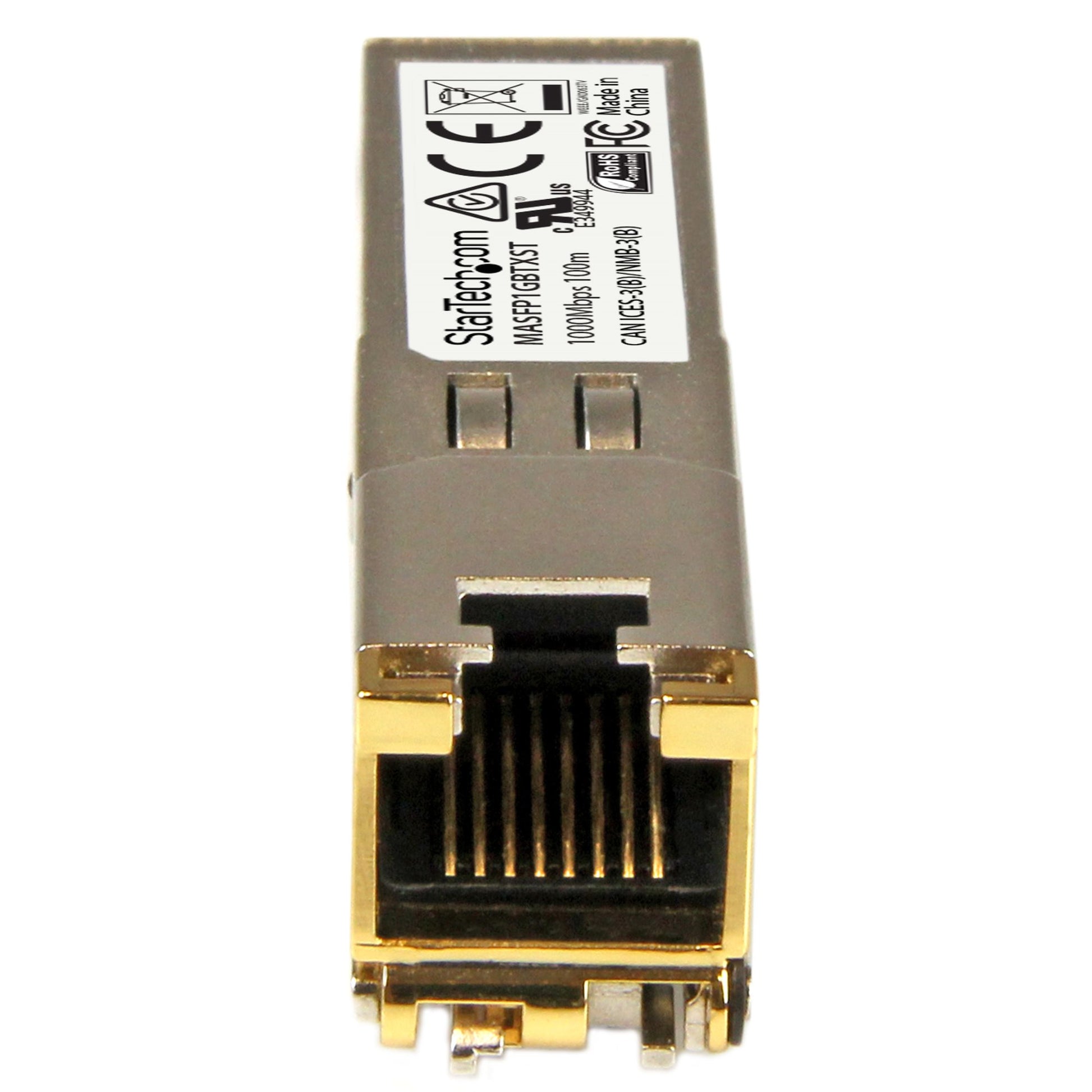

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250 Networking

The StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250 is a dependable addition to any modern network installation.

10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Copper
Ethernet LAN	Yes
Digital Diagnostics Monitoring (DDM)	No
Auto-negotiation	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X	Yes
Ethernet LAN (RJ-45) ports	1
Maximum transfer distance	100 m
Duplex system	Full
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
SFP transceiver standard	TX
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Yes
Mean time between failures (MTBF)	4655371 h
Harmonized System (HS) code	85369010
Power
Power consumption (typical)	1.3 W
Certificates
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	18 mm
Depth	68 mm
Height	13.8 mm
Weight	21 g
Package depth	114 mm
Package width	93 mm
Package height	33 mm
Package weight	51 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	349 mm
Master (outer) case length	431 mm
Master (outer) case height	358 mm
Products per master (outer) case	120 pc(s)
