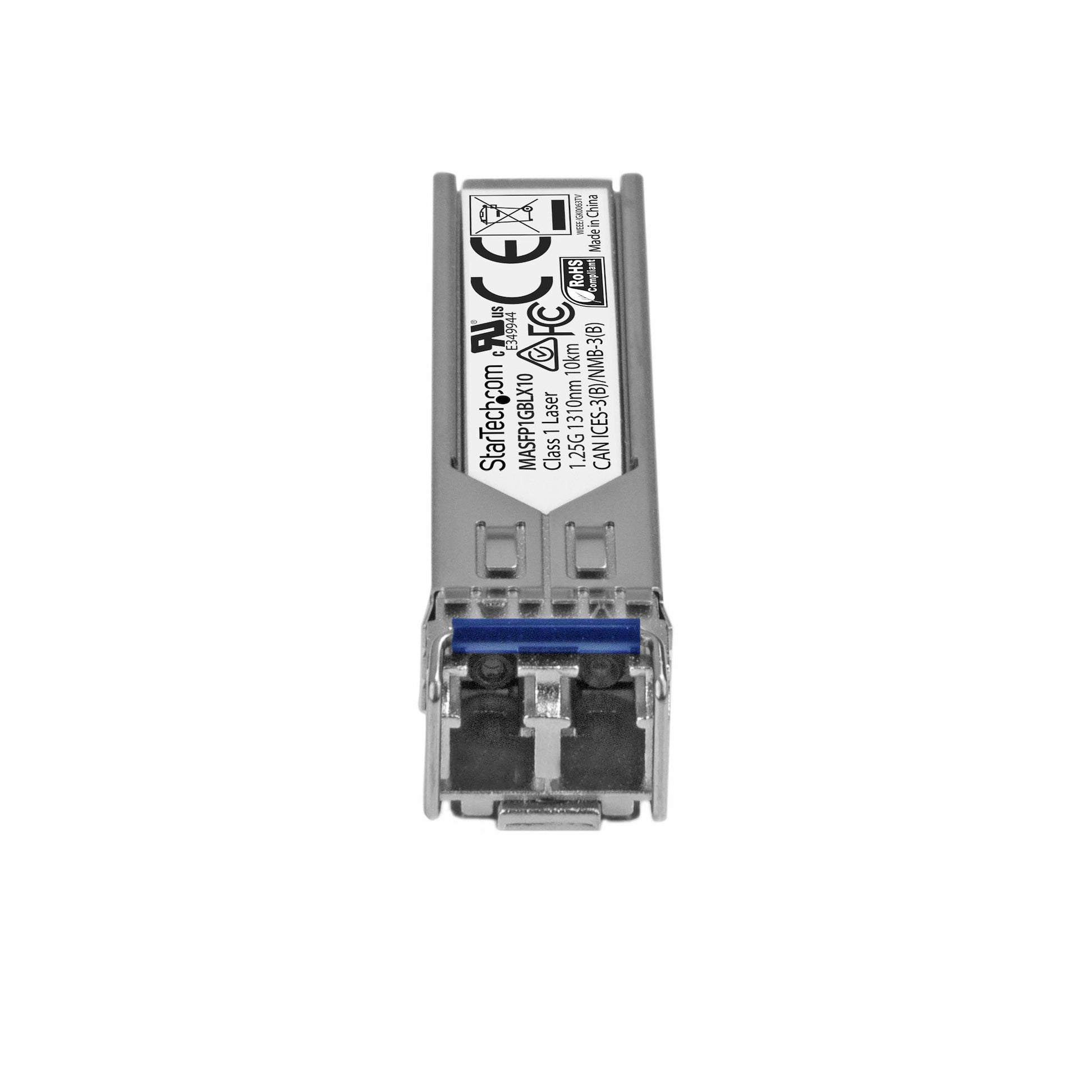

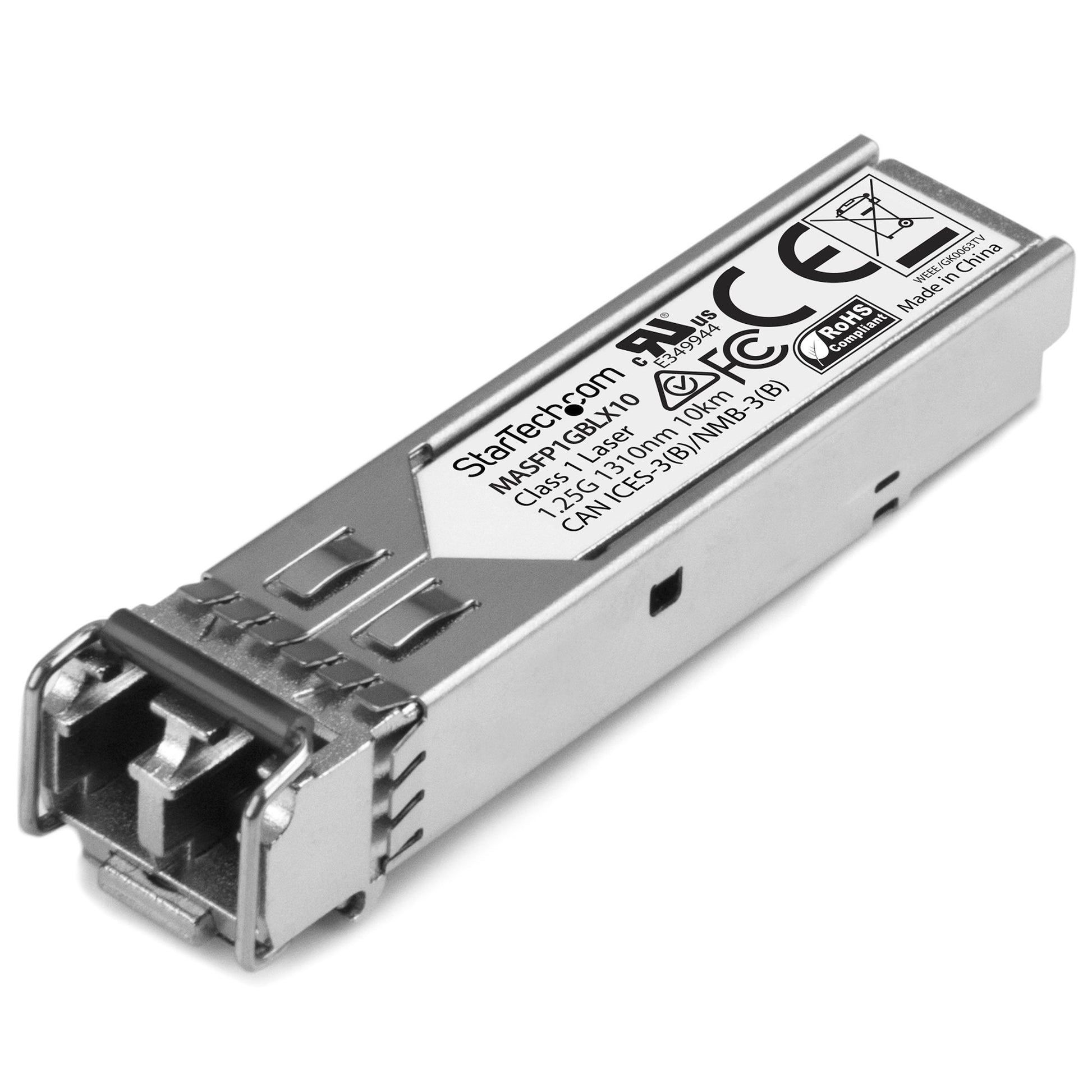

StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cisco Meraki MS225, MX400, MS250 Networking

The StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cisco Meraki MS225, MX400, MS250 is a dependable addition to any modern network installation.

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LX
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	3092408 h
Harmonized System (HS) code	85369010
Features
Certification	CE, FCC, UR
Power
Power consumption (typical)	1 W
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	13.7 mm
Depth	56.6 mm
Height	12.5 mm
Weight	20 g
Package depth	113 mm
Package width	92 mm
Package height	33 mm
Package weight	46 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	342 mm
Master (outer) case length	432 mm
Master (outer) case height	352 mm
Products per master (outer) case	108 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
