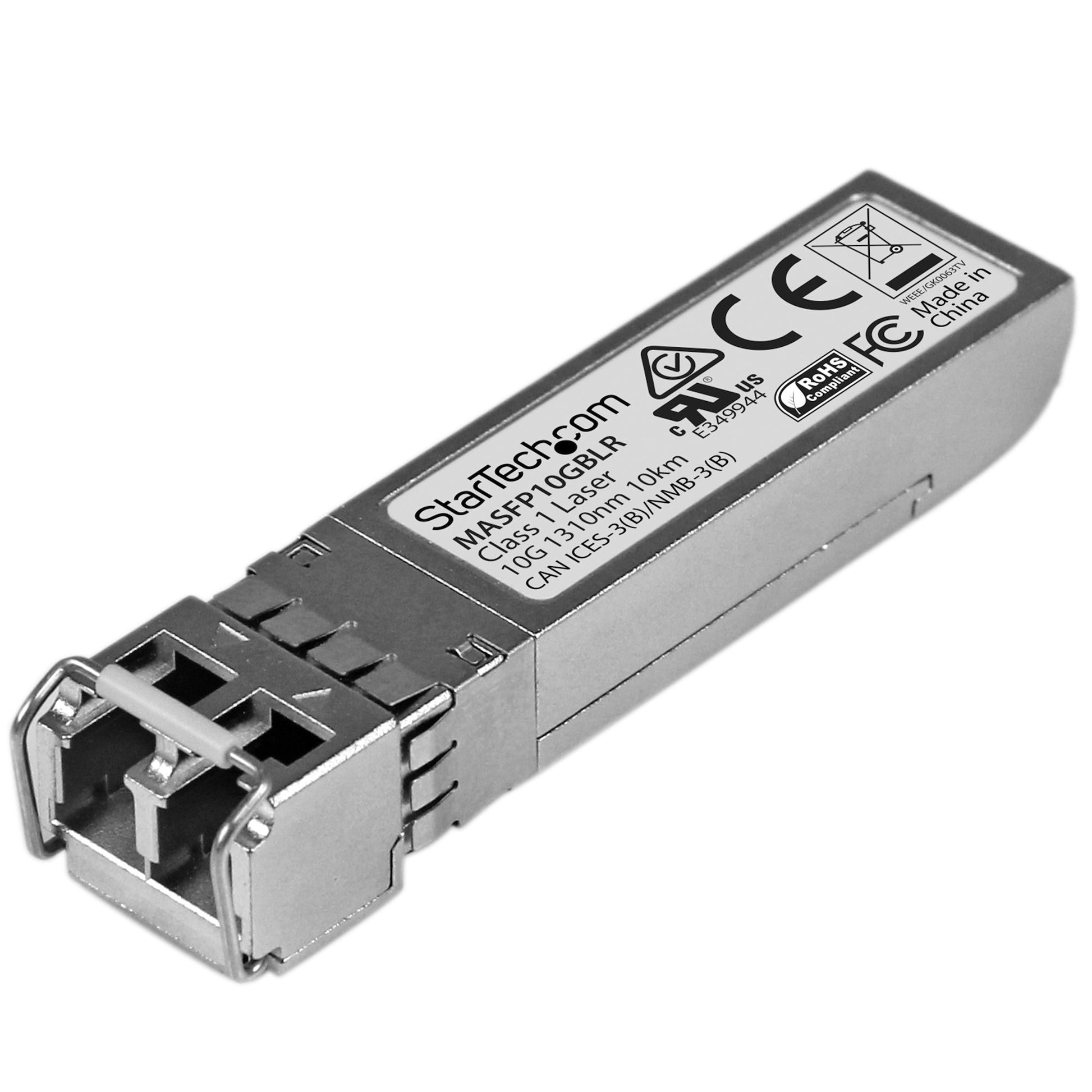

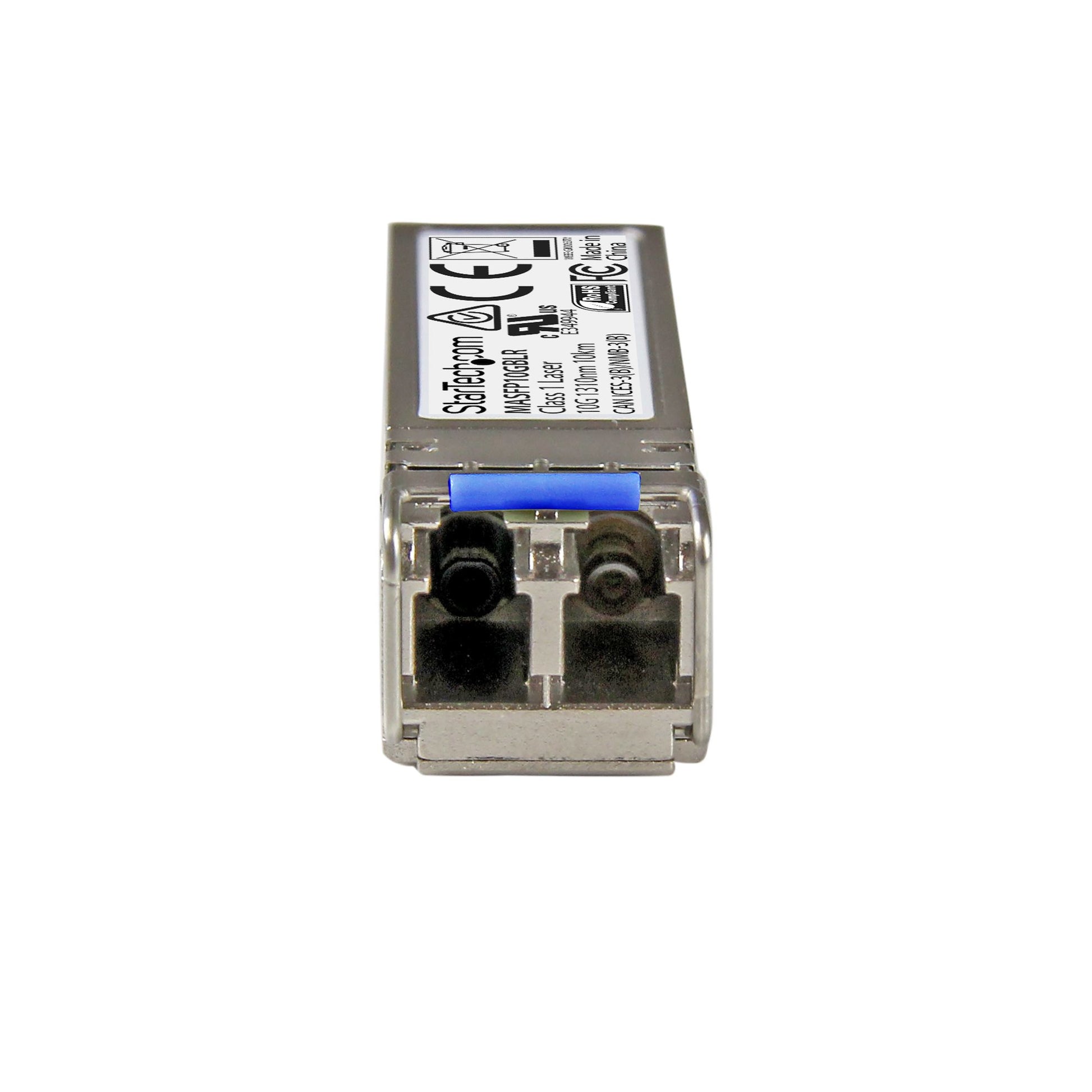

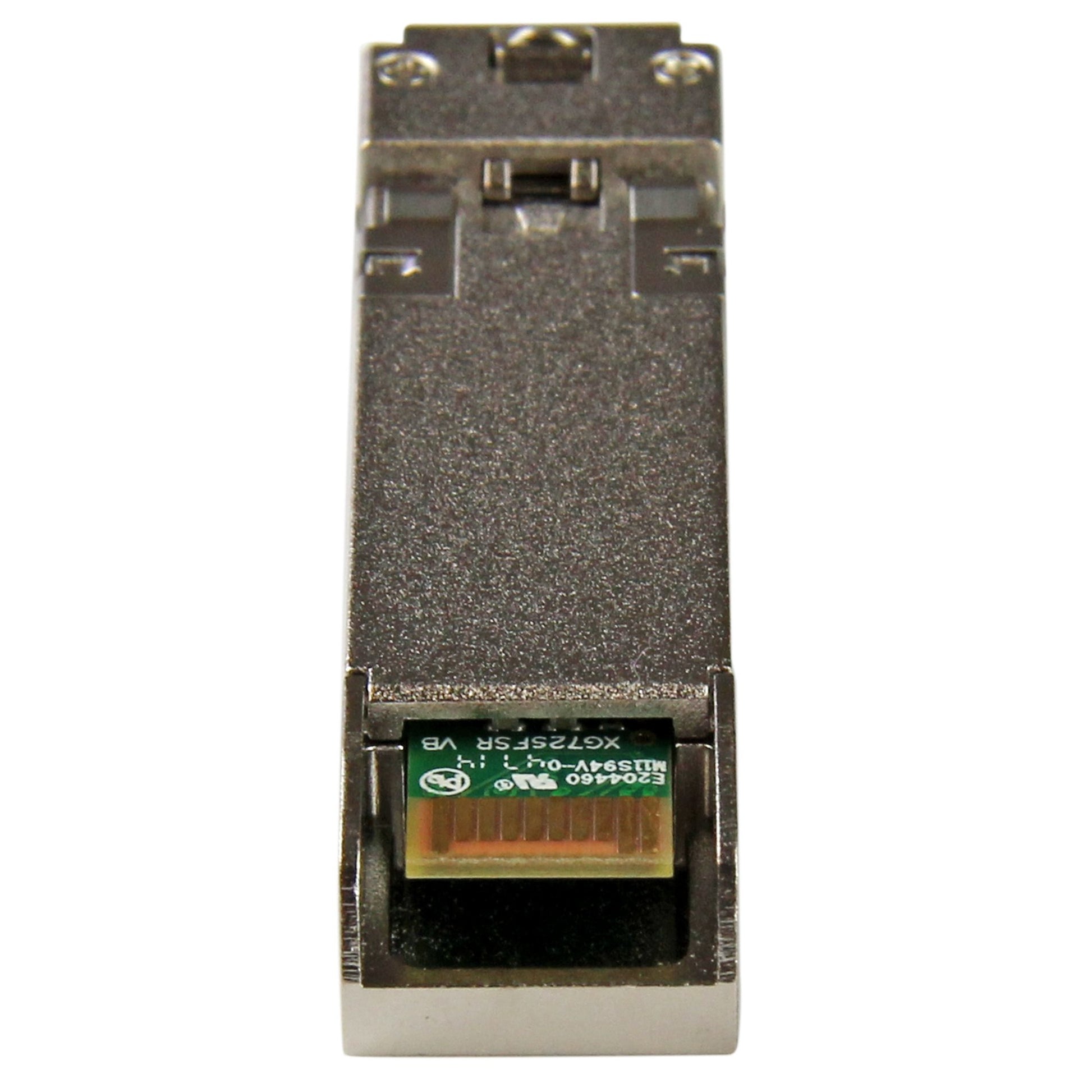

StarTech.com Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM Cisco Meraki MS225, MX400, MS250 Networking

The StarTech.com Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM Cisco Meraki MS225, MX400, MS250 is a dependable addition to any modern network installation.

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LR
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	2104865 h
Harmonized System (HS) code	85369010
Power
Power consumption (typical)	1.2 W
Certificates
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	13.9 mm
Depth	58.4 mm
Height	12.6 mm
Weight	22 g
Package depth	114 mm
Package width	92 mm
Package height	33 mm
Package weight	53 g
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	300 mm
Master (outer) case height	200 mm
Products per master (outer) case	3 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
